Allura® Model 653

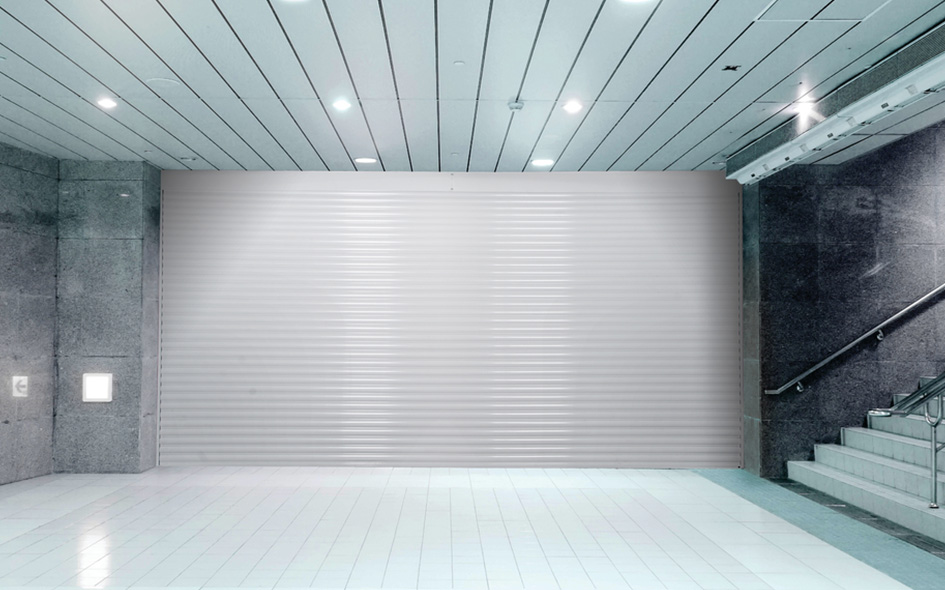

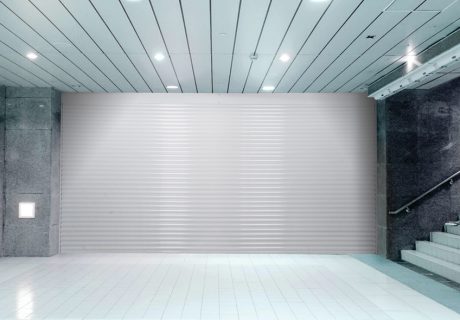

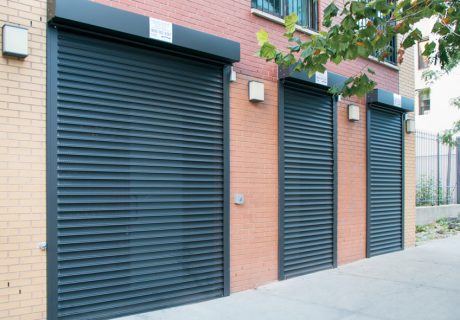

The ​Allura® Rolling Shutters are a next generation light-duty door solution that is versatile enough for specialty uses and has a space-saving design, making it perfect for installations with limited side room and headroom. Multiple perforation and fenestration options allow for many configurations with the right amount of light and air passage. Versatile and attractive, the Allura® shutter is perfect for security in high pedestrian traffic areas. Heavily visited areas such as retail stores, pharmacies and hospitals often need the security that a security shutter door offers as well as the flexibility in the aesthetic options to match the surrounding environment.

Ideal Applications Include

  • Public Facilities
  • Security
  • Healthcare

more Allura® Model 653 details

Overview

Construction

Product Specifications
Standard Max Width  20' (6096 mm)
Standard Max Height  14' (4267 mm)
Mounting Face-of-wall or between jambs mounting
Curtain Interlocking extruded .05" aluminum slats. Nickel plated, steel screws and end locks to retain curtain within guides and prevent lateral movement. Plastic roller retainers for curtains over 16' wide.
Finishes Silver powder coat to mimic look of clear anodized aluminum; Bronze powder coat to mimic look of bronze anodized, White or Almond powder coat
Counterbalance Assembly Steel barrel housing counterbalance spring assembly
Guides Extruded aluminum channels with continuous wear strips. Powder coated to match curtain
Fenestration/ perforation Open fenestration 1" x 1" uniformly spaced openings, full curtain, 24% open area;
Perforation full curtain, 22% open area;
Partial fenestration 1" x 1" uniformly spaced openings;
Partial perforation
Hood Aluminum two piece square hood powder coated to match curtain
Bottom Bar Aluminum compact bottom bar with vinyl bulb seal powder coated to match curtain
Brackets Steel plates powder coated to match curtain
Operation Manual push up
Locking Slide bolts (interior; coil side); left and right slides



∆ Maximum height and width are independent of each other and may vary based  on slat profile, material and gauge.



Warranty

  • Limited 2 year warranty for all parts, components and PowderGuard® Premium powder coat finish

Options

Color

Standard Powder Coat Finish

  • white color swatch

    White

  • shutter powder coat almond swatch

    Almond

  • shutter silver powder coat swatch

    Silver

  • bronze shutter powder coat swatch

    Bronze

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.​​​​​​​​​

Powder Coat Color Options

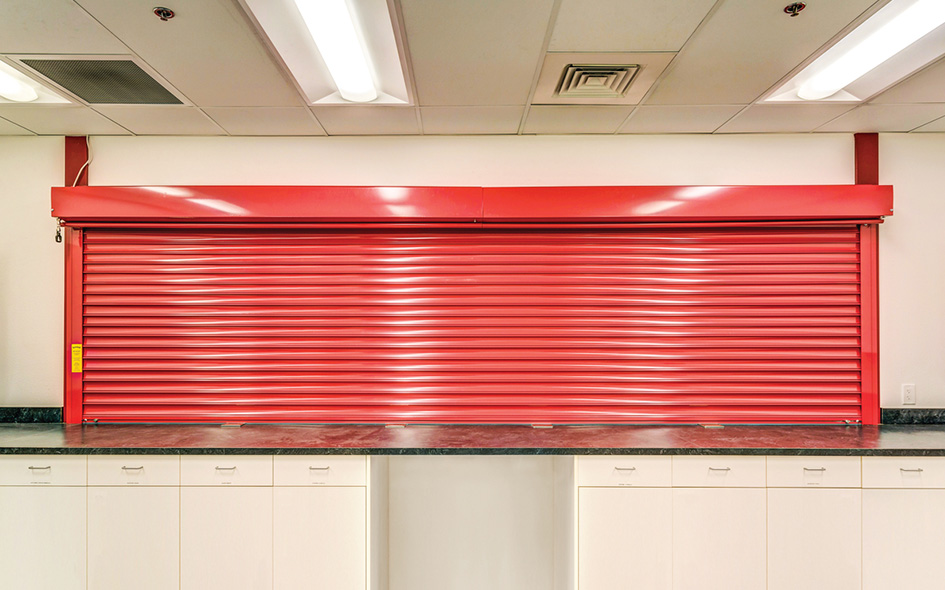

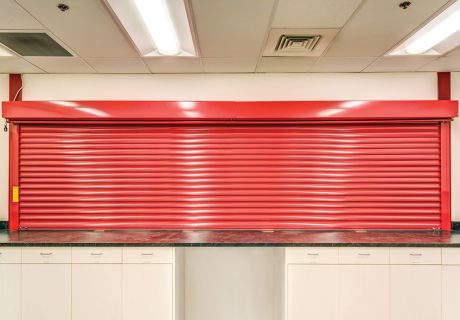

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors


Enhancements

  • Step angle bottom bar attachment
  • Interior crank or electric tube motor with crank for emergency egress manual override
  • Slide bolts (exterior; non-coil side) suitable for use with padlocks; left and right slides*
  • Cylinder lock*
  • PowderGuard® Premium powder coat in approximately 200 colors or custom colors per architect specifications

* Requires interlock with tube motor operation
