  • C.H.I. Ribbed Steel

back to Commercial Overhead Doors garage doors

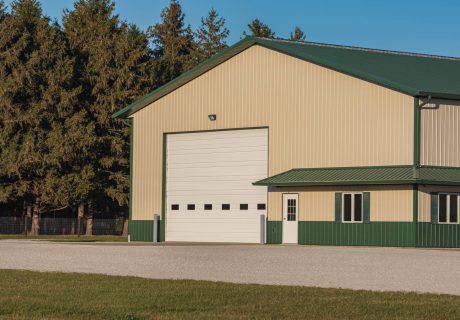

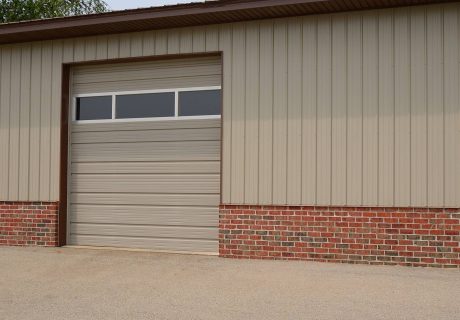

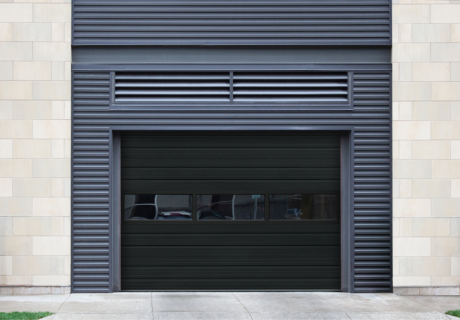

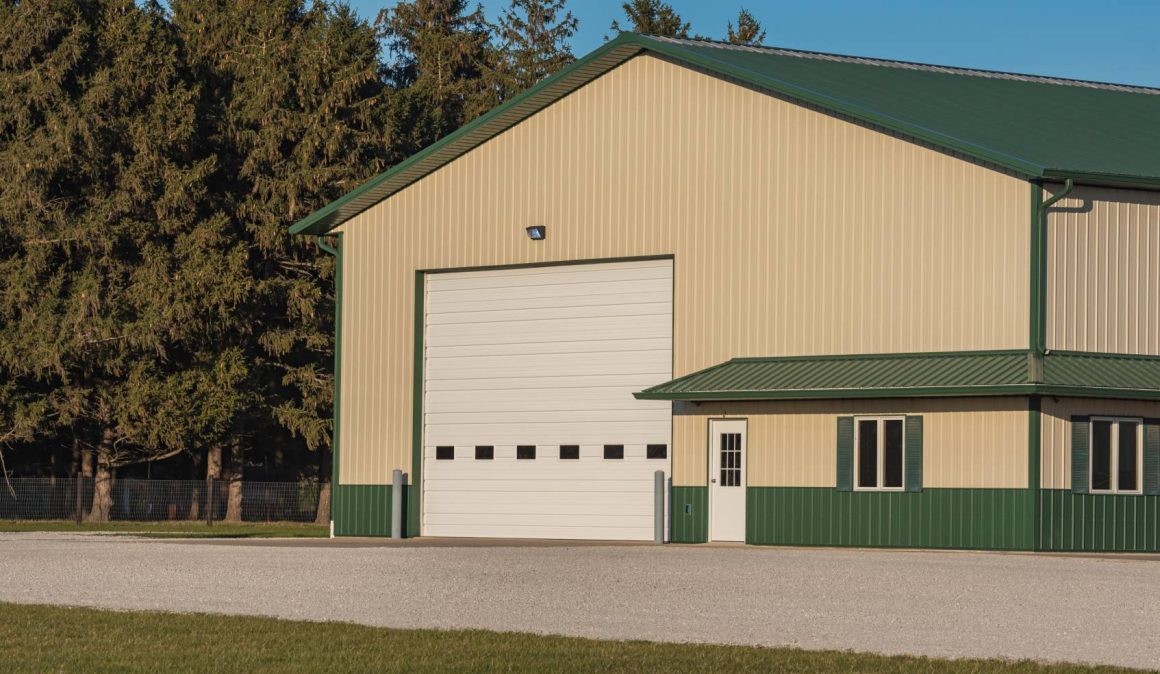

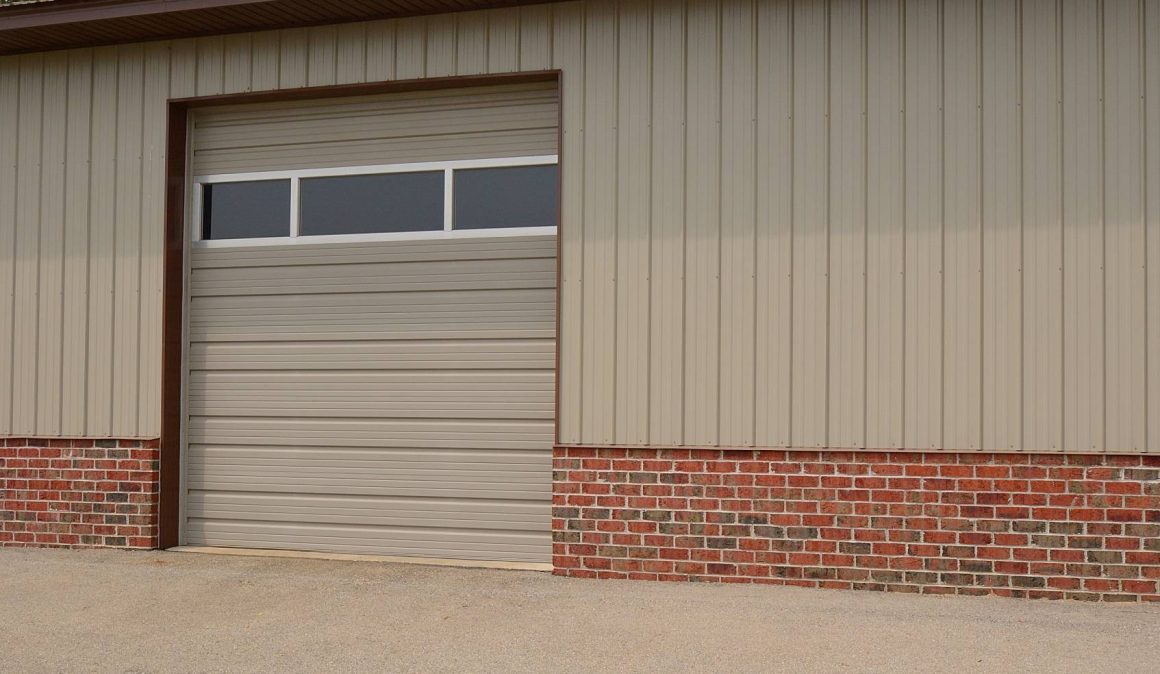

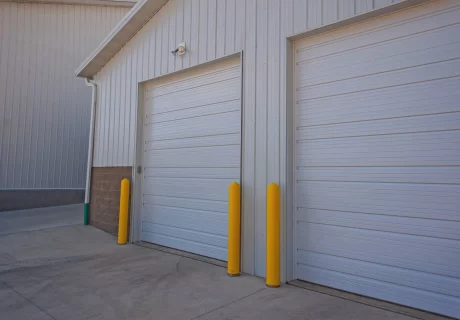

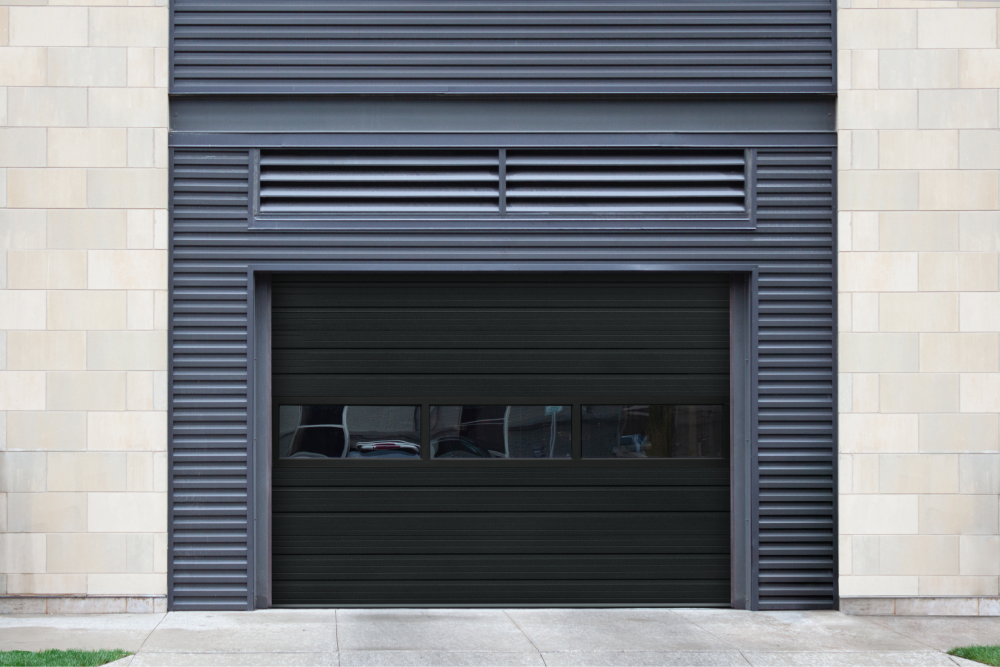

C.H.I. Ribbed Steel

Sustainable steel garage doors for reliable performance – day in, day out. Perfect for commercial, warehouse, and industrial use.

contact us about this product

more C.H.I. Ribbed Steel details

Overview

  • Available in insulated and non-insulated versions
  • Wide variety of gauge options
  • High performance and everyday reliability
  • Long-lasting durability



Model # 3221 3222 3241 3242 3251 3252 3220 3240 3250
Gauge 20 Gauge Steel Exterior/Vinyl Back 20 Gauge Steel Exterior/Steel Back 24 Gauge Steel Exterior/Vinyl Back 24 Gauge Steel Exterior/Steel Back 25 Gauge Steel Exterior/Vinyl Back 25 Gauge Steel Exterior/Steel Back 20 Gauge Steel Exterior 24 Gauge Steel Exterior 25 Gauge Steel Exterior
Insulation Type Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane No Insulation No Insulation No Insulation
Section Thickness 2" 2" 2" 2" 2" 2" 2" 2" 2"
Max. Height 16'0" 16'0" 20'0" 18'0" 16'0" 16'0" 16'0" 16'0" 16'0"
Max. Width 24'2" 24'2" 32'2" 24'2" 20'2" 20'2" 24'2" 40'2" 20'2"
R-Value 8 8 8 8 8 8 -- -- --



Ideal Applications:

  • Storage Facilities
  • Sheds
  • Docks

Design Options

Colors

White Black Almond Sandstone Brown Gray 188 Powder Coat



Colors Available Per Model
Model # 3221 3222 3241 3242 3251 3281 3282 3285 3286
White ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎
Black -- -- ✔︎ ✔︎ -- -- -- ✔︎ --
Almond -- -- ✔︎ ✔︎ -- -- -- ✔︎ --
Sandstone -- -- ✔︎ ✔︎ -- -- -- ✔︎ --
Brown -- -- ✔︎ ✔︎ -- -- -- ✔︎ --
Gray -- -- ✔︎ ✔︎ -- -- -- ✔︎ --
188 Powder Coat ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎

Documents

Ribbed Steel

Section Resources
Track Resources

FAQs

Materials

What are C.H.I. doors made of?
  • Our doors are made from Nucor EconiqTM steel – the world’s first net-zero carbon steel. It’s 100% recyclable and made up of 65.25% recycled ferrous scrap metal.



Paint

How should I paint my door?
  • Most of our doors come painted, but if you’d like to paint an unfinished door or give a pre-painted door another coat, please read our guide for detailed instructions. The painting method varies significantly depending on the material your garage door is made from, so choose the method that matches the material.
Where can I find paint formulas for my C.H.I. door?
Can I order my C.H.I. door in a custom color?

  • Yes! We offer in-house powder coating in 188 colors. We can also color match and create custom colors – this may increase lead times and cost. Availability varies by model.



Warranty

What's the warranty for my C.H.I. door?
  • We provide a limited lifetime warranty on our doors. This varies by model. You can find more information on their warranty page.
Do I need to register my door for the warranty?

  • No, you don’t need to register your door. All the information necessary for a successful warranty claim can be found on your original purchase receipt. Claims are processed using the door code assigned to your door when it is ordered.

How do I submit a warranty claim?



Wind Load

Do you offer wind load products that meet Miami-Dade certification requirements?
  • We offer a variety of wind load products and continue to expand our offerings in this area, but we don’t currently hold Miami-Dade certifications.
