DuraCoil™

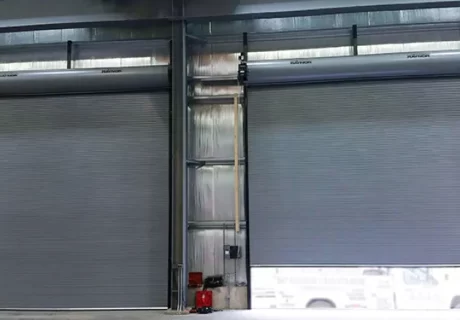

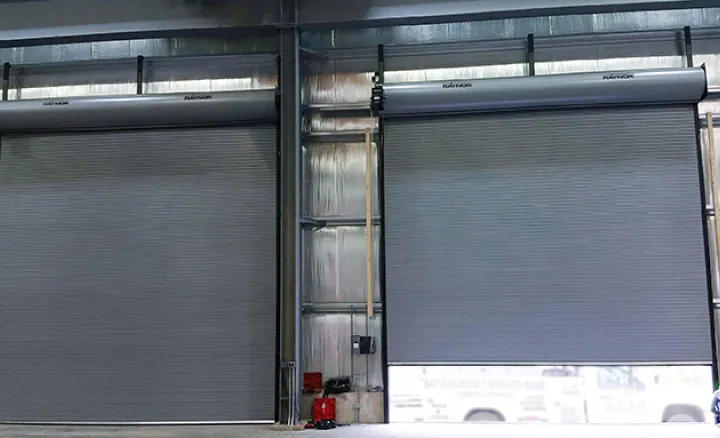

Rolling Service Doors Rugged DuraCoil rolling service doors, with aluminum, steel, or stainless steel slats, in a variety of gauges, are built to last. Raynor DuraCoil rolling service doors are an ideal choice for commercial and industrial applications. And with five available slat types – flat, insulated flat, small contour, large contour, or perforated – DuraCoil commercial rolling doors offer a style to fit any application.

more DuraCoil™ details

Features/Options

DuraCoil Features and Options

Raynor DuraCoil rolling service doors are available with numerous features and options, including those listed below.

  • Curtain Hood: DuraCoil rolling service doors feature a full-width, 24-gauge steel hood to protect your investment. Optional on DuraCoil model LFF.
  • Pre-Assembled Rolling Steel Door: Our Raynor garage doors pre-assembled rolling steel door option allows for faster and easier installation by having the curtain, barrel, and head plates shipped pre-assembled and in one crate. Ask your Raynor Authorized Dealer how to take advantage of our pre-assembled option.
  • Counterbalance System: A smooth-running, torsion-spring operated system is packed into each barrel assembly. Industrial head plates and bearings provide long cycle life.
  • Guides and End Locks: Rugged steel angle guides provide maximum support for curtain slats. Zinc-plated, malleable cast-iron end locks prevent lateral movement of the curtain slats.
  • Curtain: Each DuraCoil curtain is assembled with durable, heavy-gauge slats in a variety of materials and gauges.
  • Bottom Bar: Curtain bottoms are structurally reinforced with a minimum of two steel angles for maximum durability. A bottom astragal is included on all doors.
  • Head Plate Cover: Head plate covers are available for an attractive, finished appearance and help to protect your investment by keeping out dust and grime.
  • Security Locks: To keep your building secure, manually-operated Raynor DuraCoil rolling service doors are equipped with slide locks.
  • High-Cycle Applications: For years of reliable operation in heavy-use applications such as multi-tenant parking facilities, choose high-cycle torsion springs.
  • Vision Panels: For light transmission and visibility, choose 4″ x 1″ acrylic vision slots for flat and insulated flat curtain slats. Fenestrated curtains with open 4″ x 1″ slots are also available for flat slat curtains only.
  • Sound Transmission Class Rating: Sound Transmission Class rating applies to IF (Insulated Flat Slat) model only. • STC 22 without header seal • STC 23 with header seal
  • Pedestrian Doors: Pedestrian doors are designed for convenient entry and to help minimize energy loss.

DuraCoil Energy-Saving Options


  • Rubber Hood Baffle: Our optional rubber hood baffle consists of a reinforced neoprene sheet resting on the curtain to help minimize air infiltration. We also offer a rubber head seal for increased energy savings.
  • Energy Efficient IECC Compliance Option: Raynor DuraCoil (IF) doors comply with the 2018 IECC (International Energy Conservation Code) requirements of a maximum air leakage rate of 1.0 CFM/FT2. Raynor’s DuraCoil (IF) door outperformed the IECC requirements by achieving an air infiltration rate of .47 CFM/FT2, and a U-Factor of 0.90, both validated by an independent testing agency. This IECC compliance option includes a vinyl guide seal, rubber hood baffle and a rubber header seal.
  • Vinyl Guide Seal: A vinyl extrusion decreases energy costs and reduces air infiltration by sealing the side of the door when closed. A brushed seal and rubber guide seal are also available.

Colors

Slat Finishes

Color/Finish Options

White
Gray
Tan
Stainless Steel
Clear Anodized
Galvanized Finish

*Optional upgrades

>>Colors displayed on monitors, mobile devices, and printed materials will vary from the actual product color. Contact your local Raynor Authorized Dealer for color samples.

ArmorBrite™ Powder Coat System

Many of your DuraCoil door’s metal components can be powder coated in any of 188 ArmorBrite colors to match any design scheme. Powder coating is available on the curtain slats, hood, door guides, head plates, and bottom bar.

Model Details

Model Details

Model Slat Profile Slat Material(Thickness) Slat Sizes Max. Width Color/Finish Guides
FF Flat Steel 24, 22, 20, 18 gauge 2-9/16" X 25/32" 40' White, Gray, Tan, ArmorBrite Powder Coated or Galvanized Finish Steel Angles
Stainless Steel 22, 20 gauge 30' Stainless Steel #4 Finish
AF Flat Aluminum 04, 05 2-9/16" X 25/32" 30' Clear Anodized or ArmorBrite Powder Coated Steel Angles
FP Flat Perforated Steel 22, 20 gauge 2-9/16" X 25/32" 30' Gray or ArmorBrite Powder Coated Steel Angles
AP Flat Perforated Aluminum 04, 05 2-9/16" X 25/32" 30' Clear Anodized or ArmorBrite Powder Coated Steel Angles
IF Insulated Flat Steel 24, 22, 20, 18 gauge 2-9/16" X 13/16" 40' White, Gray, Tan, ArmorBrite Powder Coated, or Galvanized Finish Steel Angles
Stainless Steel 22, 20 gauge 32' Stainless Steel #4 Finish
Al Insulated Flat Aluminum 04, 05 2-9/16" X 13/16" 30' Clear Anodized or ArmorBrite Powder Coated Steel Angles
SC Small Curve Steel 22, 20 gauge 1 -7/8" X 17/32" 16' Gray Steel Angles
LC Large Curve Steel 22, 20, 18 gauge 2-3/4" X 25/32" 40' Gray Steel Angles
LFF Light-Duty Flat Steel 24 gauge 2-9/16" X 25/32" 14' White, Gray, Tan or ArmorBrite Powder Coated Roll-Formed

Specs/Drawings

Specifications

Select a link below to download Raynor DuraCoil rolling service door specifications and drawings.

  Word PDF Drawings
DuraCoil Product Specs DOCX PDF
Rolling Doors Full Product Line Specs DOCX PDF
BIM Objects     DWG|RFA

Standard Drawings

For Slat Types: Insulated Flat (IF), Flat (FF), Large Contour (LC)

Interior/Exterior Face Mount (N)
Manual Operation DWG Drawing PDF
Chain Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Between Jamb Mount/Under Lintel (J)
Manual Operation DWG Drawing PDF
Chain Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Face-Mounted/Under Lintel (J1)
Manual Operation DWG Drawing PDF
Chain Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Between Jamb Only (J2)
Manual Operation DWG Drawing PDF
Chain Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF

Slate Style Options

Slat Style Options

Flat Slats (FF)

Large Contour Slats (LC)

Small Contour Slats (SC)

Insulated Flat Slats (IF)

Light-Duty Flat Slat (LFF)

Flat Perforated Slats (FP)

The most architecturally pleasing slat profile, flat slats are ideal when weatherseal is used. Flat slats offer full visual access, multiple glazing options, and wind load resistance in a rolling steel door designed to fit in a variety of opening sizes. Available in virtually unlimited widths, large contour slats are typically specified for larger-sized openings. Designed to withstand heavy use, DuraCoil Large Contour Slat doors provide optimum security and wind load resistance. An excellent choice for smaller opening widths, small contour slats are the best value for opening sizes up to 14’ x 14’. DuraCoil Small Contour Slat doors also offer optimum security and wind load resistance in a rolling steel door built to withstand the demands of high-traffic entryways. Available in several sizes, DuraCoil Insulated Flat Slat doors offer thermal efficiency, combined with superior visual access, glazing options, and wind load resistance. Flat Insulated Slats have an R-Value of 6.24. The DuraCoil Light-Duty Flat Slat door is ideal for projects with a limited budget, while still providing the security of a rolling steel door. DuraCoil Perforated Flat Slat doors are engineered for applications where airflow, visibility, and security are desired while providing maximum ventilation and visibility.

Literature

Product Literature

Warranty

DuraCoil Warranty

Door Curtain:

Raynor warrants the door and its component parts for one (1) year against defects in material and workmanship.

Hardware & Spring:

Raynor warrants all hardware and spring components against defects in material and workmanship for one (1) year.

Warranty Limitations and Exclusions:

Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an qualified installer. This warranty applies only to door systems that are professionally installed by an authorized Raynor Dealer.

This limited warranty extends only to the original purchaser, provided the door is installed in the original purchaser’s place of business. This limited warranty is not transferable.

This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor EnergyCore series, ThermaSeal Series, Commercial Country Manor and Commercial Aspen series doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.

This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. It also does not apply to damage or deterioration caused by saltwater coastal areas, hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.

This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.

Raynor shall not be liable for any consequential or incidental damages.

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
