DuraShutter™

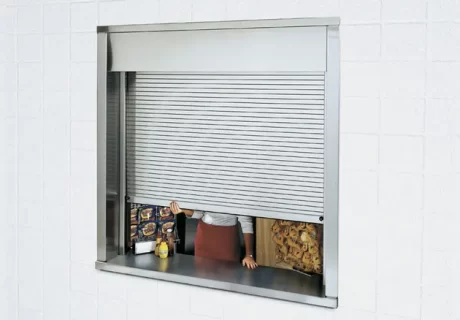

Rolling Counter Shutters Designed for a variety of common applications, Raynor DuraShutter rolling counter shutters provide reliability and durability to meet or exceed the requirements of daily use. Rugged, versatile, and secure, DuraShutter rolling counter shutter doors are available with a wide selection of quality features and options ideal for retail and commercial facilities.

more DuraShutter™ details

Features/Options

DuraShutter Features and Options

DuraShutter rolling counter shutters are available with numerous features and options, including those listed below.

  • Curtain Hood: Curtain hoods are square and designed for maximum structural rigidity.
  • Guides: Guides constructed of steel, stainless steel or aluminum, allow for face or jamb mounting.
  • Curtain: All DuraShutter rolling counter shutter curtains are constructed with heavy-duty steel, stainless steel, or aluminum flat slats.
  • Bottom Bar: Curtain bottoms are constructed of steel, aluminum, or stainless steel with a foam edge to protect the sill.
  • Counterbalance System: A torsion-spring-operated system, enclosed in a structural steel barrel, effectively counterbalances the door for a minimum of 7,500 cycles.
  • Locks: Cylinder or thumb-turn locks help keep your building secure. Thumb-turn locks are standard on shutters with manual or crank operation.
  • Brush Seals: A brush-type guide (shown) or header seal increases energy efficiency.
  • Eclipse™ Tube Motors: Ideal for easy and convenient operation, and concealed inside the barrel assembly, this quiet torque-rated motor runs smoothly at the touch of a button.
  • Slip-in Style Frame Option: For your existing walls, the slip-in style frames are a sleek and easy solution. Integral frame counter shutters provide maximum strength and security with metal frames, shutters, and sills that are factory-assembled as a complete unit.Shown: DuraShutter in stainless steel
  • Built-in Style Frame Option: For masonry walls not yet constructed, built-in style frames provide a clean, finished appearance. Integral frame counter shutters provide maximum strength and security with metal frames, shutters and sills that are factory-assembled as a complete unit. Shown: DuraShutter with optional ArmorBrite Finish.
  • Crank Operation: Hand-crank operation is available on all DuraShutter counter shutters.

Colors/Finishes

Colors / Finishes

White
Gray
Tan
Stainless Steel*
Clear Anodized*
Medium Bronze Anodized*

*Optional upgrades

>>Colors displayed on monitors, mobile devices, and printed materials will vary from the actual product color. Contact your local Raynor Authorized Dealer for color samples.

ArmorBrite™ Powder Coat System

Choose your color! Nearly every Raynor rolling door component (curtain slats, bottom bars, guides, hoods, and head plates) can be powder coated in any of 188 ArmorBrite colors for an attractive appearance and exceptional durability.

Model Details

Model Details

Model Slat Profile Slat Material(Thickness) Slat Sizes Maximum Sizes Maximum Sizes
(Integral Frame Option)
Color/Finish Guides
CP Flat Steel (22 gauge) 1*1/4" X 1/2" 20' Width
10' Height'
(max. 120 sq. ft.)
11'6" Width
5'6" Height
4(1/2)"-12" Wall Thickness
White, Gray, Tan or ArmorBrite™ Powder Coated Steel Angles
CPP Perforated Flat
CA Flat Aluminum (.05") 20' Width
10' Height
(max. 120 sq. ft.)
11'6" Width
6'6" Height
4(1/2)"-12" Wall Thickness
Clear Anodized & Medium Bronze Anodized Aluminum
CSS Stainless Steel (22 gauge) Stainless Steel #4 Stainless Steel

NOTE: Contact factory for special sizes.
LIMITED WARRANTY: DuraShutter counter shutters carry a 1-year limited warranty. See your local Raynor Dealer for complete details.

Specs/Drawings

Specifications

  Word PDF
DuraShutter Specs DOCX PDF
Rolling Doors Full Product Line Specs DOCX PDF

Standard Drawings

For Slat Types: Flat Slat/Aluminum (CA)

Interior Face Mount (N)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Between Jamb Mount/Under Lintel (J)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Face-Mounted/Under Lintel (J1)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Between Jamb Only (J2)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF


For Slat Types: Flat Slat/Stainless Steel (CSS)

Interior Face Mount (N)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Between Jamb Mount/Under Lintel (J)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Face-Mounted/Under Lintel (J1)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF
Between Jamb Only (J2)
Manual Operation DWG Drawing PDF
Crank Operation DWG Drawing PDF
Motor Operation DWG Drawing PDF

Literature

Product Literature

Warranty

DuraShutter Warranty

Door Curtain:

Raynor warrants the door and its component parts for one (1) year against defects in material and workmanship.

Hardware & Spring:

Raynor warrants all hardware and spring components against defects in material and workmanship for one (1) year.

Warranty Limitations and Exclusions:

Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an qualified installer. This warranty applies only to door systems that are professionally installed by an authorized Raynor Dealer.

This limited warranty extends only to the original purchaser, provided the door is installed in the original purchaser’s place of business. This limited warranty is not transferable.

This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor EnergyCore series, ThermaSeal Series, Commercial Country Manor and Commercial Aspen series doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.

This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. It also does not apply to damage or deterioration caused by saltwater coastal areas, hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.

This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.

Raynor shall not be liable for any consequential or incidental damages.

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
