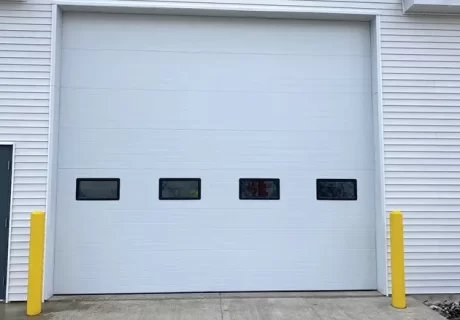

EnergyCore™ EC224

The EC224, a steel two-sided door, features a core of polystyrene insulation laminated between a 26-gauge interior steel and a 24-gauge exterior steel skin. The EC224 is available in white and is perfect for applications where thicker steel is specified.

more EnergyCore™ EC224 details

EC224 Features and Options

Raynor EnergyCore EC224 steel residential garage doors have the following features and available options.

QuickDock™ Solution

Raynor’s patent pending QuickDock is engineered to decrease downtime and increase safety during repairs and maintenance. It comes complete with preassembled, palletized sections and the counterbalance assembly is mounted only 16” above the header. QuickDock is available on orders of 36 doors or more.

Track, Springs & Hardware

Raynor EnergyCore Series doors come packaged with the right combination of track, springs and hardware to precisely match your door’s size and application. A QuikClip™ pre-assembled track option is also available.

Thicker Exterior Steel

A heavy duty 24-Gauge exterior steel is perfect for meeting job specific requirements without sacrificing the benefits of Raynor EnergyCore Series.

WeatherLock™ & Polystyrene Insulation

Expanded polystyrene insulation provides good thermal efficiency, while an Arctic grade bottom weatherseal keeps out the elements.

Gunite Surface Texture and Decreased Groove Spacing

EC200 comes in 2 panel styles, flush and pencil groove, with decreased groove spacing for an updated, refreshed look.

Window Options

Select either 24″ x 8″, 24″ x 12″, or 34″ x 16″ and choose from a variety of glass options to suit any application.

Colors

White



*The swatches shown on monitors and printed materials may vary from the actual color. For a true representation of the color, visit your local Raynor Dealer

Product Details

Door

Type Commercial Sectional Insulated Steel Garage Doors
Model Raynor EnergyCore EC224
Size 24’0” x 16’0” Max Opening
Operation Manual, Motor or Hand Chain
IECC Thermal Performance R-value* = 10

Sections

Construction Steel Two Sided
Material Steel
Surface Texture Exterior and Interior Ribbed Gunite
Section Joint Tongue & Groove
Section Thickness 2″
Gauge Steel; Exterior: 24-Gauge; Interior: 26-Gauge
Stiles 18-Gauge
Insulation Expanded Polystyrene (10.0 R-value*)
Seals Bottom Seal (3”, 4” EPDM, or 3” Yellow); Optional Header Seal
Trussing Wind Load: 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard); Material: U-bar (18-Gauge or 20-Gauge); Sizes: 4″, 6″, or 8″
Panel Configuration Pencil Groove and Flush
Color White
Windows Select 24” x 8”, 24” x 12”, 34” x 16”

Track

Type Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour, and QuikClip™ Pre-Assembled Track Options
Finish Galvanized
Size 2″ or 3″
Gauge 13 and 16 gauge

Counterbalance System

Type Torsion Springs
Springs Spring Inner Diameter: 2-¼”, 3-½”, or 5-½”; Duplex or High Cycle (30K, 50K, 100K); Optional Black Powder Coat
Shafts Tube (13-Gauge) or Solid (D-Shaft, 1” Keyed, 1-¼” Keyed)

Hardware/Accessories

Hinges 11, 13, 14-Gauge or Hybrid
Rollers Standard (2″ or 3″) or Heavy Duty (2″ or 3″)
Finish Galvanized
Lock Interior Slide Lock or Exterior Lock Bars
Seal(s) Climate Seal
Hanger Angle 11, 13, 16-Gauge Galvanized, or 13-Gauge White Powder Coated
Posts Swing-Up or Carry-Away



*Pending testing in accordance with DASMA TDS-163

Specs/Drawings

Select a link below to download Raynor EnergyCore EC224 specifications and drawings

  Word PDF Drawings
EC224 Product Specs DOCX PDF
Full Sectional Product Line Specs DOCX PDF
BIM Objects     RFA



Literature

Product Literature

Warranty

EnergyCore Series Warranty

Door Sections:

Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust-through for ten (10) years from date of delivery to the original purchaser. Raynor also warrants the door sections against delamination of the polystyrene insulation from the steel skins for ten (10) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

Hardware:

Raynor® warrants all hardware against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

Springs:

Raynor® warrants springs against defects in material and workmanship for one (1) year from date of delivery to the original purchaser. The limited warranty for special high-cycle springs is prorated by percentage of cycle use, and must be determined by the use of a non-resettable cycle counter.

Warranty Limitations and Exclusions:

Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an qualified installer. This warranty applies only to door systems that are professionally installed by an authorized Raynor Dealer.

This limited warranty extends only to the original purchaser, provided the door is installed in the original purchaser’s place of business. This limited warranty is not transferable.

This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor EnergyCore series, ThermaSeal Series, Commercial Country Manor and Commercial Aspen series doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.

This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. It also does not apply to damage or deterioration caused by saltwater coastal areas, hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.

This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.

Raynor shall not be liable for any consequential or incidental damages.

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
