Insulated Sandwich

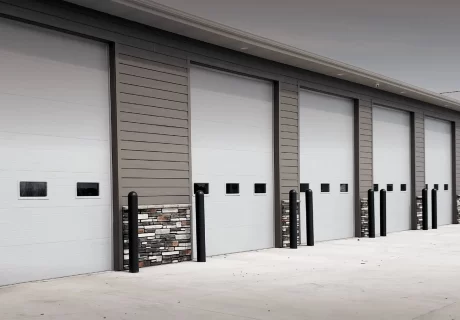

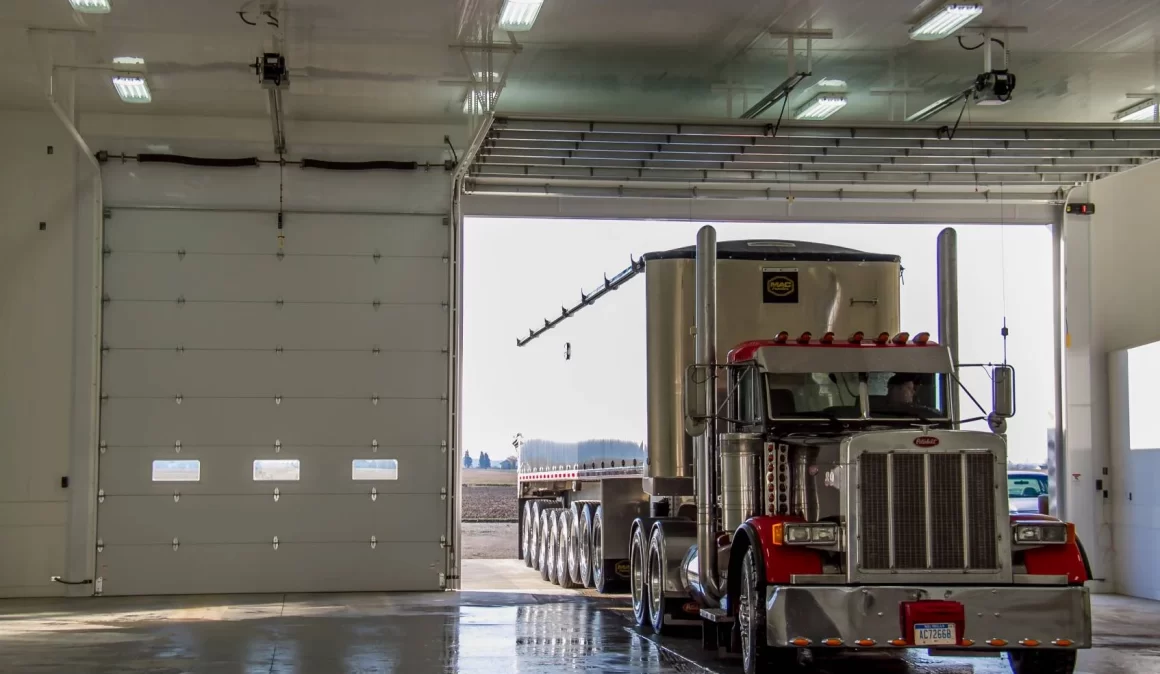

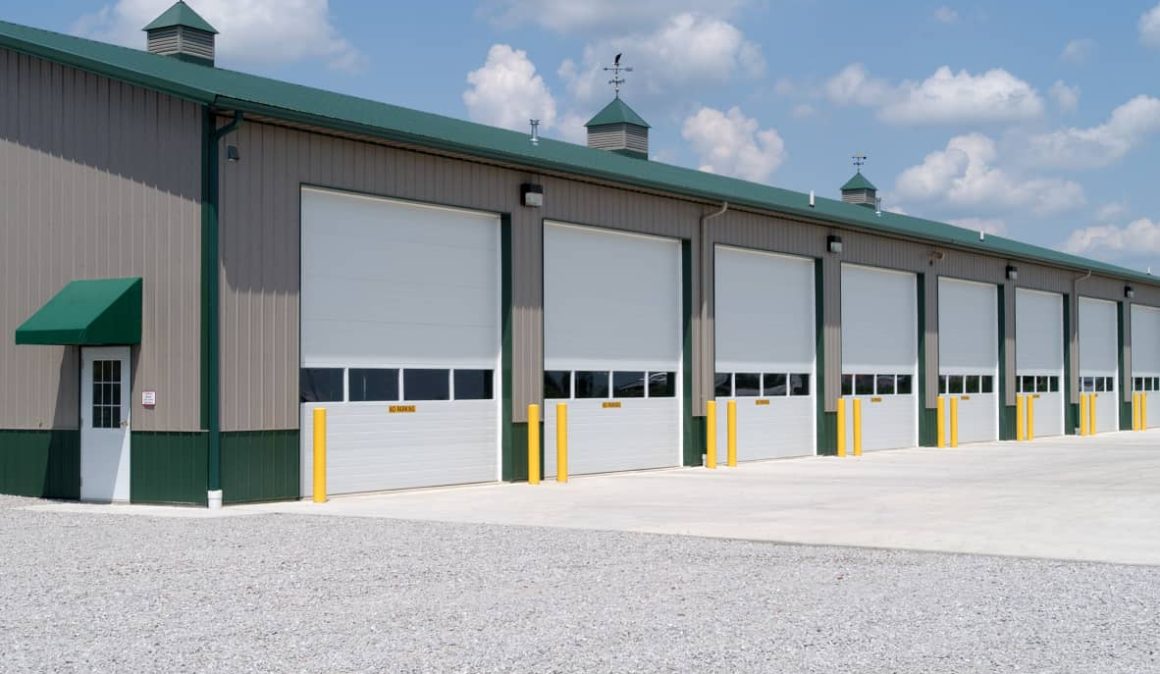

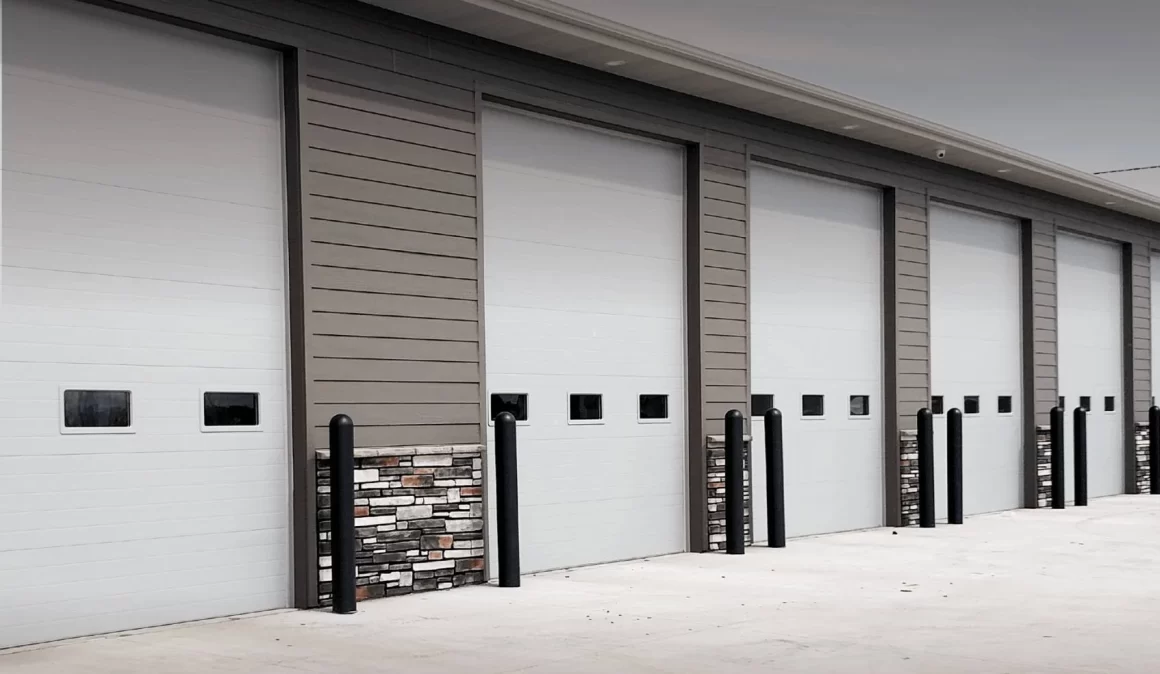

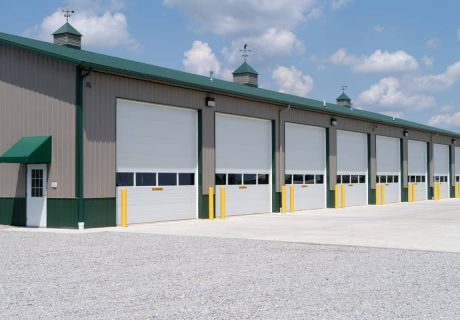

Functional and durable, our micro-grooved insulated sandwich garage bay doors come in a variety of gauges with insulation options to suit your business needs, building type, and climate.

more Insulated Sandwich details

Overview

  • Made of durable, recyclable, carbon-neutral steel
  • Insulated for thermal efficiency with R-values from R-10.29 to R-26.89
  • Customizable with a variety of standard colors and 188 powder coat options!



Model # 3206 3212 3216 3217 3236 3281 3282 3285 3286
Appearance Micro-Groove Micro-Groove Micro-Groove Flush Micro-Groove Flush Micro-Groove Micro-Groove Flush
Gauge 28 Gauge 20 Gauge 26 Gauge 26 Gauge 26 Gauge 24 Gauge 24 Gauge 26 Gauge 26 Gauge
Insulation Type Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
Section Thickness 1 1/2" 2" 2" 2" 3" 2" 2" 2" 2"
Max. Height 16'0" 20'0" 20'0" 20'0" 20'0" 20'0" 20'0" 20'0" 20'0"
Max. Width 24'2" 20'2" 32'2" 32'2" 40'2" 28'2" 28'2" 28'2" 28'2"
U-Factor 0.19 0.19 0.19 0.19 0.11 0.29 0.29 0.29 0.29
R-Value 13.68 17.54 17.54 17.54 26.89 10.29 10.29 10.29 10.29



Ideal Applications:

  • Warehouses
  • Manufacturing Facilities
  • Truck Terminals
  • Fire and Ambulance Stations
  • Climate-Controlled Agricultural Buildings
  • Barn Doors

Design Options

Colors

White Black Almond Sandstone Brown Gray 188 Powder Coat



Colors Available Per Model
Model # 3206 3212 3216 3217 3236 3281 3282 3285 3286
White ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎
Black ✔︎ -- ✔︎ ✔︎ -- -- -- ✔︎ ✔︎
Almond -- -- ✔︎ ✔︎ -- -- -- ✔︎ ✔︎
Sandstone -- -- ✔︎ ✔︎ ✔︎ -- -- ✔︎ ✔︎
Brown -- -- ✔︎ ✔︎ ✔︎ -- -- ✔︎ ✔︎
Gray -- -- ✔︎ ✔︎ -- -- -- ✔︎ ✔︎
188 Powder Coat -- ✔︎ ✔︎ ✔︎ -- ✔︎ ✔︎ ✔︎ ✔︎

FAQs

Materials

What are C.H.I. doors made of?
  • Our doors are made from Nucor EconiqTM steel – the world’s first net-zero carbon steel. It’s 100% recyclable and made up of 65.25% recycled ferrous scrap metal.



Paint

How should I paint my door?
  • Most of our doors come painted, but if you’d like to paint an unfinished door or give a pre-painted door another coat, please read our guide for detailed instructions. The painting method varies significantly depending on the material your garage door is made from, so choose the method that matches the material.
Where can I find paint formulas for my C.H.I. door?
Can I order my C.H.I. door in a custom color?
  • Yes! We offer in-house powder coating in 188 colors. We can also color match and create custom colors – this may increase lead times and cost. Availability varies by model.



Warranty

What's the warranty for my C.H.I. door?
  • We provide a limited lifetime warranty on our doors. This varies by model. You can find more information on their warranty page.
Do I need to register my door for the warranty?
  • No, you don’t need to register your door. All the information necessary for a successful warranty claim can be found on your original purchase receipt. Claims are processed using the door code assigned to your door when it is ordered.

How do I submit a warranty claim?



Wind Load

Do you offer wind load products that meet Miami-Dade certification requirements?
  • We offer a variety of wind load products and continue to expand our offerings in this area, but we don’t currently hold Miami-Dade certifications.
