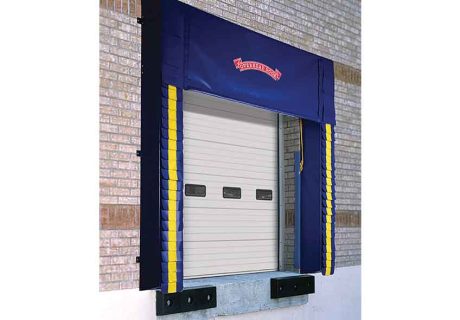

Our seal with an adjustable top curtain is designed to accommodate varying trailer heights while providing superior weather protection. Save on heating/cooling costs with this innovative solution that closes gaps and helps protect against harsh weather. Overhead Door™ Tech Support: 1-800-929-4692
| Column Widths | |
|---|---|
| Back | Front |
| 10" | 10" |
| 12" | 12" |
| 8" | 11" |
| 8" | 14" |
| 12" | 15" |
| 12" | 18" |
| 8" | 20" |
| DIMENSIONS | STANDARD | OPTIONAL |
|---|---|---|
| Column Height 10' | ✓ | |
| Column Height 9' 6" - 12' | ✓ | |
| CURTAIN | ||
| Full Width Steel Tube | ✓ | |
| 24" Adjustable Curtain | ✓ | |
| Other drops up to 60" | ✓ | |
| 24" Fixed Curtain | ✓ | |
| Other drops 12" to 60" | ✓ | |
| Split Curtain - Adjustable 24" to 48" | ✓ | |
| Split Curtain - Fixed 12" to 48" | ✓ | |
| Split Curtain - Velcro (adjustable or fixed) | ✓ | |
| 24" PVC Curtain Strips | ✓ | |
| PROJECTION | ||
| 10" Projection | ✓ | |
| Other Projection 8" - 20" | ✓ | |
| Projection Box 4"/6"/8"/10"/12" | ✓ | |
| Taper Projection 8" - 20" top or bottom | ✓ | |
| FABRIC WEIGHT & COLOR | ||
| 22 oz (Black, Blue, Gray, Green, Brown) | ✓ | |
| 40 oz Regular (Black, Blue, Gray, Green, Red, Brown) | ✓ | |
| 40 oz Premium (Black) | ✓ | |
| DOUBLE LAYER FABRIC | ||
| Double layer of fabric on impact area of columns (same weight/colors as above) | ✓ | |
| FRAME | ||
| Treated Lumber | ✓ | |
| Galvanized Steel | ✓ | |
| BOTTOM SEAL PAD | ||
| 4' or 8' Long | ✓ | |
| DRAFT CONTROL | ||
| Two bottom draft flaps | ✓ | |
| GUIDE STRIPES | ||
| 24" High | ✓ | |
| Full Height | ✓ | |
| MOUNTING | ||
| Galvanized Mounting Hardware | ✓ | |
| SCUFF GUARDS | ||
| Scuff Guards (40 oz Regular, Black) - 48" tall additional layer of fabric inside column | ✓ | |
| SECURITY SEAL | ||
| 4' or 8' High | ✓ | |
| WEAR PLEATS | ||
| Wear pleats 4"/8"/16" exposure (same weight/color available as above) | ✓ | |
| Heavy Duty 66 oz Top and Bottom Corner Pleats, 4" exposure (Black, Blue, Orange) | ✓ |
