Model 220

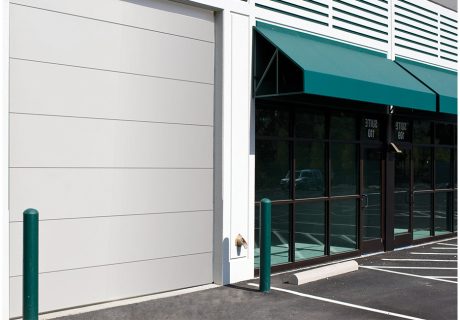

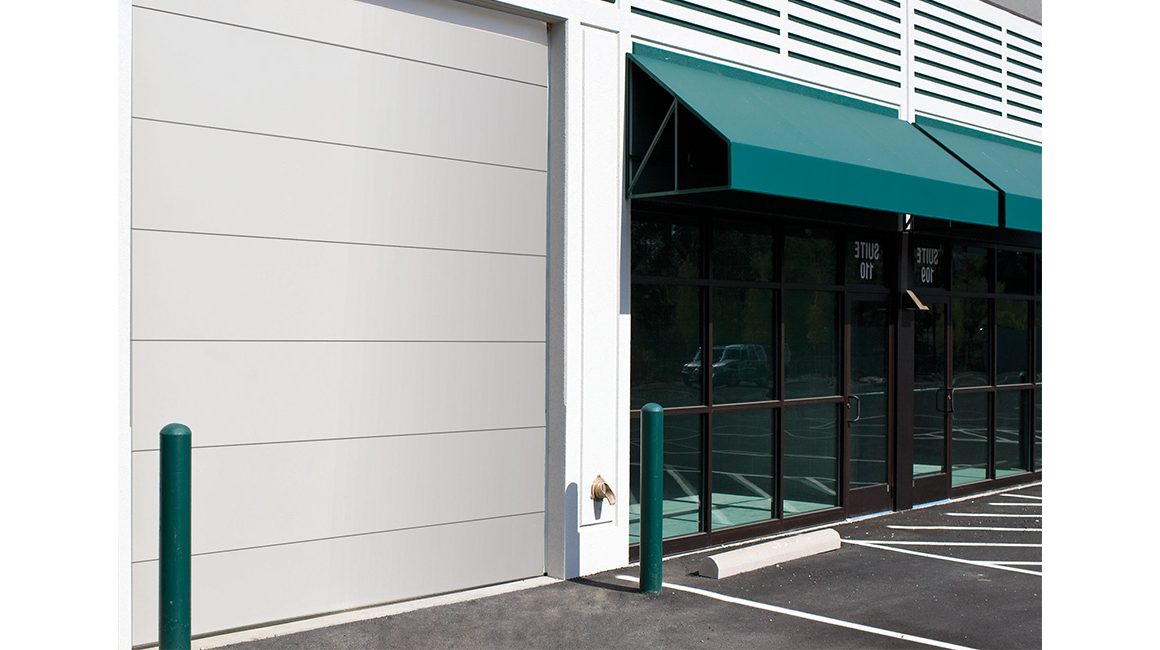

Model 220 commercial sectional doors are designed for strength and durability. Engineered to perform and stand the test of time, both provide your building with added safety and security. Model 220 Sectional Steel Door provides high impact resistance and industrial strength on a wide variety of standard sizes.

contact us about this product

Model 220

For even more strength, we’ve reinforced the bottom section of these doors with a flexible bulb-shaped vinyl astragal held in place by a continuous roll-formed steel retainer. These commercial sectional doors meet the needs of rugged applications and are ideal when impact resistance is critical.

more Model 220 details

Overview

Standard Construction Model 220 Model 216
Max. Width 30'2" 28'2"
Max. Height 22'1" 18'1"
Steel Gauge 20 16
Joint Profile Shiplap Shiplap
Spring Cycles 10,000 10,000
Exterior Surfaces Smooth, Ribbed Smooth, Ribbed
R-Value* - Optional 7.64 7.64

*Wayne Dalton uses a calculated door section R-value for insulated doors.



Benefits

Durable Design
  • Ribbed exterior surface contributes to long service life and provides superior strength and rigidity
  • Industrial-duty hot-dipped galvanized steel sections are reinforced with heavy-duty vertical stiles that make hinge installation quick and secure
  • Flush profile with shiplap joints provides a lower air infiltration and can help reduce energy costs



Ideal Applications

  • Manufacturing Plants
  • Production Facilities
  • Storage Facilities
  • Industrial Facilities
  • Agricultural Facilities
  • Commercial Buildings



Warranty

  • 1-Year against defects in materials and workmanship

Design Options

Lite Options

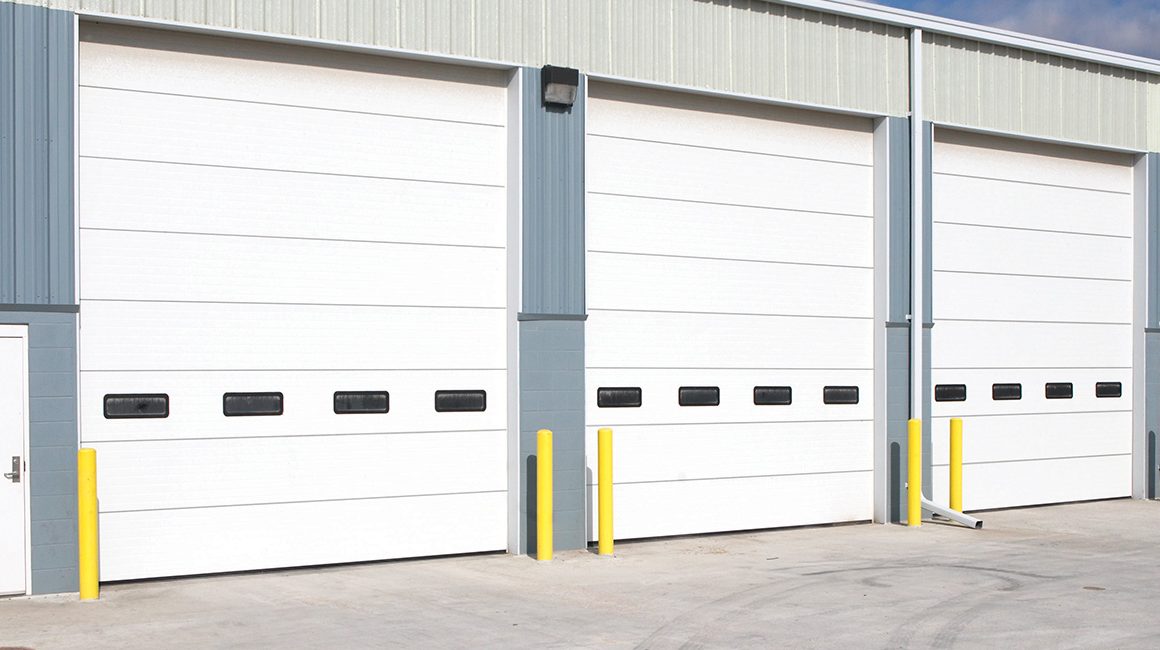

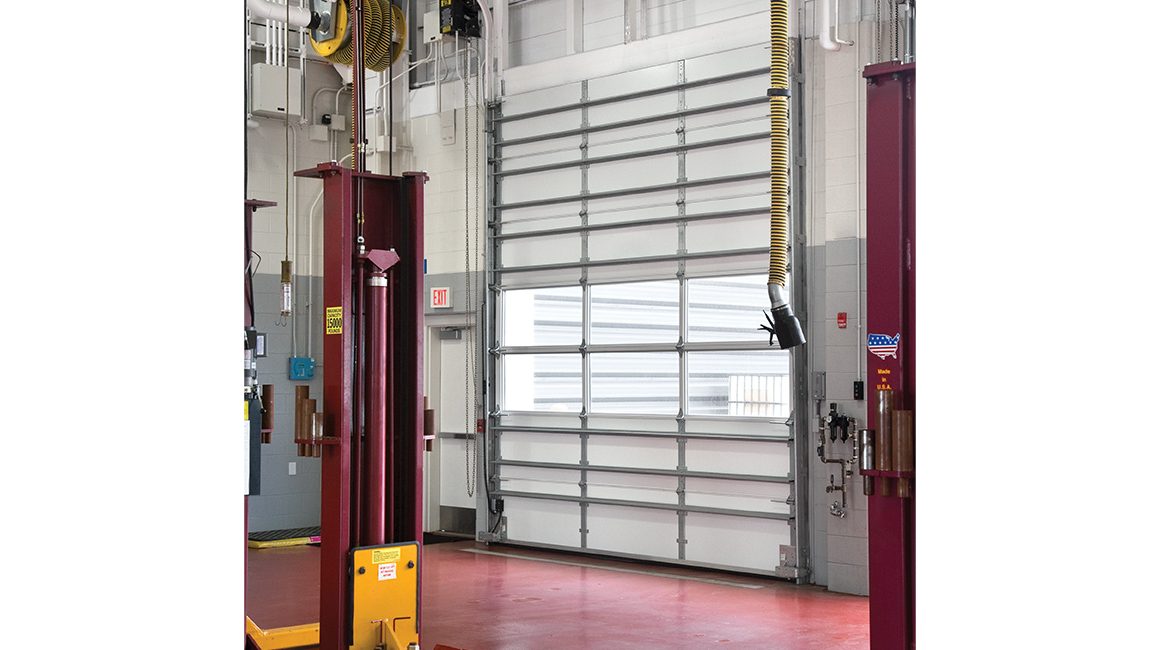

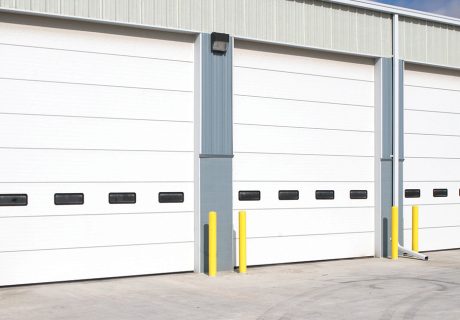

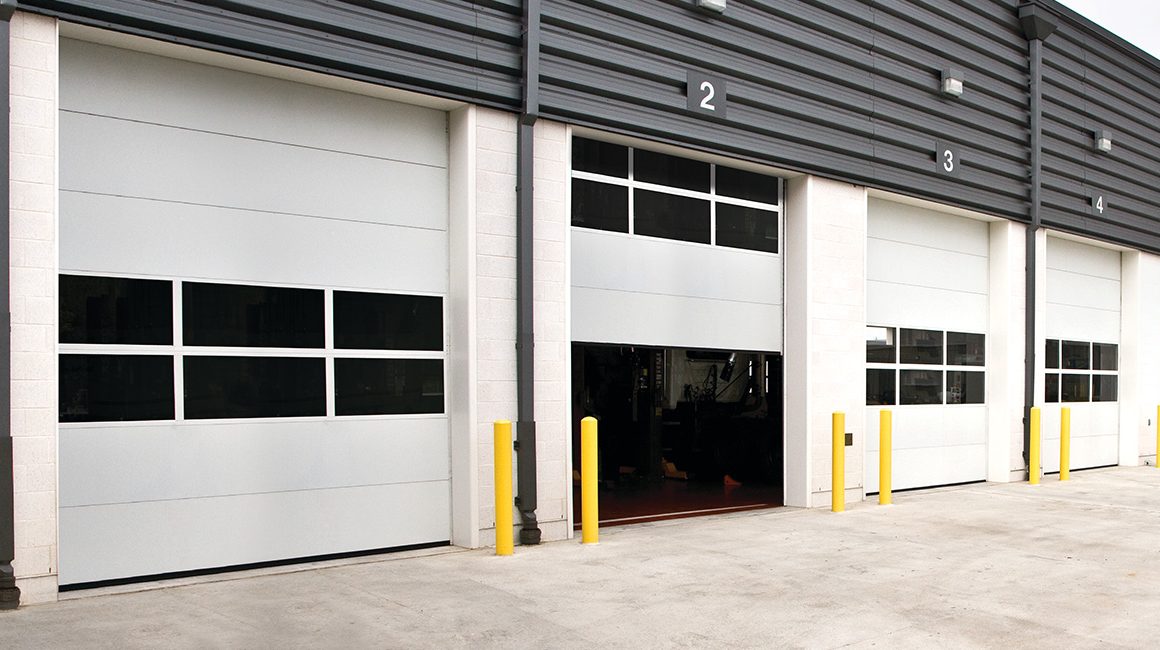

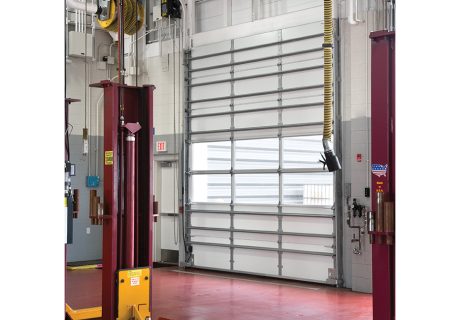

Vision Full View

Additional Options
  • 3” Track
  • Solid shafts
  • Special track designs
  • Mullions
  • Perimeter weather seal
    Polystyrene Insulation
  • Impact Panel Option
    • The Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core.



Colors

White Smooth



Finish Options
  • White Smooth, ribbed



*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).

Actual physical representation may vary slightly in color.

Enhancements

Operation

  • Chain hoist operation
  • Motor operation

Safety Focused

  • Broken cable devices
  • Safety Edges
  • Photo eyes

High-Performance Design

High Cycle Spring Options
  • 25,000
  • 50,000
  • 100,000

Design Solutions

  • Pass Door

Documents

Model 220

Specifications
Product Literature
Instruction Manuals
Warranty
