Model 434

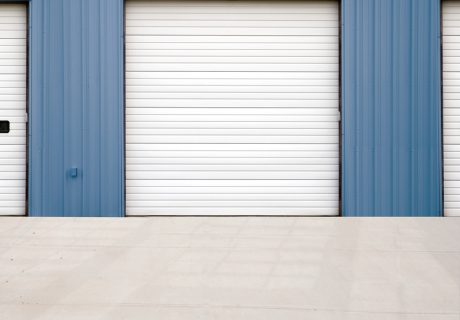

WindStorm™ Commercial Sectional Door Model 434 is and non-insulated door featuring FBC and TDI certifications for static pressures and impact. Constructed of nominal 24-gauge steel and designed with 4” horizontal struts to enhance door strength and performance.

contact us about this product

more Model 434 details

Overview

Construction

Product Specifications
Standard Max Width 20'2" (7341 mm)
Standard Max Height 16'1" (7924 mm)
Section thickness 2" (51 mm)
Exterior steel Nominal 24-gauge
Exterior surface Ribbed
Struts 4" horizontal strut (doors over 10'2" wide)
Interior color White
Standard springs 10,000 cycles
Standard track 2" (51 mm)
Joint profile Tongue-and-groove
Wind Load Certified to meet FBC and TDI wind load requirements

Warranty

  • 1 year limited

Options

Panel Options


  • Ribbed Panel

Color

Exterior Colors

Glass/Windows


  • Vision Lites


  • Full-view Lites

Enhancements

  • Chain hoist operation
  • Motor operation
  • High Cycle Springs - 25k, 50k, 100k
  • 3” track option
  • Solid shafts
  • Perimeter weather seal
  • Broken cable devices
  • Safety edges
  • Safety photo eyes
  • Impact glazing 12” x 10”
  • Security locks
  • Exhaust ports
