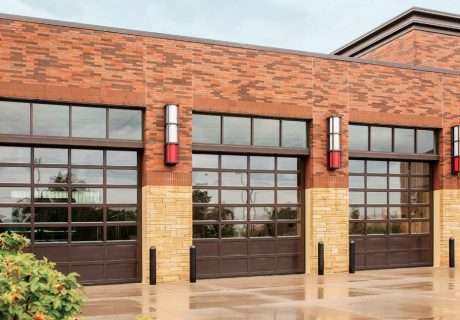

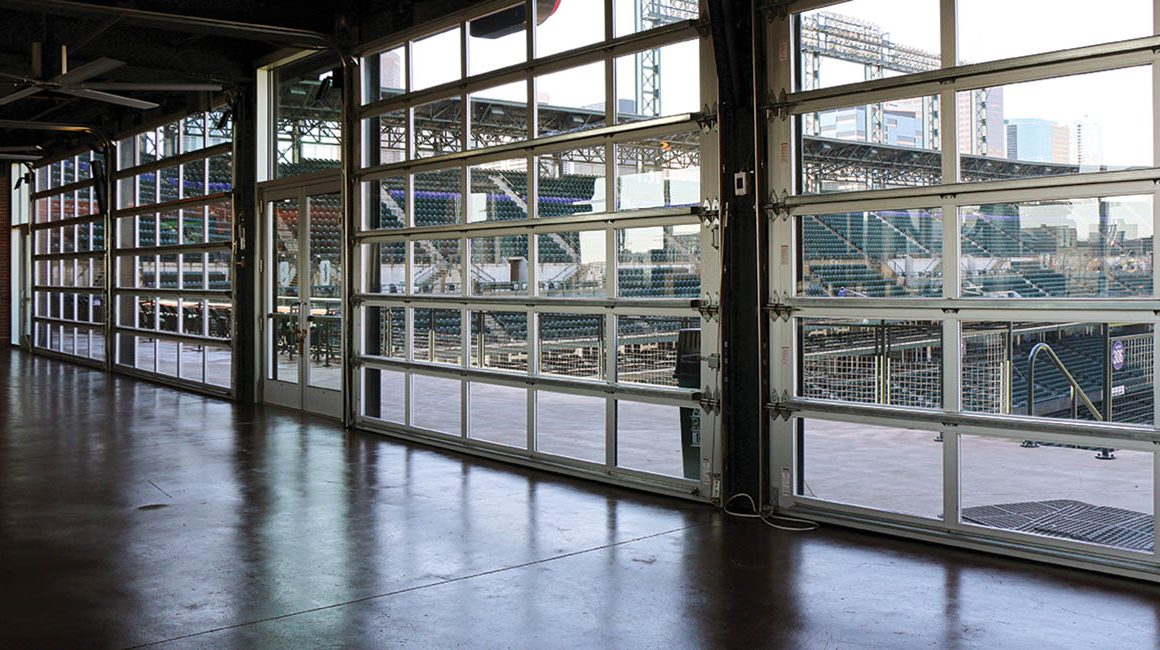

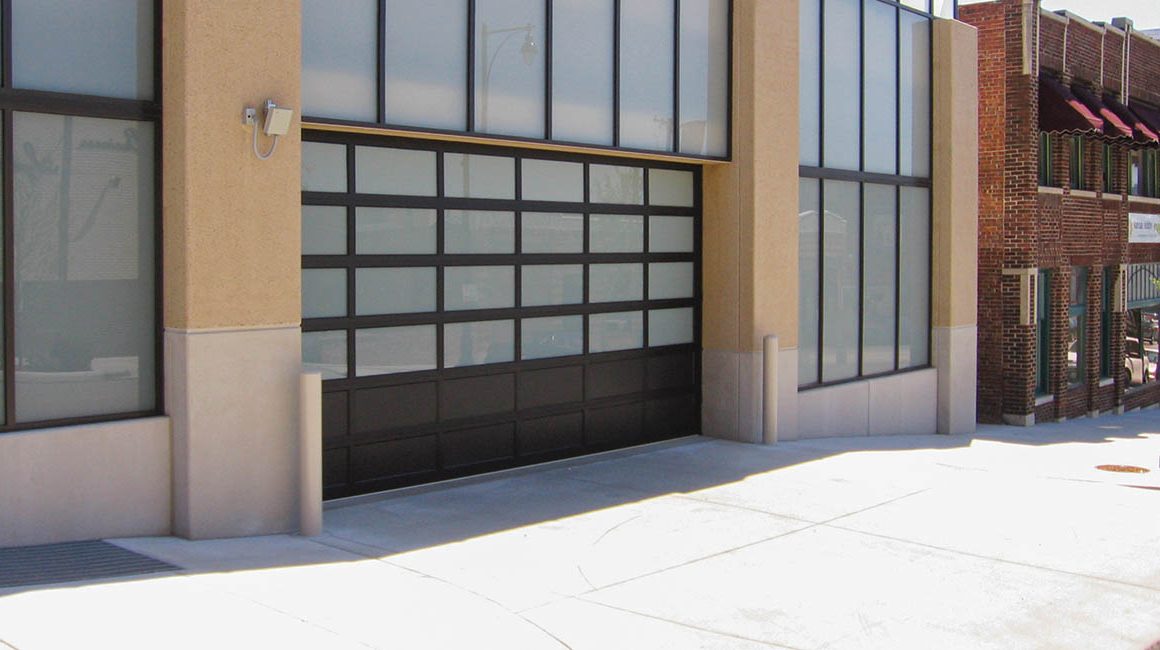

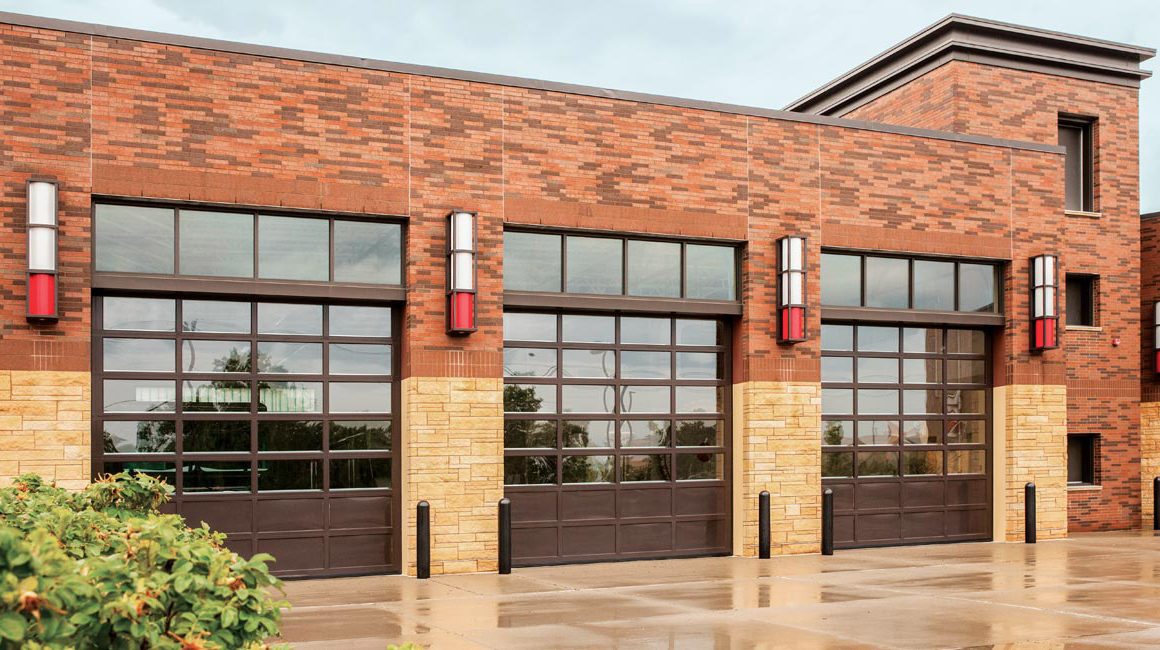

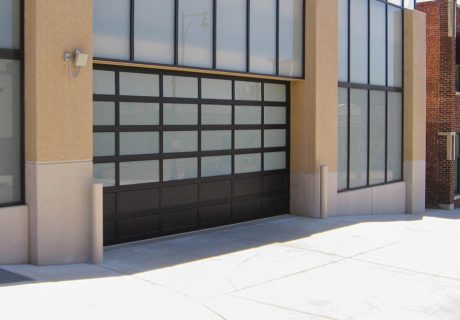

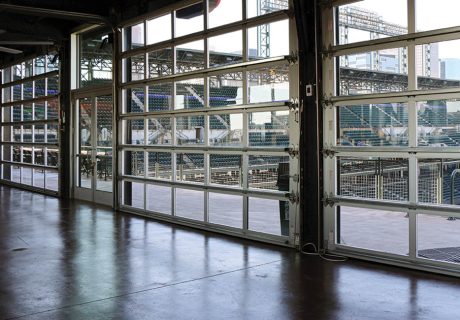

Model 453

Ideal for commercial spaces where strength, durability, and high wind load resistance are essential, the Aluminum Full-View commercial glass doors provide maximum light and visibility with a sleek, modern appeal. These doors enhance a wide range of settings, from upscale seaside restaurants to industrial breweries, offering both style and resilience. Customizable with options for anodized and powder-coated finishes, various paint colors, glass styles, and panel choices, these commercial glass doors create an open, contemporary look tailored to complement any business environment.

Ideal Applications Include:

  • Distribution Centers
  • Auto Dealership
  • Car Washes
  • Restaurants
  • Bars
  • Service Bays

more Model 453 details

Features

Standard Construction Model 453
Max. Width 22' 2"
Max. Height 20' 1"
Spring Cycles 10,000
Lock Interior mounted slide lock
Operation Chain hoist or pull rope
Door Assembly 6063-T6 Aluminum
Secured with 1/4” diameter through rods
Top rail 3-3/4” width, Bottom rail 3-3/4” width, Intermediate rail 3-11/16 width
Rails Top and bottom rails with 2 3/8” wide, lower intermediate rail 1 19/32”, upper rail 2 3/8”, minimum wall thickness 0.062”
Stiles Center stile width: 2-11/16;
End stile width: 3-5/16
Weatherstripping Flexible bulb-type strip at bottom section
Track 2"
Glazing 1/8", 1/4", 1/2"



Benefits

Thermal Efficiency
  • U-Factor* As low as 0.28 with Low E insulated glass
  • R-Value** Up to 4.09 with optional insulation

Warranty

  • 1-Year limited
  • 1-Year limited powder coat finish

*U-factor is independently tested and verified per ANSI/DASMA 105 using doors with full glazing and specific product sizes.

**Wayne Dalton uses a calculated door section R-value for our insulated doors.

†Meets IECC® requirements for maximum U-factor of operable fenestrations and ASHRAE 90.1 and IECC® requirements for maximum air leakage of fenestration assemblies.

Enhancements

Operation

  • Electric operator

High-Performance Design

High Cycle Spring Options
  • 25,000
  • 50,000
  • 75,000
  • 100,000

Design Options

Locking Options
  • Interior mounted slide lock with interlock switch for automatic operator
  • Keyed lock
  • Keyed lock with interlock switch for automatic operator
Weather Stripping Options
  • Jamb
  • Header seals
Bottom Sensing Edge
Exhaust Ports
Bracket Mounting
3” Track

Colors

Anodized Finishes
Clear Light Bronze Medium Bronze Dark Bronze Black

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.



Glass

Clear** (Standard)(Standard) Obscure Satin Etched Gray Tint Green Tint Bronze Tint White Laminated
