Model 500

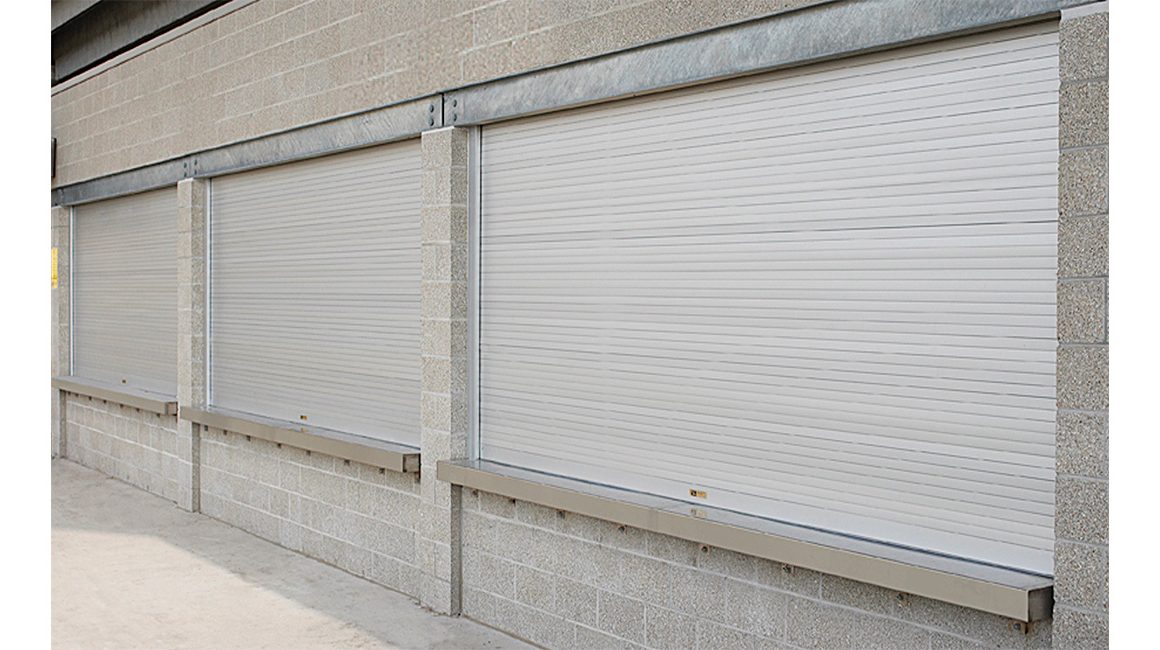

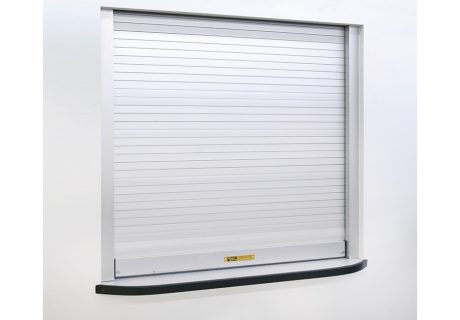

The Model 500 Rolling Counter Shutter provides the perfect solution for smaller openings that require visually appealing access control. This shutter is designed to be utilized in those applications that incorporate countertops or openings that require the shutter to rest on a sill. With several different modes of operation including lift-up, crank, and motor, our counter shutter is the preferred solution for your application. Get exceptional security while getting the aesthetic you desire.

Ideal Applications Include

  • Concession Stand
  • Accounts Payable Window
  • Sports Arena
  • School
  • Food Service
  • Ticket Booth
  • Cafeteria

more Model 500 details

Features

Standard Construction Model 500
Max. Width* 20' up to 18'
Max. Height 7'
Steel Gauge 22
Mounting Face mount, between jambs
Operation Manual Push-up
Curtain 2” galvanized steel flat slats (#17 profile), 22-gauge steel with alternating endlocks
Counterbalance Steel pipe, of adequate size to restrict a maximum deflection of .033” per linear foot; oil tempered torsion type
Guides Extruded aluminum clear anodized with continuous wool pile strips
Hood 24-gauge galvanized steel square hood
Brackets Steel plates
Locking Concealed slide bolts on both sides

*Aluminum shutters up to 18’ wide. Steel & stainless steel up to 15’ wide. on centers.

Benefits

High Quality Construction
  • The high quality, interlocking slats on the rolling counter shutter are available in galvanized steel, stainless steel or aluminum for long-lasting durability
  • The box type guides are designed to reduce operational noise as well as to conceal the fasteners used to attach the shutter to the jamb resulting in quieter operation and greater visual appeal
  • A square hood cover encloses the curtain coil and counterbalance mechanism giving a clean, professional appearance
  • Oil-tempered, torsion-type counterbalance springs are wound from steel, providing accuracy in balancing the door

Warranty

  • 24- Months against defects in materials and workmanship

Enhancements

Operation

  • Manual Lift
  • Crank
  • Motor
  • Operator controls

Safety Focused

Locking Options
  • Slide bolts
  • Thumb turn cylinder (interlock potion on motorized doors)
Bottom Bar Options
  • Single angle galvanized steel bottom bar fitted with a continuous vinyl bumper to protect countertop

Design Solutions

  • Counter Cutouts

Design Options

Mullion Systems

Facia

Slat Profiles
  • No. 17
  • Secure-Vent®
  • Extruded Aluminum Flat
Slat Options
  • steel
  • stainless steel
  • extruded aluminum
  • perforation (steel or stainless steel only)
Slat Finishes
  • Stainless Steel #4
  • Aluminum Anodized Finish
Bottom Bar Finish Options
  • Extruded aluminum
  • Tubular
  • Sensing edge: electric or pneumatic
Hood/Bracket Finish Options
  • Stainless steel
  • Aluminum

Colors

Steel Finishes

White Gray Beige Brown
Anodized Aluminum Finishes

Bronze Clear



RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
