Model 523

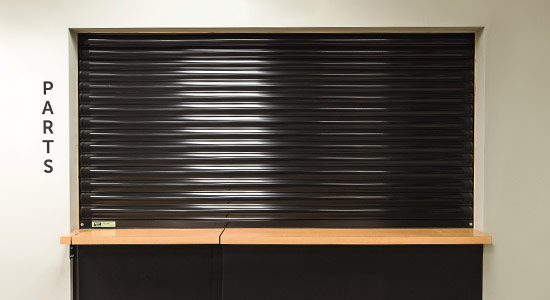

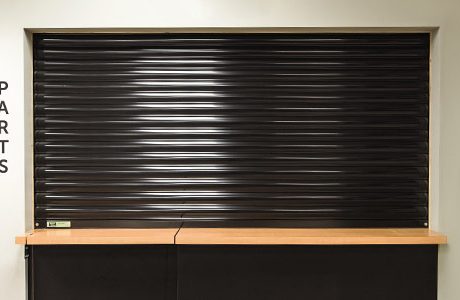

Model 523 is an attractive security shutter for areas where aesthetics is a valued premium along with visibility and airflow. This shutter has a compact design and comes pre-assembled for easy installation in areas with low headroom and side room requirements. Model 523 provides security against forced entry or theft with slide bolts or cylinder locks available on manual or crank operation while fitting in with the aesthetics of the facility.

contact us about this product

Ideal Applications Include:

  • Pharmacies
  • Hospitals
  • Airports
  • Counters
  • Offices
  • Schools
  • Concessions
  • Sports Facilities
  • Retail Facilities

more Model 523 details

Features

Standard Construction Model 523
Max. Width* 20'
Max. Height* 14'
Slat Style Solid
Mounting Face-of-wall or between jambs
Operation Manual Push-up
Material Aluminum
Curtain Interlocking extruded aluminum slats constructed of .05" aluminum
Counterbalance Steel barrel; housing spring assembly
Guides Extruded aluminum channels with continuous wear strips
Hood Aluminum square hood
Brackets Steel plates
Bottom Bar Compact aluminum with vinyl bulb seal



*Maximum height and width are independent of each other and may vary based on slat profile, material and gauge

Benefits

Installer Friendly
  • Designed to be compact, the headroom and side room requirements are minimal and the pre-assembled door allows for easy installation
  • Made with extruded aluminum, the curtain has interlocking slats constructed of .05” aluminum and comes pre-assembled for easy installation
Attractive Design
  • Its compact design allows for a 14’ high door to wrap into a 10” square hood
  • Stylish design by powder coating over anodizing includes more consistent coloring, easily matched replacement parts, and shorter lead times

Warranty

  • 24-Months Limited Warranty on all product parts and components

Enhancements

Operation

  • Interior crank
  • Tube motor with crank for emergency egress manual override

Safety Focused

  • Cylinder lock (if motor operated requires interlock microswitches)
  • Pad-lockable slide bolts (padlock not included)
  • Interlock microswitch

Design Solutions

  • Bottom bar step angle attachment

Design Options

  • Slat Styles
  • Standard Slat
  • Perforated - Perforation pattern - Offers 22% open area
  • Fenestrated - 1" x 1" fenestrations with uniform spacing - Offers 24% open area

Colors

Standard Powder Coat

White Almond Silver* Bronze*



Guides/Brackets/Hood/Bottom Bar
  • Custom Color

*Silver and bronze powder coat made to match the anodized aluminum style

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
