Model 596

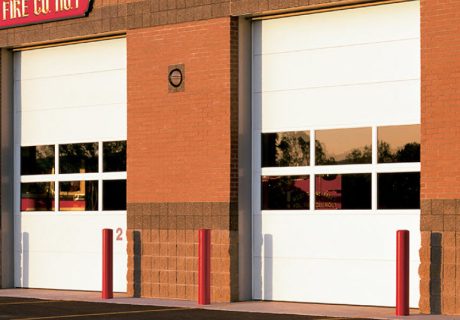

The Thermacore® Sectional Door Model 596 is ideal for extra heavy-duty applications where both thermal efficiency and sound suppression are desirable. The 596 is constructed of 20-gauge galvanized steel with a flush, textured finish. The sectional steel door model 596 incorporates the Thermacore® steel-polyurethane-steel panel construction, which provides a thermal barrier to withstand harsh climates and demanding environmental requirements.

contact us about this product

Ideal Applications Include

  • Automotive

more Model 596 details

Overview

Construction

Product Specifications
Standard Max Width 36'2" (11,024 mm)
Standard Max Height 24'1" (7,341 mm)
Panel thickness 2" (51 mm)
U-factor* .10
R-value** 17.4 (3.06 W/m2)
Sound Transmission Class 26 Ideal for applications that require sound control
Air infiltration at 25 mph (40 kmp/h) .13 cfm/ft2 (2.37 m3/hr/m2)
Thermal break PVC
Exterior Steel 20-gauge galvanized
Exterior Surface Flush, textured
Standard Springs 10,000 cycles

*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.



Warranty

  • 10 year limited delamination
  • 1 year limited on door
  • 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)

Options

Panel Options

  • traditional wood flush panel design

    Flush Panel

Color

Exterior Colors

  • white color swatch

    White

  • gray color swatch

    Gray

  • tan color swatch

    Tan

  • industrial brown color swatch

    Industrial Brown

Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.

Enhancements

  • Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
  • Aluminum sash section available up to 24'2" (7,366 mm) wide
  • Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
  • Four-section pass door
  • High-usage package
  • Wind Load options
  • Electric operator
  • Chain hoist
  • Posi-Tension™ drums
  • Safety bottom fixture
  • Bottom-sensing edge
  • Flexible jamb, header seal
  • Exhaust ports
  • Window Glazing Options
  • Impact Section Available
