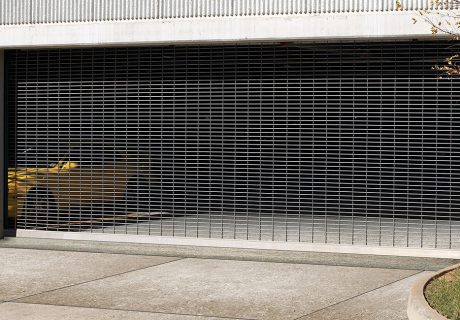

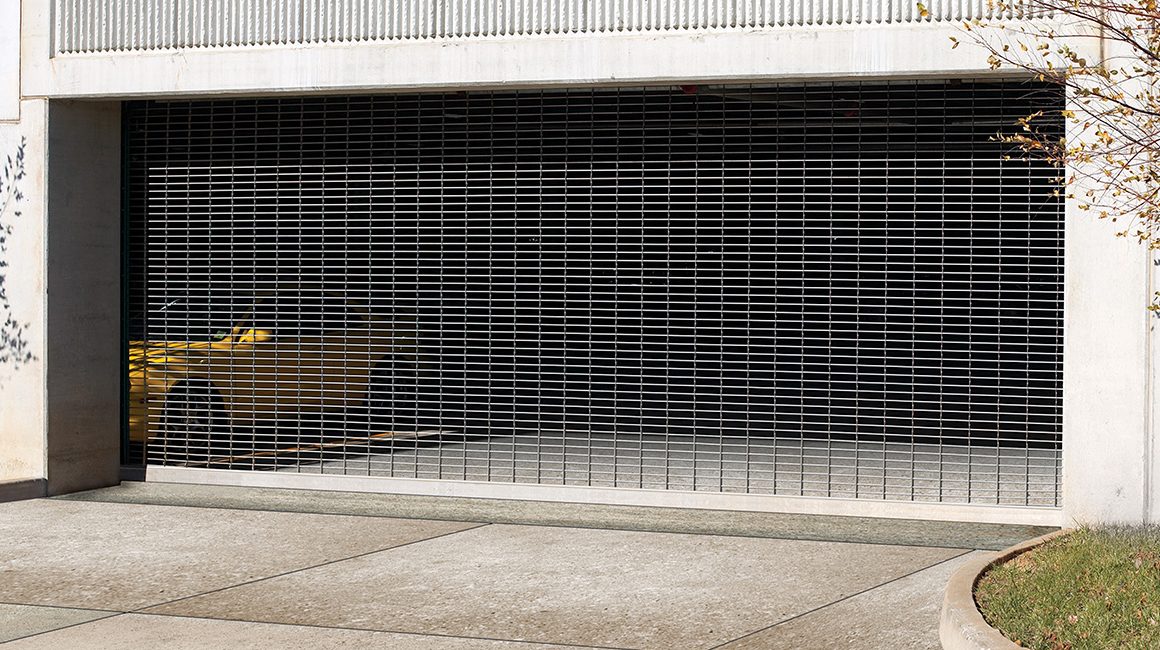

more Model 600 HC details

Features

Standard Construction	Model 600 HC
Max. Width*	30' (9,144 mm)
Max. Height*	14' 4" (4,369)
Max Total Area**	330 ft²
Spring Cycle	300,000
Material	Steel, aluminum or stainless steel
Mounting	Interior or exterior face of wall
Operation	Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for power outage. Horsepower appropriate to door size/weight; 230 FAC 3-phase motor; IP54 rated (NEMA 3 equivalent)
Control Panel	Electronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter is included. One open/close/stop push button station integrated in control panel. Enclosure is IP54 rated (NEMA 3 equivalent)
Curtain	Galvanized steel links and solid rods with mill aluminum spacer tube
Curtain Pattern	Straight lattice 9" center vertical links with 2" center rod spacing
Door Roll	Directly driven, springless roll with integral shafts; Self-aligning greaseable sealed bearings; Door does not require counterbalance device
Bottom Bar	Tubular extruded aluminum with mill finish
Guides	3 structural steel angles with UHMW wear strips
Hood	24-gauge
Safety Features	Built-in brake mechanism Photoelectric sensors with guards

*Maximum height and width are independent of each other and may vary based on material and gauge. Larger sizes may be available. See your Wayne Dalton Dealer for more information
**Dependent upon the curtain material and pattern. Consult factory for sizes not listed above

Benefits

High-Quality Design

Direct-drive Gearbox integrates gear, motor and brake assembly with a built-in braking mechanism providing additional protection against uncontrolled curtain travel
Springless Barrel Design eliminates the need for a counterbalance, allowing for a 300,000-cycle life without having to incur the cost of spring replacement
Universal Components allow for ease of maintenance
Floor-level Controller permits ease of access control and maintenance

Security

High Strength links and solid rods provide security without sacrificing visual access or air exchange
Patent-pending built-in drop stop device provides additional peace-of-mind against uncontrolled curtain travel in a high vehicular traffic area
Heavy-Duty Commercial Photo Eyes are photoelectric sensors to reverse the downward motion of the grille when a person or object enters its path

Warranty

24-Month/300,000 cycles Limited Warranty on door components

Enhancements

Operation

Supply Voltage

208V AC 1PH^†
230V AC 1PH
460V AC 3PH^†
575V AC 3PH^†

*horsepower is appropriate to size and weight of door
^†May require stand-alone mounted transformer

Control Panel

IP65v (NEMA 4/4X equivalent)

Safety Focused

Monitored electric sensing edge

Photoelectric sensors

Actuators

Loop Detectors
Radio Control
Push Buttons
Motion Detectors

Design Options

Bottom Bar

Aluminum double angle

Curtain Pattern

Brick 9" on center vertical links with 2" on center rods spacing

Curtain Material Options

Mill aluminum link, galvanized steel rod, with mill aluminum spacer tube
Clear anodized aluminum link, galvanized steel rod, and clear anodized aluminum spacer tube
#4 or #2B stainless steel link, solid rod, and spacer tube; Powder coat finish
