  • Model 600

back to Overhead Door Commercial Doors garage doors

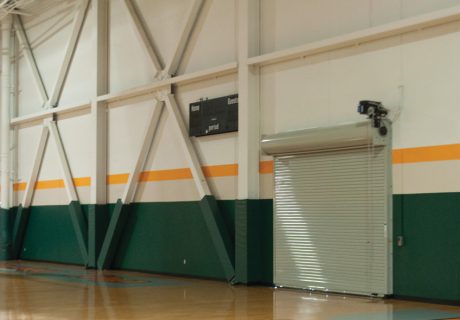

Model 600

This rolling steel service door is an ideal choice where economy and functionality are important. The Model 600 door comes standard with bottom weatherseal; wind load, chain hoist or motor operation and hood options are available to expand its uses in a variety of light commercial applications.

contact us about this product

Ideal Applications Include

  • Public Facilities
  • Warehouse Solutions
  • Government Facilities
  • Security
  • Automotive

more Model 600 details

Overview

Construction

Product Specifications
Standard Max Width 16' (4877 mm)
Standard Max Height 16' (4877 mm)
Curtain 26 ga. galvanized steel up to 12'4" (3759 mm) wide
24 ga. galvanized steel up to 16' (4877 mm) width
Finish white/white, white/brown or brown/white
Standard mounting Face of wall
Standard springs 10,000 cycle
Operation Manual push-up up to 100 sq. ft. (9290 sq.mm) or 10' x 10' (3048 mm x 3048 mm)
Chain hoist over 100 sq. ft. (9290 sq.mm) or 10' x 10' (3048 mm x 3048 mm)
​Bottom Bar Extruded aluminum with weatherseal
​Slat profile Flat face with angled ends, type CAW ​
CAW – available up to 16'0” (4877 mm) wide. No perforation or fenestration available on CAW.
Lock Slide bolts on push-up; padlockable chain keeper on chain hoist
Guides Cold roll-formed channel and angle ​

Options

Color

Standard Exterior Color

White Brown 600

Standard Exterior Color

  • white color swatch

    White

  • brown color swatch

    Brown​​​​​

Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors

Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor

Enhancements

​​Door Options

  • Chain hoist
  • Electric operator
  • Monitored Light Curtain (3' or 6' option)
  • Bottom sensing edge
  • Hood
  • Wind load package
  • Galvanized steel endlocks
  • Between-jambs mounting
  • PowderGuard® finish offers full spectrum of approximately 200 colors as well as color-matching to specification ​​​
