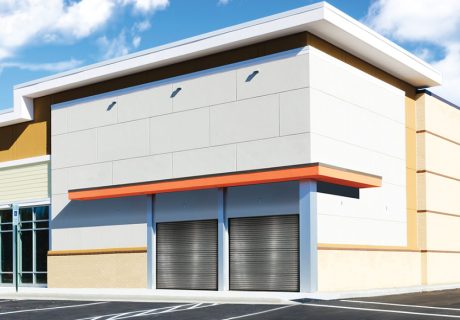

When safety and protection of property is a priority, Model 610FE withstands the tough requirements for commercial applications. Model 610FE is ballistics rated for .22 LR - .38 special (NIJ 0108.01) and meets the requirements for up to 30 minutes of forced entry per ASTM F3038-21.
| Product Specifications | |
|---|---|
| Standard Max Width | 16' |
| Standard Max Height | 16' |
| Curtain | 12-gauge galvanized steel |
| Finish | Gray |
| Hood | 24-gauge galvanized steel |
| Standard mounting | Face-of-wall |
| Operation | RSX® service door operator |
| Standard Spring | 10,000 cycle |
| Guides | Three steel angles |
| Bottom Bar | Double angle steel |
| Forced Entry ASTM F3038-21 | Up to 30 minutes |
| Obstruction detection | Wireless reversing edge |
| Ballistics Rating | .22 LR - .38 special (NIJ0108.01) |
| Slat Profile |
C-600 slat - a curved slat profile that measures 6"(152 mm) in height and 1 3/8" in depth. Slats can be replaced quickly, minimizing downtime.
|
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
