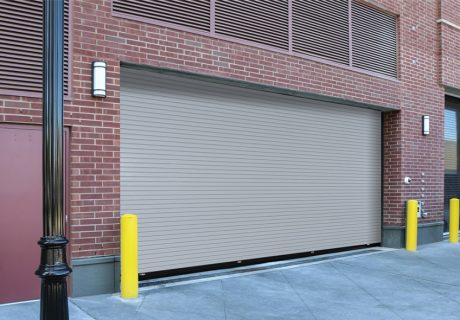

Model 610S

This heavy duty springless service door is well suited for applications that require the security and performance of a rolling service door with the added benefits of increased cycle life, reliability, and ease of serviceability. The fenestration option allows for air circulation and visibility, making it an ideal solution for facility managers seeking to replace parking garage grilles.

contact us about this product

Ideal Applications Include

  • Public Facilities
  • Parking Garage
  • Warehouse Solutions
  • Government Facilities
  • Manufacturing
  • Security
  • Automotive
  • Food & Beverage
  • Healthcare

more Model 610S details

Overview

Construction

Product Specifications
Standard Max Width up to 30' (9246 mm) depending on gauge and slat type
Standard Max Height up to 20' (6096 mm) depending on gauge and slat type
Mounting Interior or exterior face of wall
Control panel Electronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter is included. One open/close/stop push button station integrated in control panel. Enclosure is IP54 rated (NEMA 3 equivalent).
Curtain Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement; Curved profile type C-187 for doors up to 15'4" wide - 22 gauge; Curved profile type C-275 for doors from 15'5" to 18'4" wide - 22 gauge; From 18'5" to 25'4" - 20 gauge; From 25'5" to 30'0" - 18 gauge​
Curtain finish Gray, Tan, White or Brown polyester top coat
Bottom bar Two PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with weatherstrip
​Hood 24-gauge galvanized steel primed; motor and end cover provided
Brackets Min. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel
Guides Three structural steel angles PowderGuard® Premium powder coated black; With high cycle UHMW wear strip
Door roll Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device
Safety devices Built-in brake mechanism provides additional peace-of-mind against uncontrolled curtain travel. Photoelectric safety sensors with guards - provide obstruction monitoring during door operation to help prevent injury and damage
Operation Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for power outage. Horsepower appropriate to door size/weight; 230V AC 3-phase motor
Actuator Single open/close/stop push button station incorporated into control panel
Wind load 20 psf

Warranty

  • 36 month limited warranty coverage on door system ​​​

Options

Color

Standard Exterior Color

  • Brown

    Brown

  • white color swatch

    White

  • gray color swatch

    Gray

  • tan color swatch

    Tan

Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.

Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors

Enhancements

  • Motor options: 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH†, 575V AC 3PH†
    (†requires stand-alone mounted transformer)
  • Curved profile type C-187 for doors up to 15’4” wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 18 gauge (.040”) aluminum*
  • Curved profile type C-275 for doors up to 30’ wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 16 gauge (.050”) aluminum*
  • Flat profile type F-265 for doors up to 30’ wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 16 gauge (.050”) aluminum
  • Fenestrated 18 ga. steel slats or vision lites with uniformly spaced openings of 3" x 5/8" (76 mm x 16 mm) either slat profile or 10” x 1” (254 mm x 25.4 mm) flat slat profile only
  • Perforated 18 ga. steel slats with 1/16" diameter perforation; spaced 3/32” on center
  • Bottom bar also available in galvanized steel, stainless steel and aluminum
  • Guide options include galvanized steel, power coated steel
  • Hood available in powder coat, stainless steel and aluminum; sloped hood also available
  • Brackets also available in powder coat, galvanized steel
  • IP65 (NEMA 4/4X equivalent) control panel
  • Sensing edge for improved safety
  • Additional set of photoelectric sensors
  • Optional push buttons, loop detectors, radio control, motion detectors or any combination thereof available for door operation/control
  • PowderGuard® Premium powder coat and PowderGuard® Max hardened powder coat available in approximately 200 colors as well as color-matching to specification
  • PowderGuard® Textured Finish: Industrial textured powder coat provides a thicker, more scratch resistant coat for added product protection on guides, bottom bar and head plate
  • High wind load options available ​​​

*Consult factory for specific slat profile and gauge width limits.
