Model 650

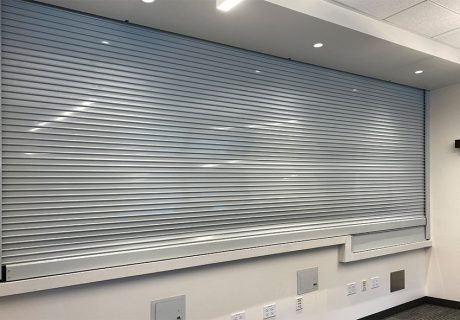

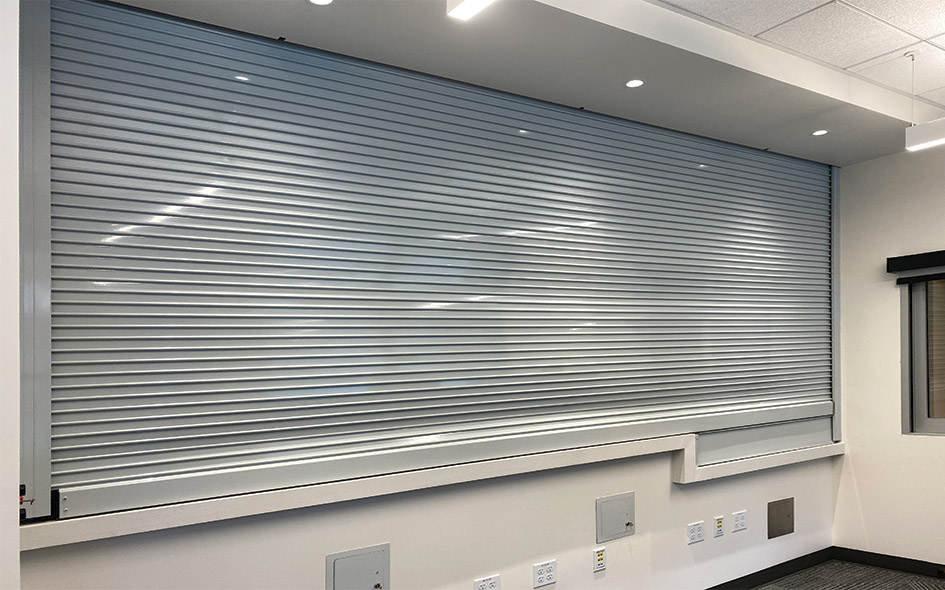

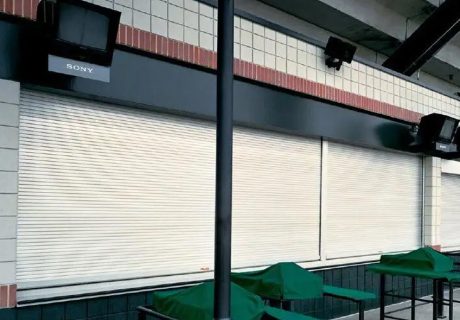

​​​​​​​​​​​​​​​​​​​​​​​​​​Distinguished by their painted galvanized steel slat curtain finish, Model 650 rolling counter doors are designed to fit openings to 20' wide and 9' high. These doors are ideal for a host of small-opening applications where security is important and a non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.​​​​

contact us about this product

Ideal Applications Include

  • Public Facilities
  • Government Facilities
  • Family Housing
  • Security
  • Automotive
  • Food & Beverage
  • Healthcare

more Model 650 details

Overview

Standard Max Width 20' (6096 mm)
Standard Max Height 9'0" (2743 mm)
Curtain Interlocking flat profile slats (F-158) with endlocks; galvanized steel
Hood Galvanized steel
Finish Galvanized steel primed with choice of baked-on polyester top coat in gray or tan
Brackets Steel plate to support curtain, counterbalance and hood
Guides Extruded aluminum
Counterbalance Helical torsion springs housed in a steel tube or pipe barrel
Mounting Face of wall, between jambs
Operation Manual push up
Lock Interior slide bolt
Warranty 24 - month limited

Options

  • Crank or electric operation
  • PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
  • PowderGuard® Zinc and PowderGuard® Weathered finishes
  • Vision lites
  • Perforated slats
  • Fenestrated slats with uniformly spaced openings of 5/8" x 3" (16 mm x 76 mm)
  • Guides: 11-gauge roll-formed steel guides
  • Cylinder lock ​​

Colors

Commercial Standard Exterior

  • gray color swatch

    Gray

  • tan color swatch

    Tan

Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors

Counter Doors

Standard Exterior Color




Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
