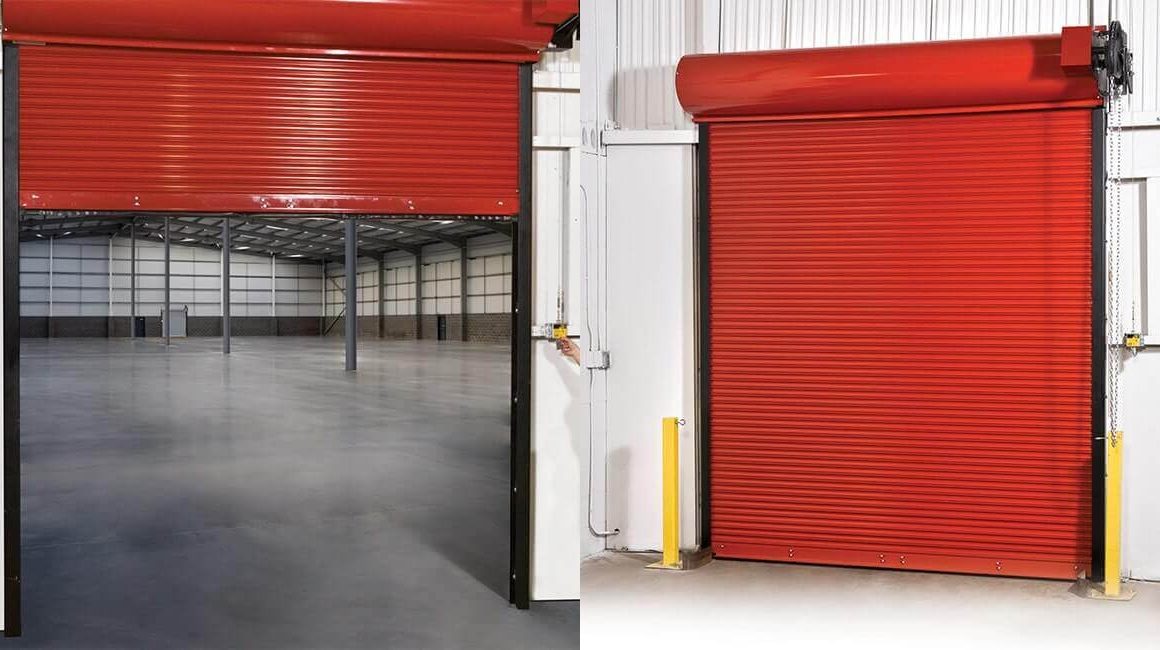

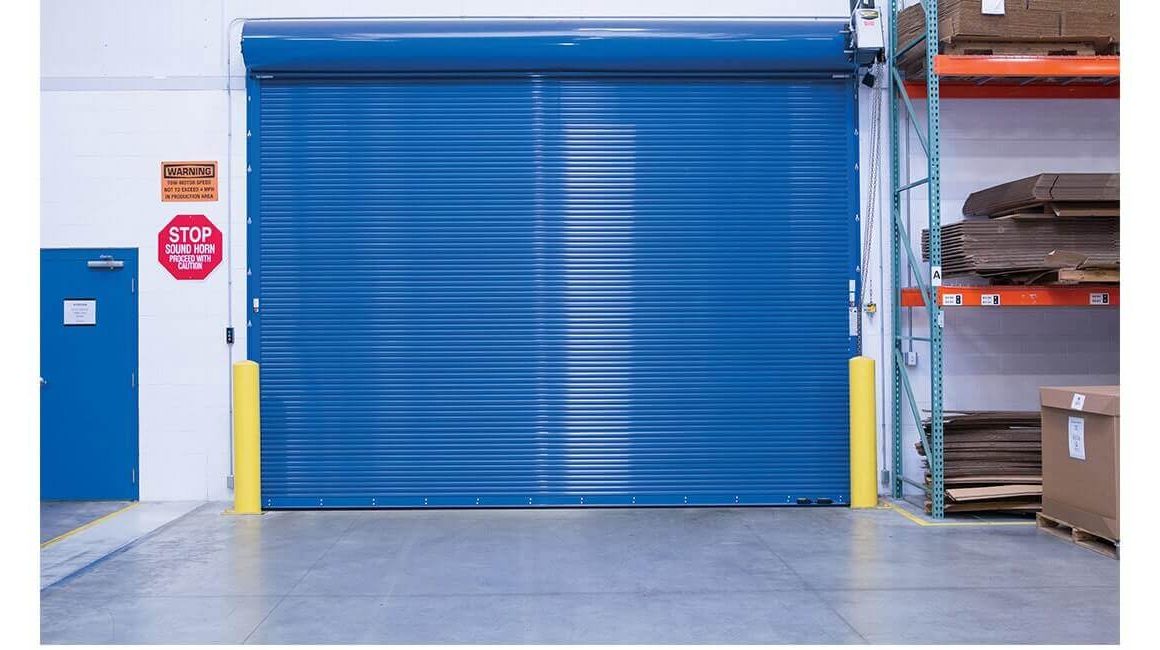

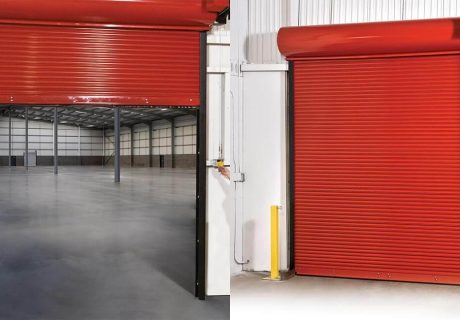

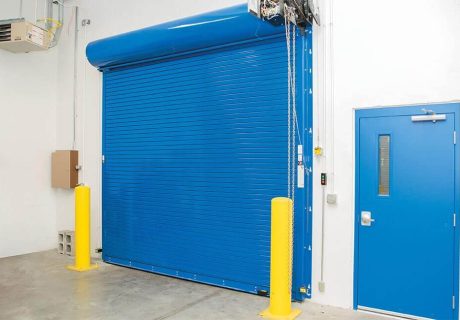

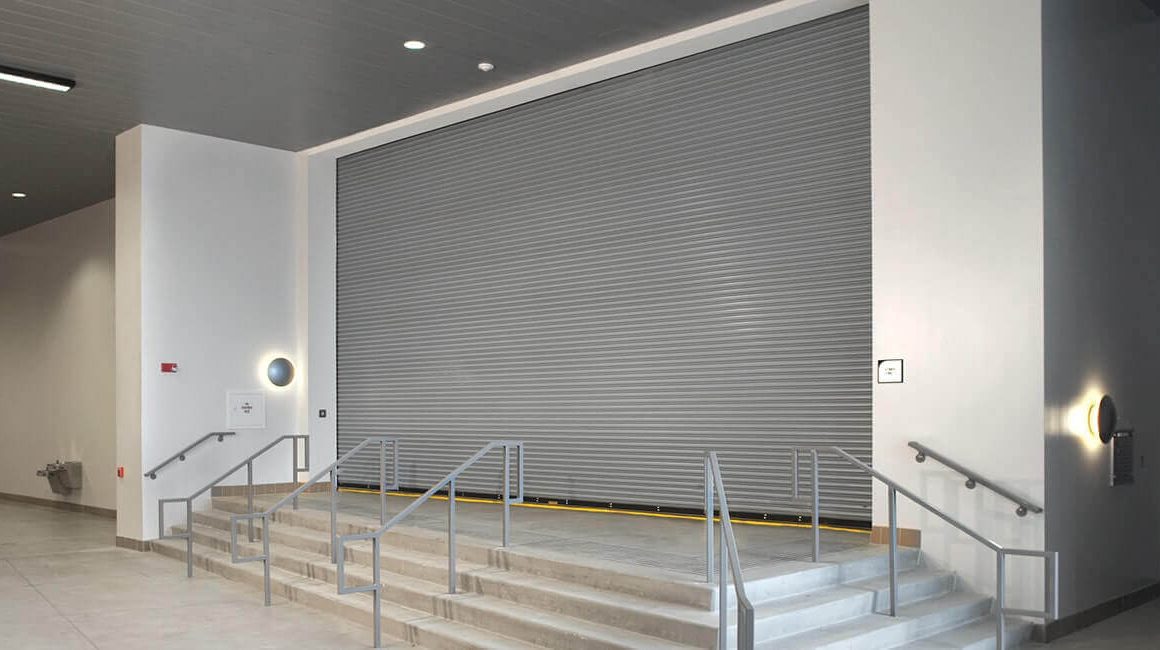

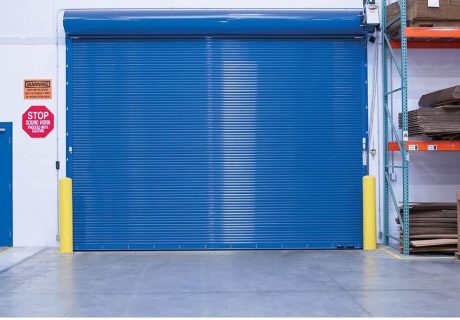

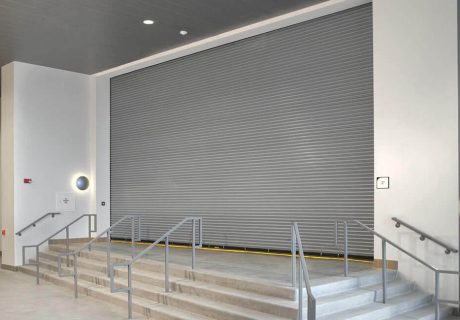

Model 700

FireStar® fire-rated doors provide a practical and innovative solution to safety and fire protection for high traffic areas. Rolling Steel Fire Doors can be drop-tested and reset at any time by anyone, thanks to a standard auto-reset feature. Model 700C is an insulated rolling steel fire door with a non-combustible mineral wool insulation that has a flame spread and smoke development of 0, further aiding in the protection of the building. Both fire-rated doors feature a forward-thinking design that outperforms industry standard fire doors in all areas, including auto-reset testing capability; smooth, quiet operation; and reliable, long-lasting performance.

contact us about this product

Ideal Applications Include:

  • Distribution Centers
  • Food Service Areas
  • Stadium Concessions
  • Service Stations
  • Storage Areas
  • Warehouses
  • Manufacturing
  • Trucking Distribution Center

more Model 700 details

Features

Standard Construction Model 700C Model 700
Max. Width** 22'" 24'
Max. Height** 22' 24'
Max. Sq. Footage 324 sq. ft. 324 sq. ft.
Material Galvanized or Stainless Steel Galvanized or Stainless Steel
Curtain Material 3" insulated galvanized steel flat slats (#34 profile) 22-gauge steel front / 24-gauge steel backer Interlocking roll-formed slats with alternate slats fitted with metal end-locks/ wind-locks
Max Steel Gauge 22 18
Operation Chain hoist or Motor Lift-up
Mounting Face mount angle-in or angle-out; between jambs Structural steel, drywall over wood stud jamb, drywall over 16-gauge steel stud jamb
Counter Balance Helical springs, oil tempered, iron barrel plugs for anchoring springs to shaft and pipe; 20,000 cycle Helical springs, oil tempered, iron barrel plugs for anchoring springs to shaft and pipe; 20,000 cycle
Hood 24-gauge galvanized steel /stainless steel round hood 24-gauge galvanized steel /stainless steel round hood
Bottom Bar Galvanized steel double angle with weatherstrip and insulation Two equal angles
Thickness- 0.121" min to stiffen curtain
Brackets 3/16" or 1/4" steel plates with sealed ball bearings, painted factory black 3/16" or 1/4" steel plates with sealed ball bearings, painted factory black
Release Mechanism No Yes
Slat Profiles No. 2, No. 4, No. 14, No. 17 No. 34
R-value* (optional) 5.0 No
Wind Load (optional) Yes*** Yes***



*Wayne Dalton uses a calculated door section R-value for our insulated doors
**Maximum height and maximum width are independent of each other and may vary based on slat profile, material and gauge
*** FBC and Miami Dade approved wind load reinforcement is available for hurricane-prone areas

Benefits

High-Quality Construction
  • Patent-pending planetary gear on the drop-out mechanism ensuring years of reliable service and drop-out performance
  • Lift up operation control device utilizing a clutch plate and unique counterbalance technology to drop the door in the event of a fire
  • UL/ULC/FM rated; Conforms to NFPA Standard 80
    • Up to 4-hour and 3-hour Class A label in UL, ULC
    • Regulates the installation and maintenance of assemblies and devices used to protect openings in walls, floors, and ceilings against the spread of fire and smoke
  • Tested and approved to meet the requirements of well-known agencies, such as Underwriters Laboratories and Factory Mutual
Reliable Design
  • Factory-tested and approved for a minimum of 20,000 cycles, the FireStar® door can be used and easily tested on a regular basis without concerns of premature failure
  • Non-Tension Release provides the ease of simply opening the door to reset the drop mechanism after ‘an event’
Field Repairable
  • Floor resettable features an easy drop test with a fast/simple reset in a matter of seconds
  • By incorporating one standardized component design, this ensures more accurate installations and reduces the possibility of potential service calls in the future

Warranty

  • 24-Months Limited Warranty on all product parts and components

Enhancements

Operation

  • Manual Crank
  • Motor operation
  • Chain hoist

Safety Focused

Signal Device Options
  • Fire Release Device
  • Horns and Strobes
  • Smoke Detectors
Sensing Edge Options
  • Electrical
  • Pneumatic
Viscous Governor

Design Solutions

Wind Lock Options
  • Alternating or continuous with windbar

Florida Building Commission Impact Rating – Certified for Florida's High Velocity Hurricane Zone (Up to +/- 55 psf)

Design Options

Slat Profiles: 700

Profile Slat Gauge Pitch
No. 2 Curved-faced single crown slat Up to 20-gauge steel
Up to 20 or 22-gauge stainless steel		 1.9’
No. 4 Curved-faced single crown slat Up to 18-gauge steel
Up to 20 gauge stainless steel		 2.8’
No. 14 Flat-faced slat Up to 18-gauge steel
Up to 18-gauge stainless steel		 2.45’
No. 17 Flat-faced slat Up to 20-gauge steel
Up to 20 gauge stainless steel		 1.6’



Slat Profiles: 700C

Profile Slat Gauge Pitch
No. 34 Flat-faced slat Up to 18-gauge steel or stainless steel  2.45'

Vision Options
  • FireLite*- 5" x 3/4"
  • FireLite* fenestration with glass vision lite
  • 6" curved slat
Curtain Gauge Options
  • 20 or 18-gauge Steel front
  • 22, 20, or 18-gauge Stainless steel front
Bottom Bar Options
  • Stainless steel double angle
  • Galvanized structural steel angle construction
  • Sloped
Bottom Edge Options
  • Astragal
  • Pneumatic
  • Electric sensing
Hood
  • 22-gauge steel
  • Square hood
Locking Options
  • Slide bolts
  • Cylinder
  • Best lock
  • Thumb turns
Perimeter Seal Options
  • Angled guide brush seal
  • Exterior lintel weather
  • Flame baffle
  • Smoke package
    • Full perimeter seal
    • Caulking
    • Label
End Covers
FM label
Fascia

*FireLite is a trademark of Nippon Electric Glass Company

Colors

Color Options

White Gray Beige Brown

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
