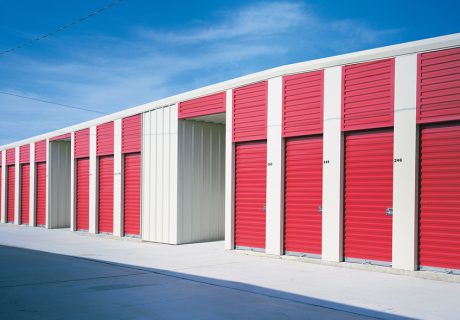

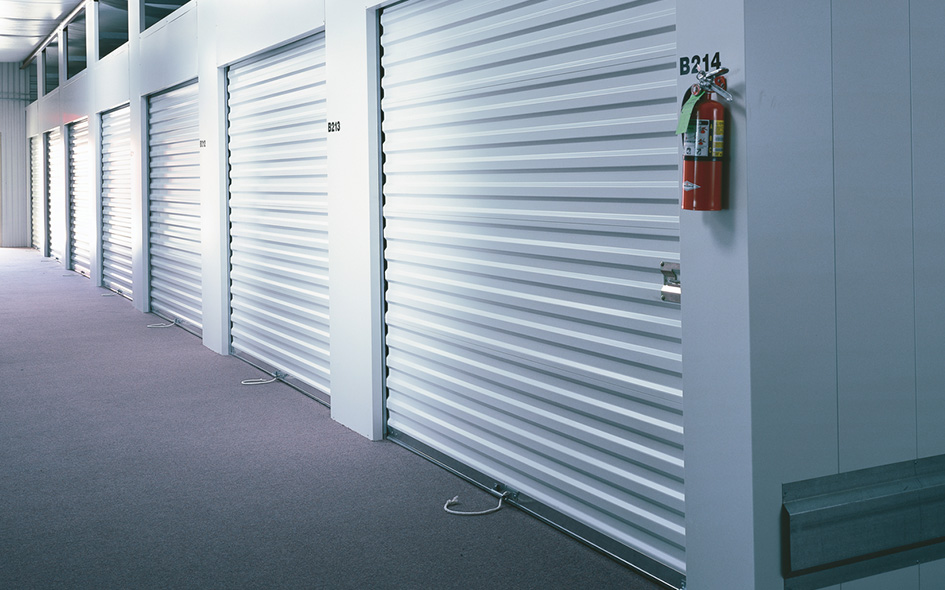

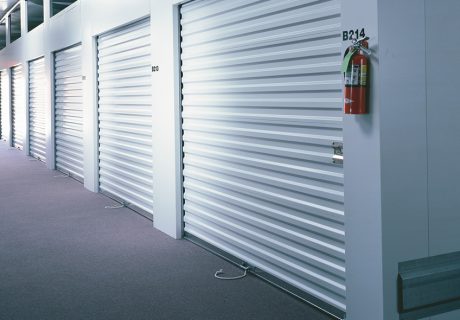

Model 770SS

The Model 770SS rolling sh​eet door is a great option for facilities that require a quality door that installs quickly, operates dependably, and requires minimal maintenance. Like the other doors of our rolling sheet door line, this 26-gauge door features quick-connect components that simplify and speed installation while ensuring door sturdiness. Stepped counterbalance rings and a unique curtain profile ensure a tight curtain wrap resulting in a smooth operating door and minimal nesting. A host of other standard features from standard roller bearings and dual rub strips on both guide edges and both front edges of the curtain further promote smooth operation and longer life. Available in 12 standard colors, the Model 770SS represents a good choice and a good value.

Ideal Applications Include

  • Public Facilities

more Model 770SS details

Overview

Construction

Product Specifications
Standard Max Width 10' (3048 mm)
Standard Max Height 10' (3048 mm)
Curtain 26-gauge, roll-formed, galvanized steel sections interlocked and seamed to form full door height
Curtain material High strength steel
Curtain rub strips Flexible webbing on both front edges
Counterbalance Assembly 9" (229 mm) steel “stepped” rings to minimize headroom and enhance door operation
Universal guides 18-gauge, roll-formed galvanized steel, pre-punched through-hole design for mounting to concrete, masonry, steel or wood jambs
Quick-connect headplate 11-gauge steel
Bottom bar Extruded aluminum reinforced with steel, roll-formed angles
Quick-connect bottom bar stops 14-gauge galvanized steel
Bottom seal Bulb-type, astragal seal
Guide rub strips Polypropylene strips on both edges
Standard springs 3 3/8" (86 mm) torsion springs
Operation Manual push up center handle with side step plate, and center rope attached to bottom bar
Lock Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*) (right or left-handed)
Exterior/interior finish Paint finish in choice of 14 standard colors: white, glossy white, silhouette gray, buckskin, desert tan, garnet red, walnut brown, polar blue, royal blue, teal, dark teal, forest green, bronze and matte black. ​​​

*Cylinder locks and padlocks not provided

Warranty

  • 1 year

Options

Color

  • white color swatch

    White

  • teal color swatch

    Teal

  • dark teal color swatch

    Dark Teal

  • forest green color swatch

    Forest Green

  • bronze color swatch

    Bronze

  • matte black color swatch

    Matte Black

  • white color swatch

    Glossy White

  • silhouette gray color swatch

    Silhouette Gray

  • buckskin color swatch

    Buckskin

  • desert tan color swatch

    Desert Tan

  • garnet red color swatch

    Garnet Red

  • walnut brown color swatch

    Walnut Brown

  • polar blue color swatch

    Polar Blue

  • royal blue color swatch

    Royal Blue

Enhancements

Door Options

  • Additional exterior curtain slide lock
  • Interior bottom bar slide bolt set (left and right-handed)
  • Header draft seal​
  • Wind load: Integrated curtain wind locks and guide to withstand wind load to minimum design pressures of 36/-36 psf (175/-175 kgf/sq m) ​
  • RLDTM Light Duty Jackshaft Operator
