  • Model 800 ADV

back to Wayne-Dalton Commercial Doors garage doors

Model 800 ADV

Model 800 ADV/800C ADV advanced rolling doors are three times faster than a standard rolling steel door and two times faster than a standard sectional door. This high cycle rolling service door is the ideal solution for high traffic areas where speed in operation, as well as lasting durability, is your top choice for an Advanced Performance door option. The ADV system is built for enhanced productivity with less maintenance required. The advanced rolling door system was designed with safety and security in mind when your business is driving these key initiatives. This high cycle rolling door is an advanced performance solution to create a high-performance environment.

contact us about this product

Ideal Applications Include:

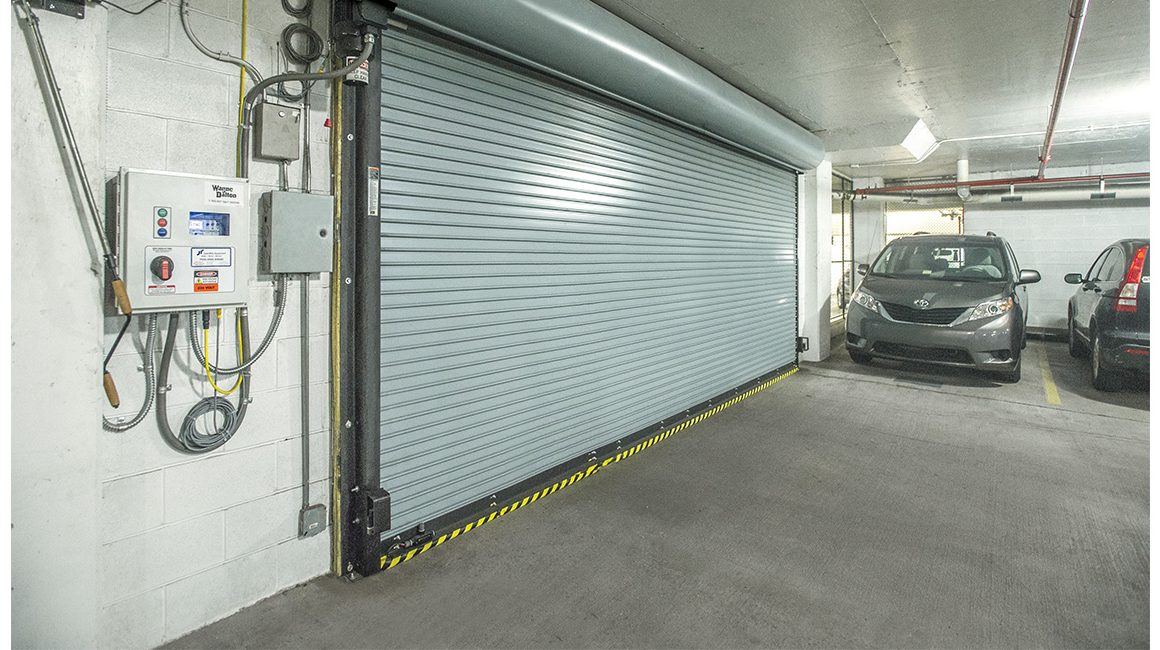

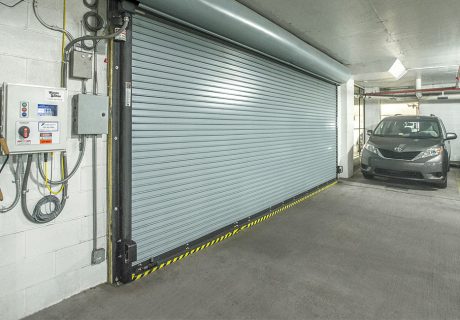

  • Parking Garages
  • Auto Dealerships
  • Warehouses
  • Manufacturing Facilities
  • Airports
  • Hospitals
  • Government Buildings
  • Police Sally Ports
  • Shipping and Receiving Docks

more Model 800 ADV details

Features

Standard Construction Model 800 ADV Model 800C ADV
Max. Width** 30' 30'
Max. Height** 20' 20'
Opening Speed 24" per second 24" per second
Closing Speed 12" per second 12" per second
Mounting Interior/exterior face-of-wall Interior/exterior face-of-wall
Curtain Material 3" flat slats (#14 profile) 22 ga. steel with alternating endlocks 3" insulated flat slats (#34 profile) 22 ga. steel front/24 ga. steel backer with alternating endlocks
Operation Direct Drive Direct Drive

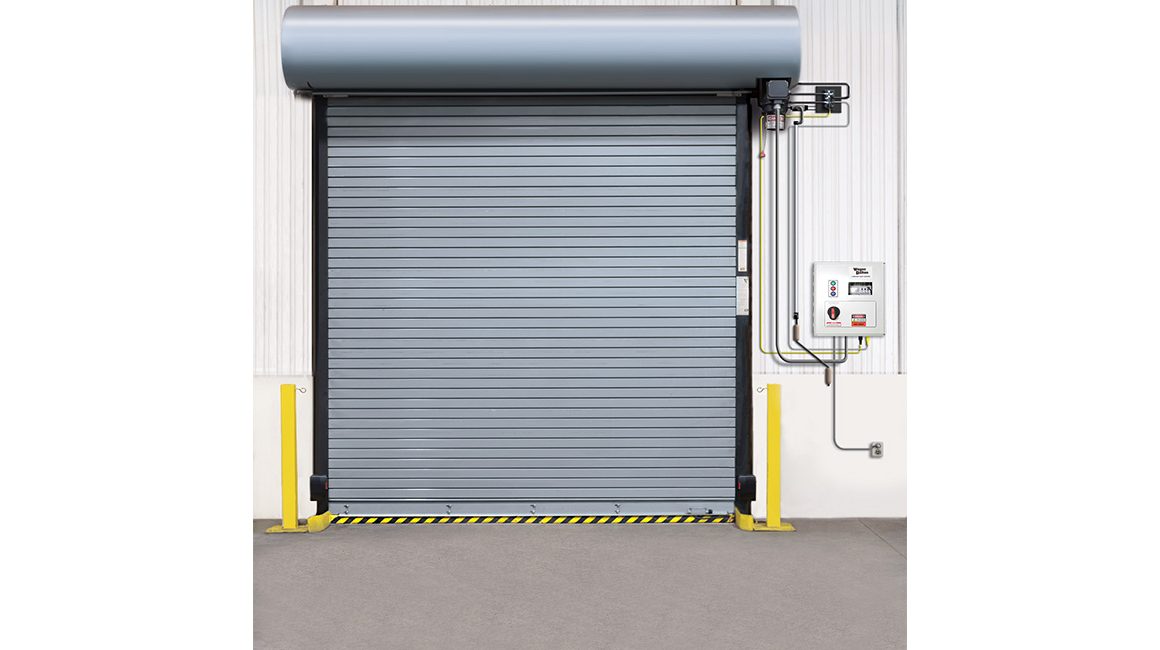

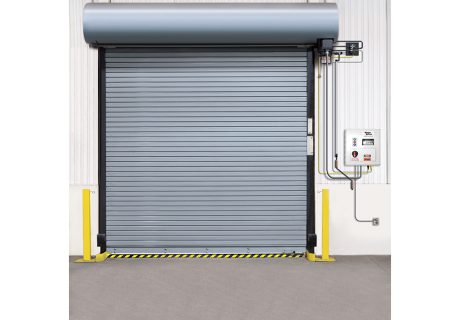

Control Panel NEMA 4X rated; variable frequency drive, self-diagnostics, timer to close programming options and non-resettable cycle counter are included NEMA 4X rated; variable frequency drive, self-diagnostics, timer to close programming options and non-resettable cycle counter are included
Supply Voltage 230V AC 3PH 230V AC 3PH
Door Roll Yes - No counterbalance required Yes - No counterbalance required
Bottom Bar Two equal angles
Thickness: 0.12-inch min.		 Two equal angles
Thickness: 0.12-inch min.
Guides 3 angle guide assembly 3 angle guide assembly
Hood 24-gauge steel galvanized 24-gauge steel galvanized
Steel Gauge 16 16
Exterior Steel Steel
R-value* N/A 7.7
STC Rating N/A 22
Safety Features Built-in brake mechanism
Photoelectric sensors with commercial grade guards
Wireless Monitored Safety Edge
Motor cover		 Built-in brake mechanism
Photoelectric sensors with commercial grade guards
Wireless Monitored Safety Edge
Motor cover
Wind Load (optional)*** Yes Yes



*Wayne Dalton uses a calculated R-value for our insulated doors
**Maximum height and width are independent of each other and may vary based on slat profile, material and gauge. Larger sizes may be available. e
***Only internally approved wind load reinforcement is available to withstand conditions in wind prone areas

Benefits

High-Quality Design
  • The innovative springless design provides smooth, reliable, high-cycle operation which allows the door system to be opened and closed frequently creating longevity and reliability over an extended time eliminating spring replacement cost and inconvenience
  • The variable frequency drive system operates on a soft start/stop to help prevent wear and tear on the system
  • Direct Drive Heavy-Duty Gearbox and Motor is ideal for high cycle applications and the assembly requires minimum maintenance unlike conventional chain and sprocket systems
  • Rated for design pressure of +/-20 psf
Safety Focused
  • Standard Drop Stop Device prevents the curtain from uncontrolled travel
  • Heavy-Duty Commercial Photo Eyes reverse the downward motion of the door when a person or object enters its path
  • Standard Fail-Safe Bottom Safety Edge reverses downward motion upon impact
  • NEMA 4X Control Panel with Built-In Variable Frequency Drive allows door to close at a slower speed than it opens to meet safety requirements
  • An LCD plain text read-out on the control panel allows for advanced diagnostics with fast and easy setup and troubleshooting

Warranty

  • 60-Month Limited Warranty on the door system and control panel hardware

Enhancements

Operations

Supply Voltages
  • 208V AC 1PH†
  • 230V AC 1PH
  • 460V AC 3PH
  • 575V AC 3PH†

*horsepower is appropriate to size and weight of door
†requires stand-alone mounted transformer

Safety Focused

Actuation Options
  • Push Button
  • Motion Detector
  • Radio Control
  • Key Switch
  • Loop Detector
  • Extra set of Photo Eyes
Signal Device Options
  • Warning Light
  • Horns
  • Strobes
Signal Device Options

Florida Building Commission Impact Rating – Certified for Florida's High Velocity Hurricane Zone

Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.

*Proper door selection is the responsibility of the homeowner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.

Design Options

Motor Cover
Hood
Slat Profiles:
  • No. 34 - Insulated (800C ADV)
  • No. 14 - Non-Insulated (800ADV)

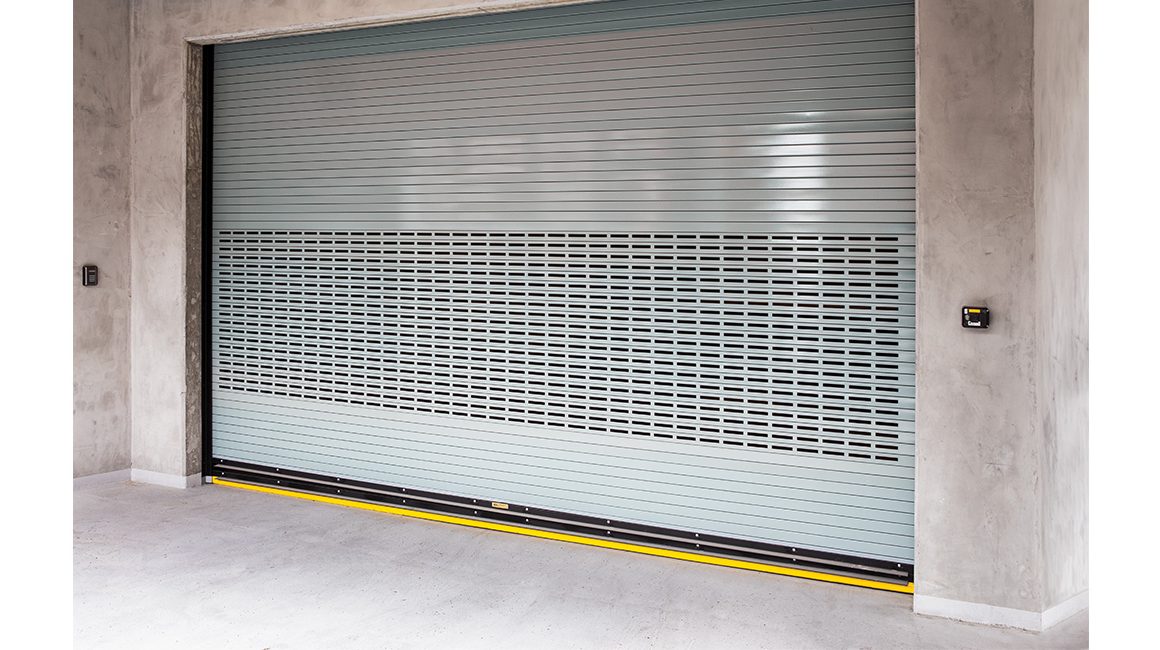

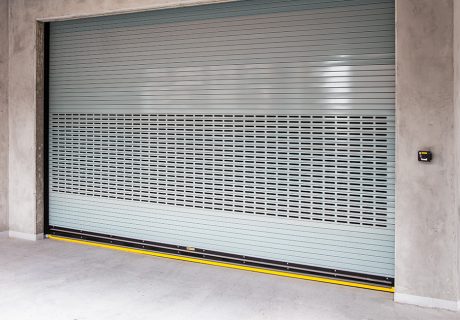

  • No. 14 – Ventilated
Vision Options
  • 5” x ¾” open fenestration
  • 5” x ¾” acrylic vision lite
Perimeter Seal Options
  • Surface guide weatherstrip
  • Angled guide brush seal
  • Exterior lintel weather seal
  • Interior weather baffle
  • High usage guide weatherstrip
Perimeter Seal Options
  • Pull cord station
  • Palm station
  • 1-button push station
  • Open-close-stop push button station

White Gray Beige

Guides/Bottom Bar
Black

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
