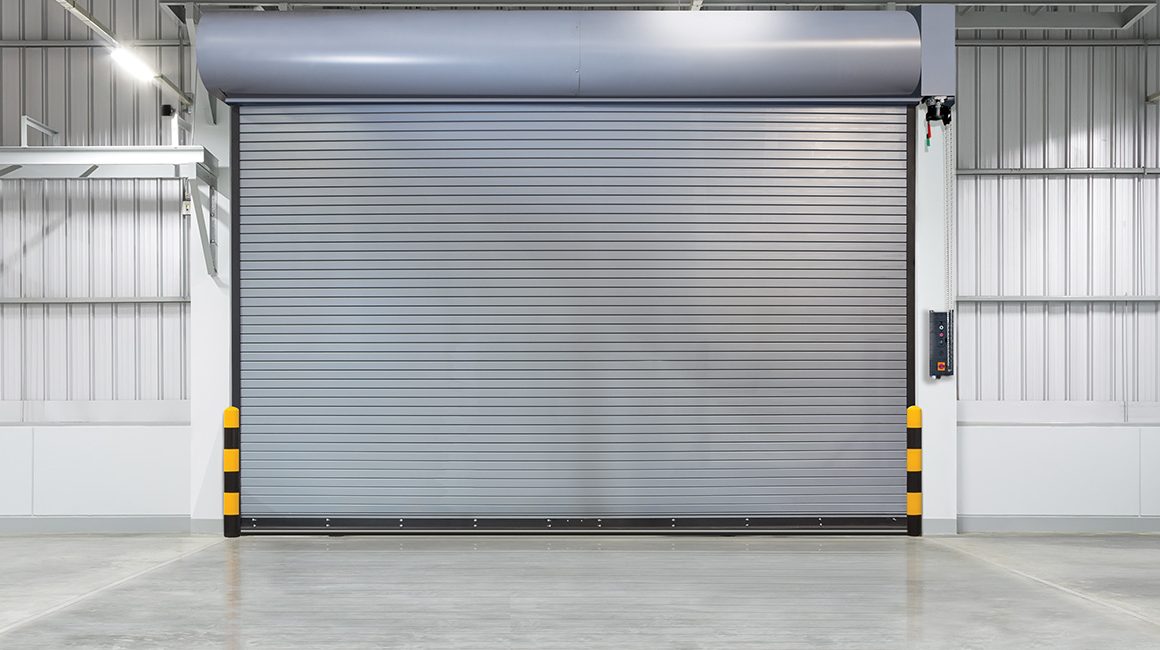

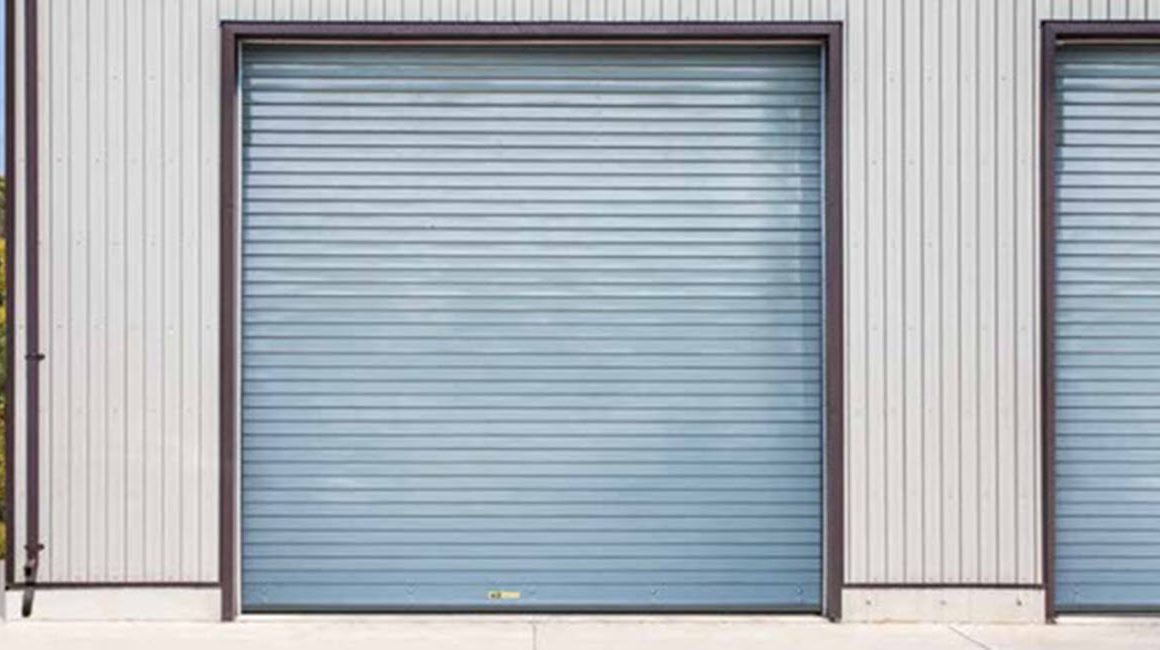

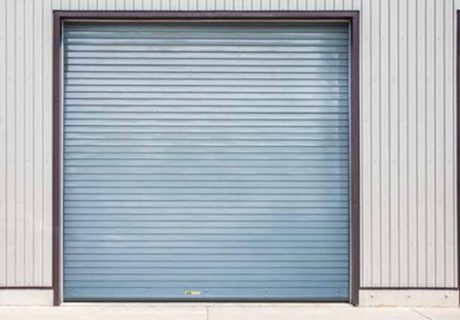

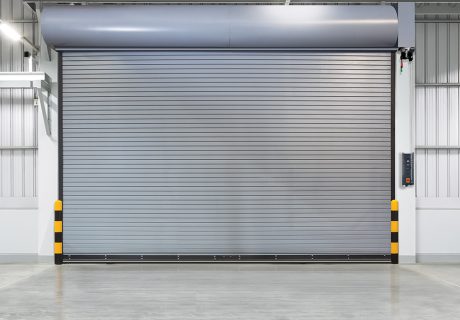

Model 800 HC

Models 800 HC and 800C HC offer the safety and security of a rolling service door, with the added benefit of a cycle life 25 times more than our standard service door and the ease of maintenance that comes with an innovative springless design. With a 500,000 cycle life, Models 800 HC and 800C HC are ideally suited for applications requiring a strong and durable rolling service door. These doors offer a variety of insulation, airflow, and weather seal options. High cycle rolling doors are ideal for high traffic areas requiring long-lasting durability.

contact us about this product

Ideal Applications Include:

  • Warehouse and Industrial Facilities
  • Manufacturing Facilities
  • Parking Garages
  • Public and Government Facilities
  • Shipping and Receiving Docks
  • Food and Beverage Facilities

more Model 800 HC details

Features

Standard Construction Model 800 HC Model 800C HC
Max. Width** 20' 20'
Max. Height** 20' 20'
Mounting Interior/exterior face-of-wall Interior/exterior face-of-wall
Curtain Material 3" flat slats (#14 profile)
22-gauge galvanized steel		 3" insulated flat slats (#34 profile)
22-gauge galvanized steel front/24- gauge galvanized steel backer
Operation Direct drive integrated motor/gearbox/brake assembly with a hand chain for power outages Direct drive integrated motor/gearbox/brake assembly with a hand chain for power outages
Control Panel Electronic controller with microprocessor self-diagnostics Digital readout, time delay self-close timer and non-resettable cycle counter. Enclosure is IP54 rated (NEMA 3 equivalent) Electronic controller with microprocessor self-diagnostics. Digital readout, time delay self-close timer and non-resettable cycle counter. Enclosure is IP54 rated (NEMA 3 equivalent)
Supply Voltage 230 VAC 3PH 230 VAC 3PH
Door Roll Yes - No counterbalance required Yes - No counterbalance required
Bottom Bar Two primed angles with weatherstrip Two primed angles with weatherstrip
Guides 3 angle guide assembly 3 angle guide assembly
Hood 24-gauge steel 24-gauge steel
Steel Gauge 18 18
Exterior Steel Steel
R-value* 7.71 7.710
STC Rating 22 22
Safety Features Built-in brake mechanism
Photoelectric sensors with commercial grade guards
Motor cover		 Built-in brake mechanism
Photoelectric sensors with commercial grade guards
Motor cover
Actuator Push-button Push-button
Wind Load (optional)*** Yes Yes



*Wayne Dalton uses a calculated door section R-value  for insulated doors.
**Maximum height and maximum width are independent of each other and may vary based on slat profile, material and gauge
***Only internally approved wind load reinforcement is available to withstand conditions in wind prone areas

Benefits

High-Quality Design
  • Reliable direct drive springless design provides smooth high-cycle operation creating longevity and reliability over an extended time eliminating spring replacement cost and inconvenience
  • The variable frequency drive system operates on a soft start/stop to help prevent wear and tear on the system
  • Wind load up to +/- 55 psf
Safety Focused
  • Direct drive heavy-duty gearbox and motor with built-in braking device that prevents uncontrolled curtain travel
  • Heavy-Duty Commercial Photo Eyes reverse the downward motion of the door when a person or object enters its path to help prevent injury and damage
  • Digital read-out on the control panel allows for advanced diagnostics with fast and easy setup and troubleshooting

Warranty

  • 36-Months/500,000 cycle Limited Warranty on door components

Enhancements

Operation Options

IP65 (NEMA 4/4X equivalent)
Supply Voltages
  • 208V AC 1PH†
  • 230V AC 1PH
  • 460V AC 3PH†
  • 575V AC 3PH†

*horsepower is appropriate to size and weight of door
†requires stand-alone mounted transformer

Safety Focused

Actuation Options
  • Push Button
  • Sensing Edge
  • Motion Detector
  • Radio Control
  • Loop Detector
  • Extra set of Photo Eyes
  • Fixed/Dual Frequency Receivers/Transmitters
Actuation Options

Florida Building Commission Impact Rating – Certified for Florida's High-Velocity Hurricane Zone – Level D

Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.

*Proper door selection is the responsibility of the homeowner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.

Design Options

Fascia - Back Hood
Sloped Hood
Sloped Bottom Bar
Curtain Material Options:
  • Stainless Steel
  • Aluminum
Vision Options
  • 5” x ¾” open fenestration
  • 5” x ¾” acrylic vision lites
Perimeter Seal Options
  • Guide weatherstrip
  • Guide brush seal
  • Exterior lintel seal
  • Interior baffle

Colors

Curtain

White Gray Beige Brown



Finish Options
  • Powder Coat
  • Hardened Powder Coat*
  • G-90 Galvanized

Mill Clear Bronze

Guides/Bottom Bar
Black

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
