more Model 881 ADV-Xtreme details

Features

Standard Construction	Model 881
Openings	Interior / Interior
Max. Width	14'
Max. Height	14'
Max. Opening Speed	up to 70” per second
Max. Closing Speed	up to 40” per second
Certified Air Tightness	<0.236 cfm/sq ft (independently tested to ASTM E283 standard)
Breakaway Self-Reset	Yes
Curtain Material	2 layers of light PVC-coated polyester with 1 layer of polyester weave
Curtain Lock	Yes
Operation	Direct drive motor and gearbox system with field changeable universal handing and door stop safety device
Control Panel	Variable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed
Supply Voltage	120V AC 1 PH 208V AC 1 PH^† 220V AC 1 PH 208V AC 3 PH^† 230V AC 3 PH 460V AC 3 PH 575V AC 3 PH^†
Safety Features	Obstruction Safety Detection & Reversing Sensing Edge
Wind Load*	up to 7.5 psf

*Wind load is the ultimate pressure tested at a door width of 10'
**Single phase available up to 10'x10' doors.
(†Requires stand-alone mounted transformer)

Benefits

High Performance Design

Strutless design lowers the operational noise of the door for quiet and smooth operation
Springless design requires minimal interruption for maintenance
Direct-mounted gear drive minimizes wear and tear
Variable frequency drive eliminates sudden jolts from door start/stop

Independently-Tested Airtight Design

Prevents airborne contaminants from entering a controlled environment
Reduces air exchange to no higher than .236 cfm/sf (ASTM E-283)

Field Repairable

Patented breakaway system design with impact detection and push button self-repair
Patented curtain lock makes door easy to repair in the field
Hinged guides provide easy access for maintenance

Installer Friendly

Pre-assembled sub-assemblies for easier installation
Plug-and-play wiring reduces the need for a licensed electrician

Warranty

5-year Limited Warranty on drive motor and gearbox
1-year Limited Warranty on all other components

Enhancements

Options & Accessories

Safety Focused

Actuation Options

Push button
Motion detector
Radio control
Key switch
Pull switch
Loop detector
Treadle switch

Signal Device Options

Red/green LED warning light
Horn/strobe combination
Rotating warning light

Programmable LED Lighting Package

3' tall light bar with red, yellow, and green lights

Design Options

20" high vision panels: Spaced evenly across the width of the door

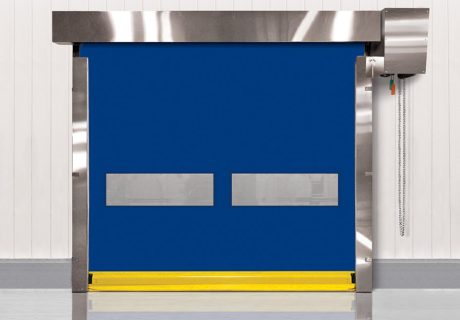

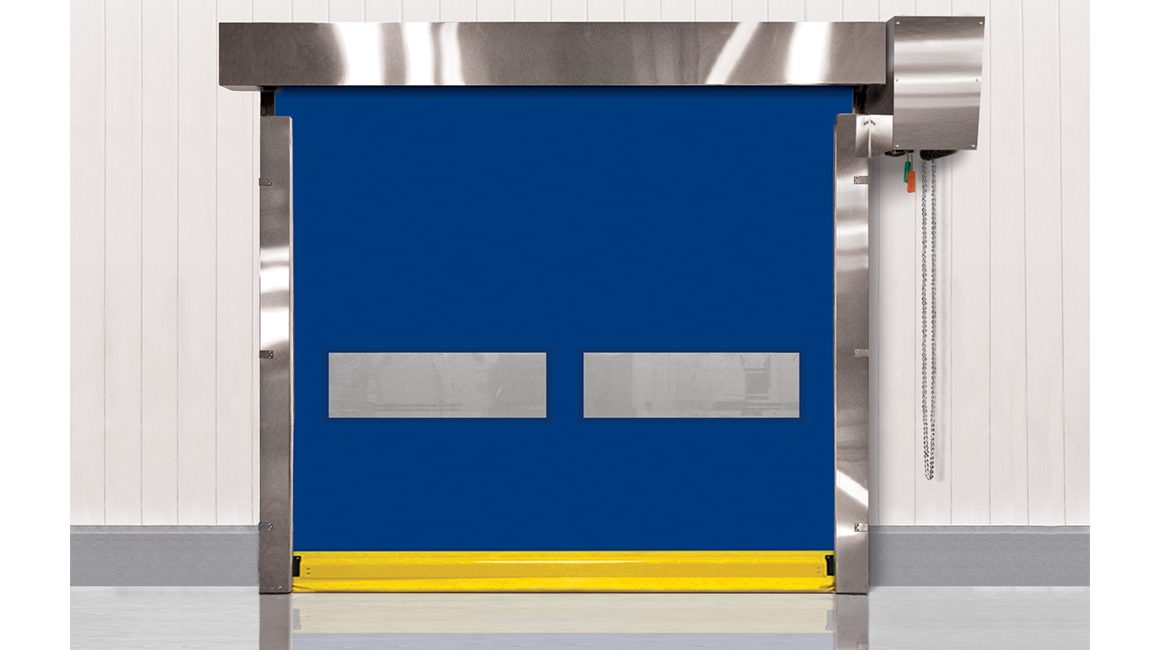

Stainless Steel guide, hood, motor cover, and head plates
FDA-compliant fabric is available for food and beverage applications
Cooler application – Air curtain options available including heated or non-heated, steel or stainless steel and various voltage offerings
Light curtain – front or rear mounted; available in 3' and 6' models.

Colors

Curtain Color Options


White	Yellow	Orange	Red	Blue	Gray	Black

FDA Compliant Applications


Royal Blue	White

Guides/Brackets/Struts/Bottom Bar Colors


Safety Yellow	Black

Standard color for guides, brackets, struts and bottom bar is yellow.

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
