more Model 882 ADV-Xtreme details

Features

Standard Construction	Model 882
Max. Width	16'
Max. Height	15'
Max. Opening Speed	up to 65” per second
Max. Closing Speed	up to 40” per second
Breakaway Self-Reset	Yes
Interior Application Curtain Material	2 layers of PVC-coated polyester with 1 layer of polyester weave
Operation	Direct drive motor and gearbox system with field changeable universal handing and door stop safety device
Hood	Protection from debris and moisture
Control Panel	Variable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed
Supply Voltages**	208V AC 1 PH^† 220V AC 1 PH 208V AC 3 PH^† 230V AC 3 PH 460V AC 3 PH 575V AC 3 PH^†
Safety Features	Obstruction Safety Detection Reversing Sensing Edge
Wind Load*	up to 4.0 psf

*Wind load is the ultimate pressure tested at a door width of 16'
**Single phase available up to 10' doors.
(†Requires stand-alone mounted transformer)

Benefits

High Performance, Low Maintenance Design

The strutted design allows for quick section replacement while reducing curtain deflection under pressure
Springless design requires minimal interruption for maintenance
Direct-mounted gear drive minimizes wear and tear
Variable frequency drive eliminates sudden jolts from door start and stop operation
Patented breakaway system design with impact detection and push button self-repair
For exterior use with optional fabric upgrade

Field Repairable

Hinged guides provide easy access for maintenance

Installer Friendly

Pre-assembled sub-assemblies for easier installation
Plug-and-play wiring reduces the need for a licensed electrician

Warranty

5-year Limited Warranty on drive motor and gearbox
1-year Limited Warranty on all other components

Enhancements

Safety Focused

Actuation Options

push button
motion detector
radio control
key switch
pull switch
loop detector
treadle switch

Signal Device Options

Red/green LED warning light
Horn/strobe combination
Rotating warning light

Programmable LED Lighting Package

3' tall light bar with red, yellow, and green lights

Design Options

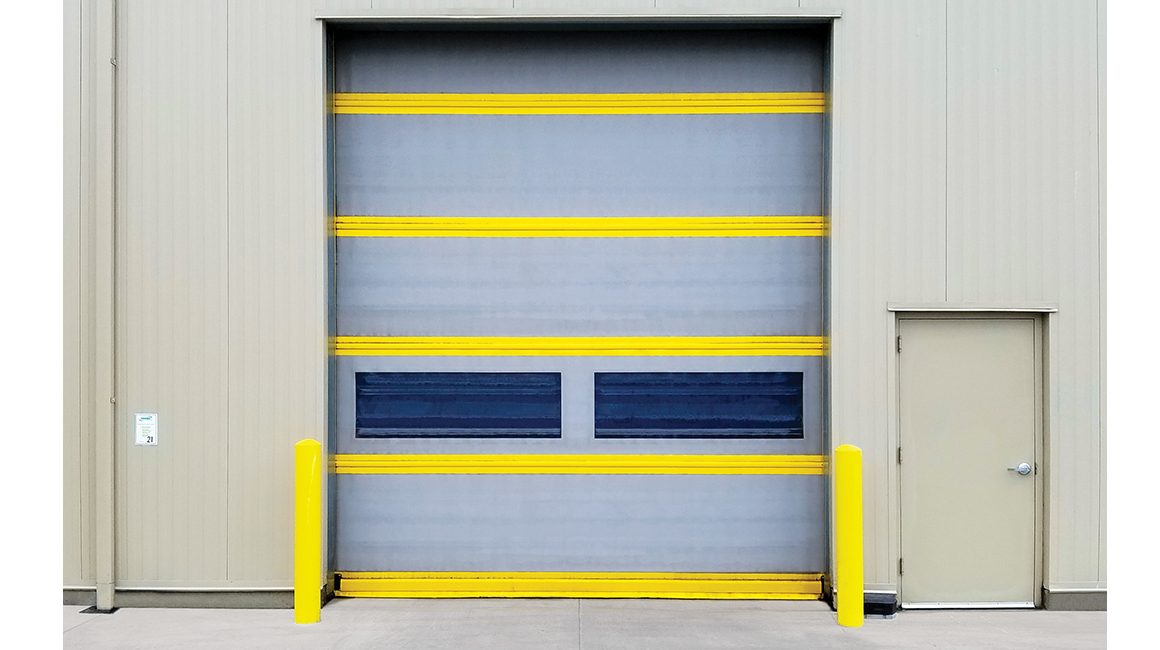

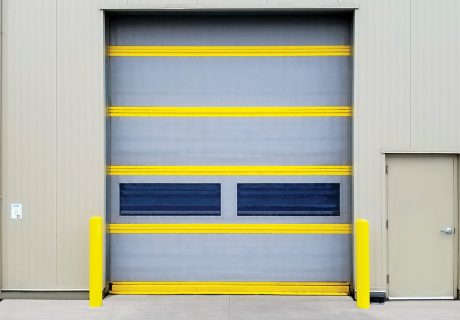

20" high vision panels spaced evenly across the width of the door
Sloped hood and non-drive end cover offers protection from debris and moisture
Light curtain – front or rear mounted; available in 3' and 6' models.

Colors

Interior Applications


White	Gray	Blue	Red	Black	Yellow	Orange

Exterior Applications


Red	Blue	Gray	Orange

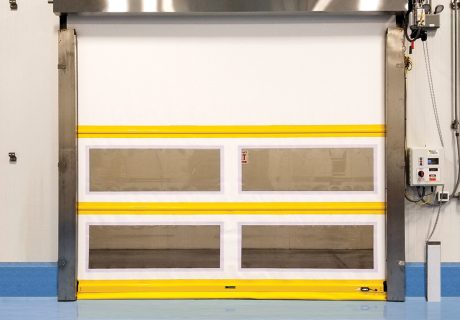

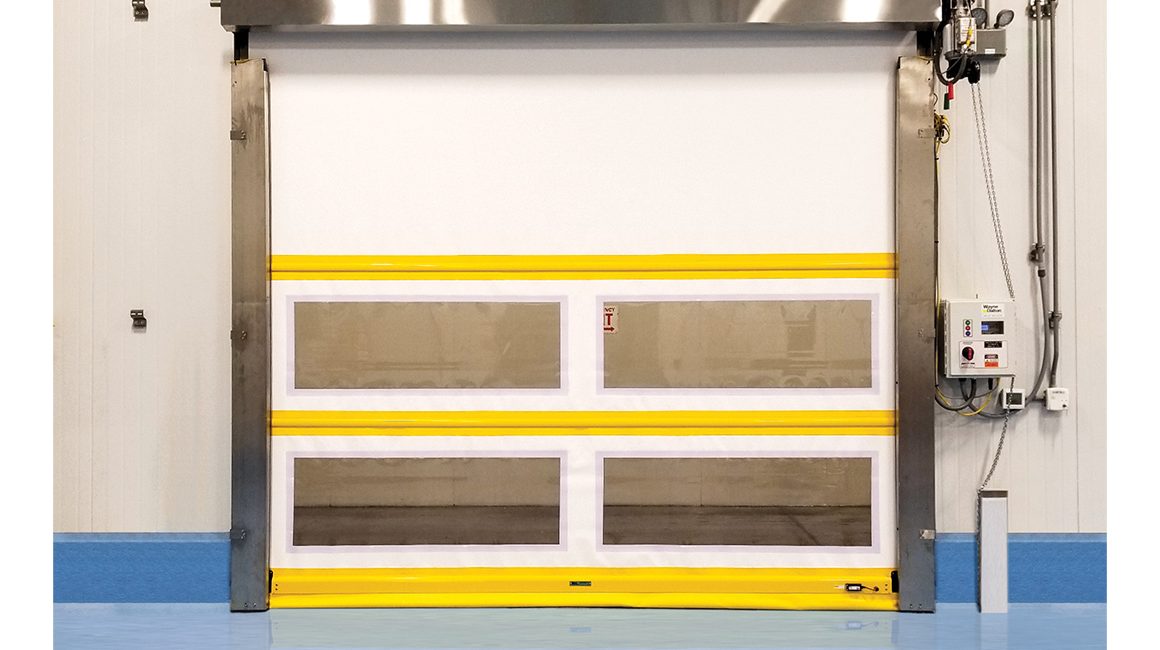

FDA Compliant Applications


Royal Blue	White

Standard color for guides, brackets, struts and bottom bar is yellow.

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
