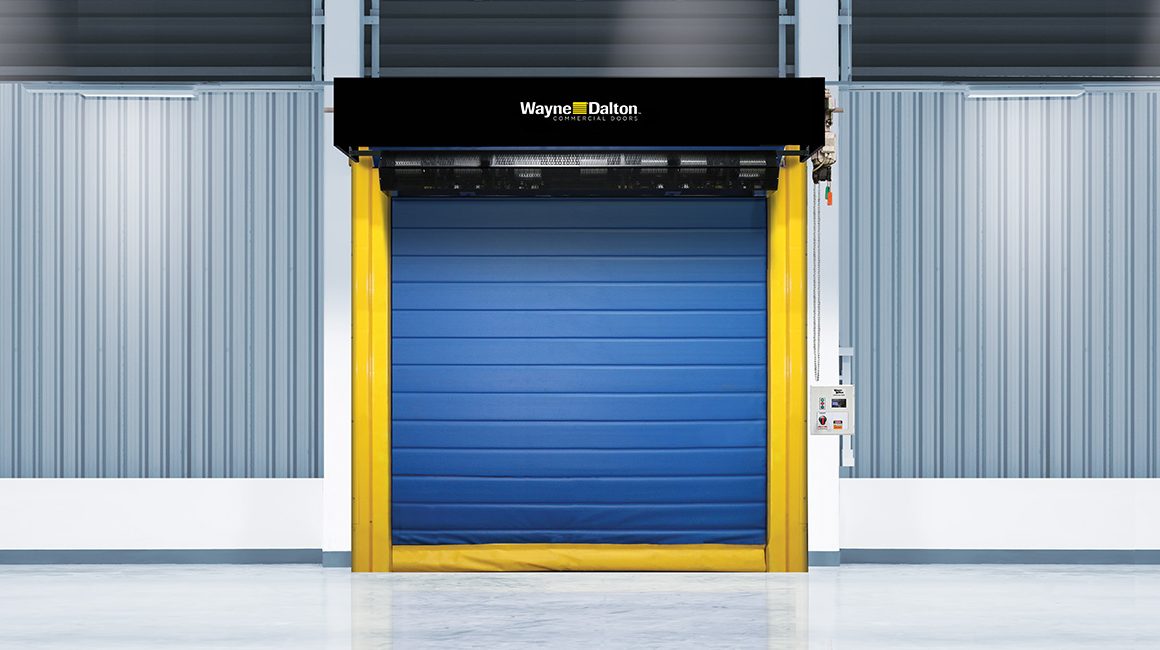

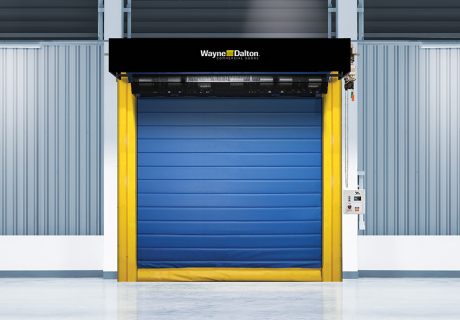

Model 887 ADV-Xtreme

Designed for thermal control and ideal for freezers and coolers, Model 887 ADV-Xtreme is a high speed insulated door that features an insulated curtain with actively heated ThermoGuides™ guides that ensures a uniform temperature and smooth door movement. The innovative springless design requires minimal interruption for maintenance. Minimizes forklift door impacts by completing the design with two sets of safety photo eye sensors and monitored wireless reversing edge. The high speed insulated fabric door has a breakaway and electronically resettable bottom bar design that makes it easy to get back to business. Get the most out of a high speed fabric door that has powerful environmental control for the ultimate high-performance freezer and cooler door.

Ideal Applications Include:

  • Cold Storage
  • Food and Beverage Storage
  • Warehouse / Distribution

more Model 887 ADV-Xtreme details

Features

Standard Construction Model 887
Max. Width 12'
Max. Height 18'
Max. Opening Speed up to 80” per second
Max. Closing Speed up to 40” per second
Breakaway Self-Reset Yes
Curtain Material 2 layers of PVC-coated polyester with polyester weave and conductive plus radiant insulation; application-dependent ambient or heated air curtain
Operation Direct-drive motor and gearbox system with field changeable universal handing and door stop safety device
Control Panel Variable frequency drive, self-diagnostic, programmable service reminders, padlockable fused disconnect NEMA 4X rated, cULus listed
Supply Voltages** 230V AC 3 PH
460V AC 3 PH
575V AC 3 PH
Guide Design Thermally broken, with active heat, quad brush seals and front/rear breakaway capabilities
Safety Features Obstruction Safety Detection
Reversing Sensing Edge
Wind Load* up to 2.0 psf

*Wind load is the ultimate pressure tested at door width of 19'.
**Applications with air curtain may require 460V or 575V.
(†Requires stand-alone mounted transformer)

Benefits

Thermal Performance

  • Insulated curtain provides a barrier to prevent heat loss and condensation
  • Actively heated guides ensure the complete height of the guide has a uniform temperature for smooth door movement
  • Quad-sealed, insulated guides prevent guide condensation and conditioned air loss around the curtain

High Performance Design

  • Springless design requires minimal interruption for maintenance
  • Direct-mounted gear drive minimizes wear and tear
  • Variable frequency drive eliminates sudden jolts from door start and stop operation

Installer Friendly

  • Fully assembled curtain arrives pre-wrapped and ready for installation
  • Breakaway bottom bar is easily reset from either side of the opening in case of accidental forklift contact
  • Pre-wired motor, guide heater and air curtain connection, and plug and play accessories reduce the need for a licensed electrician curtain locks

Safety Focused

  • Two sets of safety photo eye sensors
  • Monitored wireless reversing edge

Warranty

  • 5-Year Limited Warranty on drive motor and gearbox
  • 1-Year Limited Warranty on all other components

Enhancements

Safety Focused

Actuation Options

  • Push button
  • Motion detector
  • Radio control
  • Key switch
  • Pull switch
  • Loop detector
  • Treadle switch

Signal Device Options

  • Red/Green LED warning light
  • Horn/Strobe combination
  • Rotating warning light

Programmable LED Lighting Package

  • 3' tall light bar with red, yellow, and green lights

Design Options

Colors

Curtain Color Options

white fabric 880 881 882 887 gray fabric 880 881 882 887 red fabric 880 881 882 887 blue fabric 880-881 882 887
White Gray Red Blue

Guides/Bottom

safety yellow 887 black color
Safety Yellow Black
Standard color for guides, brackets and bottom bar is yellow.

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
