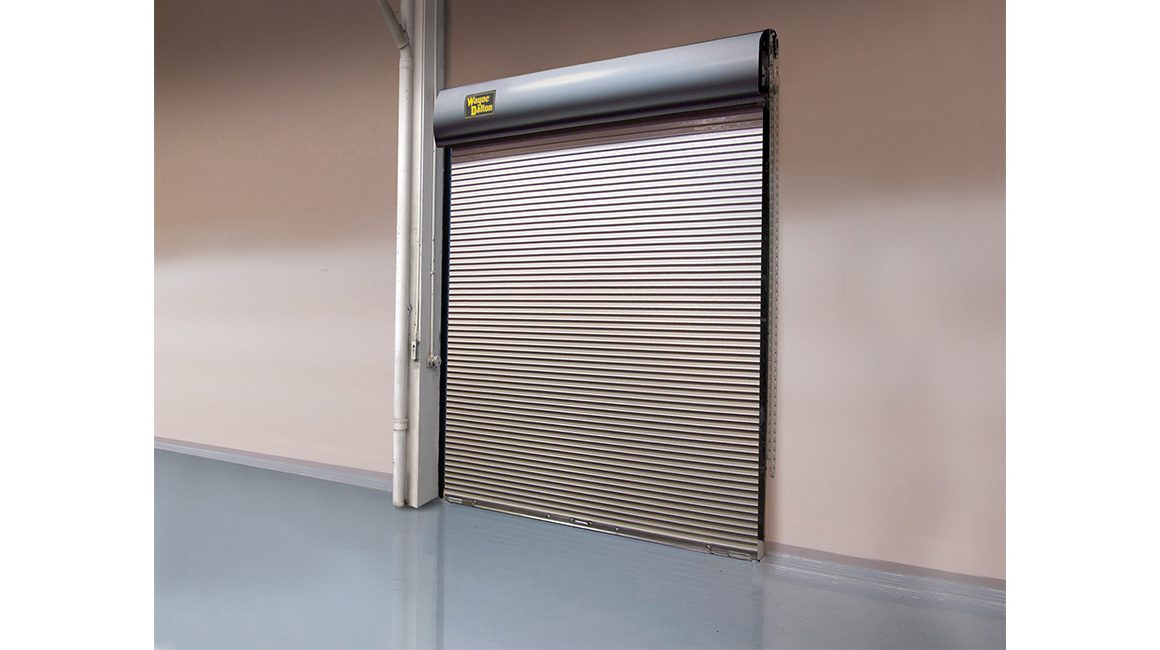

Model 900

Models 900 and 926 Rolling Steel Service Doors are economical, secure solutions to protect facility openings. These rolling steel service doors are composed of flat-faced slats that provide a natural watershed, helping to reduce corrosion. Slats are designed with free-acting interlocking joints that permit easy articulation when the door coils. They are popular in virtually any interior and exterior commercial or industrial applications where durability and strength are needed for even the most critical projects.

contact us about this product

Ideal Applications Include:

  • Warehouse and Industrial Facilities
  • Manufacturing Facilities
  • Food and Beverage Facilities
  • Parking Garages
  • Public and Government Facilities
  • Shipping and Receiving Docks

more Model 900 details

Features

Standard Construction Model 926 Model 900
Max. Width* 12' 14'
Max. Height* 12' 14'
Mounting Face mount; between jambs Face-of-wall; between jambs
Curtain Material 2" flat slats (#17 profile)
26-gauge steel with alternating end-locks		 2" galvanized steel curved slats (#2 profile)
24-gauge steel with alternating end-locks
Operation N/A Manual push-up; chain hoist where door weight exceeds manual effort
Counter Balance Counterbalance barrel assembly is made from 4” steel pipe Steel pipe of adequate size to restrict a maximum deflection of .033" per linear foot
Helical Spring Cycles 20,000 20,000
Guides G-guide design; Roll-formed steel channel G-guide design
Bottom Bar Galvanized steel, double angle design with bottom astragal Galvanized steel double angle with weatherstrip
Brackets 1/4" or 3/16" steel plates with permanently sealed ball bearings 1/4" or 3/16" steel plates with permanently sealed ball bearings
Hood N/A 24-gauge galvanized steel round hood
Exterior Galvanized steel Steel, Aluminum, Stainless steel
Wind Load (optional)*** Yes Yes



*Maximum height and width are independent of each other and may vary based on slat profile, material and gauge
***Is available to meet Florida and Dade County wind load requirements
†Reference door chart on the website or contact plant for more information

Benefits

High-Quality Design
  • The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils.
  • Features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. It is designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation.
  • Zinc-plated, cast-iron wind locks add strength and prevent lateral slat movement.
  • Designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

Warranty

  • 24-Months Limited Warranty on all product parts and components

Enhancements

Operation

  • Manual Chain hoist
  • Motor
  • Motor with chain hoist
  • Wall crank
  • Awning crank
  • Through wall

Safety Focused

End Covers
Fascia
Drop stop device
Spark resistance
Bottom Edge Options
  • Pneumatic
  • Electric sensing edge
  • Astragal
Locking Options
  • Slide bolts
  • Cylinder
  • Best lock
  • Thumb turns
  • Wind Locks

Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.

*Proper door selection is the responsibility of the homeowner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.

**Models 900 and 926 are available with internally approved wind load options only.

Design Options

Slat Profiles: 900 | 926

  • Secur-Vent perforated slats
  • Curtain: #2 slat profile 2" curved up to 20-gauge steel; 20 or 22-gauge stainless steel; 18-gauge aluminum #17 slat profile 2" flat up to 20-gauge steel; 20 or 22-gauge stainless steel; 16 ga. extruded aluminum



Profile Slat Gauge Pitch
No. 2 Curved-faced single crown slat Up to 20-gauge steel
Up to 20 or 22-gauge stainless steel
Up to 18-gauge aluminum		 1.9’
No. 17 Flat-faced slat Up to 20-gauge steel
Up to 20 or 22-gauge stainless steel
Up to 16-gauge aluminum		 1.6’
Secur-Vent Perforated slat Up to 20-gauge steel or stainless steel 1.6’



Vision Options
  • 3" flat slat
  • Perforated/Fenestrated flat slat
  • 6" curved slat
  • Open fenestrations
  • Vision lites
Guides
  • Three angle: galvanized steel, stainless, aluminum, hot dipped galvanized (structural steel angle only)
Hood
  • 22-gauge steel
  • Square hood
Perimeter Seal Options
  • angled guide brush seal
  • vinyl guide seal
  • exterior lintel weather seal
  • interior lintel weather seal
  • internal hood baffle
  • Rubber hood baffle
Bottom Bar Options
  • Double angle
  • Extruded aluminum angle
  • Structural steel angle (galvanized steel only)
  • Sloped

Colors

White Gray Beige Brown



18-ga. and 20-ga. doors are only available in gray

Curtain Finish
  • Anodized Aluminum
    • mill, clear or bronze
  • Stainless steel #4
  • Powdercoat - RAL and custom
  • Painted Gray
  • Vision lites
Finish Options
  • Stainless steel
  • Aluminum
  • Powder Coat
Hood/Guide/Brackets/Bottom Bar Finish
  • Primed Black
  • Anodized Aluminum- mill, clear or bronze
  • Stainless steel #4
  • Powdercoat - RAL and custom
  • Galvanized
  • Bare galvanized
RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

Custom RAL garage door paint colors

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
