Models 406

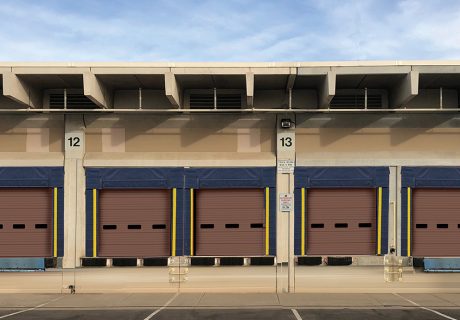

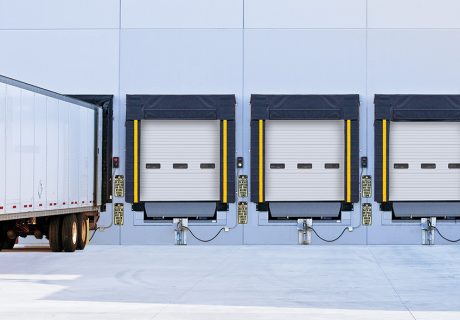

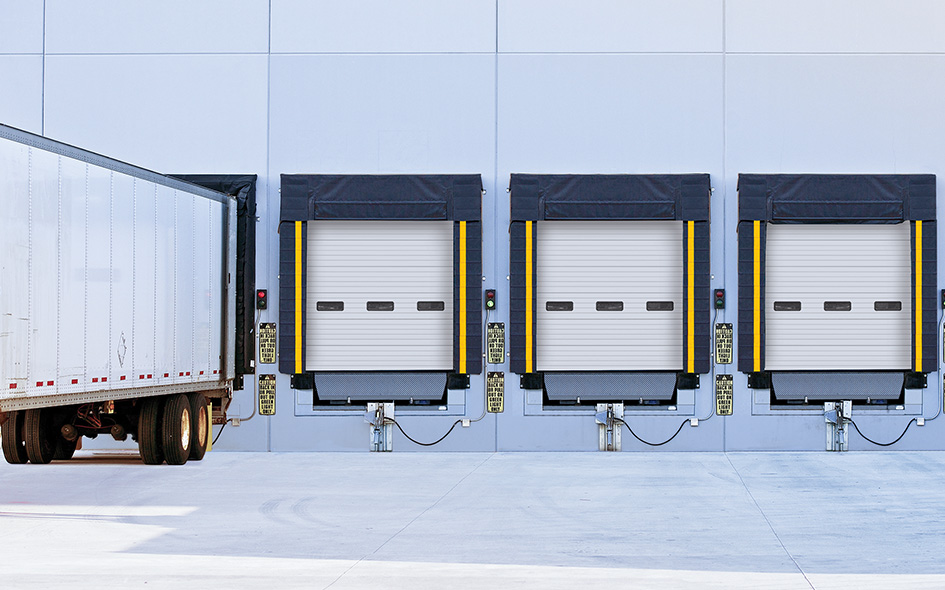

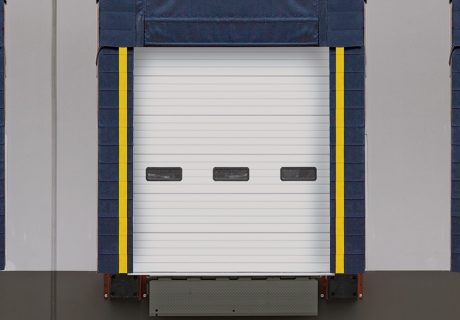

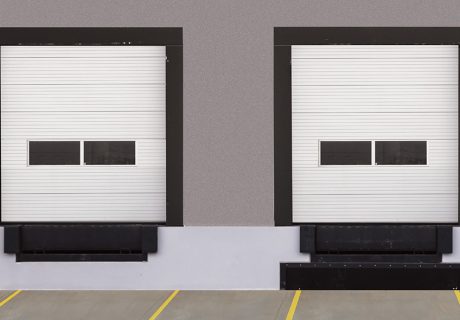

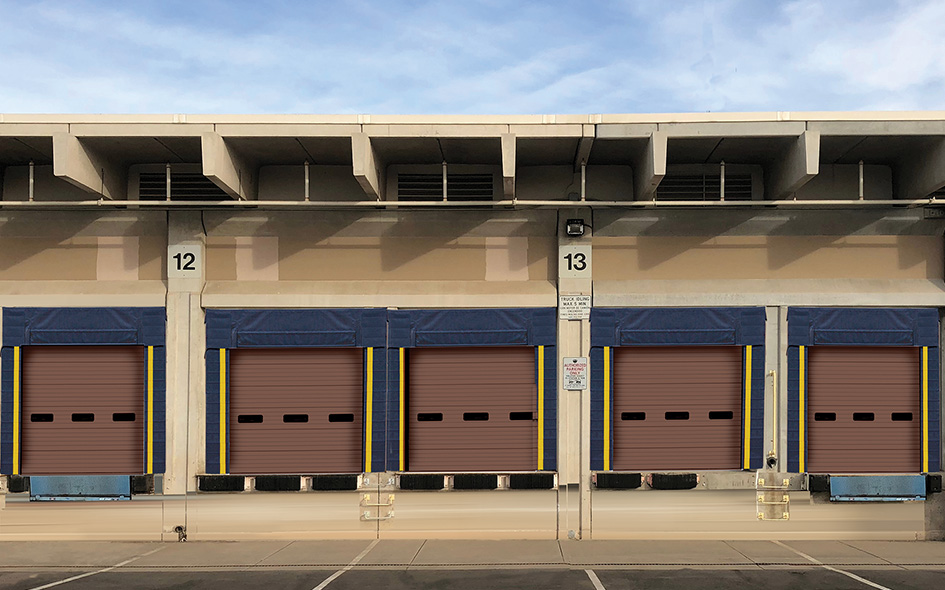

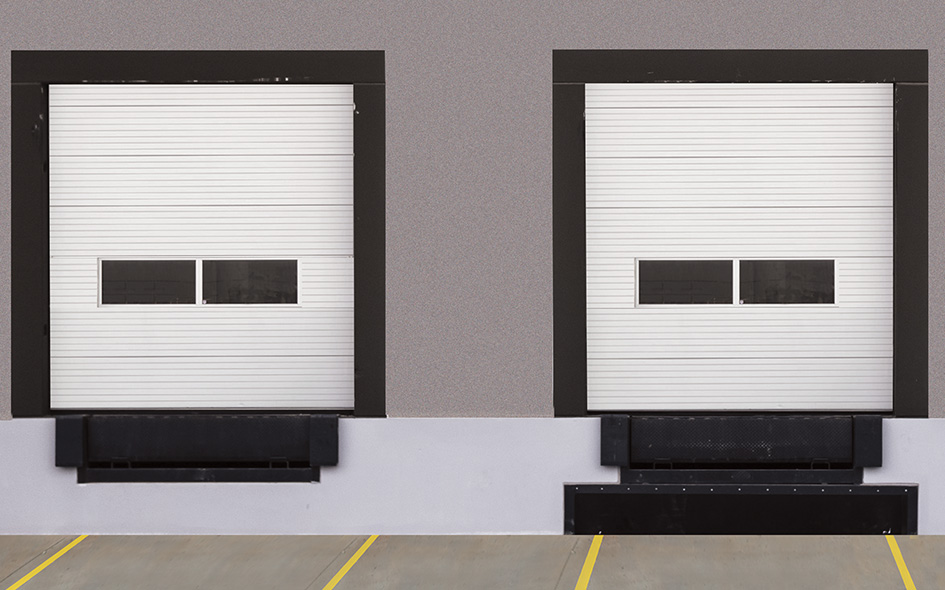

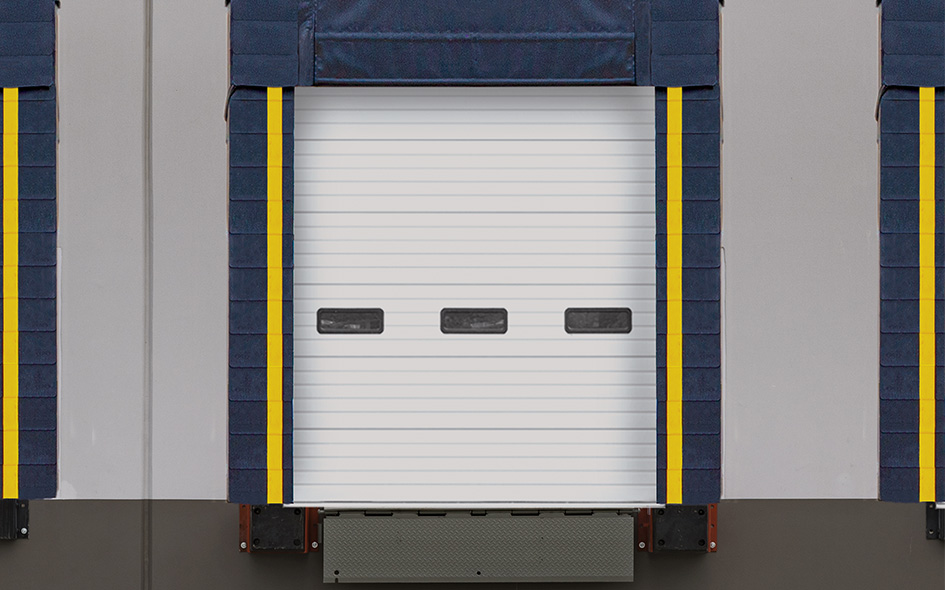

Our Sectional Warehouse Doors provide a highly efficient design for strength and longevity for use in demanding commercial settings. They feature full 2” thickness for ultimate strength and durability. Optional insulation consists of 1 5/16” expanded polystyrene throughout the door. Both steel and polylaminate backer choices are available to ensure these models are well-suited for a wide range of applications.

contact us about this product

Ideal Applications Include

  • Public Facilities
  • Warehouse Solutions
  • Manufacturing

more Models 406 details

Overview

Door Features
Model  401 402 403 404 405 406
Exterior Steel Gauge 20 Gauge 20 Gauge 24 Gauge 24 Gauge Nom. 24 Gauge Nom. 24 Gauge
Section Thickness 2" 2" 2" 2" 2" 2"
Joint Profile Tongue & Groove Tongue & Groove Tongue & Groove Tongue & Groove Tongue & Groove Tongue & Groove
Insulation   Expanded
Polystyrene		 N/A Expanded
Polystyrene		 N/A Expanded
Polystyrene
Interior Backer Options N/A Vinyl or Steel​ N/A Vinyl or Steel​ N/A Vinyl or Steel​
Max. Width 30'2" 30'2" 30'2" 30'2" 20'2" 20'2"
Max. Height 22'1" 22'1" 22'1" 22'1" 16'1" 16'1"
Section Sizes 19", 21", 24" 19", 21", 24" 19", 21", 24" 19", 21", 24" 19", 21", 24" 19", 21", 24"
R-value* N/A 7.64 N/A 7.64 N/A 7.64
Exterior Surface Ribbed Ribbed Ribbed Ribbed Ribbed Ribbed
Standard Spring-Cycles 10,000 10,000 10,000 10,000 10,000 10,000
Warranty 1-Year Limited 1-Year Limited 1-Year Limited 1-Year Limited 1-Year Limited 1-Year Limited

*R-Value is a measure of thermal efficiency. The higher the R-Value the greater the insulating properties of the door. Overhead Door Corporation uses a calculated door curtain R-Value for our insulated doors.

Options

Color

  • white smooth color swatch

    White Smooth

  • white stucco color swatch

    White Stucco-Embossed (Models 405/406)

  • brown smooth color swatch

    Brown Smooth (Models 403/404/405/406)

  • brown stucco color swatch

    Brown Stucco-Embossed (Models 405/406)

Actual color may vary due to fluctuations in the printing process.

Enhancements

  • Chain hoist operation
  • Motor operation​​
  • High cycle spring (25K, 50K, 100K)​
  • 3" track option
  • Solid shafts
  • Perimeter weatherseal​
  • Broken cable devices
  • Safety edges​
  • Safety photo eyes
  • Special track designs
  • Simple Install System
