Models H68R & H78R

Features

Installer Friendly

• Four steel fork loops bolted to the deck improve stability during transport and placement, and help prevent sliding when stacked
• Height adjusters operate from the building floor—no need to crawl beneath the leveler to shim and weld the rear frame
• Adjusters quickly align the deck with the building floor for faster setup
• Shim only under the main cylinder, lip keeper, and maintenance brace—improves safety and reduces effort
• Rear curb angle cutouts clearly mark weld points for quicker installation

Smooth Building-To-Truck Transition

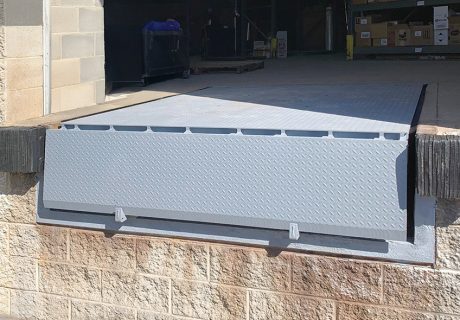

• Optimized beveled lip reduces bumps and minimizes damage to cargo and equipment
• Creates a smoother, level pathway to reduce shocks and jolts to workers
• Supports efficient movement of forklifts and material handling equipment

Durable Design and Finish

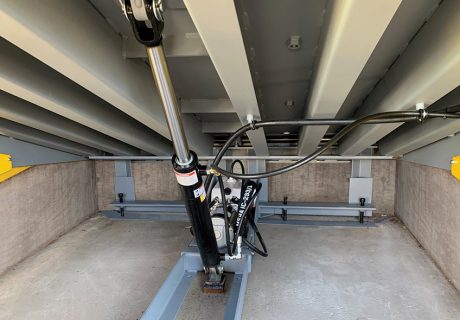

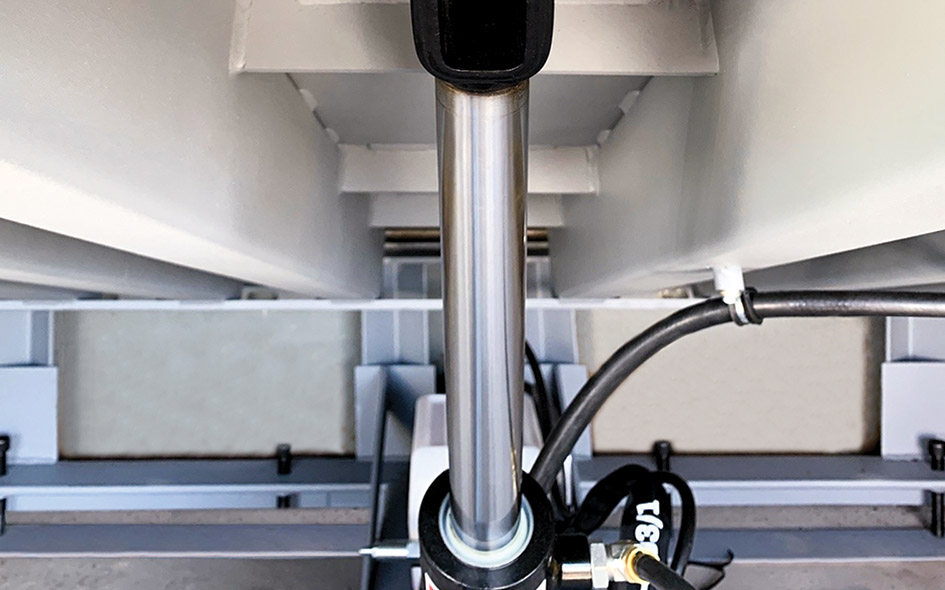

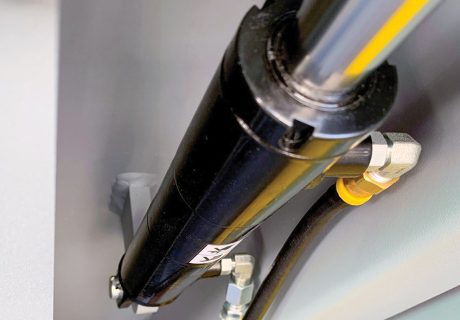

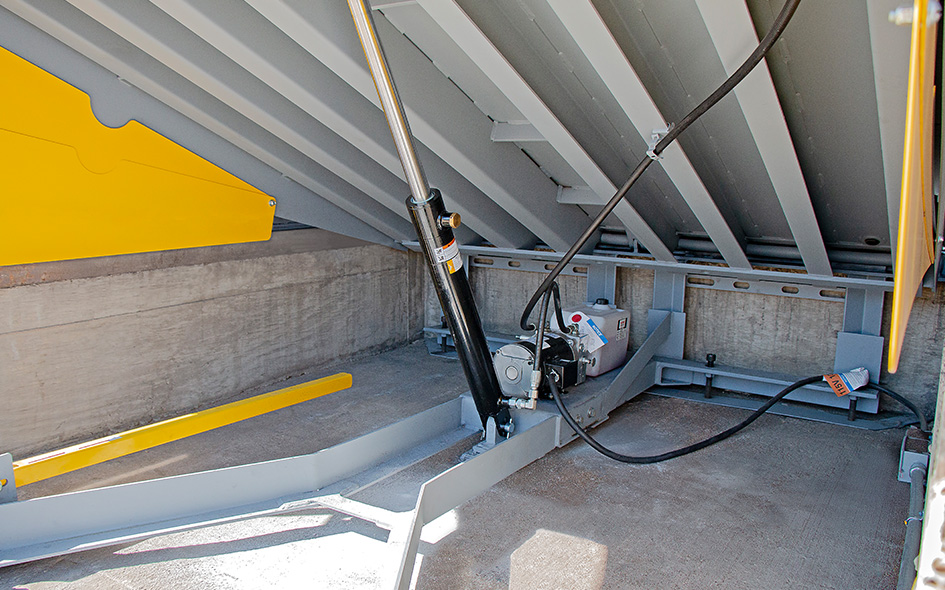

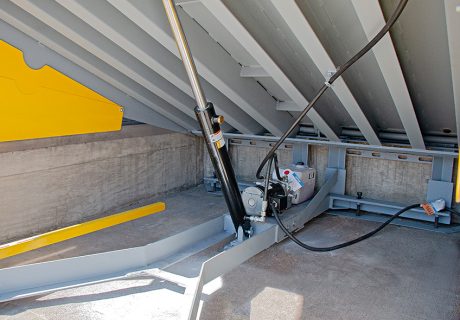

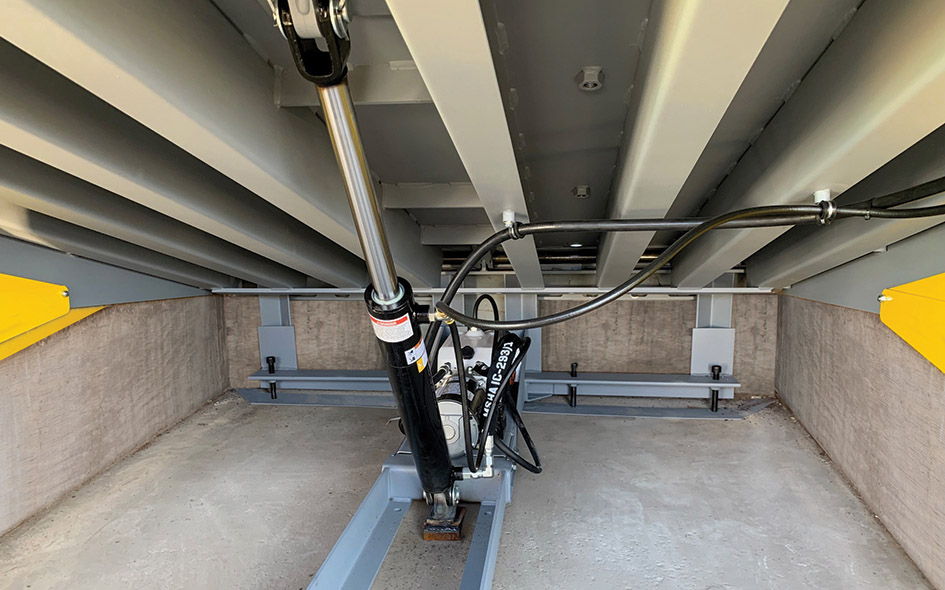

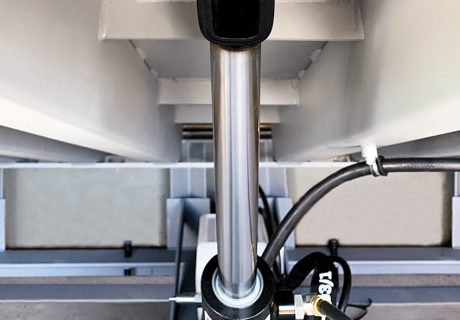

• Center-mounted hydraulic lift cylinder ensures optimal performance and safety
• Textured powder coat finish provides long-lasting durability
• Meets ANSI MH30.1-2022 load testing requirements

• C-channel beams strengthen the deck and minimize moisture buildup
• Flat deck design eliminates transition angles—reducing common repair needs
• Full-width deck hinge enhances long-term durability

Safety Focused

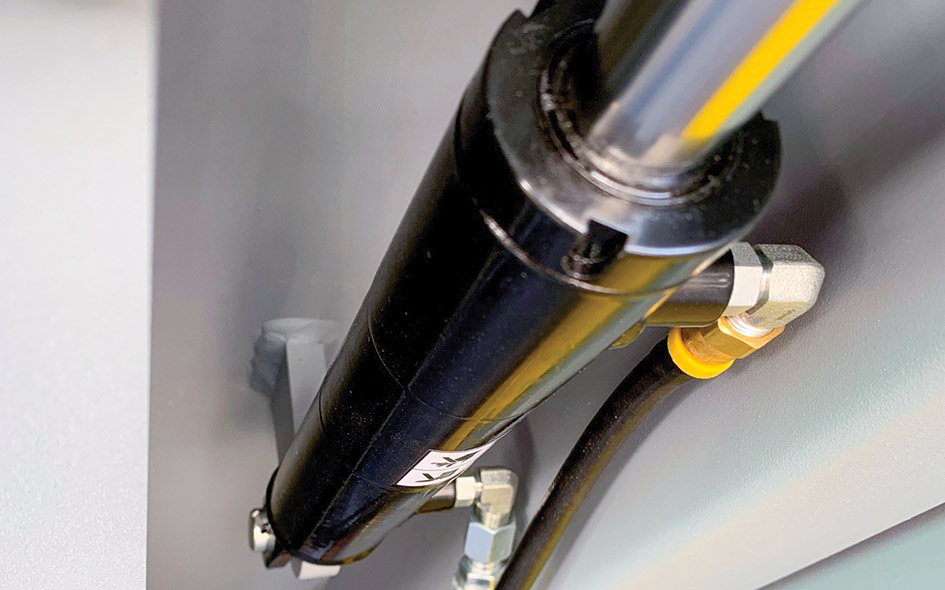

• Velocity fuse restricts free fall of leveler to 3” if trailer leaves the dock unexpectedly
• Fully floating hydraulic system allows constant contact with the bed of the trailer
• Proprietary powder coat formulation on deck and lip surfaces is textured to provide enhanced traction and non-slip protection even when wet
• Minimal bumps or gaps on deck/lip reduce trip hazards for workers

Durability, Low Maintenance, Low Downtime

• Textured powder coat provides an extremely durable finish, better corrosion protection and adhesion compared to wet paint
• Heavy-duty multi-lug hinge sheds debris to reduce stress and wear while allowing easy lubrication for smooth operation
• Deck hinge is fully supported across the entire width of the deck, which spreads the load across the width of the deck instead of concentrating the load on just a few hinge points

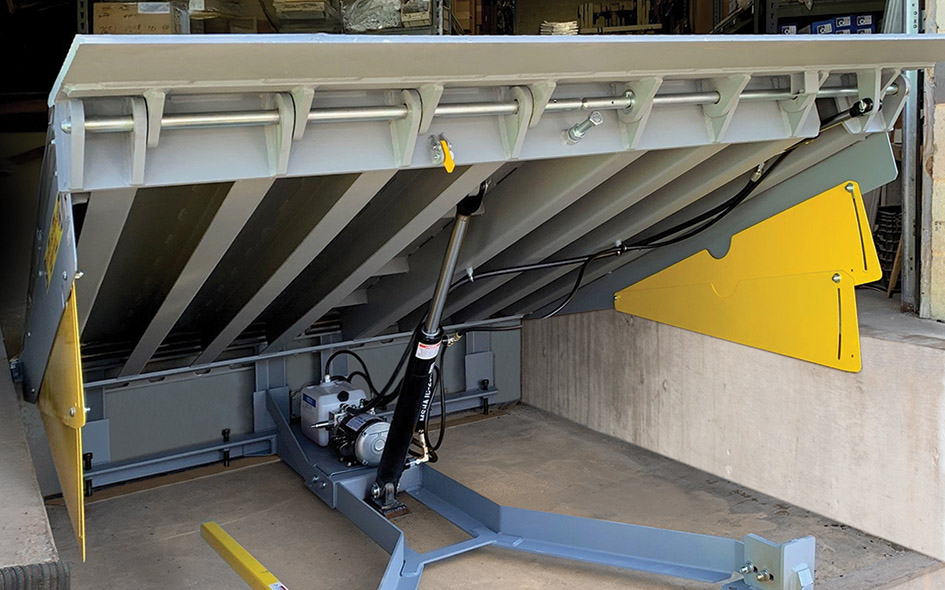

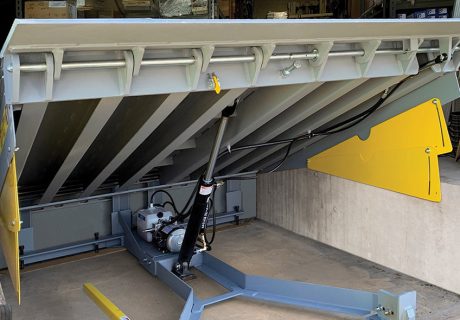

• Fully protected powerpack behind the main cylinder, easy to access and adjust

Environmentally Friendly

• Our powder coat process has fewer Volatile Organic Compounds (VOCs) and solvents compared to paint
• Overspray is recycled which reduces waste disposal issues compared to a traditional paint process
• The US Environmental Protection Agency (EPA) recommends powder coatings as a sustainable coating option

Serviceability & Installation

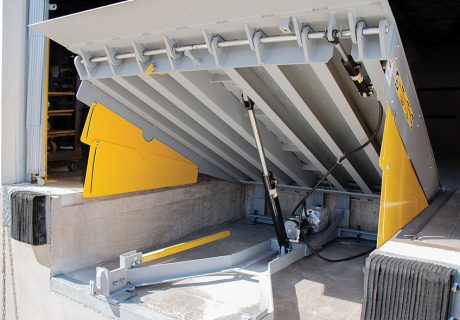

• Open base frame provides full-length access for cleaning and service, eliminating rear cross-pit beams that trap debris and block pit access
• Serviceable lip and hinge pins can be removed without breaking welds
• Easily accessible tethered maintenance brace
• Lip keepers adjust for off spec pits to more easily accommodate 18”/20”
