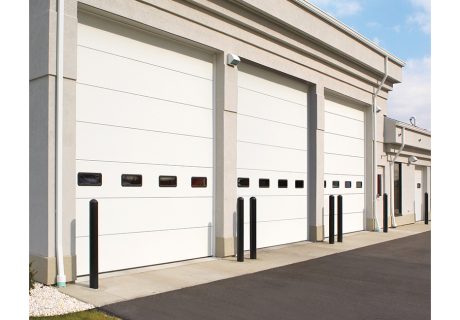

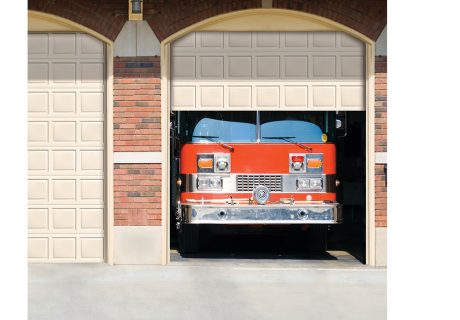

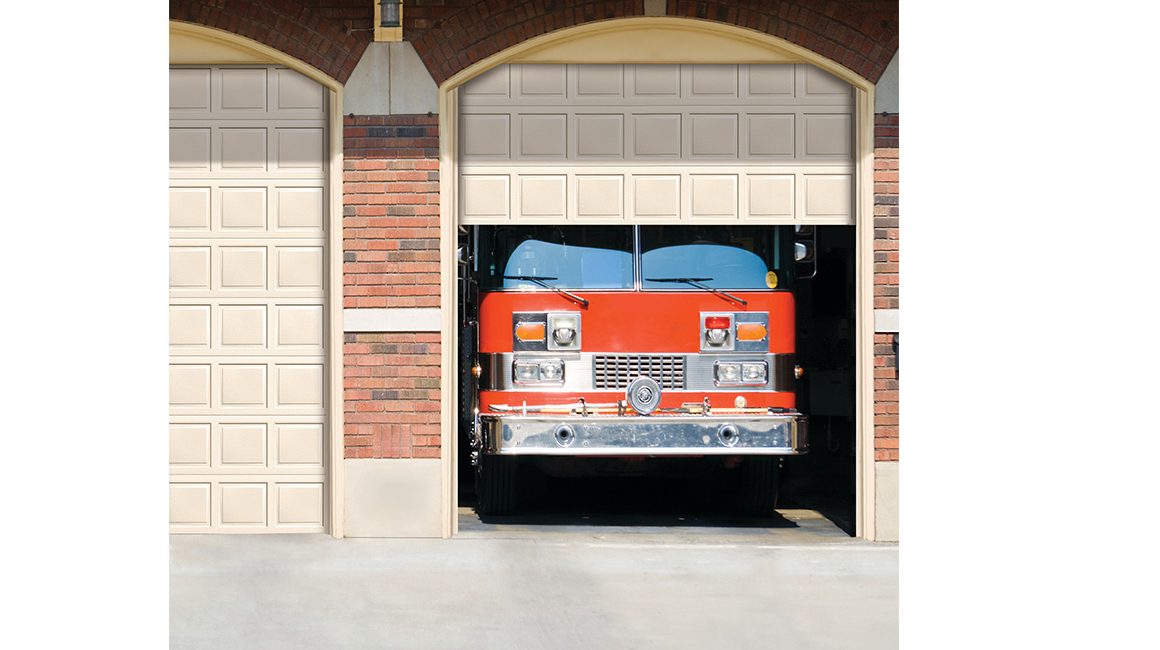

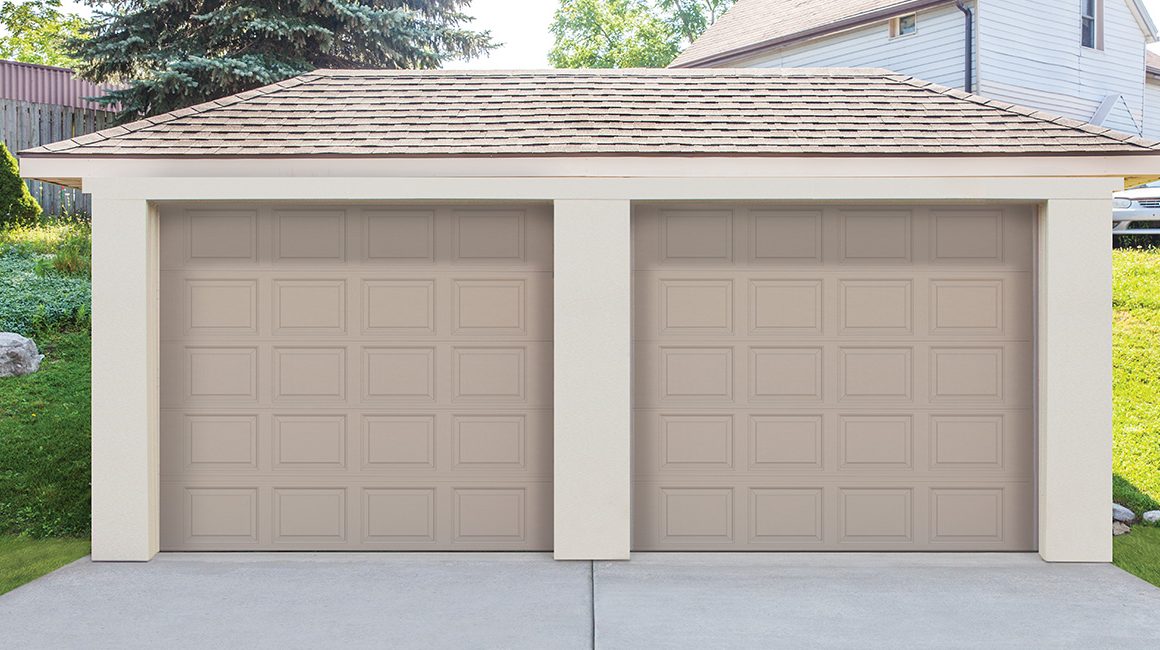

ThermoMark™ 5200

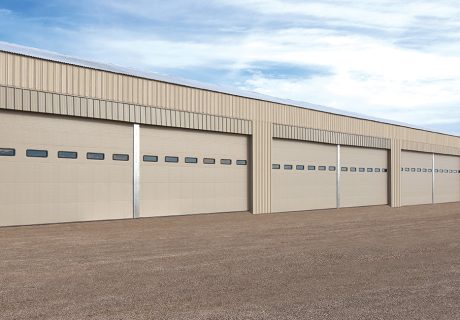

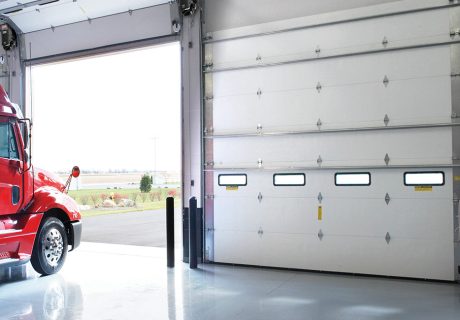

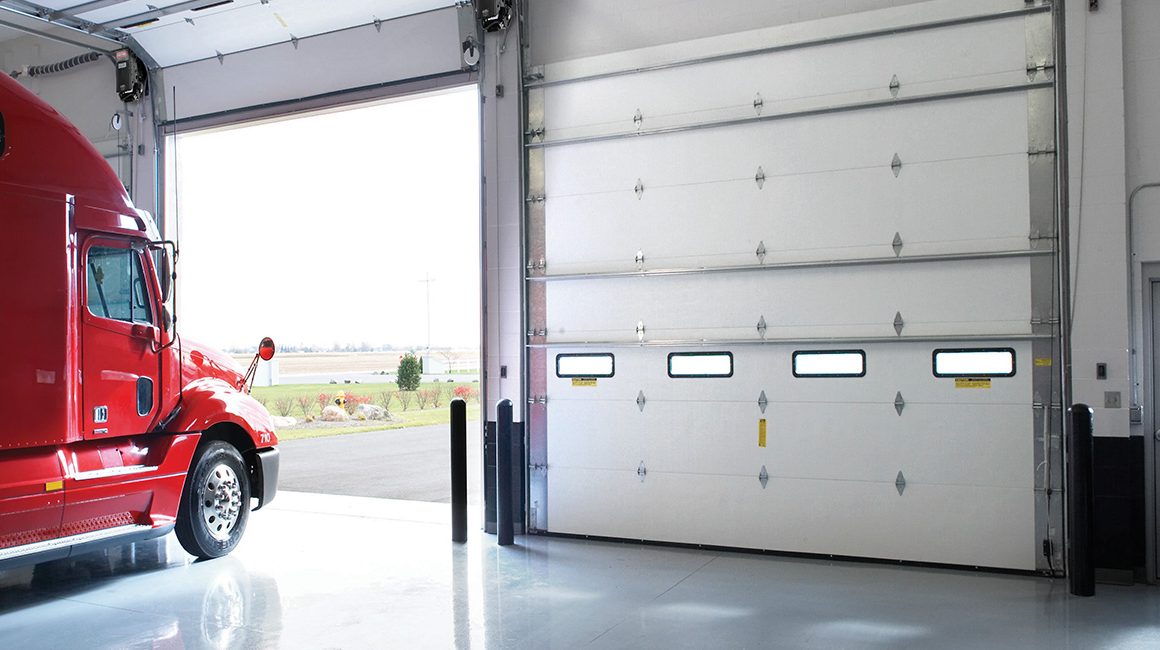

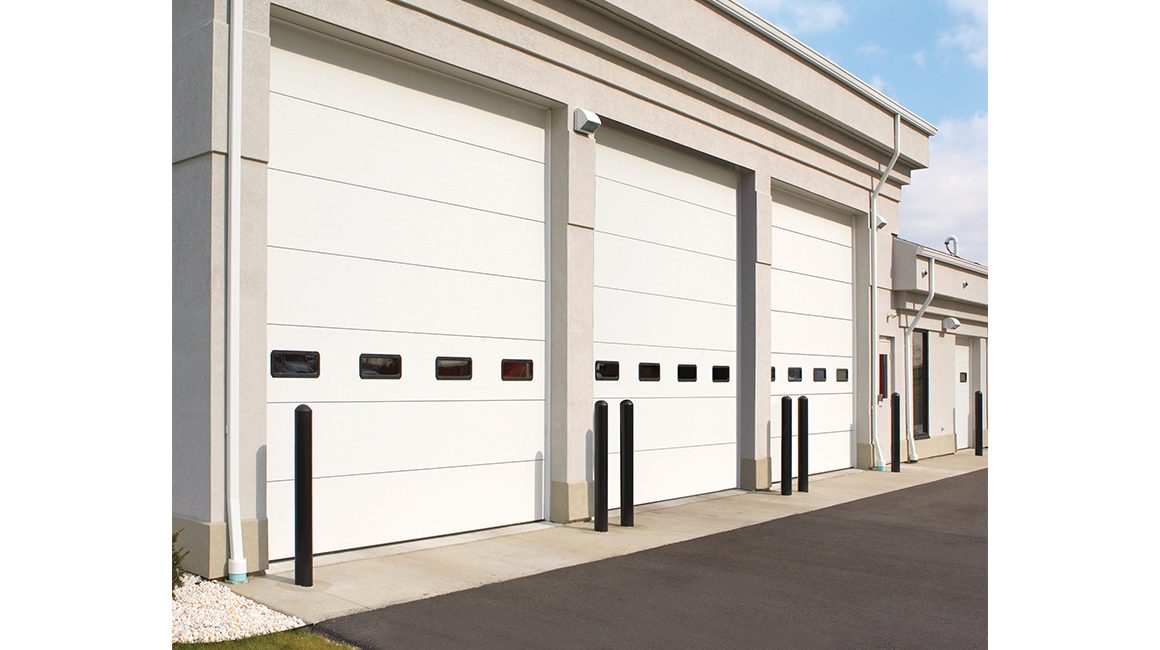

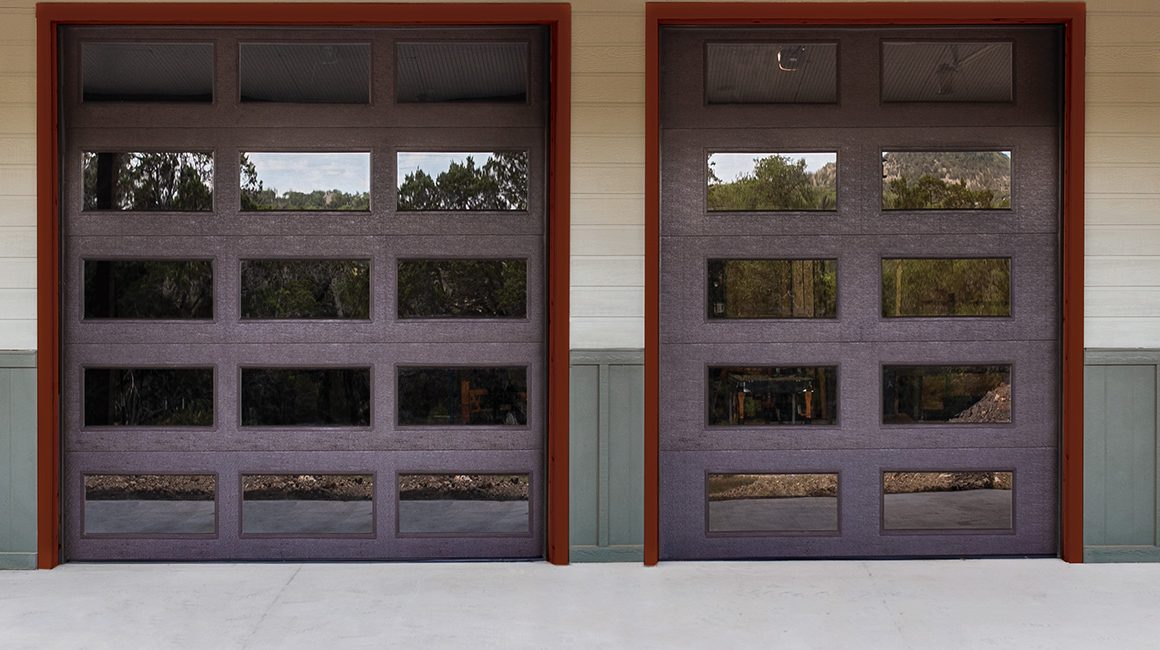

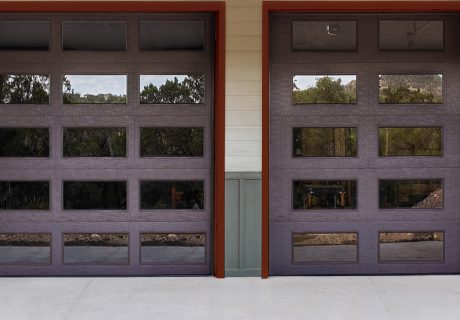

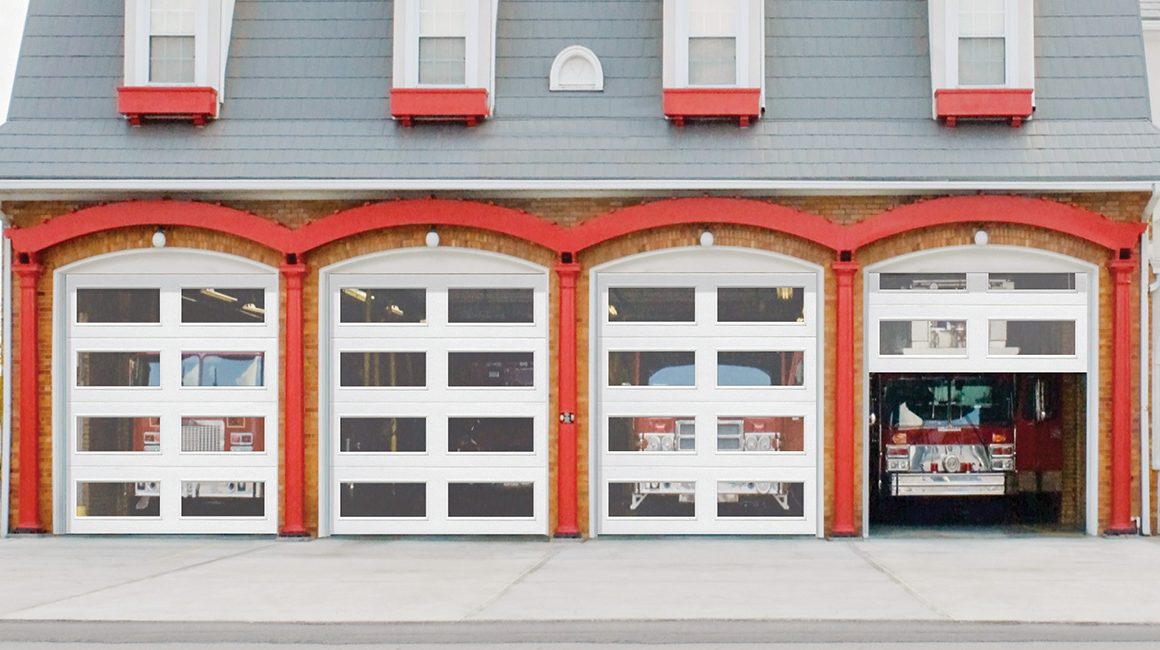

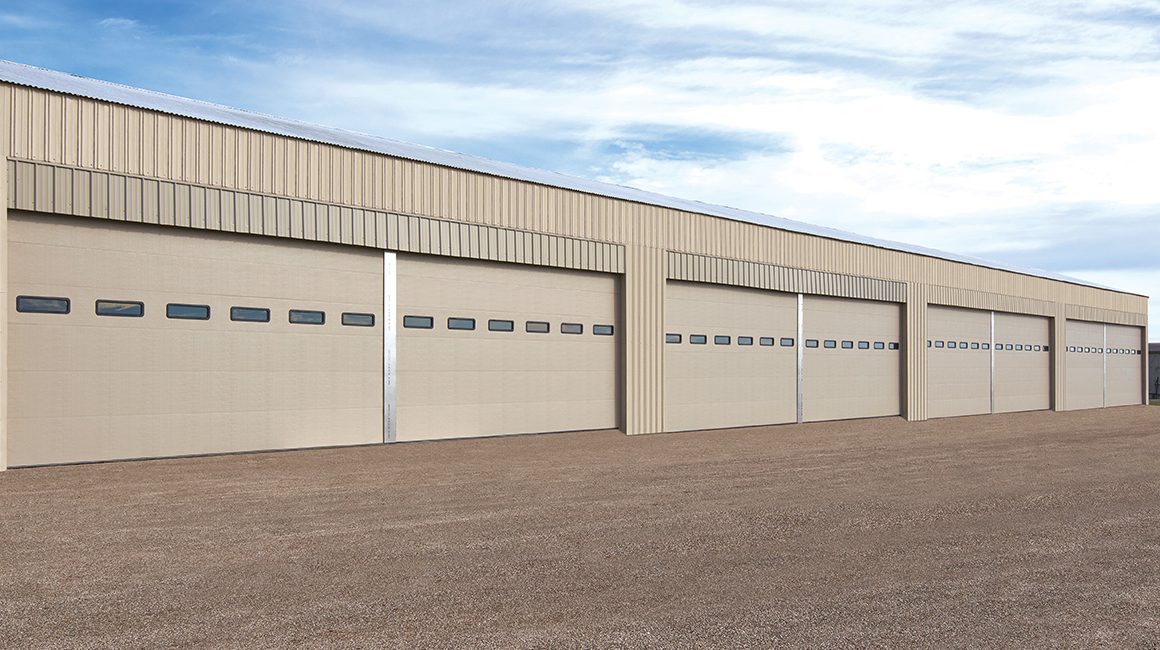

ThermoMark™ sectional steel commercial doors made to accommodate RVs, large trucks, heavy equipment, boats, trailers, and garage-based shops. Models 5150 and 5200 are the ideal choices if you’re looking for a commercial door that has a combination of strength and insulation but is also aesthetically appealing without the traditional industrial look. ThermoMark™ 5,000 Series is ideal for commercial or industrial applications where durability and aesthetics are required.

contact us about this product

more ThermoMark™ 5200 details

Overview

Standard Construction Model 5150 Model 5200 Model 5155 Model 5255
Max. Width 20'2" 26'2" 20'2" 26'2"
Max. Height 20'1" 20'1" 20'1" 20'1"
U-Factor* .15 .12 .15 .12
R-Value** 12.12 16.22 12.12 16.22
Sectional Thickness 1 3/8" 3-layer 1 7/8" 3-layer 1.5" 3-layer 1 7/8" 3-layer
Thermal Break ✔︎ ✔︎ ✔︎ ✔︎
Spring Cycle 10,000 10,000 10,000 10,000
Exterior/Interior Surface Embossed Wood Grain or Stucco Embossed / Pinstripe Embossed Wood Grain or Stucco Embossed / Pinstripe Stucco Embossed / Flush Stucco Embossed / Flush
Exterior Surface Stucco Embossed / Pinstripe Stucco Embossed / Pinstripe Stucco Embossed / Pinstripe Stucco Embossed / Pinstripe
Exterior Steel 0.015" (.35mm) 0.015" (.38mm) 0.015" (.35mm) 0.015" (.35mm)
Panel Designs Yes (6) Yes (5) No No
Air Infiltration (IECC) 0.23 cfm/ft2 at 25 mph 0.23 cfm/ft2 at 15 mph 0.23 cfm/ft² at 25mph (4.20 m3/hr/m2 at 24 kmph) 0.17 cfm/ft2 at 15 mph
Sound Transmission Class 20 Class 20 Class 20 Class 20
Wind Load (Optional) Yes*** Yes*** No No

*U-factor is independently tested and verified per ANSI/DASMA 105 using solid doors and specific product sizes.
**Wayne Dalton uses a calculated door section R-value for our insulated doors.
***FBC and TDI-approved wind load reinforcement is available for hurricane-prone areas.

dasma thermal performance verification program details



Benefits

Low Maintenance / Durable Design
  • Factory-finished interior and exterior hot-dipped, galvanized skins make installation easier, add life to the door, and provide greater durability
  • Steel end caps and hardware plates add commercial durability and longevity
  • Bulb-shaped bottom seal remains flexible even in extreme cold to help keep extreme weather conditions outside
  • Stucco steel back panels provide appealing aesthetics
  • The two-coat, baked-on polyester finish makes the surface virtually maintenance-free
Thermal Performance
  • Thermal break helps ensure year-round energy efficiency
  • The CFC- and HCFC-free polyurethane foamed-in-place insulation core is securely bonded to hot-dipped galvanized inner and outer skins to create a door that is significantly more efficient than conventional insulated steel doors
  • Sound-absorbing insulation makes the door quieter in operation; reduces wind rattling



Ideal Applications

  • Manufacturing Plants
  • Production Facilities
  • Loading Docks
  • Storage Facilities
  • Commercial Buildings
  • Industrial Facilities
  • Drive-Thru Bays
  • Truck Bays
  • Vehicular Storage



Warranty

  • 10-Year limited warranty against delamination, cracking, splitting or deterioration due to rust-through

Design Options

All Models:

  • Mullions
  • 3” Track
  • Special track designs
  • Impact Panel Option
    • The Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21" and 24" sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime, costly repairs and has impact-resistant composite skin that surrounds an expanding polystyrene core.



Only for Models 5150/5200:

Lite Options
  • Vision
  • Flush Panel
  • Short Panel
  • Long Panel
  • Vertical Short Panel
  • Vertical Long Panel (5150 only)
  • Stucco-Embossed Pinstripe
Window Options
  • Factory-glazed windows
Window Placement Options
  • Horizontal
  • Vertical
  • All Window (5150 only)

* Windows may be arranged vertically or horizontally on Colonial, Ranch and Contemporary designs. Windows placed in the bottom section of a door must use DSB 1/8", or tempered, or 1/2" insulated glass.

Additional Options
  • Jamb seal



Only for Models 5155/5255:

Lite Options
  • Vision
  • Full View
Frame Colors
  • Black
  • Full View



Colors

Standard Paint Finishes
WhiteWhite Almond PaintAlomond sandstone commercial door swatchSandstone Terra BronzeTerra Bronze BrownBrown Black PaintBlack



Wood Grain Impression™ Bi-Directional Finishes

Not available on Flush panel

western cedar bi-directional wood grain swatchWestern Cedar carbon oak bi-directional wood grainCarbon Oak medium oak bi-directional wood grain swatchMedium Oak



Stucco Embossed Pinstripe Finishes
White EmbossedWhite Almond EmbossedAlmond sandstone stucco swatchSandstone terra bronze pebble swatchTerra Bronze Brown StuccoBrown Black StuccoBlack



Finishes
Finish Options Model 5150 Model 5200 Model 5155 Model 5255 Panel
White ✔︎ ✔︎ -- -- Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Almond ✔︎ ✔︎ -- -- Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Sandstone ✔︎ ✔︎ -- -- Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Terra Bronze ✔︎ ✔︎ -- -- Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Brown ✔︎ ✔︎ -- -- Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Black ✔︎ ✔︎ -- -- Short Panel, Long Panel, Vertical Short Panel, & Flush Panel
Western Cedar ✔︎ ✔︎ -- -- Vertical Short Panel & Vertical Long Panel
Carbon Oak ✔︎ ✔︎ -- -- Vertical Short Panel & Vertical Long Panel
Medium Oak ✔︎ ✔︎ -- -- Vertical Short Panel & Vertical Long Panel
White Stucco ✔︎ ✔︎ ✔︎ ✔︎ Stucco-Embossed Pinstripe
Almond Stucco ✔︎ ✔︎ ✔︎ ✔︎ Stucco-Embossed Pinstripe
Sandstone Stucco ✔︎ ✔︎ ✔︎ ✔︎ Stucco-Embossed Pinstripe
Terra Bronze Stucco ✔︎ ✔︎ ✔︎ ✔︎ Stucco-Embossed Pinstripe
Brown Stucco ✔︎ ✔︎ -- -- Stucco-Embossed Pinstripe
Black Stucco ✔︎ ✔︎ -- -- Stucco-Embossed Pinstripe



Custom Colors

Wayne Dalton’s custom painting process that offers more than 6,000+ colors.

TruChoice Logo

Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Please contact your local Wayne Dalton Dealer for actual color samples to match with your home or business.

Enhancements

Operation

  • Chain hoist operation
  • Motor operation

Safety Focused

  • Cable failure device
  • Sensing edges
  • Photo eyes

High-Performance Design

  • High Cycle Spring Options
    • 25,000
    • 50,000
    • 100,000

  • High Usage Components



Wind Load

wind safe

Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.

*Proper wind load option selection is the responsibility of the business owner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.*

Windows

Not all windows are available on all door sizes. See the table below for more information.

Paint Finishes

clear sonoma ranch garage door windowClear Short garage door window with four windowsClear Long narrow-window-placement-garage-doorNarrow

double-narrow-window-placement-garage-doorDouble Narrow
garage door six window optionStockbridge Long (3-Lite) garage door eight window optionStockbridge Long (4-Lite) garage door sixteen short window optionStockton Short garage door eight window optionShockton Long (4-Lite)
garage door twelve window optionShockton Long (6-Lite) garage door sixteen window optionShockton Long (8-Lite) stockton 4-12 sonoma ranch garage door windowShockton Long (12-Lite) sonoma Prairie 1Prairie Short
sonoma Prairie 2Prairie Long stockford 4 sonoma garage door windowStockford Long garage door four window optionWaterton Short garage door window optionWaterton Long
garage door four window optionCathedral Short cathedral sonoma ranch garage door windowCathedral Long ruston 4 sonoma ranch garage door windowRuston Long garage door arched four window optionCascade Short
cascade 4 sonoma ranch garage door windowCascade Long ashton 2 sonoma ranch garage door windowAshton Long sonoma Sherwood 1Sherwood Short sherwood 4 sonoma ranch garage door windowSherwood Long
arched stockton sonoma ranch garage door windowWyndbridge Long garage door arched sixteen window optionStockton Long (8-Lite Arched) garage door with eight arched window optionArched Stockton Long double-car-Ranch-Arched-Stockton-Single Arch garage door windowArched Stockton Long (4pc)
sonoma Williamsburg 1Williamsburg Short williamsburg 4 sonoma ranch garage door windowWilliamsburg Long double car williamsburg 4 single arch garage door windowWilliamsburg Long (4 pc)



Wood Grain Impressions™ Bi-Directional Finishes

Choice of single or double arch is available for arched top double car windows.

clear sonoma ranch garage door windowClear Short garage door window with four windowsClear Long garage door six window optionStockbridge Long (3-Lite) garage door eight window optionStockbridge Long (4-Lite)
garage door sixteen short window optionStockton Short garage door eight window optionShockton Long (4-Lite) garage door twelve window optionShockton Long (6-Lite) garage door sixteen window optionShockton Long (8-Lite)
sonoma Prairie 1Prairie Short sonoma Prairie 2Prairie Long



Stucco Embossed Pinstripe and Flush Panels

commercial door aluminum windowAluminum Full-View commercial door window optionThermolte commercial door bubble window styleBubble Lite clear sonoma ranch garage door windowClear Short
garage door window with four windowsClear Long garage door sixteen short window optionStockton Short garage door four window optionWaterton Short garage door four window optionCathedral Short
garage door arched four window optionCascade Short sonoma Williamsburg 1Williamsburg Short



Window Availability - Door Panel Style
Short Panel Vertical Short Panel Long & Vertical Panel Flush Panel & Stucco Embossed Pinstripe Panel
Cascade Short Arched Stockton Long* Arched Stockton Long* Aluminum Full View*
Cathedral Short Ashton Long Ashton Long Arched Stockton Long*
Clear Short Cascade Short & Long Cascade Long Ashton Long
Prairie Short Cathedral Short & Long Cathedral Long Bubble Lite**
Sherwood Short Clear Short & Long Clear Long Cascade Short & Long
Stockton Short Prairie Short & Long Prairie Long Cathedral Short & Long
Waterton Short Ruston Long Ruston Long Clear Short & Long
Williamsburg Short (4 pc & 8 pc) Sherwood Short & Long Sherwood Long Prairie Short & Long
  Stockbridge Long (3-Lite) Stockbridge Long (3-Lite) Ruston Long
  Stockbridge Long (4-Lite) Stockbridge Long (4-Lite) Sherwood Short & Long
  Stockford Long Stockford Long Stockbridge Long (3-Lite)
  Stockton Long (4, 6, 8 & 12-Lite) Stockton Long (4, 6, 8 & 12-Lite) Stockbridge Long (4-Lite)
  Stockton Long Arch 8-Lite Stockton Long Arch 8-Lite Stockford Long
  Stockton Short (4-Lite) Waterton Long Stockton Long (4, 6, 8 & 12-Lite)
  Waterton Short & Long Williamsburg Long (2 pc & 4 pc) Stockton Long Arch 8-Lite
  Williamsburg Long (2 pc & 4 pc) Wyndbridge Long (2 pc, 3 pc, 4 pc, 5 pc) Stockton Short (4-Lite)
  Wyndbridge Long (2 pc, 3 pc, 4 pc, 5 pc)   Thermolite**
      Waterton Short & Long
      Williamsburg Long (2 pc & 4 pc)*
      Williamsburg Short (4 pc & 8 pc)*
      Wyndbridge Long (2 pc, 4 pc, 5 pc)

*Available in single and double arch.
**Available on Stucco Embossed Pinstripe only.



Window Placement Availability by Door Panel
garage door windowsDouble Row Option (top and intermediate)
Available on Short, Long, Vertical Short, Vertical Long, and Flush panels.		 garage door windowsVertical Option (left or right)
Available on Short, Long, Vertical Long, and Flush panels.		 garage door windowsVertical and Horizontal (left or right)
Available on Short, Long, Vertical Short, and Flush panels.		 garage door windowsAll Window Option
Flush panels.

Windows may be arranged vertically or horizontally on Short, Long, and Flush designs. Windows placed in the bottom section of a door must use DSB 1/8", or tempered, or 1/2" insulated glass.
