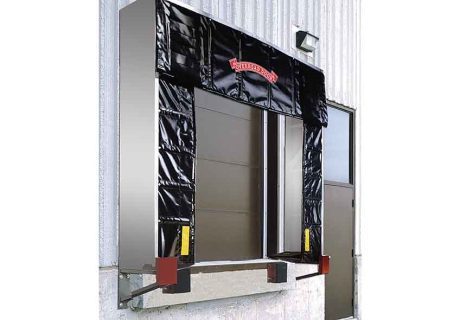

Fixed Dock Shelter – TX40R

Features

Construction Advantages

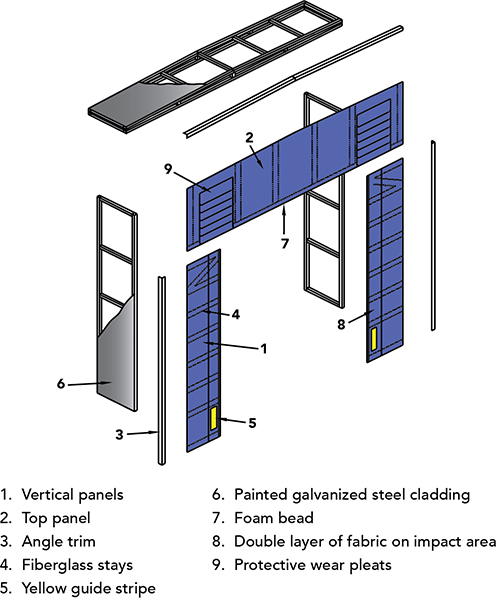

The side and top panels are covered with galvanized steel panels and trimmed with aluminum angle for a clean, durable finish. Both upper corners of the shelter have overlapping wear pleats for added protection from trailer impacts and tearing. The top panel is peaked to drain water.

• A foam bead is sewn into the leading edge of the vertical front panels and top panel
• Vertical panels are double layered fabric at the leading edge of the impact area
• The fabric is double stitched with high strength polyester thread that has been UV treated for improved durability
• Fiberglass stays are encased in multi-layer pockets and provide the vertical panels with strength (Top stays are “Z” style to keep the curtain straight)

Fabric Advantages

• Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has six times more abrasion resistance than standard fabric
• For the most punishing applications, optional premium plus fabric is recommended.
• It is similar to the belts used on heavy duty, industrial conveyors. It provides elevated resistance to UV, fire, abrasion, tearing, rot, stains, salts, and oils
• All fabrics are treated with UV protection to help reduce fading

_{* Available with all 22 oz and 40 oz fabric and color options
** Available with premium plus fabric only}
