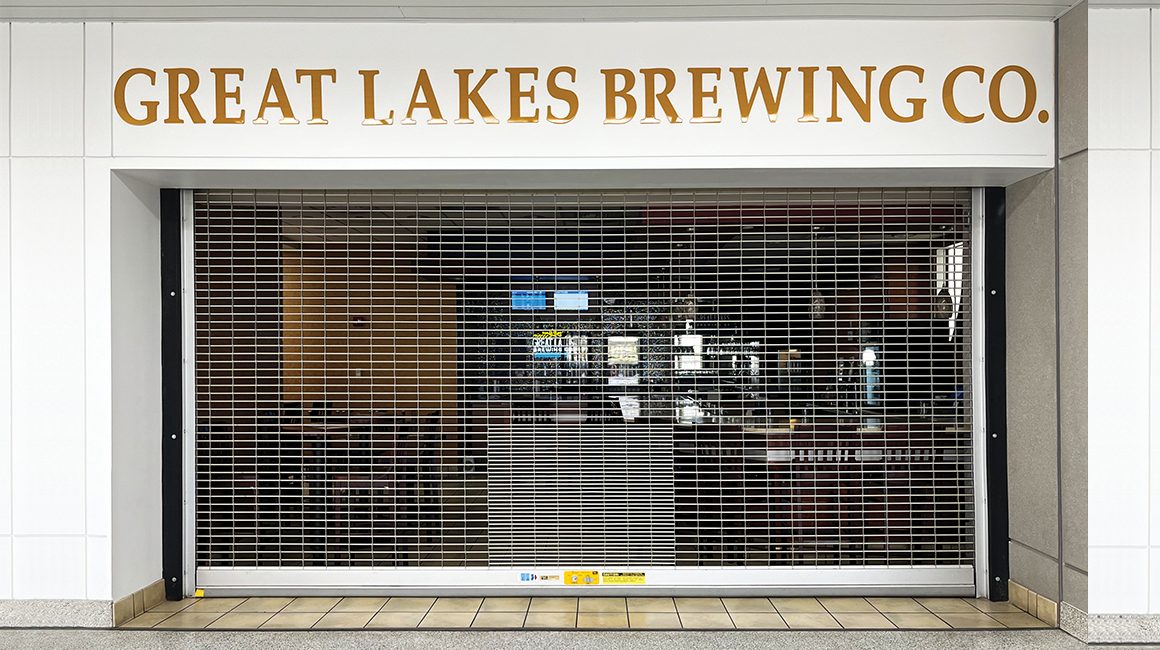

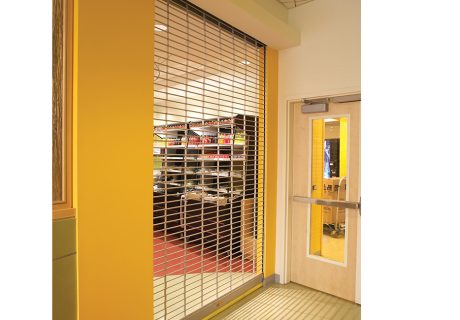

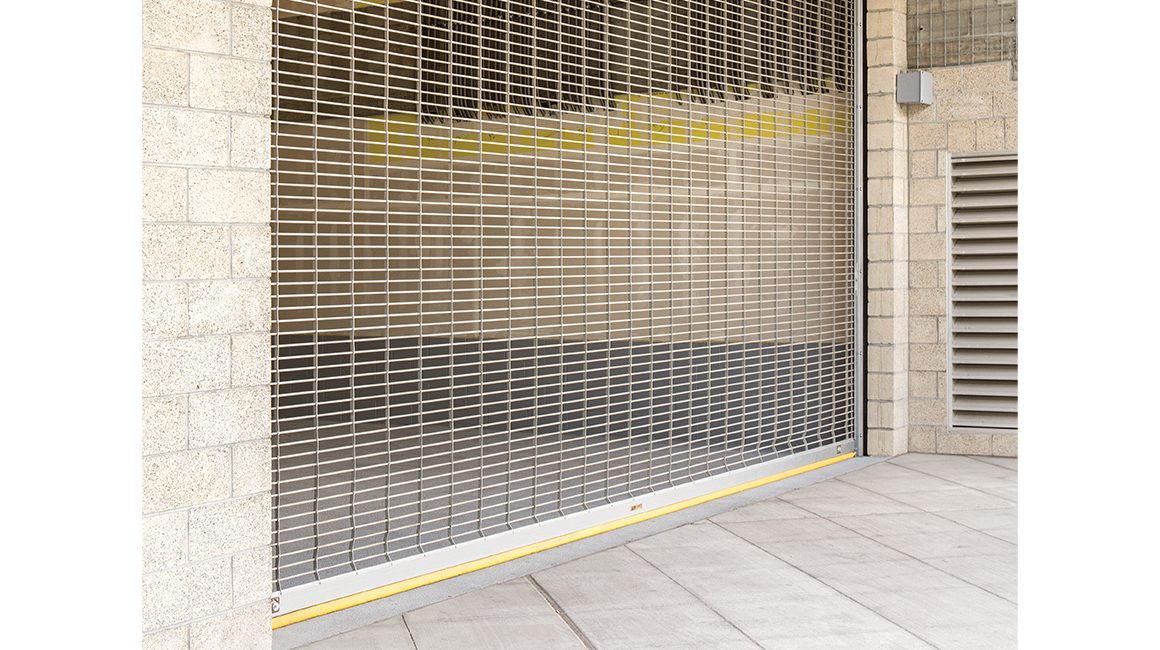

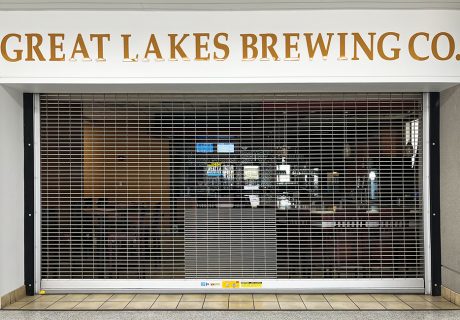

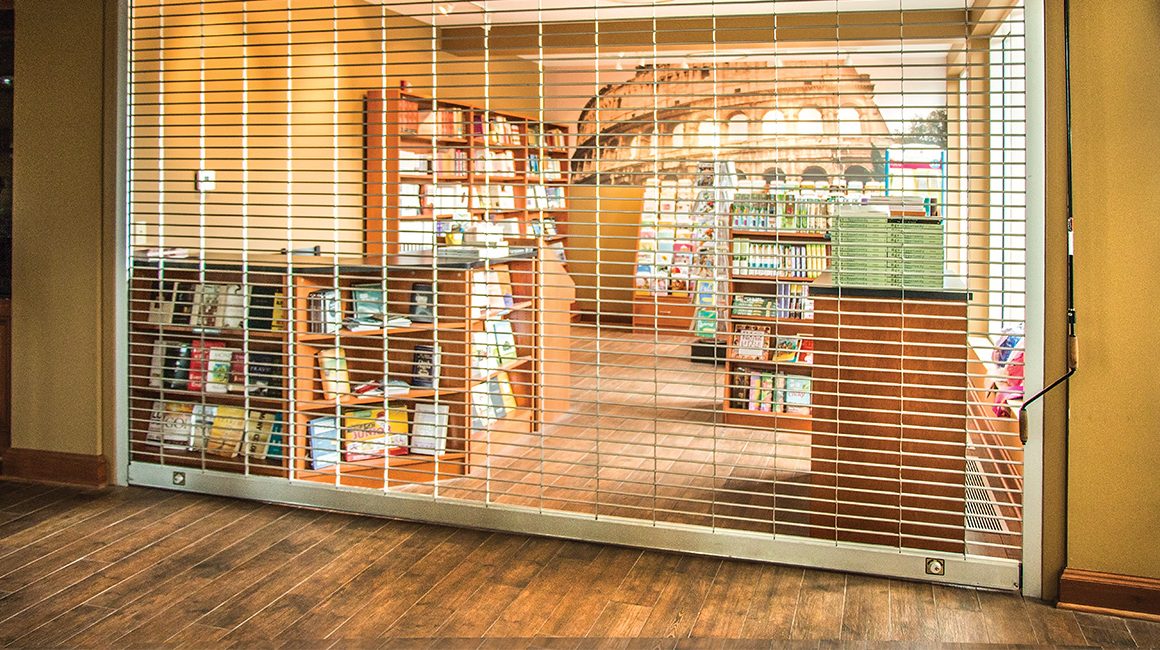

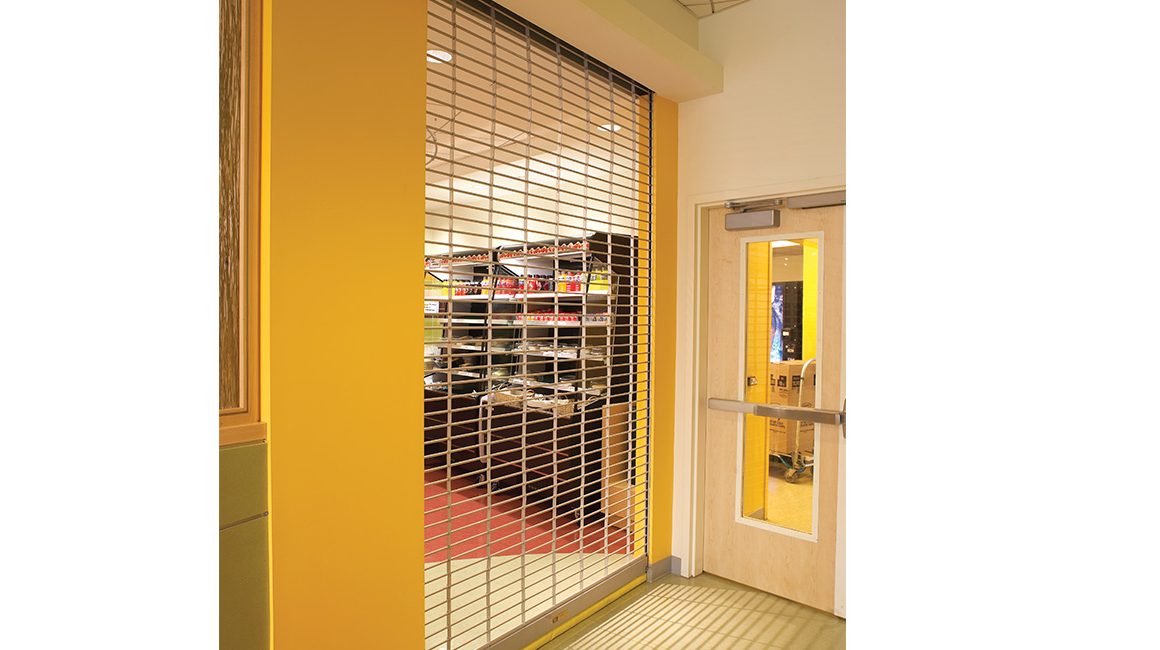

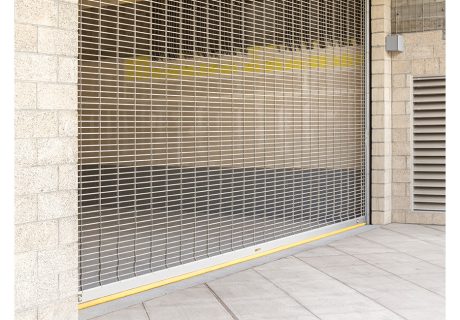

The Model 600 Rolling Grille offers security, visibility, and ventilation in several patterns and finishes. Rolling Grills provide security against entry or theft with slide bolts or padlockable chains while the design allows visual access through the door opening space. This rolling grille also offers an emergency egress option as an additional security feature. Model 600 is constructed with vertical aluminum links and horizontal steel rods with spacer tubes and end links that ensure that the grille cannot be pulled from guides. The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils.
| Grille Pattern | Spacing | Curtain | Other |
| G-6 (Straight) | 9" | Aluminum, Galvanized Steel, Stainless | Available with acrylic lites in 9” pattern only and aluminum curtain only Available in modified pattern with 6” spacing |
| G-8 (Straight) | 4"' | Aluminum, Galvanized Steel, Stainless | |
| G-3 (Straight) | 3" | Aluminum, Galvanized Steel, Stainless | |
| G-7 (Straight) | 2" | Aluminum, Galvanized Steel, Stainless | |
| G-1 (Brick) | 4.5" | Aluminum, Galvanized Steel, Stainless | Available in modified pattern with 3.125 spacing |
*Center lock security pattern is also available
Not all patterns available in all sizes
|
|
|
| Clear | Bronze |
|
|
|
| Galvanized Steel | Stainless Steel |
|
|
|
 |
 |
 |
| Clear Anodized Aluminum | Bronze Anodized Aluminum | Mill Aluminum | Galvanized | Stainless Steel |
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
