Wayne-Dalton Model 610

Features

Benefits

Durable Construction

• Rugged construction and quality materials assure long life and less costly maintenance
• Smooth operation with a durable hardened track
• Open curtain allows free air circulation

Design Flexibility

• Built to order to fit your opening size, operation and option preferences to align with the style of your building.
• Full-height aluminum for maximum security
• Clear non-breakable polycarbonate for some visibility
• Clear tempered glass for full visibility
• Perforated steel panels for full ventilation
• Curtain stores in a compact coil at the head of an opening to maximize the use of the interior space

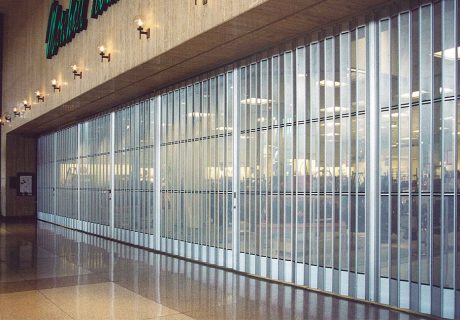

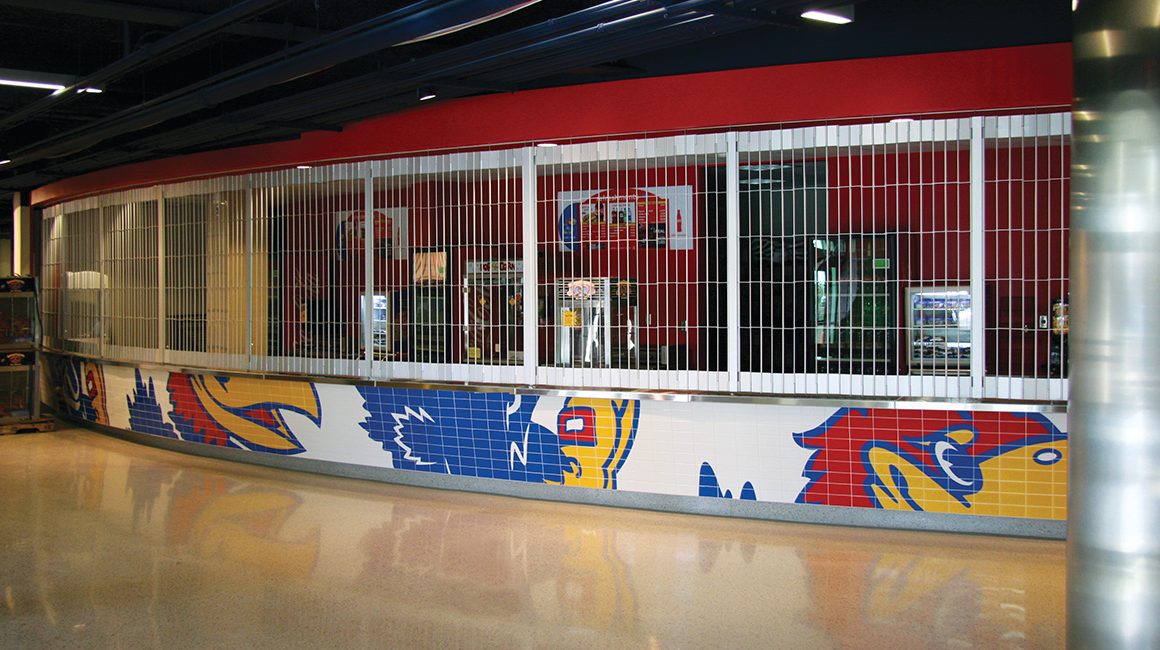

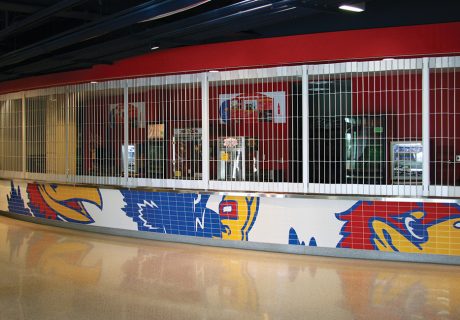

• Curved tracks to follow almost any degree of track curvature

Installer Friendly

• EZ line comes 90% assembled and is fitted with its own 6-inch pockets to save time and reduce costs
• Locking posts supplied with 1″ mortise cylinder can be easily changed onsite

Warranty

• 24-Months Limited Warranty

Enhancements

Operation

• Manual

Safety Focused

• Post Options
  • Lead Post
    • Hook lock and wall channel; bi-part; top and bottom shoot bolts
    • Concealed cylinder-operated hook lock accessible from interior and exterior
  • Intermediate post
    • Bottom shoot bolt
    • Concealed cylinder-operated shoot bolt accessible from one side only
  • Trailing end post
    • Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier
    • Attached 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop​​

Grille Design

Standard Line Grille Patterns – Full-closure

• Perforated
  • Curtain: 7” (178 mm) standard width, 0.05" (1.27 mm) perforated aluminum panels with 3 /16" (5 mm) dia. Holes on ¼" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 51% of 6 1/8" (156 mm) viewable area.
• Polycarbonate
  • Curtain: 7” (178 mm) standard width, 1 /16" (1 mm) thick fire retardant polycarbonate that fits into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 100% of 6 1/8" (156 mm) viewable area.
• Glass
  • Curtain: 7” (178 mm) standard width, 1/8" (3 mm) thick tempered glass that fits into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 100% of 5 3/8" (137 mm) viewable area.
• Solid Aluminum
  • Curtain: 7” (178 mm) standard width, 0.078" (2 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 0% of 6 1/8" (156 mm) viewable area.

Slim Line Grille Patterns – Full-closure

• Perforated
  • Curtain: 4” (102 mm) standard width, 0.05" (1.27 mm) perforated aluminum panels with 3 /16" (5 mm) dia. holes on 1/4" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 100% of 3-1/2" (89 mm) viewable area.
• Polycarbonate
  • Curtain: 4” (102 mm) slim width, 1/16" (1 mm) thick fire-retardant polycarbonate that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 100% of 3-1/2" (89 mm) viewable area.
• Solid Aluminum
  • Curtain: 4” (102 mm) standard width, 0.07" (1.78 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 0% of 3 ½" (89 mm) viewable area.

Brick or Straight Grille Patterns – Open-air

• SWBB - Brick
  • Space between tubes 2 15/16" (73.5 mm)
  • Full panel width 7" (178 mm)
  • Top plate 4" (102 mm)
  • Top spacer tube size varies from curtain pattern to accommodate specific height
  • Spacer plate 1” (25.4 mm)
  • Spacer tube ½” (12.7 mm) x 12” (305 mm) Bottom plate 4” (102 mm)
  • Max Width: Unlimited
  • Max Height: 168" (4267 mm)
• SWBS - Straight
  • Space between tubes 1 9/16” (40 mm)
  • Full panel width 4” (102 mm)
  • Top plate 4” (102 mm)
  • Top spacer tube size varies from curtain pattern to accommodate the specific height
  • Spacer plate 1” (25.4 mm)
  • Spacer tube ½” (12.7 mm) x 12” (305 mm) Bottom plate 4” (102 mm)
  • Max Width: Unlimited
  • Max Height: 168" (4267 mm)
• S126B – Brick and S126S - Straight
  • Space between tubes 2 ½” (63.5 mm)
  • Full panel width 6 5/16” (160 mm)
  • Top plate 5 ¼” (133 mm); 13 gauge
  • Top spacer tube size varies from curtain pattern to accommodate the specific height
  • Aluminum rod 5/16” (3.17 mm)
  • Aluminum link 1/8” x 5/8” x 6 11/16” (3.17 x 15.9 x 170 mm)
  • Spacer tube ½” x 12” (12.7 x 305 mm)
  • Bottom plate 5 ¼” (133 mm); 13 gauge
  • On Center 6” (152 mm)
  • Max Width: Unlimited
  • Max Height: 168" (4267 mm)
• SL154 – Straight/Slim Line
  • Space between tubes 3 ½” (89 mm)
  • Full panel width 4” (102 mm)
  • Top plate 2” (51 mm); 13 gauge
  • Aluminum rod 5/16” (3.17 mm)
  • Aluminum link 1/8” x 5/8” x 4 1/8 ” (3.17 x 15.9 x 105 mm)
  • Spacer tube ½” x 15” (12.7 x 381 mm)
  • Bottom plate 2” (51 mm)
  • On Center 4” (102 mm)
  • Max Width: Unlimited
  • Max Height: 168" (4267 mm)

EZ Grille Patterns

• EZ Vent – Full-closure
  • Curtain: 4” (102 mm) standard width, 0.05" (1.27 mm) perforated aluminum panels with 3 /16" (5 mm) dia. holes on 1/4" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 100% of 3-1/2" (89 mm) viewable area.
• EZ Clear – Full-closure
  • Curtain: 4” (102 mm) slim width, 1/16" (1 mm) thick fire-retardant polycarbonate that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates. 
  • Visibility: 100% of 3-1/2" (89 mm) viewable area. 
• EZ Guard – Full-closure
  • Curtain: 4” (102 mm) standard width, 0.07" (1.78 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.
  • Visibility: 0% of 3-1/2" (89 mm) viewable area. 
• EZ Grille – Open-air
  • Curtain: 4" (102mm) wide with 2 inch (51mm) high bottom and top plates, truss-like aluminum. Panels connected with 1/8 x 5/8 x 4-1/4 inch aluminum links vertically spaced 15 inches (381 mm) apart onto 5/16 inch (8 mm) aluminum horizontal rods spaced 3-1/2 inches (89 mm) on center and covered by 1/2 inch (13 mm) aluminum tubes. Curtain secured to pocket, not end post required. Straight pattern.
  • Visibility: 97% of 3-1/2" (89 mm) viewable area.   
