Model 990

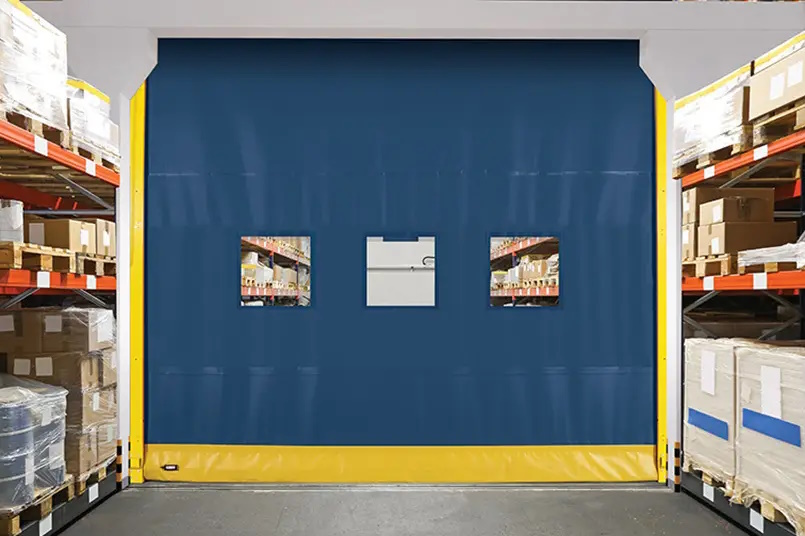

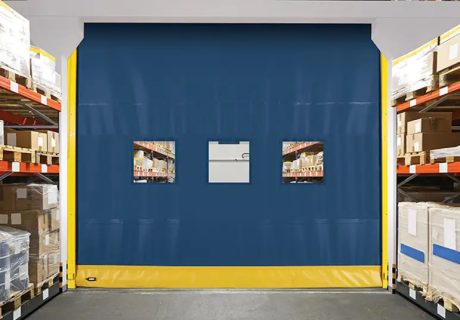

Our flexible bottom high speed interior fabric door, RapidFlex® 990, is ideal for high-traffic manufacturing, pharmaceutical, warehouse and distribution facilities. Built for safety this door features a flexible bottom with wireless monitored reversing edge, built-in drop stop device and in-plane infrared sensors.

contact us about this product

more Model 990 details

Overview

Construction

Product Specifications
Standard Max Width 12'
Standard Max Height 12'
Speed Up to 70" per second
Curtain Lock Patent-pending curtain-lock design allows for quick and easy repair in the field
Break-Away Self-Reset Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Load* Up to 3.0 psf
Door Panel 2 thin layers of PVC coated polyester; 1 layer of polyester weave
Operation Direct drive motor and gearbox system with a door stop device
Control Panel
  • Variable frequency drive
  • NEMA 4X cULus listed
  • Onboard self diagnostic and service reminder
  • Built-in padlockable field disconnect
Obstruction Detection Infrared sensors mounted in-plane to the door curtain at 6" and 50"-54" from floor
Reversing Safety Edge Wireless reversing edge; Flexible bottom bar with detachable bottom seal
Electrical Availability** 120V AC 1PH; 208V AC 1PH†; 220V AC 1PH; 208V AC 3PH†; 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†

* Pressure/wind resistance value is the ultimate pressure tested at door width of 12'.
**Single phase available up to 10’ doors.
†Requires stand-alone mounted transformer

Warranty

  • 5-year limited on drive motor and gearbox; 1-year limited on all other available components

Options

Colors

  • HPD Red Color Swatch

    Red

  • HPD Blue Color Swatch

    Blue (Textured)

  • HPD Gray Color Swatch

    Gray

  • HPD White Color Swatch

    White

Bottom Bar & Guide

  • Safety Yellow Color Option - Model 990

    Safety Yellow

RAL Powder Coat

Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
