Model 994

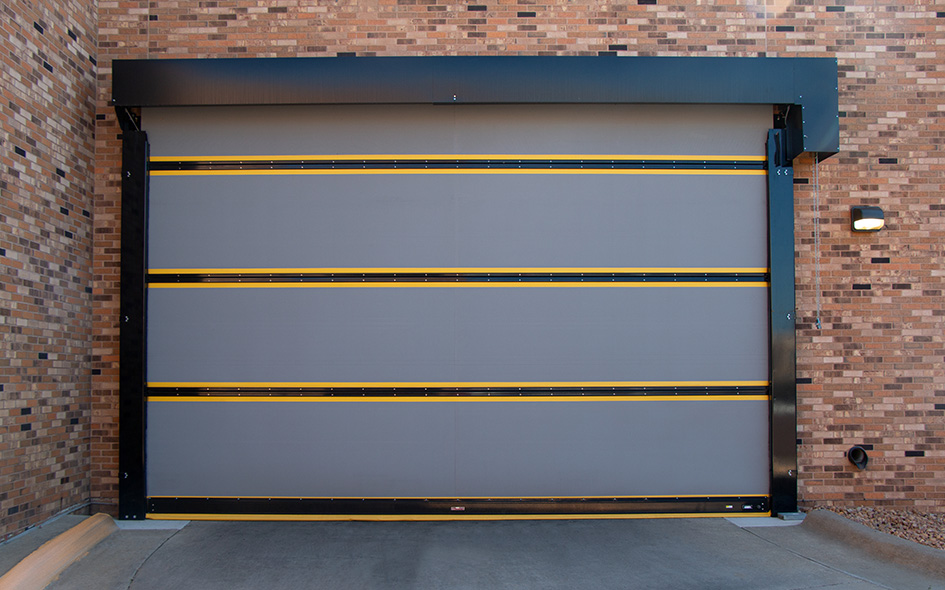

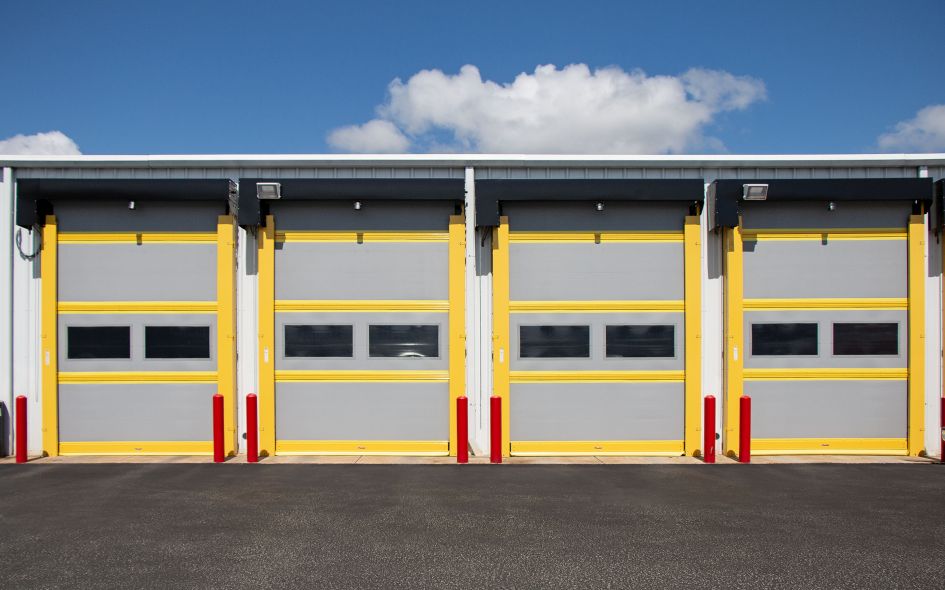

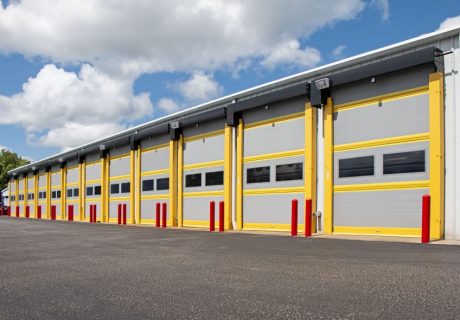

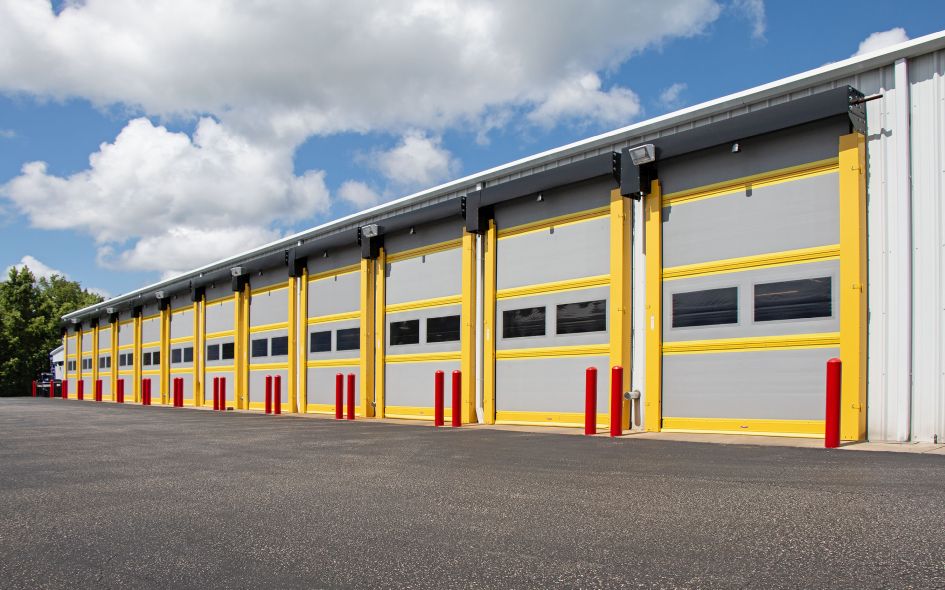

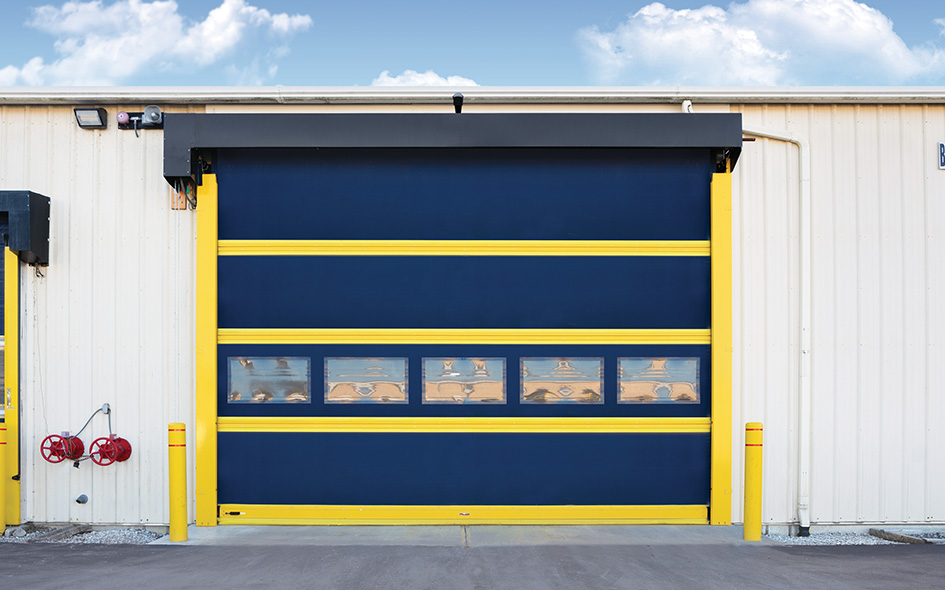

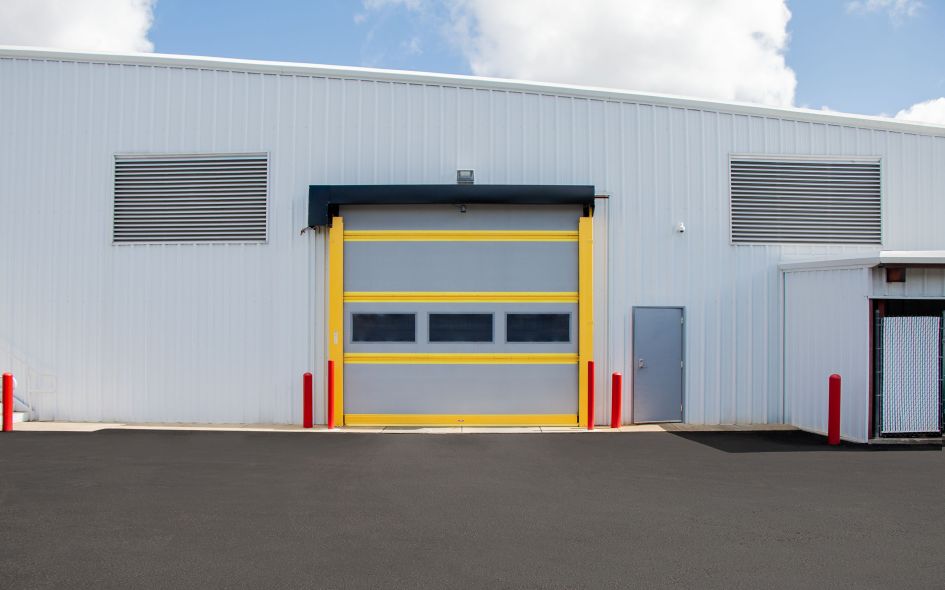

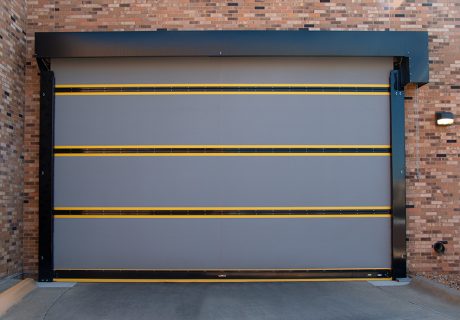

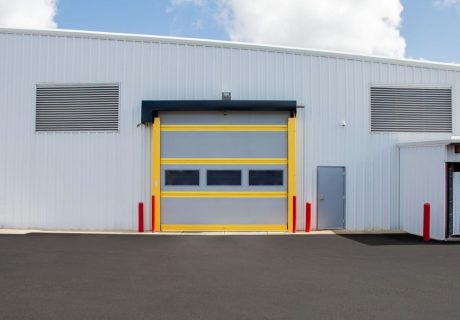

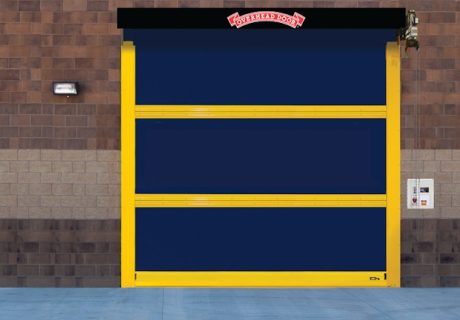

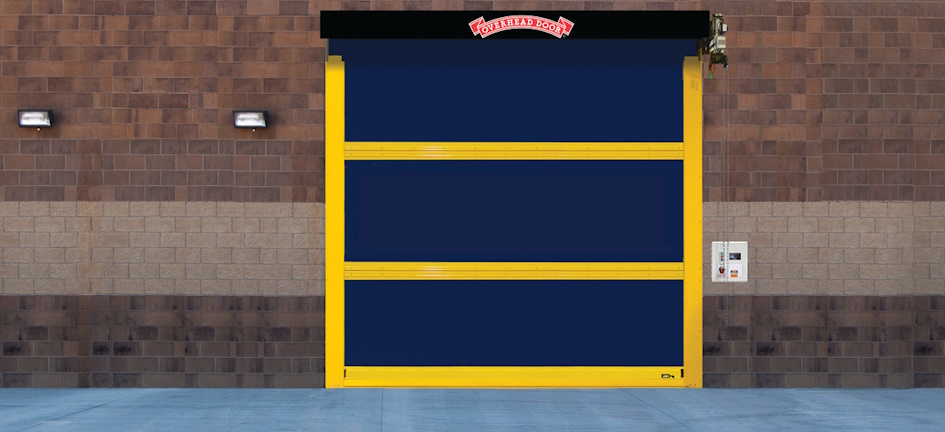

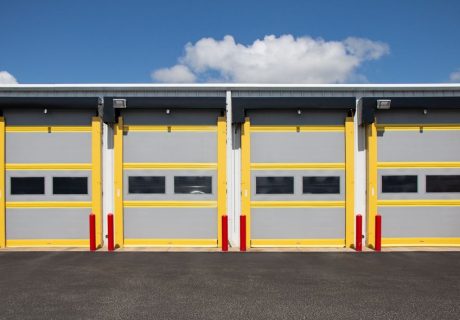

RapidFlex® Model 994 is a strutted, heavy-duty exterior high speed fabric door that is perfect for large openings and is best suited for manufacturing, mining, auto/transit, and parking garage applications. It features an independently tested wind load of up to 22.0 psf. The RapidFlex® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device. Our RapidFlex® Model 994 high speed heavy-duty exterior door is a perfect door solution for parking garages, mining, auto/transit and manufacturing facilities.

Ideal Applications Include

  • Automotive

more Model 994 details

Overview

Construction

Product Specifications
Standard Max Width  24'
Standard Max Height  20'
Speed  Up to 55" per second
Break-away Self-reset  Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut  4” articulating roller wind strut
Curtain Material  3 layers of PVC coated polyester; 2 layers of polyester weave.

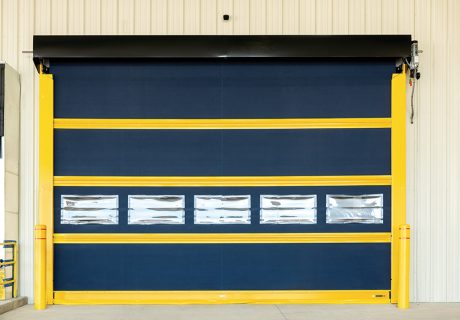

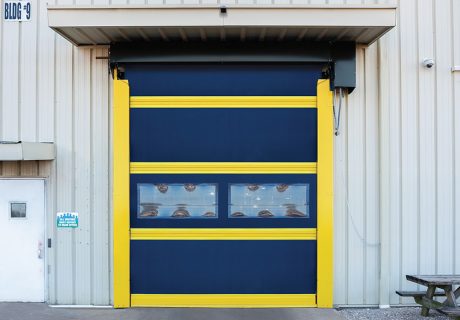

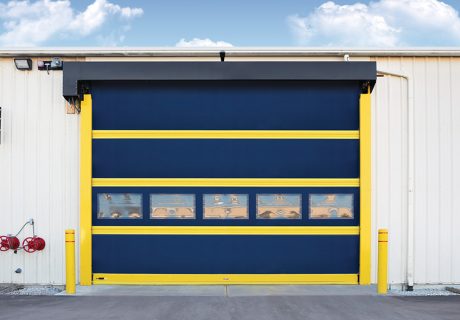

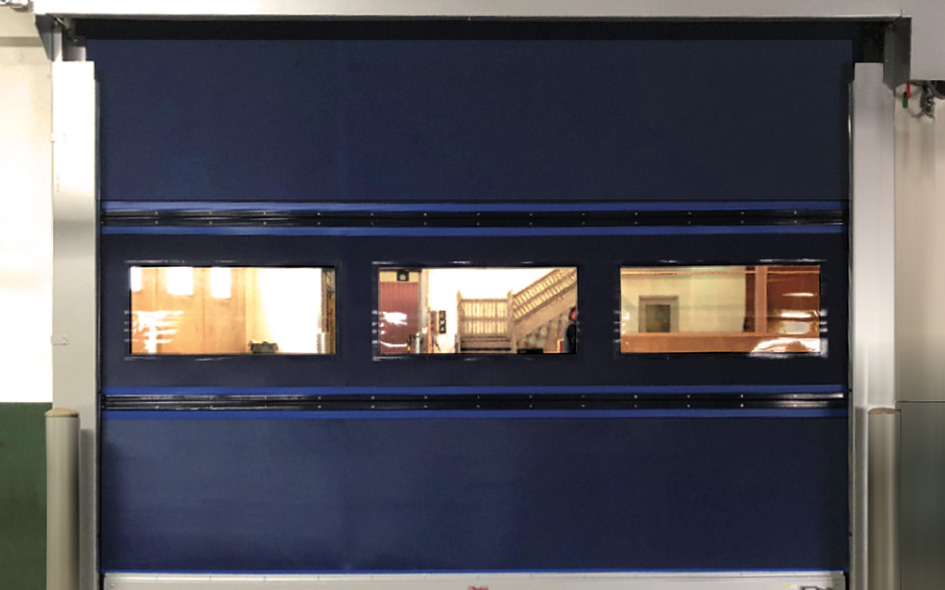

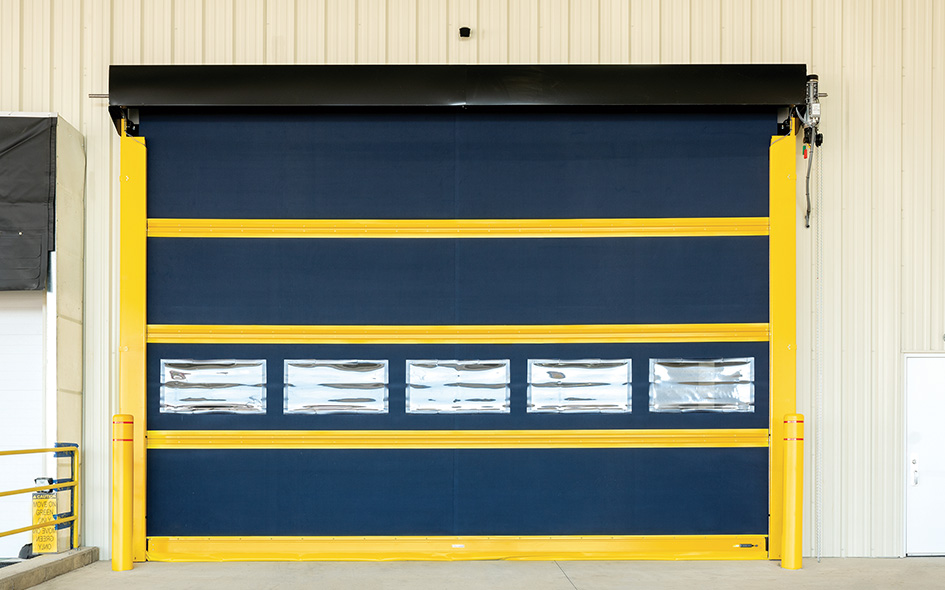

Vision Option  20” high windows spaced evenly across width of door
Operation  Direct drive motor and gearbox system with a door stop device
Control Panel  Variable frequency drive
NEMA 4X cULus listed
Onboard self diagnostic and service reminder
Built-in padlockable field disconnect
Obstruction Detection  2 sets of infrared sensor mounted proximity to the door path
Reversing Safety Edge  Wireless monitored reversing edge
Electrical Availability  208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†
(†requires stand-alone mounted transformer)
Wind Load*  Up to 22.0 psf

* Pressure/wind resistance value is the ultimate pressure tested at door width of 20'.

Warranty

  • 5-year Limited

Options

Color

color group red

  • Powder Guard Coat Colors

    Model 593 -v3 (Model 593 sub title v3 has no order value)

  • Powder Guard Coat Colors

    Model 593 (Model 593 sub title)

  • Powder Guard Coat Colors

    Model 593 -v2 (Model 593 sub title v2)

  • Powder Guard Coat Colors

    Model 593 -v4 (Model 593 sub title v4)

RAL Powder Coat

Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.

RAL Color Swatch

Enhancements

Actuation options

Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available

Signaling device options

Red/green LED warning light, horn/ strobe combination, rotating warning light

Programmable LED lighting system

3' tall light bar with red, yellow, green lighting

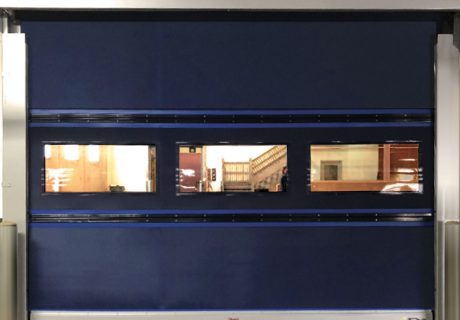

20" high vision panels

spaced evenly across width of door

Light Curtain

Front or rear mounted; available in 3' or 6' models
