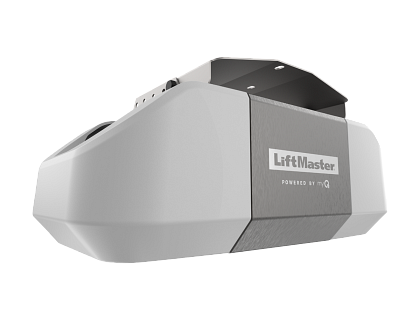

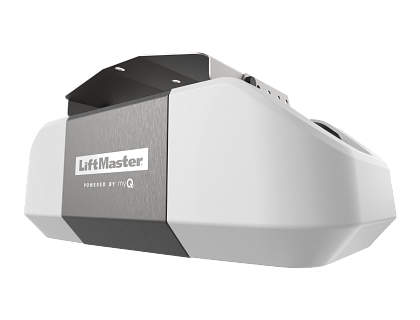

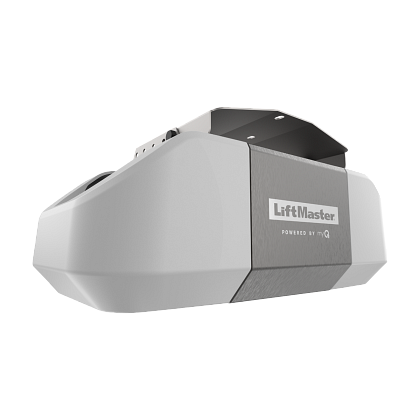

more ATSW details

Overview

Built-in Wi-Fi enables access to myQ^®
Built-in Bluetooth for easier connection to building's Wi-Fi network
Dual-rated for residential and commercial doors; tested and approved for commercial duty cycle requirements.
Ceiling mount for standard lift sectional doors
Ideal for pole barns and similar structures for storage and manufacturing.

Features

Business Connectivity

Monitor and Control

myQ Smart Facility Access is a cloud-based software solution that delivers real-time data and analytics to a commercial facility.

myQ Dock Management

Analyze the load, turn and dwell time at each dock in the facility and make data-driven decisions that allow you to maintain insight from the perimeter to the dock space.

Real-time Alerts

Stay up-to-date and in control of facility access points with real-time notifications to help improve efficiency and productivity while reducing expenses.

Business Safety and Security

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Specs

Rated Load	600 In-lbs/sec	Voltage	120 Volt, Single Phase
Drive Type	Chain	AC / DC	AC
Battery Backup	No	Motion-Detection Light Activation	No
Smartphone Control	Yes	Timer To Close	TTC Programmable with Optional Smart Control Panel
Max Door Height	14 ft.	Connectivity	Yes
Compatible Code Format	60Hz	myQ Compatibility	Yes

Warranty

Operator Warranty: 1 Year

Compatibility

HomeLink® Compatible, Version 4.0 or Higher.
HomeLink® is a registered trademark of Gentex Corporation.

Installation & Support

General Documents

Manual

Architect Documents

Replacement Parts

RAIL SUPPORT BRACKET KIT 041C5069 Parts Diagram Reference:1 Learn More	CHAIN SPREADER KIT 041A5615 Parts Diagram Reference:2 Learn More	GEAR AND SPROCKET KIT, 3/4HP 041A5585 Parts Diagram Reference:3 Learn More	End Panel 041A7756-1 Parts Diagram Reference:4 Learn More	LIGHT SOCKET KIT 041C0279 Parts Diagram Reference:5 Learn More
LIGHT LENS 041A7562 Parts Diagram Reference:6 Learn More	MOTOR CAPACITOR, 53UF-64UF, 220V K030B0532-1 Parts Diagram Reference:7 Learn More	CAPACITOR BRACKET K012A0373 Parts Diagram Reference:8 Learn More	MOTOR, 3/4 HP W ITH TRAVEL MODULE, ATSW 041-0031 Parts Diagram Reference:9 Learn More	AC TRAVEL MODULE KIT 041D7742-7 Parts Diagram Reference:10 Learn More
Cover, ATSW 041-0014 Parts Diagram Reference:11 Learn More	LOGIC BOARD, ATSW 050ACTWFATSMC Parts Diagram Reference:12 Learn More	END PANEL 041D8198 Parts Diagram Reference:13 Learn More	Wire Harness Kit, Dual Light 041A7814 Not shown on diagram Learn More	POWER CORD KIT, 6' 041B4245-1 Not shown on diagram Learn More
Terminal Block Kit 041A3150 Not shown on diagram Learn More	CURVED DOOR ARM 041B0035B Not shown on diagram Learn More	Door Bracket Kit 041A5047 Not shown on diagram Learn More	Header Bracket 041A4353 Not shown on diagram Learn More	Rope and Handle Kit 041A2828 Not shown on diagram Learn More
Safety Sensor Mounting Kit 041A6569 Not shown on diagram Learn More	STRAIGHT DOOR ARM 4178B0034B Not shown on diagram Learn More	Bell Wire Kit 041B4494-1 Not shown on diagram Learn More	Universal Hardware Kit 041A2770-17 Not shown on diagram Learn More	CHAIN KIT, 8' 041D3483 Not shown on diagram Learn More
CHAIN KIT, 10' 041D3485 Not shown on diagram Learn More	Chain Pulley Bracket Kit 041A2780 Not shown on diagram Learn More	Trolley Kit, T-Rail 041A3489 Not shown on diagram Learn More	Threaded Shaft K109B0018 Not shown on diagram Learn More	LITHIUM GREASE K083A0011-1 Not shown on diagram Learn More
