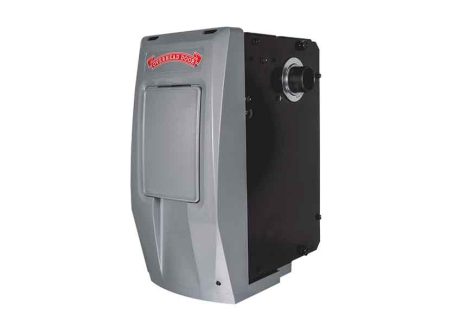

RLD™ Jackshaft Operator

The RLD Jackshaft is designed standard for Rolling Steel doors and for standard, high, and vertical-lift Sectional doors that have up to a 15-cycle/hour and less than a 30-cycle/day requirement. Designed for reliability with leading innovative features, the light-duty jackshaft sets a new standard in the industry.

contact us about this product

more RLD™ Jackshaft Operator details

Features

  • Easy push to set limits
  • UL 325 Listed
  • Automatic open and close door force settings
  • Open/Close/Stop control station
  • Programmable mid-stop
  • Time-to-close can be set at pre-defined values between 0 seconds and 5 minutes
  • Pull cord release for emergency manual operation.
  • 2-year limited warranty
  • Commercial photocells
  • 7.5 in/sec door speed in both directions in most applications
    Operational on doors up to 14 ft. tall with up to 84” of highlift, 18 ft. wide, 180 sq ft., and 850 lbs



Construction
Mounting Able to be wall-mounted direct couple on sectional doors.
Motor Quiet, powerful 24 VDC with usage-based thermal shutdown
Advanced radio receiver system with auto seek frequency range Quickly and easily learns up to 250 CodeDodger® transmitters. This system will automatically cycle between 315 and 390 frequencies.
Easy limit setting An easy-to-set limit sensor that makes it easy to set and maintain limits.
Standard commercial features Mid-stop, O/C/S push button station, timer-to-close, commercial photoeyes.
Optional accessories can be added at any time OHDAnywhere®, light kit, door lock, and battery backup.
UL 325 Listed Requires the addition of monitored external entrapment devices prior to the operator working in momentary contact in the close direction.



​​RLD Jackshaft Advantages

  • CodeDodger® 315/390 MHz receiver can store up to 255 standard and/or open/close/stop transmitters
  • Soft start and stop reduces stress on the door and operator for improved life
  • Safe-T-Pulse® - Internal cable slack detection eliminates external cable monitoring devices and reverses door travel when cable tension isn’t detected for safety
  • Operator force profile detects irregularities in operation of the door to identify unsafe door operation. The force profile is updated every cycle to account for changes in weather and temperature
  • Precision sealed roller bearings on output shaft for improved power transfer
  • Interlock circuit with pre-installed jumper
  • Output shaft coupler utilizes six set screws with threadlocker to reduce shaft slippage and screw back outs
  • Output shaft coupler can be used on 1” hollow or solid door shafts with 1/4” keyway
  • Optional LED worklight may be toggled via the stop button on Open/Close/Stop control station when the door is inactive
  • Small operator profile of 12” length by 6.9” width allows for use in tight applications. Only requires 2.5” of headroom clearance and 7” of side room clearance to be used
