The perfect choice for architectural applications that require open visibility

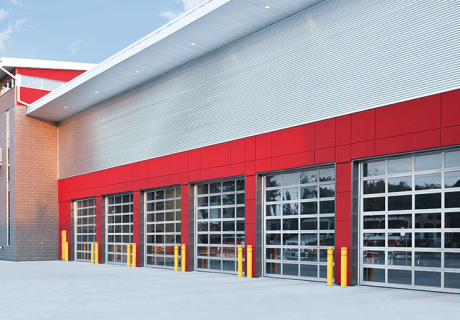

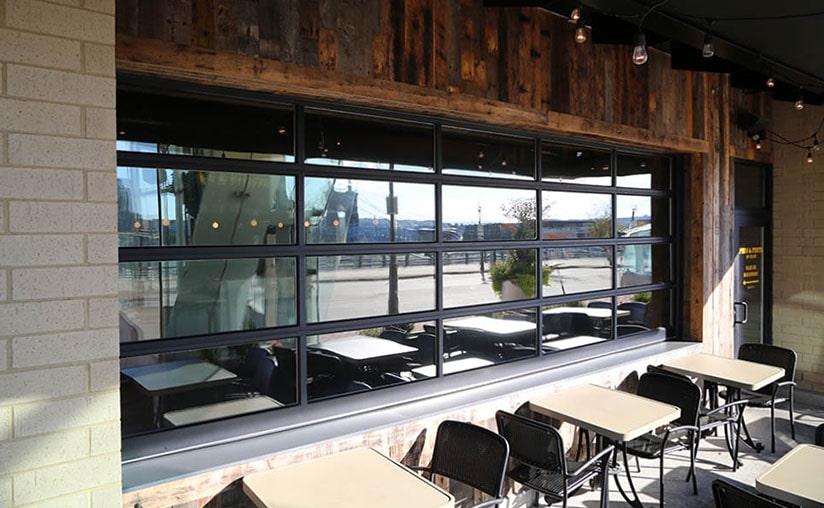

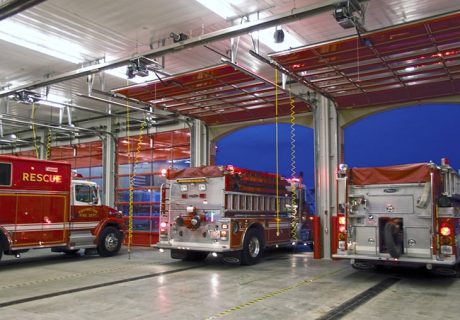

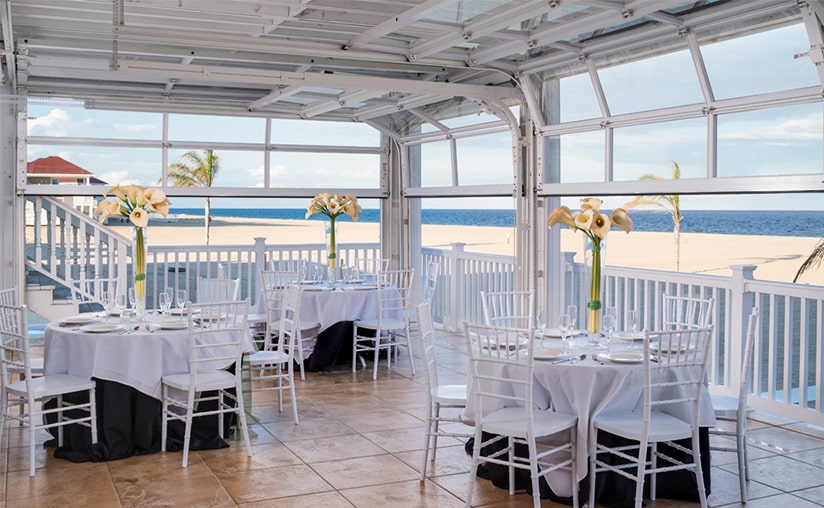

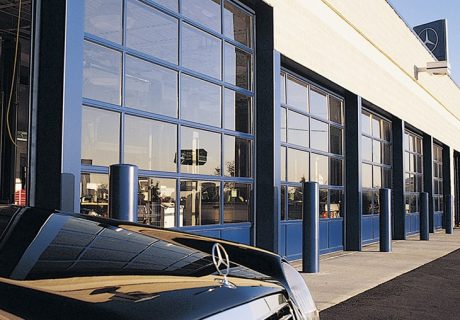

Clopay’s full-view series doors are ideal for commercial buildings requiring visibility, access to natural lighting and modern look. They're the perfect choice for everything from restaurants and fire stations to service stations and car dealerships.

These overhead doors are available with aluminum or steel frame construction, providing options that ensure maximum durability and reliability. Customize your door with a wide variety of window, color, design and performance options.

Download Product Brochure

Overview
Options
Features & Benefits
Specs/Drawings
Brochures
Springs & Hardware

Overview

Aluminum Garage Doors in Nebraska

The use of commercial aluminum garage doors in Omaha, Nebraska, is becoming more popular, with many businesses preferring it for its contemporary appearance and curbside appeal. Besides the aesthetic value, aluminum doors have several benefits that make this option suitable for your business. There are also aspects you should consider that could be potential drawbacks.

Advantages of Aluminum Garage Doors

Aluminum full-view doors may be the best solution for your business, as they provide:

Modern appearance: Overhead aluminum doors have a sleek and contemporary look that gives your business instant curbside appeal.
Natural light: Glass panes allow natural light to brighten the interior and make the place feel spacious and appealing to your employees and customers.
Outdoor views: The aluminum lets your customers see outside and creates interest and awareness by allowing passersby to see inside your commercial space.
Durability: Full-view doors are made from solid aluminum or insulated steel frames with tempered aluminum, which makes them durable and weather-resistant.
Easy maintenance: Cleaning your industrial aluminum doors is as simple as cleaning your windows — no need to paint or apply additional coatings. However, you still need to maintain the door springs, rollers, and hinges like other door types.
Design choices: You can customize the aluminum to be clear, tinted, mirrored, obscured, frosted or laminated. Choose different panel options, window types and frame colors to ensure your door complements your property.
Versatility: Aluminum full-view doors can be used in multiple areas in the interior or exterior of your business. These products can divide sections within your commercial space or serve as a traditional garage door.

Disadvantages of Aluminum Garage Doors

Some potential drawbacks to commercial aluminum garages you should also consider include:

Privacy concerns: Some commercial companies may be concerned that aluminum offers less privacy, which can pose a security risk. They may want to choose mirrored or obscure windows, which can address privacy concerns.
Price points: Aluminum full-view doors can be pricier than some other commercial door options.
Insulation limits: You can insulate overhead aluminum doors, but there are limits compared to other full steel, aluminum or composite doors.

Aluminum Garage Doors Models

Model	Thickness	Spacing	R-Value	Max Width✭	Max Height✭
904	2-1/8"	Equal width & spacing	N/A	24'2"	20'0"
904U	2-1/8"	Equal width & spacing	3.8*	20'2"	20'0"

✭Maximum Width and Height values listed are Standard sizing.
*With clear insulated glass

Insulated Steel Full-View Doors

Model	Section Thickness	Emboss	Exterior Gauge	Section Design	Insulation	R-Value Solid*	R-Value w/Glass**	Thermal Break	Max Width✭	Max Height✭
3729	2"	Stucco	27	Minor Ribbed	Polyurethane***	18.4	8.0	Yes	20'2"	18'0"
3728	2"	Stucco	27	Flush	Polyurethane***	18.4	8.0	Yes	20'2"	18'0"
3709	1-3/8"	Stucco	27	Minor Ribbed	Polyurethane***	12.9	5.9	Yes	18'2"	16'0"
3708	1-3/8"	Stucco	27	Flush	Polyurethane***	12.9	5.9	Yes	18'2"	16'0"
3209	2"	Stucco	24	Minor Ribbed	Polystyrene	9.1	4.4	Yes	20'2"	18'0"
3208	2"	Stucco	24	Flush	Polystyrene	9.1	4.4	Yes	20'2"	18'0"
3159	1-3/8"	Stucco	27	Minor Ribbed	Polystyrene	6.5	3.4	Yes	18'2"	16'0"
3158	1-3/8"	Stucco	27	Flush	Polystyrene	6.5	3.4	Yes	18'2"	16'0"

* R-values calculated per DASMA TDS-163 on a solid door

** R-values calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.

*** Clopay's proprietary polyurethane Intellicore insulation.

✭Maximum Width and Height values listed are Standard sizing.

Options

CHOOSE YOUR MATERIAL

Aluminum Full-View Doors
Steel Insulated Modern Doors

ALUMINUM FULL-VIEW DOORS

GLASS/PANEL OPTIONS:

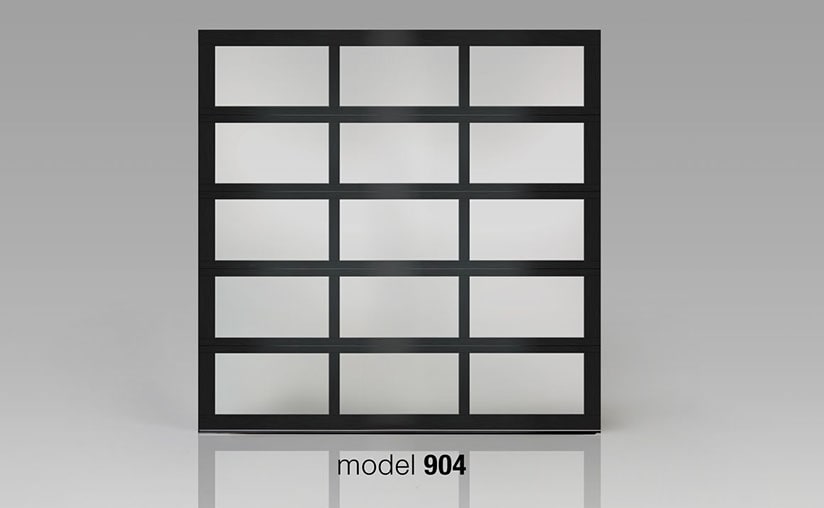

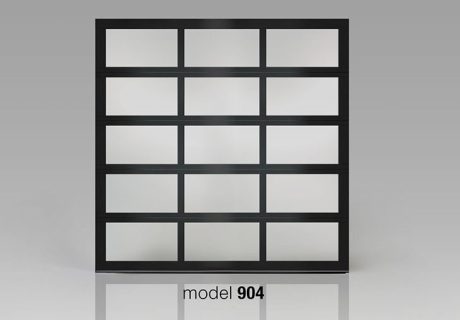

FULL-VIEW (904)

SOLID ALUMINUM (904)

GLAZING MATERIAL OPTIONS:

CLEAR GLASS

GRAY TINTED GLASS

BRONZE TINTED GLASS

MIRRORED GLASS*

OBSCURE GLASS

WHITE LAMINATE GLASS*

BLACK LAMINATE GLASS*

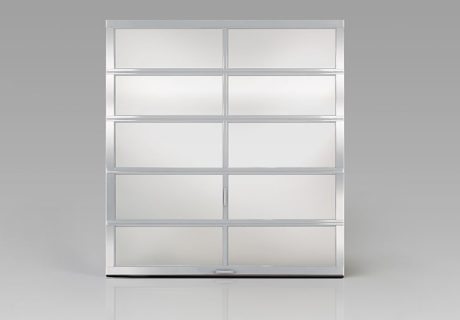

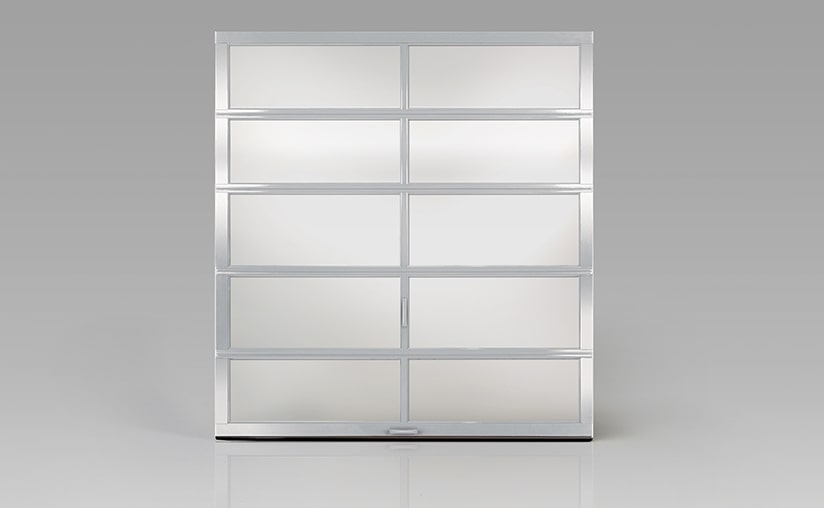

FROSTED GLASS OR ACRYLIC

CLEAR ACRYLIC

GRAY ACRYLIC

WHITE ACRYLIC

CLEAR POLYCARBONATE

BRONZE POLYCARBONATE

ALUMINUM PANEL COLOR MATCH

*Mirrored and laminate not available in 1/2"

Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.

COLOR OPTIONS:

CLEAR ALUMINUM (ANODIZED)

STANDARD WHITE

BRONZE (PAINTED)

CHOCOLATE (PAINTED)

BRONZE ANODIZED*

BLACK (ANODIZED)*

DARK BRONZE ANODIZED*

Request Color Samples

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.

Premium finishing options include:

RAL color powder coat
187 different powder coat offerings
Custom Colors with Color Blast ® Garage Door Paint System
Bronze, dark bronze, black or custom color anodized finishing

*Model 904U is not available with powder coat finish.

Performance Options Available:

Double-end hinge

3” Track

High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem.

25,000, 50,000 or 100,000 cycle springs available.

Exhaust port can be cut into any type of solid sectional door. Available in select sizes.

WindCode® reinforcement available up to W2 design pressure (DP) 14 PSF, depending on door configuration. Doors tested 50% greater than DP.

Upgrade your standard door with industrial-grade components.

Specialty Options Available:

Mullions

Carry-away, roll-away or swing-up mullions are available on select sizes.

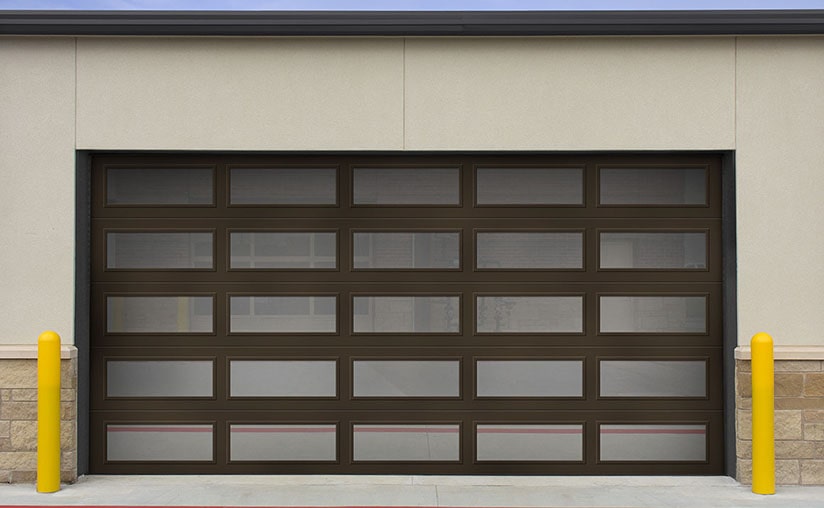

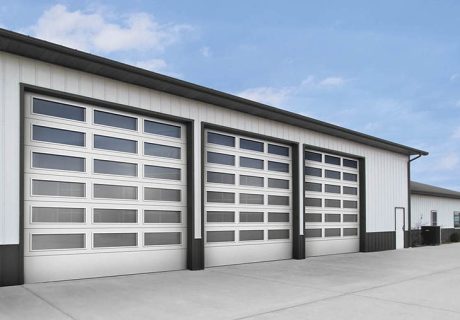

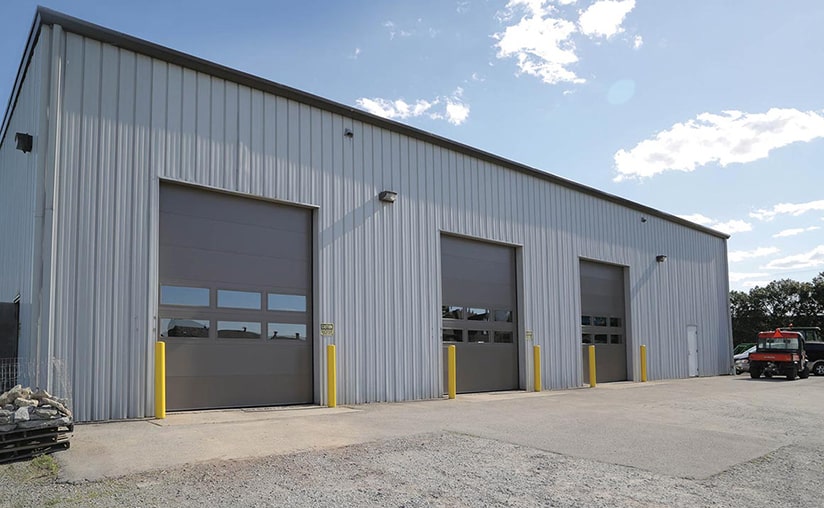

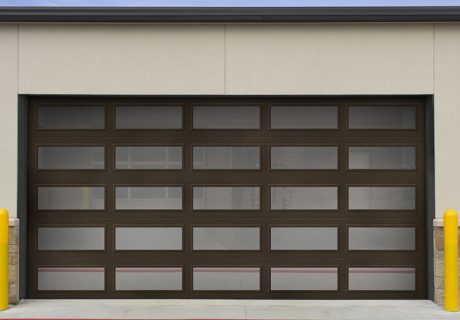

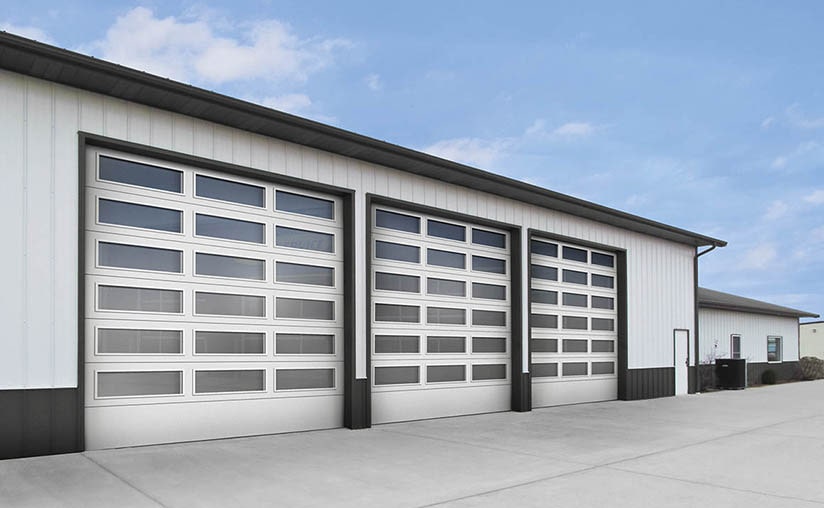

STEEL INSULATED FULL-VIEW DOORS

GLASS/WINDOW OPTIONS:

19-1/2” x 16”

42” x 16”

Modern Slim Windows*

*Available on models 3728/3729 and 3208/3209 only.

Models 3728 and 3729 are available with 1/8" clear tempered, 1/8" frosted tempered, 3/4" insulated tempered and 3/4" frosted insulated tempered glass. Additional glazing options include: matte, pebble, bronze tinted and impact rated window.
