Gigaline

Information

The GIGAline garage door operator from SOMMER impresses with its exceptional robustness and is specifically designed for high loads and challenging operating conditions. Whether in private, industrial settings or in collective and underground garages – the GIGAline is the ideal solution for a variety of applications.

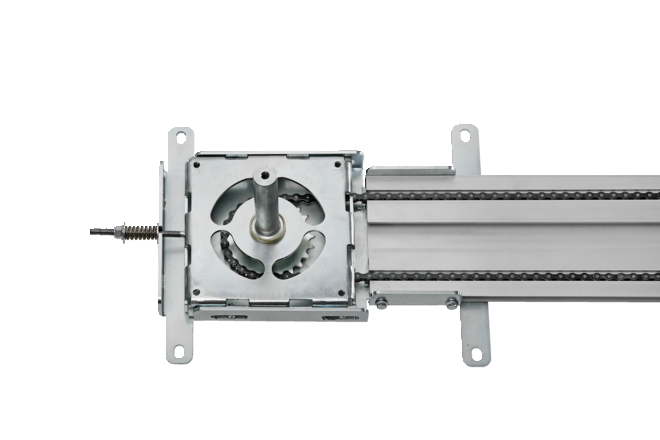

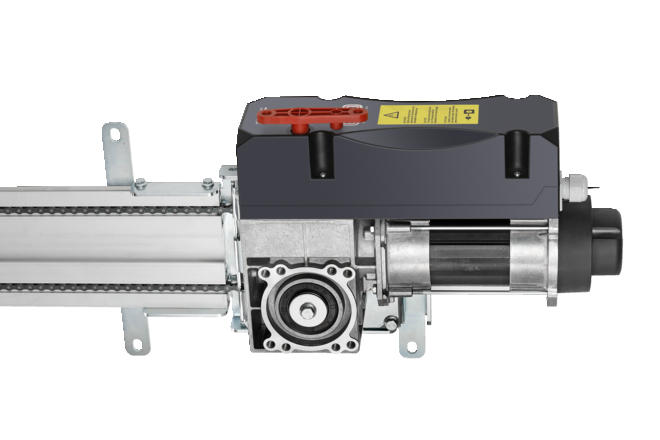

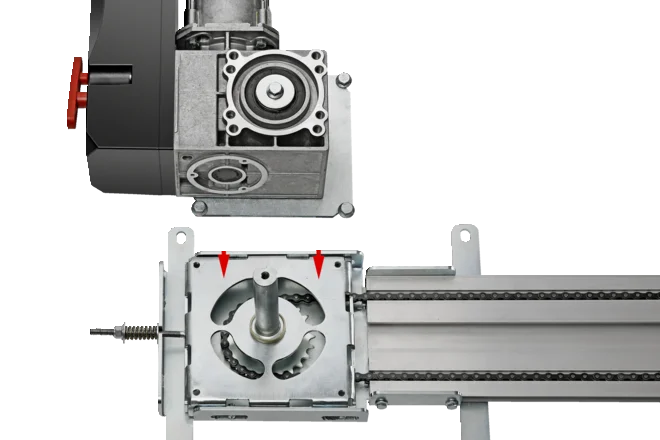

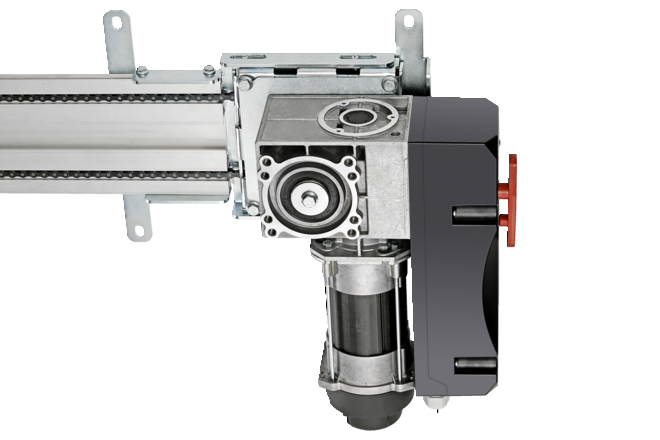

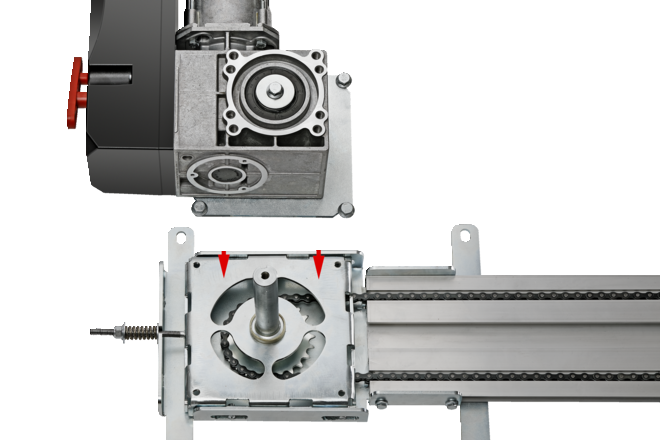

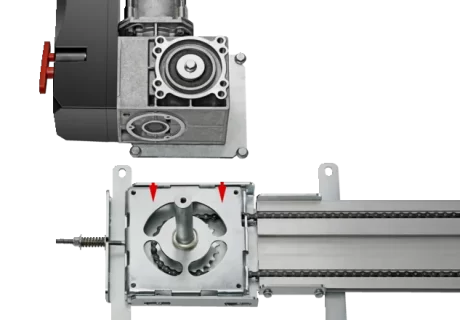

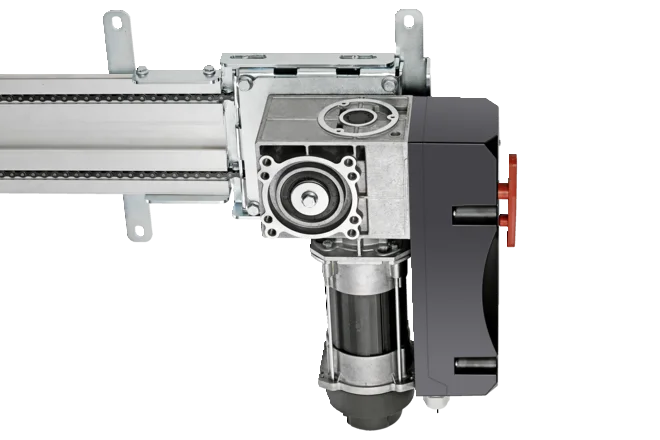

Industrial Door Operator with Frequency Converter The track is driven by an industrial door operator with a frequency converter.	Tear-Resistant Steel Roller Chain The tear-resistant steel roller chain is designed for extreme loads.	Motor Mount Made of Steel The operator is mounted on the steel motor mount and connected to the drive shaft.

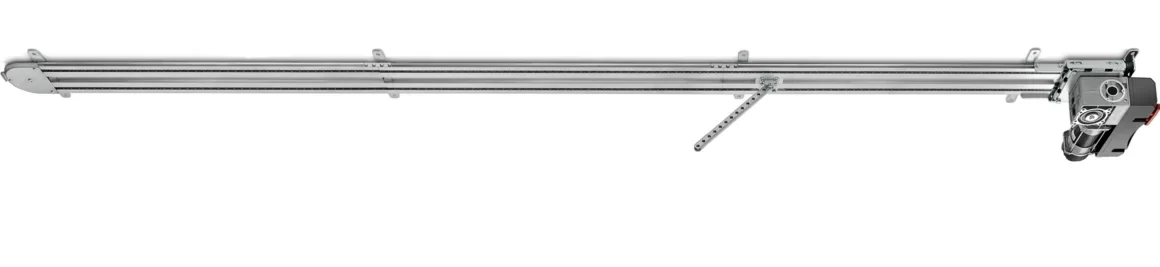

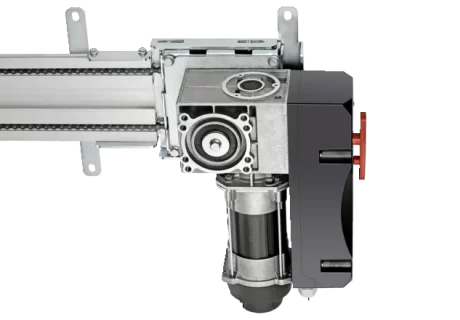

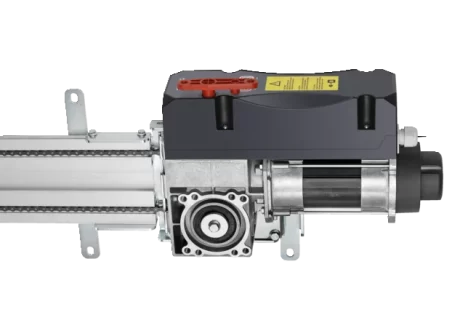

Installation Example	Installation Example at a 90° Angle	Installation height approx. 20 mm for low headroom

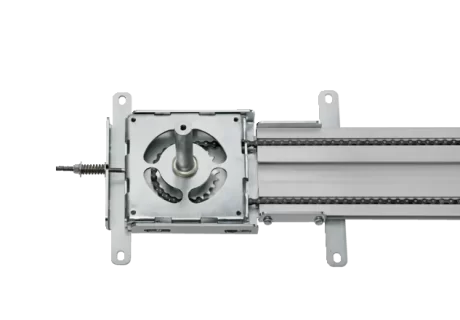

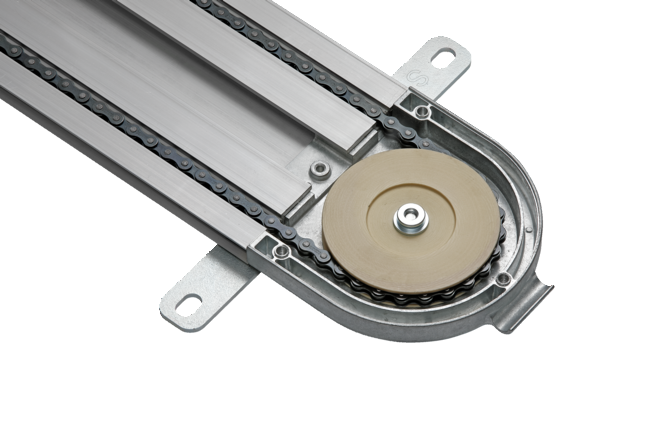

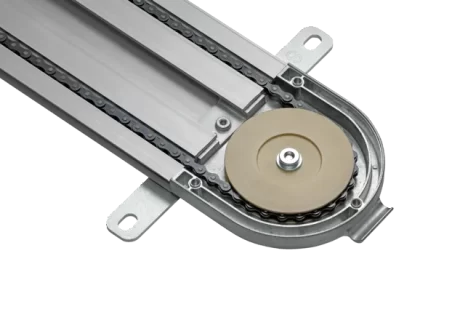

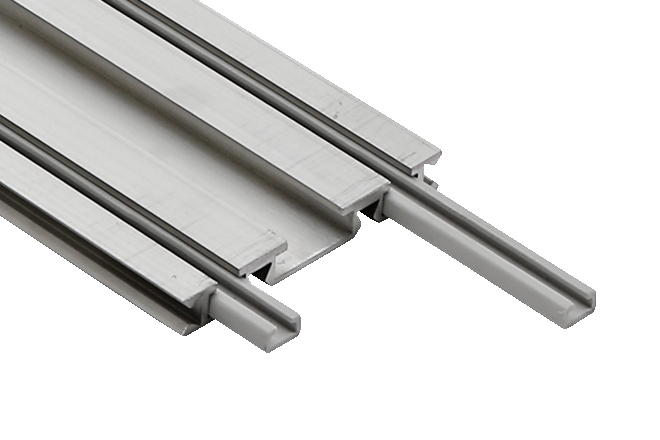

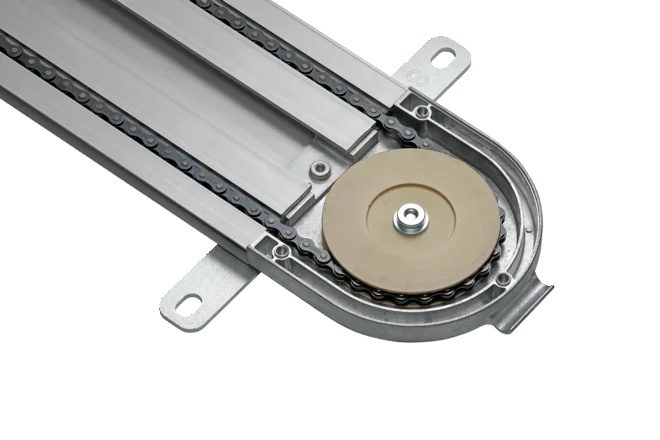

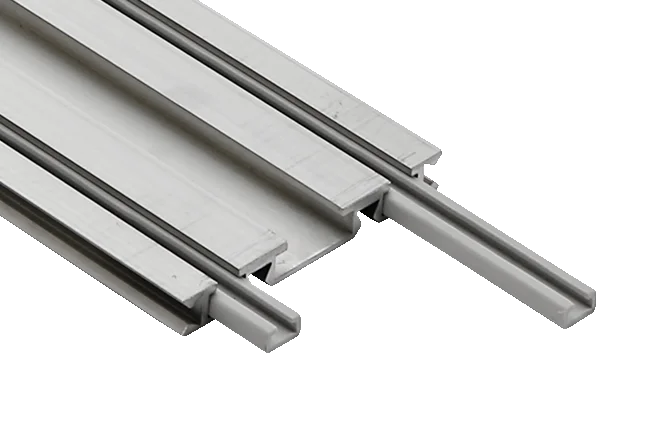

Robust extruded aluminum track	Chain and motor spring-mounted	Quiet operation below 75 dB(A) The chain runs in a special plastic guide, ensuring particularly quiet operation.

Technical Data

Notes

• Minimum temperature: GIGAheat required at <5°C
• Limit switch range: With E14, max. stroke of 4,200 mm, another motor required or KOSTAL gearbox required
• Maximum gate weight: Spring-balanced, depending on the gate and specific operating conditions
• Maximum stroke extended: Extension required
• Gate width/gate height max.: Guideline, depending on the gate construction

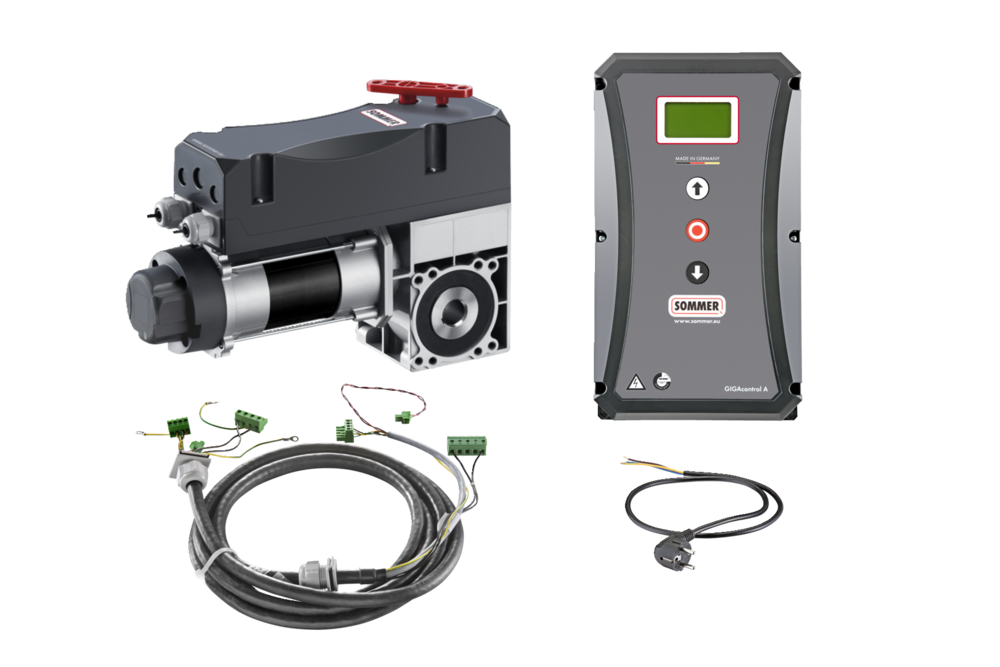

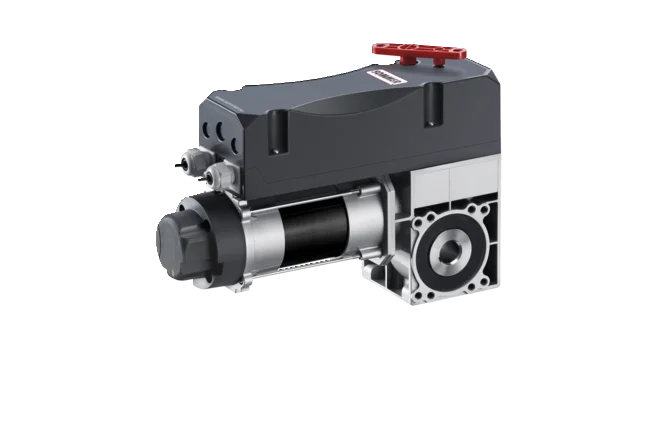

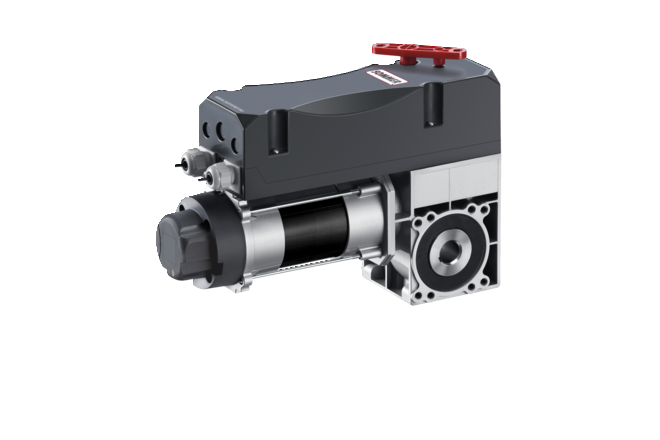

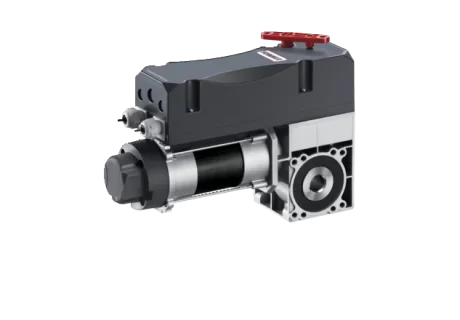

GIGAsedo 024.100 DXFS0 Set*

• 10–35rpm/100Nm/0.55kW
• Emergency release
• With integrated frequency converter
• Pull cable, length 7 m

* Other motor variants available on request.

GIGAcontrol A control system

• 7 m connection cable
• 1.3 m power cable with Schuko angle plug
• Without radio receiver

Product

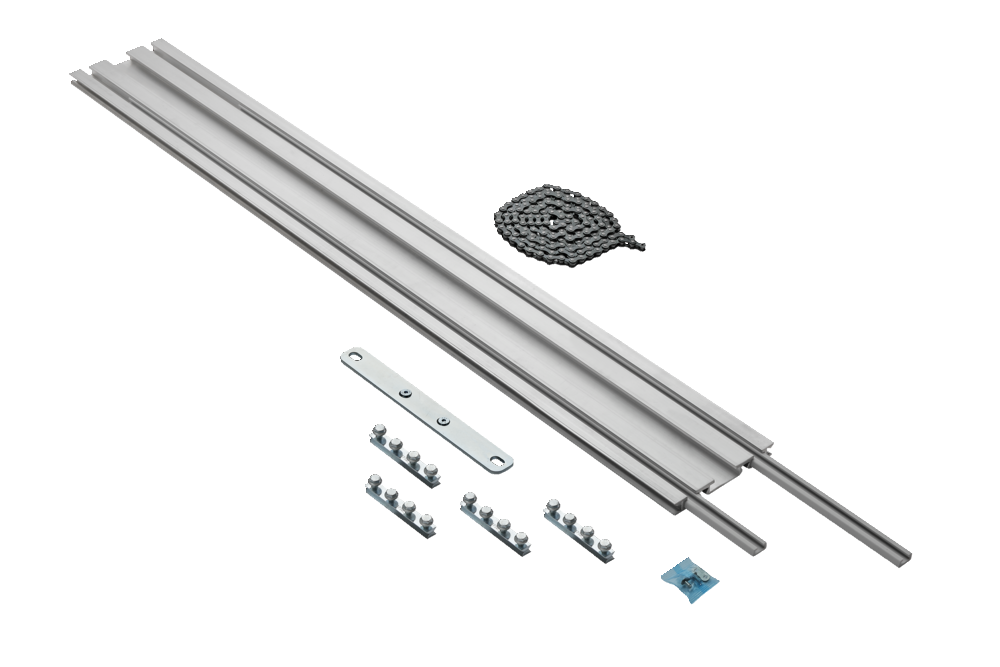

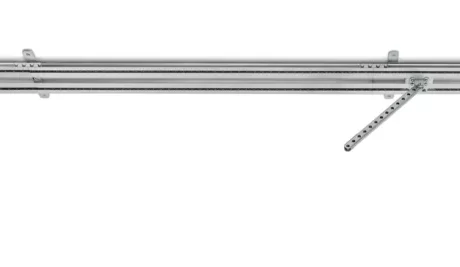

Rail unit

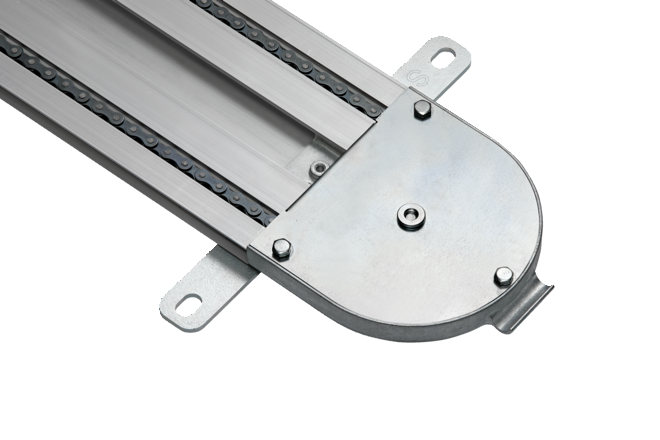

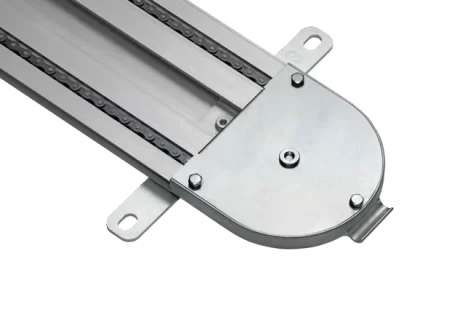

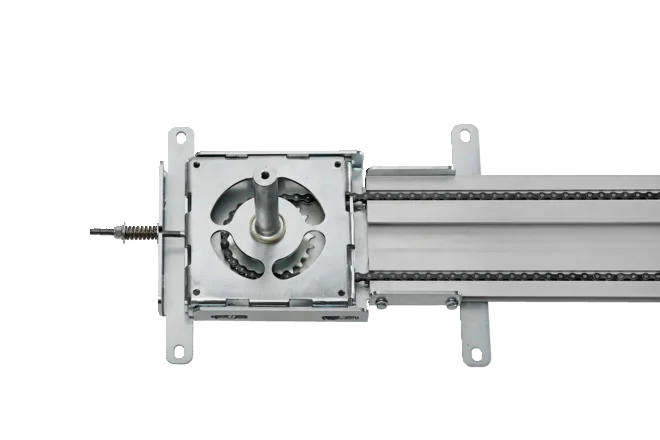

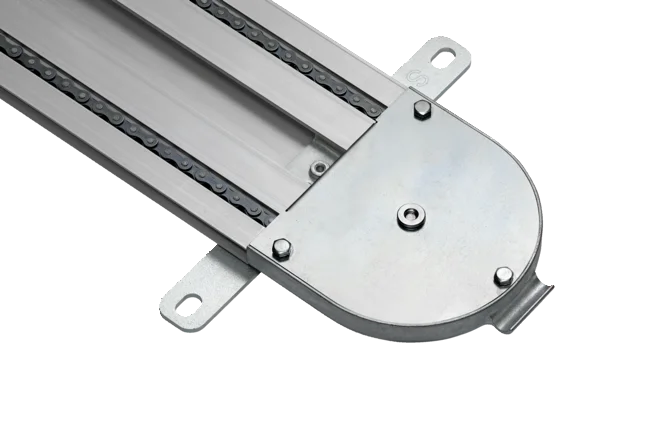

The 3-part rail unit consists of very flat extruded aluminum profiles that are connected to each other. SOMMER uses a tear-resistant steel roller chain that runs very quietly in special plastic guides and has proven itself under extreme loads. The system has a spring-loaded chain tension to prevent external influences.

Product

Rail Extension

• Length 1,100 mm
• Aluminum blank
• including mounting material
