  • Allura® Collection – Model 653RX

back to Residential Garage Doors garage doors

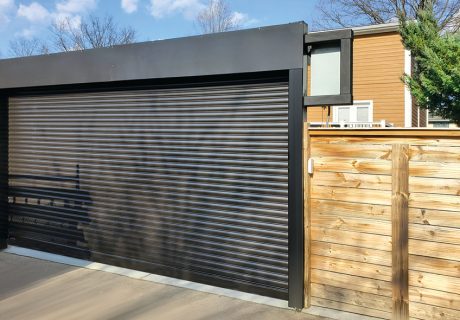

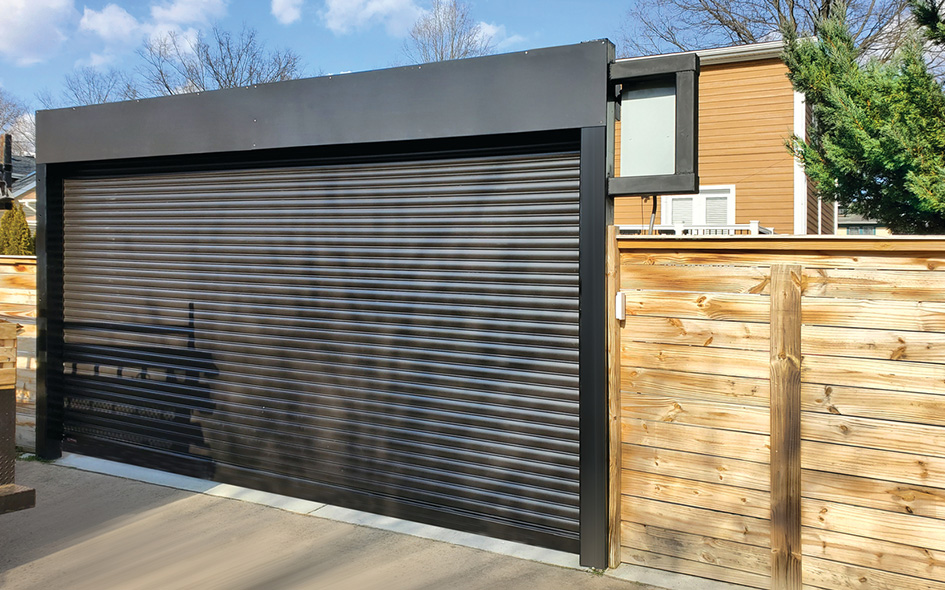

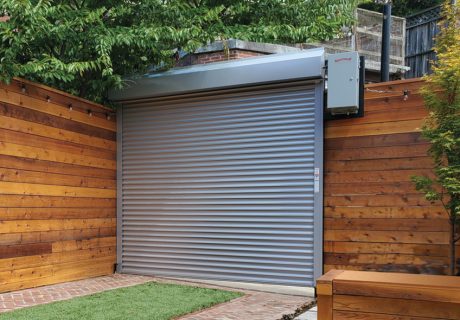

Allura® Collection – Model 653RX

An ideal door and operator system for homes needing to provide security and restrict unwanted access from the street into driveways in high traffic areas. The Allura® Residential Exterior Shutter System is specifically designed to prevent back drive of door to gain access. A first in in the industry, the system is UL 325 listed for safety standards in residential applications. In addition, the Allura® 653RX comes with a weather resistant enclosure and direct drive operation with monitored photo eyes for safe operation. For additional security, cylinder locking options are also available.

contact us about this product

more Allura® Collection – Model 653RX details

Overview

Construction

Product Specifications
Application Designed to restrict driveway access
Curtain and Guides Extruded aluminum curtain and guides provide an aesthetically pleasing, compact design with an attractive, finished look
Standard Max Width 16’
Standard Max Height 12’
Operator Enclosure Weather-resistant enclosure for direct drive operator with quiet DC motor
Operation UL 325 listed for residential exterior shutter application with monitored NEMA 4X photo eyes and door force detection for safety
Slat Options Fully perforated or fenestrated slat options allow for visual access while maintaining security
Hood Sloped hood to promote moisture runoff
Mounting Exterior face of wall mounted to tube frame structure
Battery Backup BBU included for door operation during brief power outages. Manual operation in the event of extended outage



Warranty

  • Shutter: Two-year limited warranty on parts, components, and finish​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
  • Operator: Limited lifetime, accessories one year, core unit parts – two years, other parts and components – one year

Garage Door Designs

Slate Style

solid slat exterior shutterSolid perforated slat exterior shutterPerforated Fenestrated Slat exterior shutterFenestrated



Options

  • Cylinder locking bottom bar (requires interlocks)
  • Operator accessories: additional 3-button remotes, master remote, wireless keypad, and push button stations

Colors

Standard Powder Coat Finish

white powder coat swatchWhite shutter powder coat almond swatchAlmond shutter silver powder coat swatchSilver bronze shutter powder coat swatchBronze

*Silver and Bronze powder coat made to mimic anodized aluminum.



Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors

Documents

Allura® Residential Exterior Shutter

Product Literature
Warranties
