more Courtyard Collection® – Model 7560 details

Overview

Construction

Product Specifications
Polyurethane Garage Door Insulation	Provides thermal efficiency Model 7560: U-factor* of .15 (_{12.76 R-value*}): Model 7520: U-factor of .20 (_{9.31 R-value**})
Track	7560 (160) series comes standard with commercial track 7520 (370) series: comes standard with residential track; commercial is optional
Ball Bearing Rollers
Nylon Wheels
Door Thickness	7560 (160) series: 1 3/8" 7520 (370) series: 1"
Overlay Thickness	7560 (160) series: 3/4" 7520 (370) series: 3/8"
Wood-grain trim	Color matched trim
Color matched trim	Trim can be matched to the color of the door to further enhance the look of your home
Wind Load	Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes.

_{*U-factor values are independently tested and verified per ANSI/DASMA 105.}
_{**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.}

Overhead Door^TM Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.

^{Symbol indicates verified U-factor rating in accordance with the DASMA Thermal Performance Verification Program.}

Warranty

7560 (160) series: Limited lifetime warranty on door.
7520 (370) series: 20 Year limited warranty on door.

Residential Garage Door and Opener System Limited Warranty (when purchased together) - features 3 years on components (see warranty for details)

Garage Door Designs

Models 7520/7560

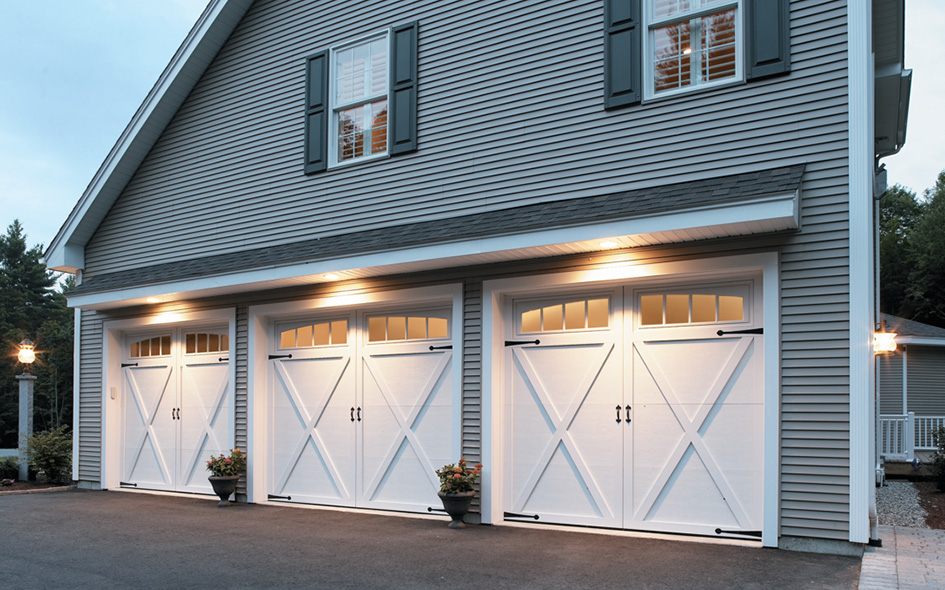

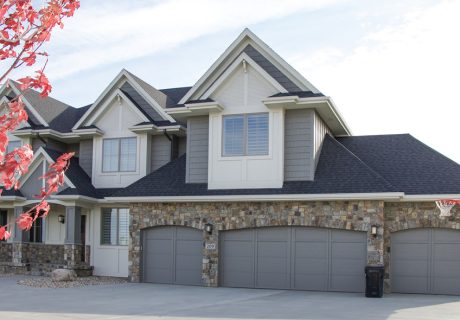

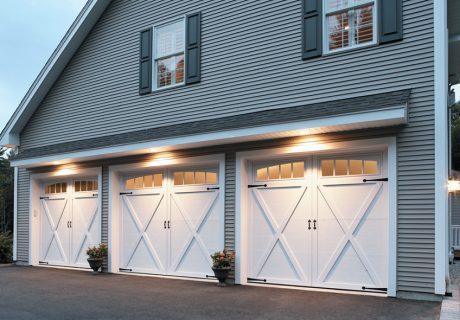

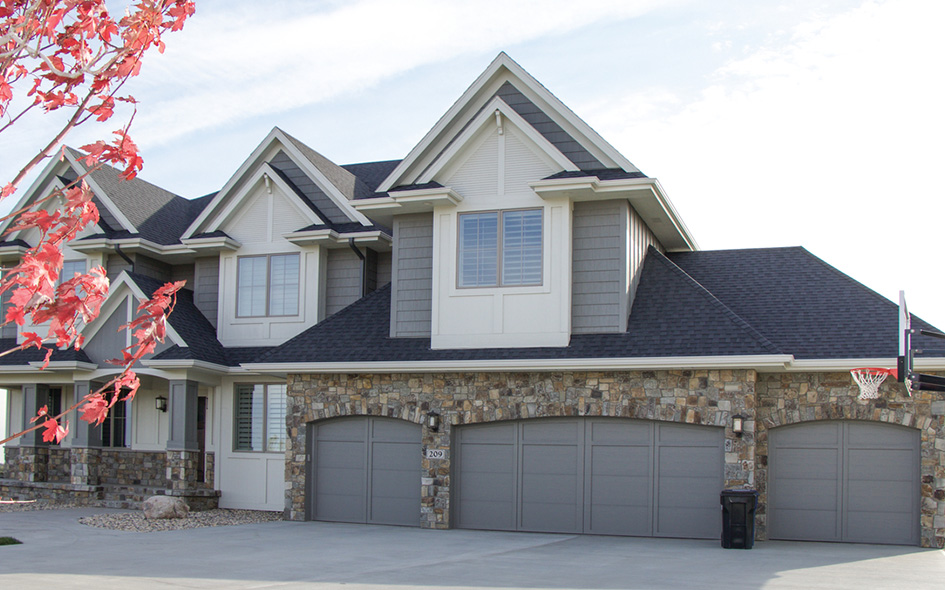

X Shaped Overlays X ((377T/167T))	X Shaped Overlay X ((377T/167T))	Horizontal Overlays H1 ((371T/161T))	Horizontal Overlays H1 ((371T/161T))

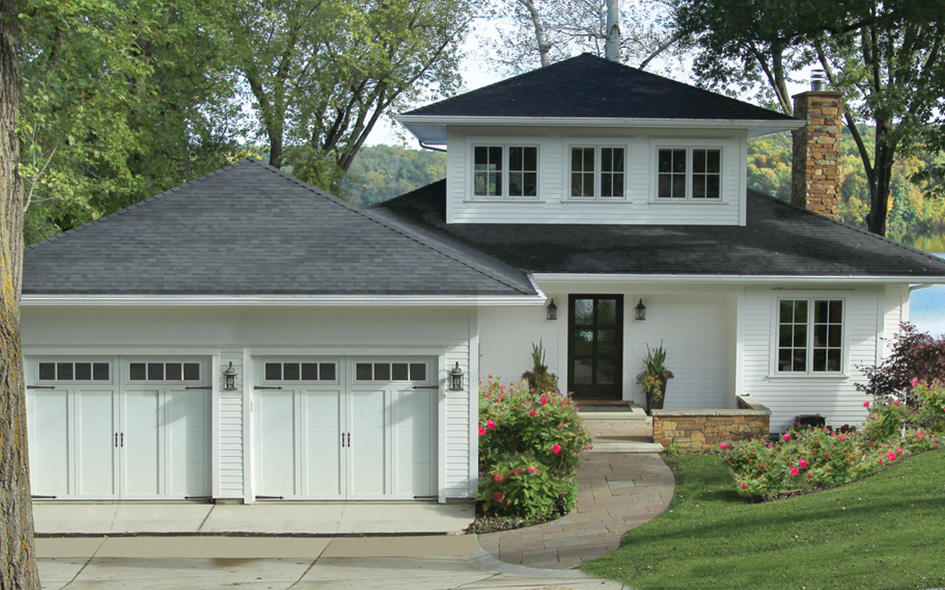

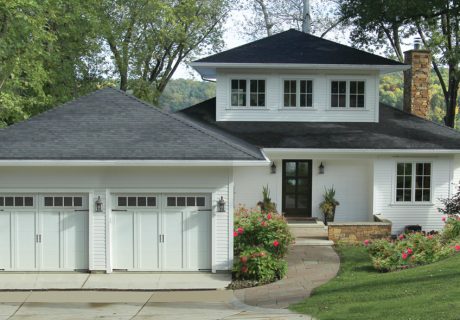

Horizontal Overlays H2 ((371M/161M))	Vertical Overlay C5 ((373T/163T))	Vertical Overlay C5 ((373T/163T))	Horizontal Overlays H1 ((371T/161T))

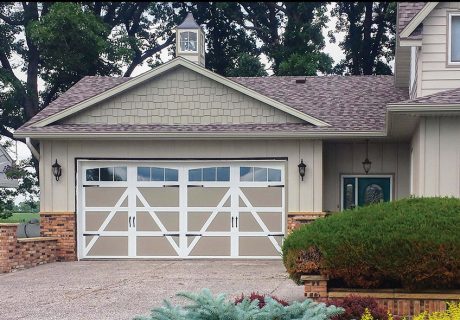

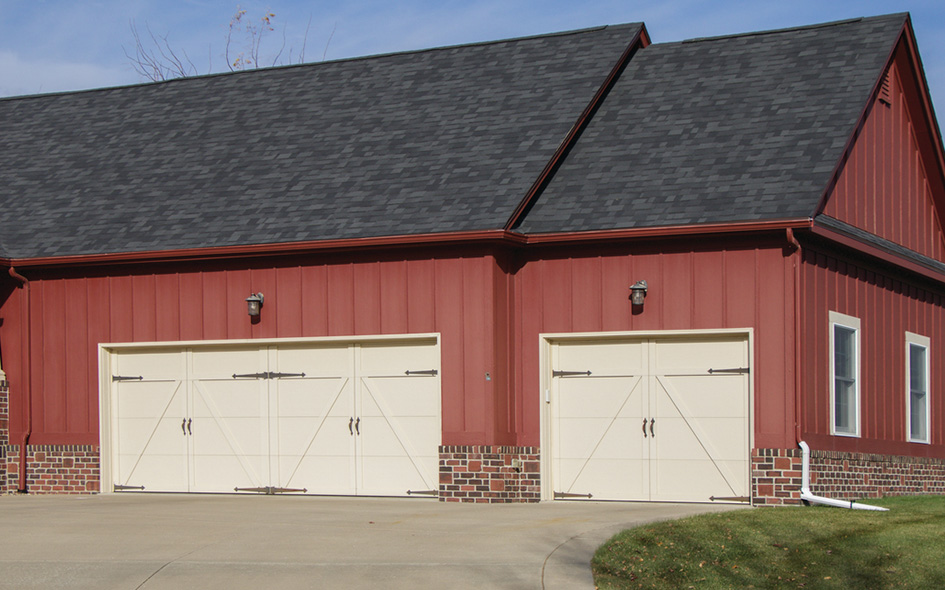

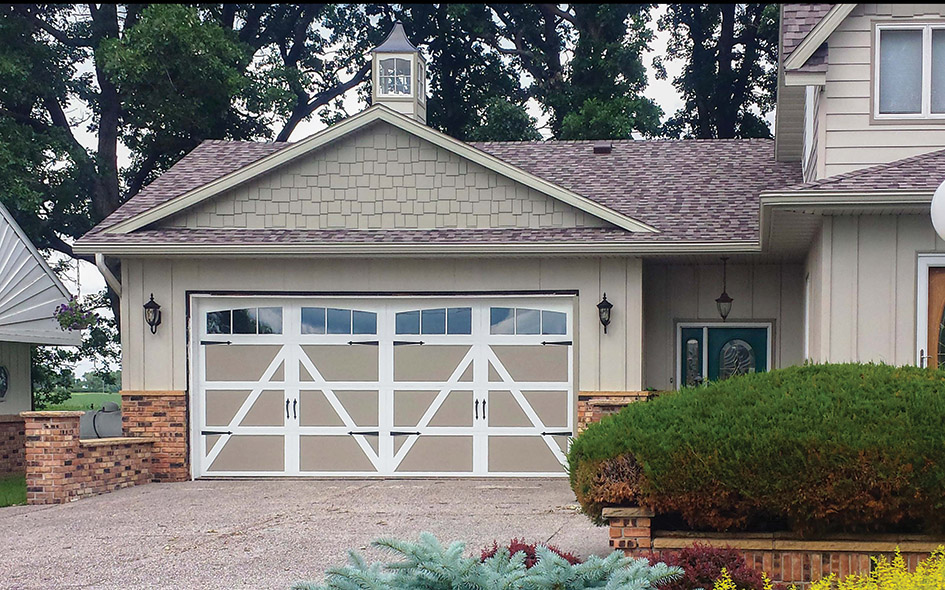

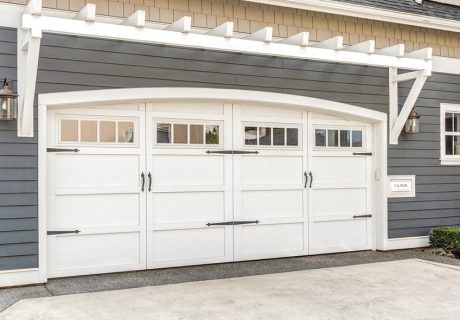

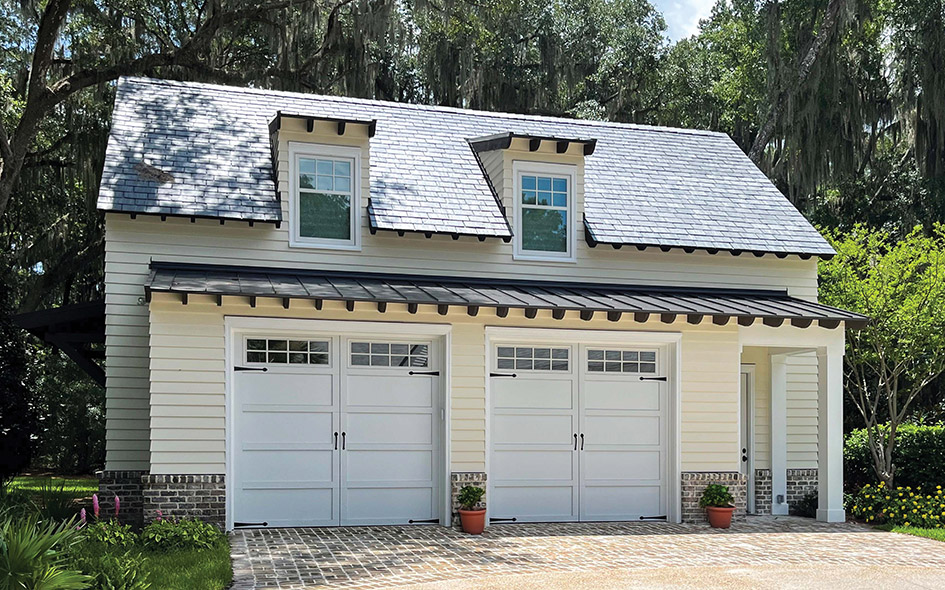

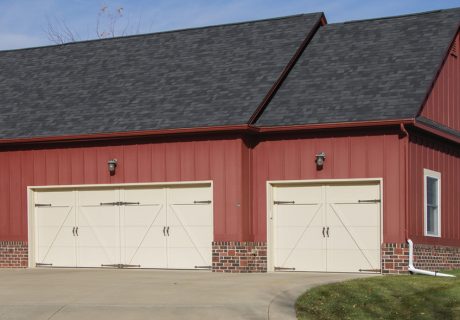

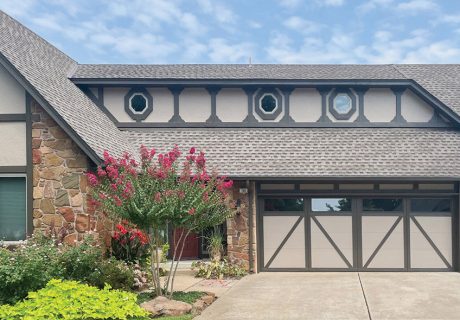

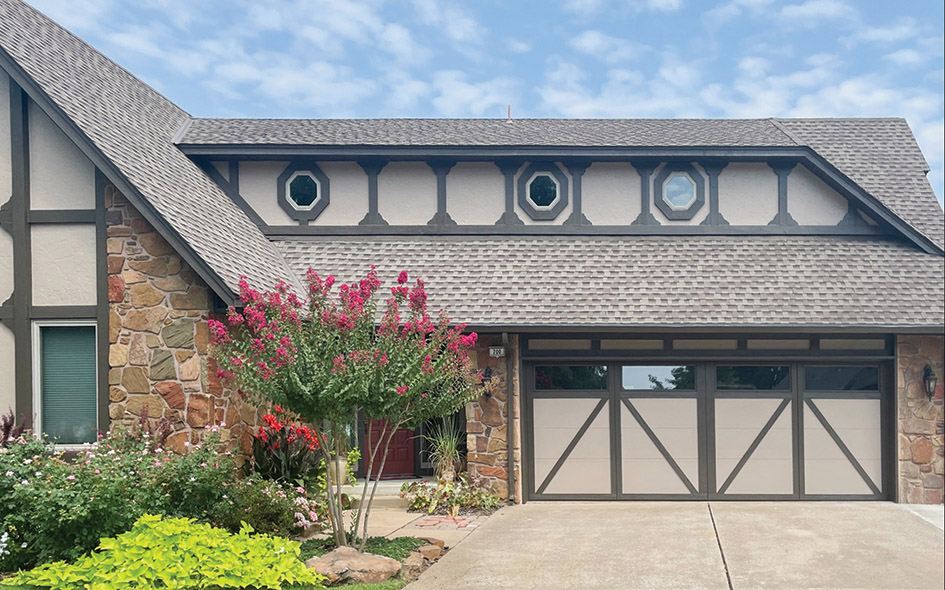

A Shaped Overlays A ((375T/165T))	A Shaped Overlays A2 ((375B/165B))	A Shaped Overlay A2 ((375B/165B))	Horizontal Overlays H ((371A/161A))

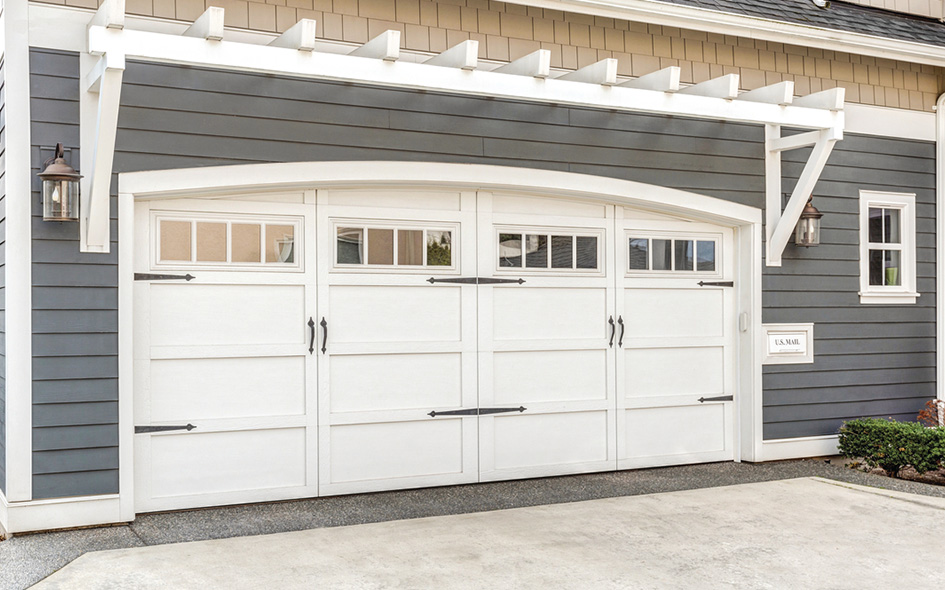

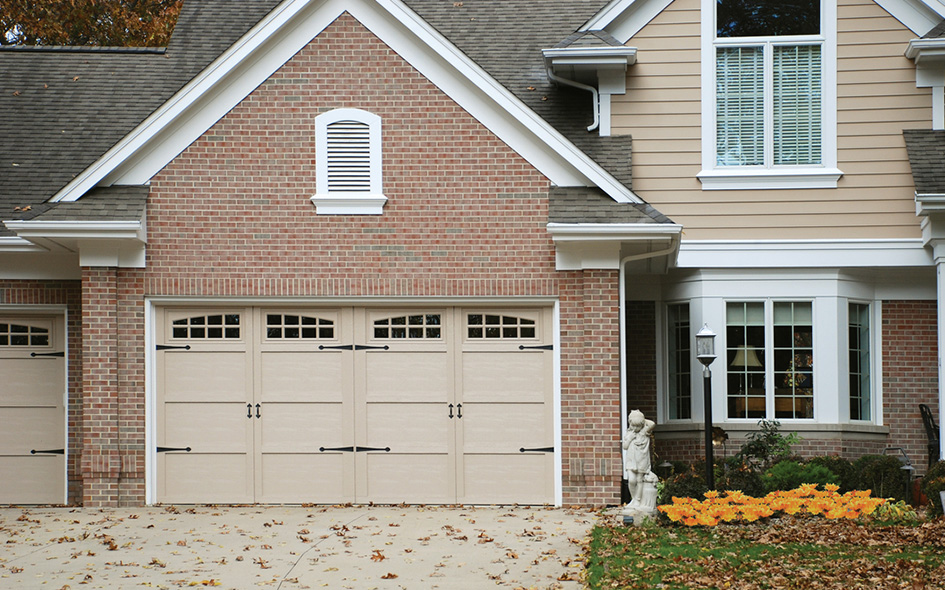

Horizontal Overlay H2 ((371M/161M))	Horizontal Overlays H ((371A/161A))

Model 7560
Vertical Overlay C2 ((162Z))	Vertical Overlay D ((168A))	Horizontal & Vertical Overlay E3 ((164A))	Vertical Overlay D ((168B))
Custom** ((169))	Horizontal & Vertical Overlays E3 ((164A))	Diagonal Overlay X2 ((167B))	Vertical Overlays C2 ((162ZT))
Diagonal Overlay C4 ((167E))	V Shaped Overlay V2 ((166E))	V Shaped Overlays V2 ((166B))	Horizontal & Vertical Overlay E2 ((162A))

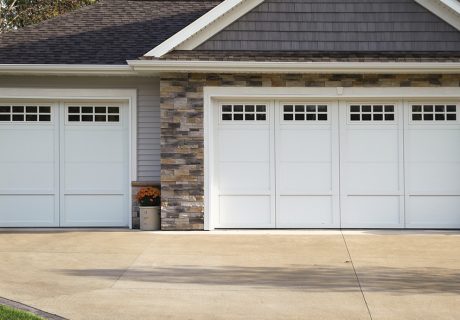

V Shaped Overlay V ((166T))	Horizontal Overlays H3 ((161B))	V Shaped Overlay V2 ((166B))	V Shaped Overlay V ((166T))

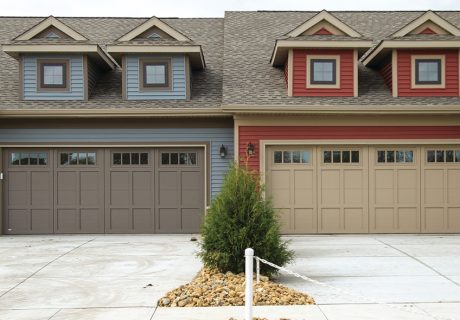

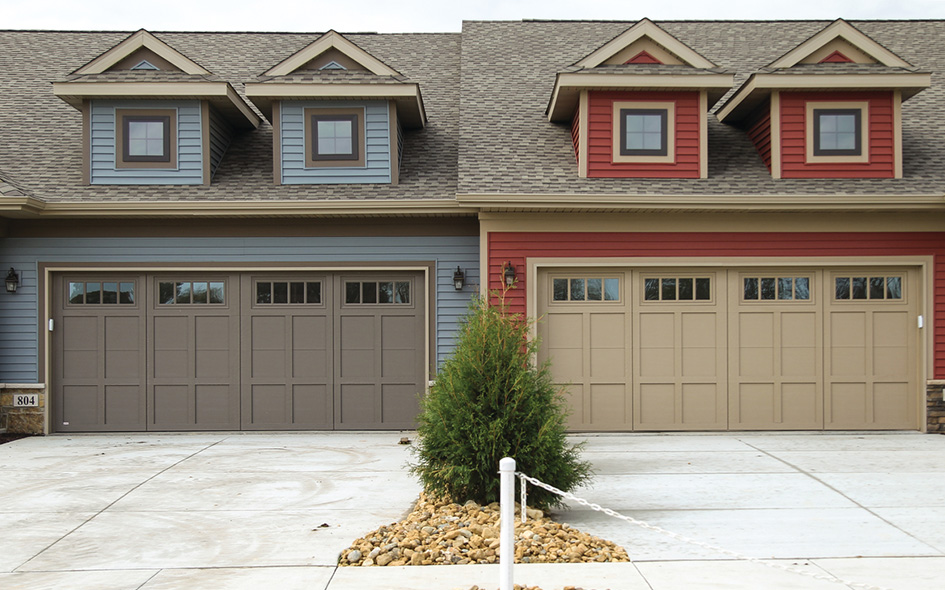

Vertical Overlay C4 ((162E))	Vertical Overlays C4 ((162E))	Diagonal Overlay X2 ((167B))	Horizontal Overlays H3 ((161B))
Horizontal & Vertical Overlay E2 ((162A))

**Drawings shown are for 7' high doors. Please consult your Overhead Door™ Distributor for a drawing before making selection if your door is over 7' high as the panel design may vary. Your Overhead Door™ Distributor can assist you in creating the perfect custom-designed door.

The panel designs shown above are for 7’ high doors. Please consult your distributor for a drawing before making your selection if your door is over 8’ high as the panel design may vary.

Models in the 7560 (160) series have a U-factor of .15 (R-value of 12.76) and models in the 370 series have a U-factor of .20 (R-value of 9.31).

Colors

The Courtyard Collection® garage doors are available in nine standard colors or can be painted to match your home’s décor. Color selections may not be available for some models. Door overlays and window trim are available in the colors shown or can be painted to match your home’s décor (additional charges may apply.) The 7560 (160) series garage doors can be painted solid or two-tone. The 7520 (370) series in only available with white trim.

*Garage door overlays and trim are designed so 3rd parties can paint them.

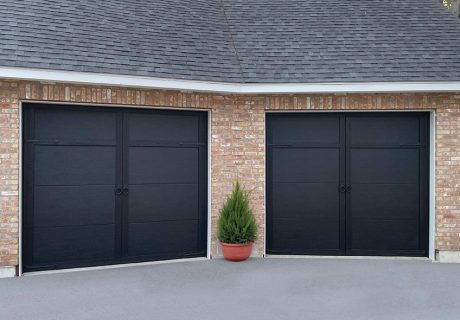

Black*

Terra Bronze*

Sandstone

Forest Green*

Almond

White

Brown*

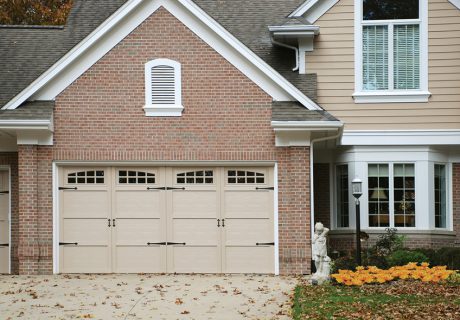

Desert Tan

*Only available on Model 7560 (160 series).

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.
