Model 8600

Overview

Model 8600

Add the Beauty of Classic Carriage House Garage Doors to Your Home

Imagination is a beautiful thing—and we love seeing all the unique ways our customers infuse their home with personal flair using our Carriage House Steel garage doors. They’re in good company. Even HGTV design stars have even chosen Wayne Dalton doors for a coveted home makeover. Whether you’re looking for crisp geometry of square-topped garage doors or prefer the graceful lines of arched topped garage doors, you’re sure to find inspiration in popular Model 8600.

Expertly crafted, this Wayne Dalton steel carriage house garage door offers all the charm of the swing-door originals in a no-fuss, low-maintenance standard steel-panel door. Each panel is richly embossed with a wood-grain pattern with a DecaTrim™ II Overlays to give it an authentic look that is the foil for so many architectural styles. Just as important, this Carriage House Garage Door features foamed-in-place polyurethane insulation with a U-factor of .13 (R-value of 12.12). They not only look gorgeous, but they can also enhance your home’s thermal efficiency, too.

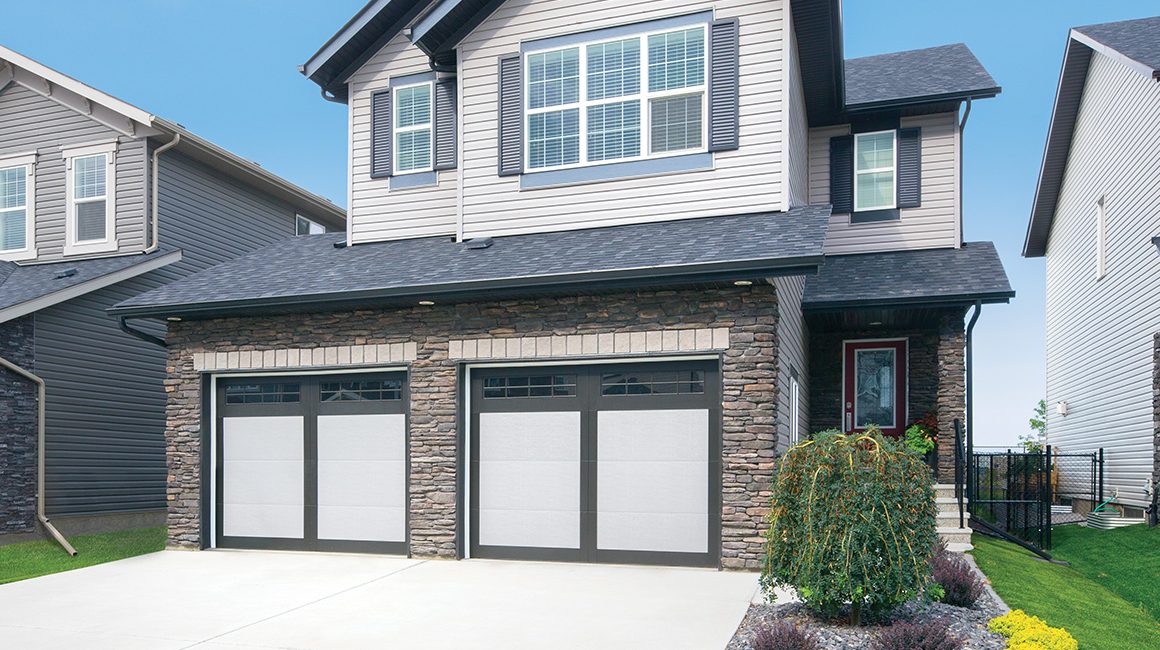

Choose Carriage House garage doors to enhance a European-styled stone manse. Accent a contemporary new build or traditional ranch with square-topped garage doors. Model 8600 works beautifully with homes wrapped in plank siding, stacked stone, traditional brick and mortar, shake shingles, stucco or an attractive combination of finishing materials.

Carriage Garage Doors That Boast Timeless Style

At Wayne Dalton, we want you to be completely happy with your steel carriage house garage doors. That’s why we offer lots of design options that allow you to customize the Model 8600—including arched garage doors. Whether you’ll be adding the finishing touch to a coastal hideaway, New England-style cottage, traditional ranch in the ‘burbs, contemporary urban oasis, or countryside Colonial, we will help you bring your creative vision to life.

Features

Whether you choose arched garage doors or the square-topped version of Wayne Dalton’s low maintenance steel carriage house garage doors, they are engineered for gorgeous, good looks and easy-care use. Expert craftsmanship and high-quality features ensure they are:

• Thermally Efficient: Foamed-in-place polyurethane insulation gives the Model 8600 a U-factor* of .13 (R-value** of 12.12) to improve your home’s thermal efficiency and block street noise. Snug fitting tongue-and-groove joints help keep wind and weather out of your garage. A bottom weather seal blocks draft and debris.
• Durable: DecaTrim™ II overlay boards are specially treated to resist termites, weather and fungal decay. Attractive 14-gauge heavy duty hinges provide maximum strength between sections, stability and smoother door operation. Ball-bearing rollers with nylon wheels and solid steel shafts provide smooth, quiet, dependable operation. A 25,000-cycle spring option provides twice the life of a standard torsion spring.
• Windsafe®: Structural reinforcements are available for model 8600 doors used in coastal and high-wind areas.
• Guaranteed: Model 8600 comes with a Limited Lifetime Warranty.

*U-factor is independently tested and verified per ANSI/DASMA 105 using solid doors and specific product sizes.

**Wayne Dalton uses a calculated door section R-value for our insulated doors.

Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.

*Proper door selection is the responsibility of the homeowner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.

Panel Styles

Choose Your Design

Choice is the key word when it comes to our steel carriage house garage doors. Model 8600 is available in both seven-foot and eight-foot-high doors. Choose from 11 arched garage doors and 11 square-topped designs. All feature panels that are richly embossed a wood-grain pattern that is a nod to the beloved equestrian lifestyle that is the inspiration for our carriage doors.

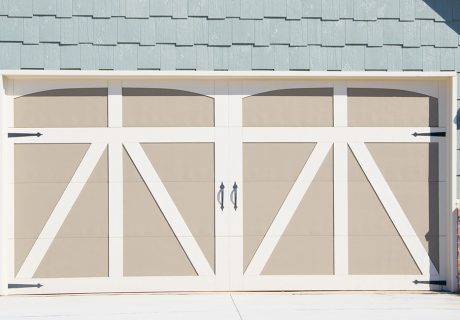

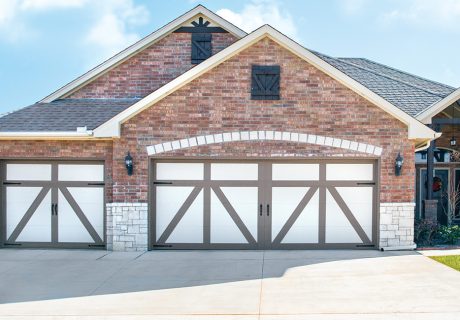

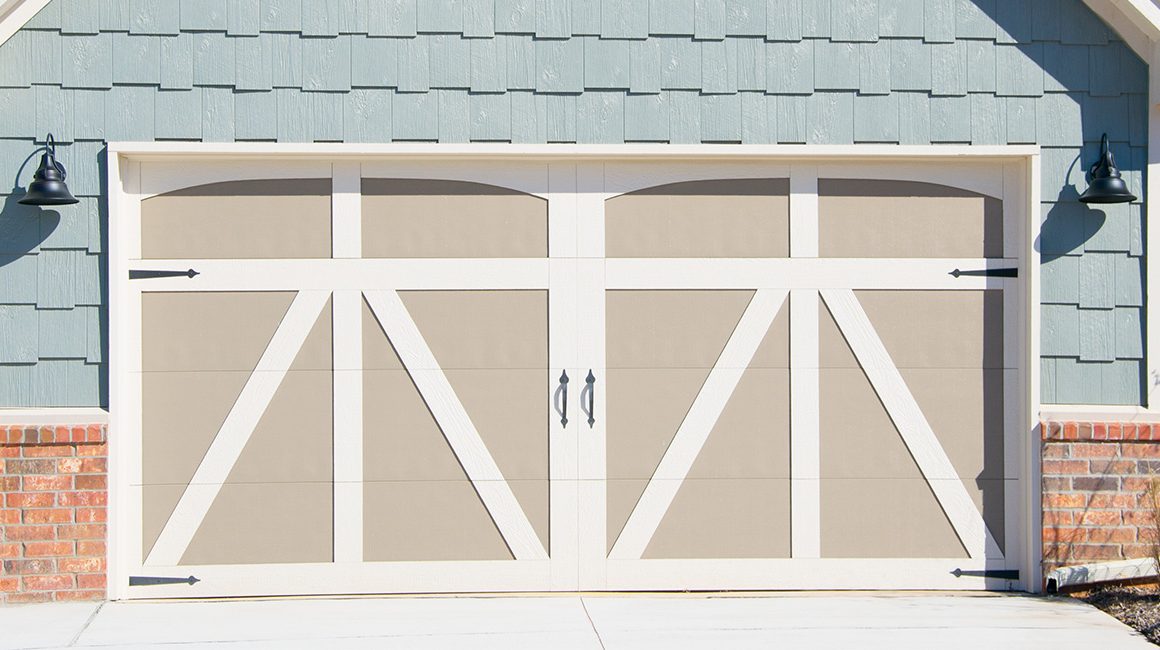

Arched Top Garage Door Design Options

Arlington	Ashburn	Bellview	Brunswick
Kingston	Lexington	Richmond	Savannah
Somerset	Springfield	Westfield

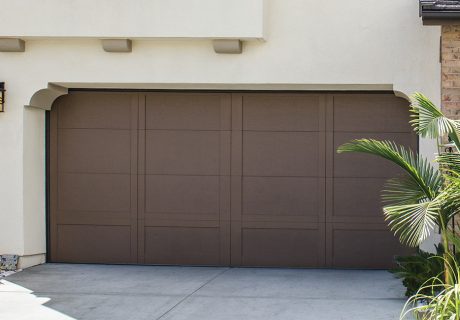

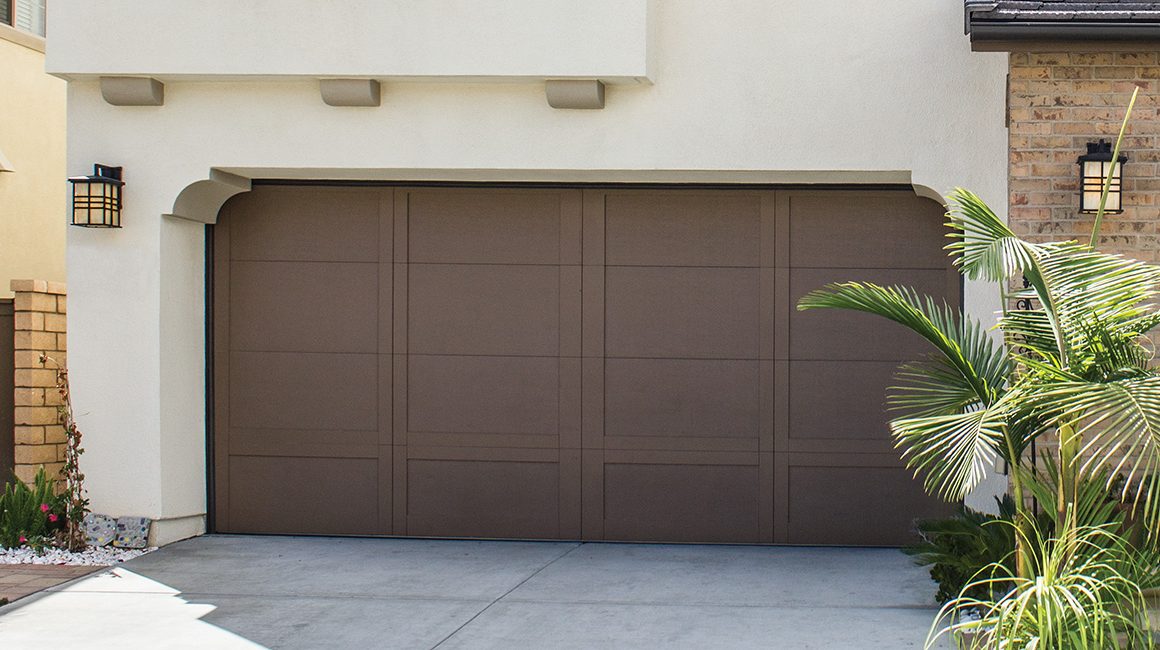

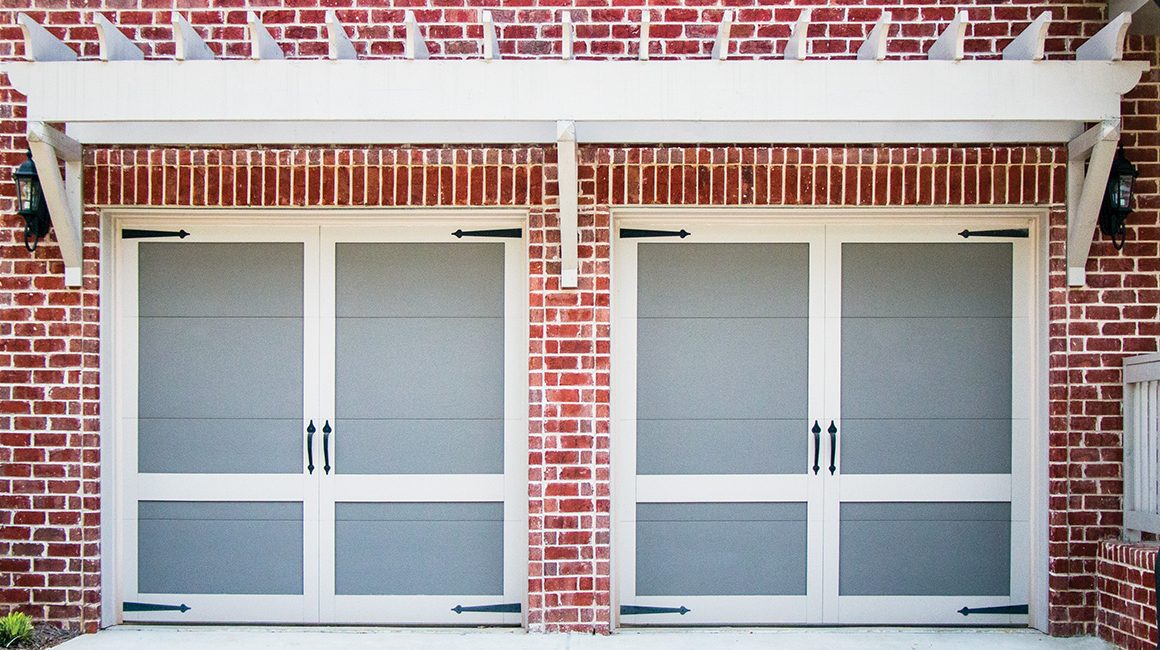

Square Top Garage Door Design Options

Arlington	Ashburn	Bellview	Brunswick
Kingston	Lexington	Richmond	Savannah
Somerset	Springfield	Westfield

Single car door designs are for doors up to 12’ wide. Doors wider than 12’ will have a double car door design. Windows are not available with Arched Top overlay designs.

Overlay Texture Options

Smooth	Wood Grain

Smooth overlay is standard with order. Wood grain overlay option is available at no additional charge.

Colors

Choose Your Finish

Model 8600 is available in six classic colors—White, Almond, Taupe, Terra Bronze, Brown and Black. Overlays are provided in White only.

Paint Finishes

White / White	Almond / White	Sandstone / White	Terra Bronze / White	Brown / White	Black / White

Overlays are provided in white only. Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Please contact your local Wayne Dalton Dealer for actual color samples to match with your home or business.

Windows

Choose Your Windows

Wayne Dalton offers an incredible selection of routed and framed insert windows. The appearance of our Carriage House garage doors is enhanced with a variety of window options. Choose from three arched toppers for both routed and framed insert windows. Three straight, geometric options are also available for routed and framed windows. Whether you envision your door with an arched topper or a tidy row of panes up high, we’re here to help you bring your vision to life—and light!

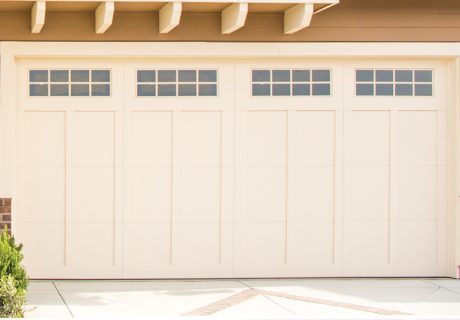

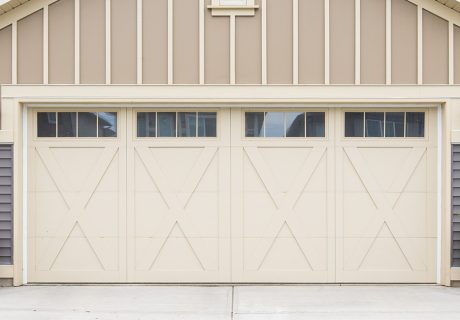

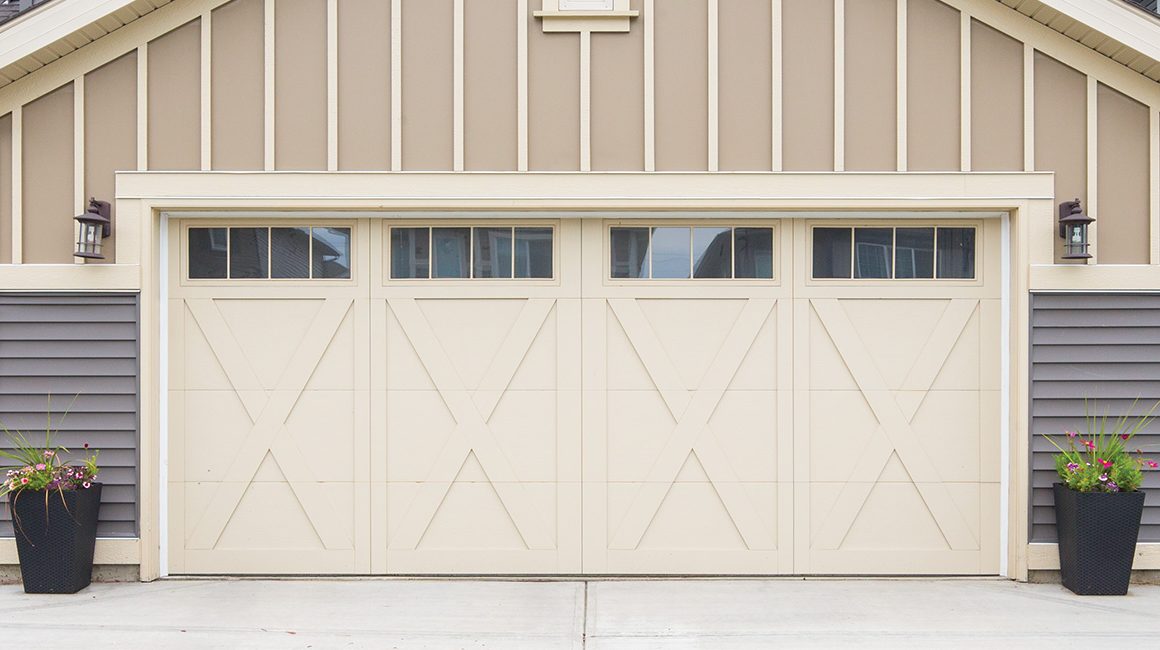

Routed Windows

Routed windows are only available with smooth overlay trim.

Clear Long	Stockton Arch	Stockton	Stockbridge	Somerton	Wyndbridge

Framed Insert Windows

Framed Insert windows are available for both smooth and wood grain overlays.

Clear Long	Stockton Arch	Stockton	Stockbridge	Somerton	Wyndbridge

Window patterns are shown for a typical single-car door. Spacing of windows may change depending on door size. Not all windows are available in all sizes.

Routed	Framed Insert

Doors built with the Routed windows use a clean top section design where the wood overlay is routed from a wood face panel. Doors with Framed Insert windows use a classic wood door design with the top section constructed from wood overlay boards.

Glass

Glass is available in clear, obscure or satin etched.

Clear (1/8" standard)	Obscure	Satin Etched

Hardware

Choose Your Hardware

Inspired by the artisanry of traditional blacksmiths, our decorative hardware collections lend a distinctive, yet subtle touch of individuality to your garage doors. Hinge straps, pull handles and other accent pieces inspired by the Old World and early Americana add a touch of rustic elegance to your Classic Steel garage door.

Knockers, corner brackets and clavos are a respectful nod to the decorative nails and studs craftsmen have used to accent entry doors for centuries. Every piece is forged from black powder-coated steel finished with a hand-hammered look.

Decorative Hardware Kits

Arrow	Aspen	Barcelona	Bean
Conifer	Fleur-de-Lis	Spear

Hammered Knockers

Arrow	Aspen	Barcelona
Conifer	Fleur-de-Lis	Spear

Lift Handles

Arrow	Aspen	Barcelona
Conifer	Fleur-de-Lis	Spear

Decorative hardware kits come with four hinges and two pull handles. Double car doors come with two sets of decorative hardware kits. Additional accent pieces are available to match or complement each collection. Pull handle fit in center stile is dependent upon design and size of door.
