Model 8850

Overview

Model 8850

Dial Up the Drama with a Modern Glass Garage Door

Sleek, sophisticated and oh-so-attractive, nothing infuses the exterior of your home with a dramatic dose of style like our Model 8850 modern glass garage doors. This bold design trend dispenses with the ordinary for a modern look that works equally well with a wide variety of architectural styles.

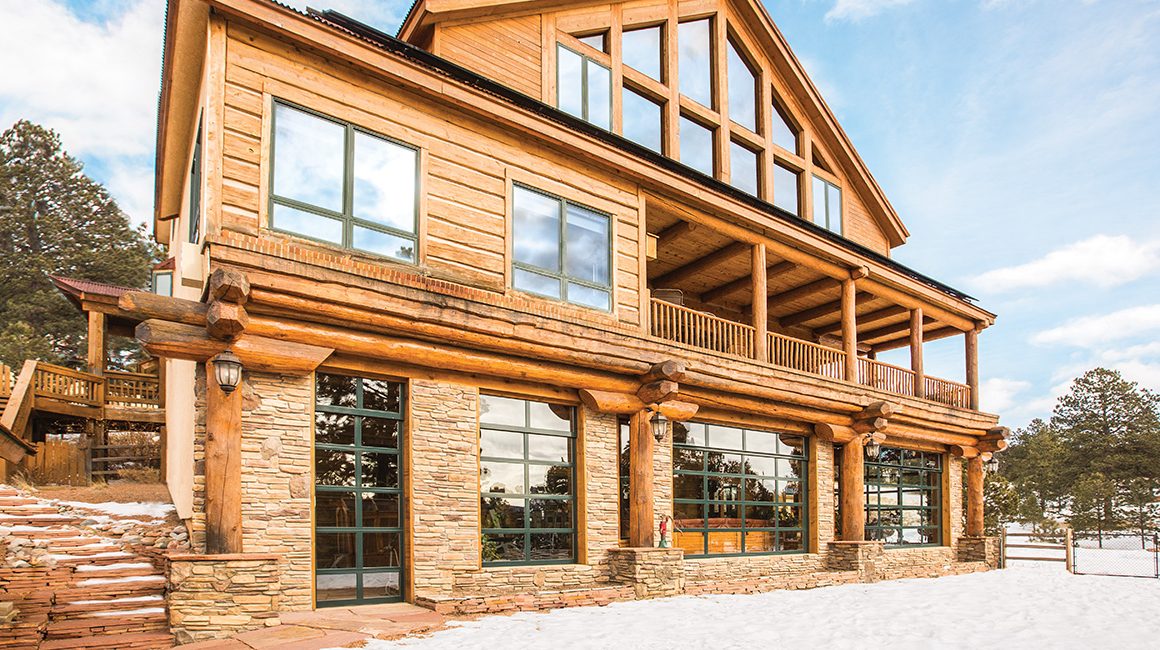

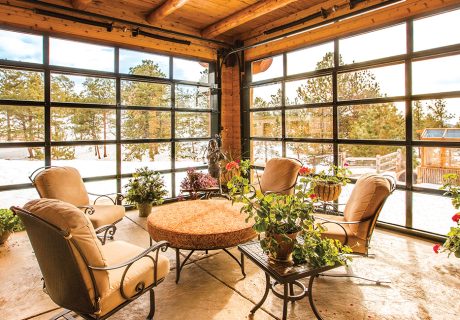

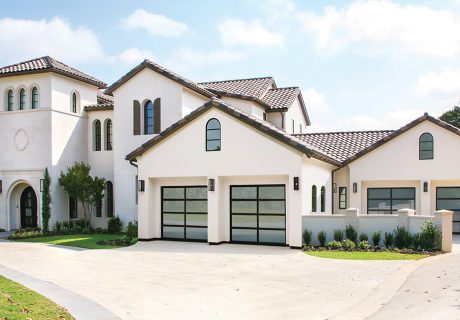

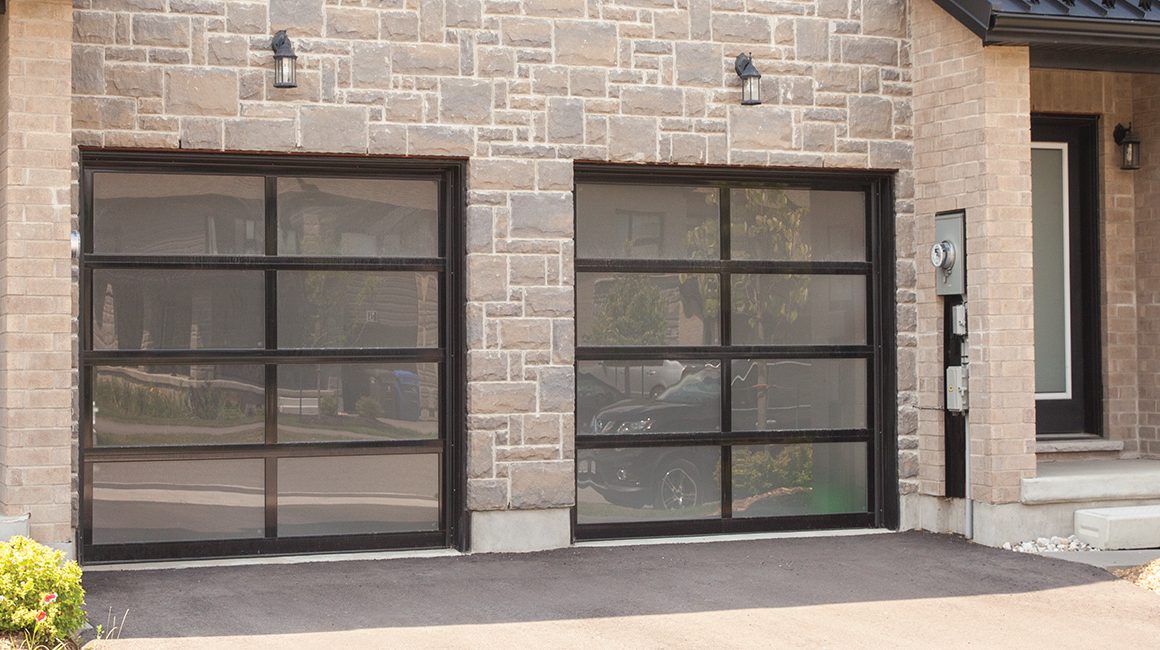

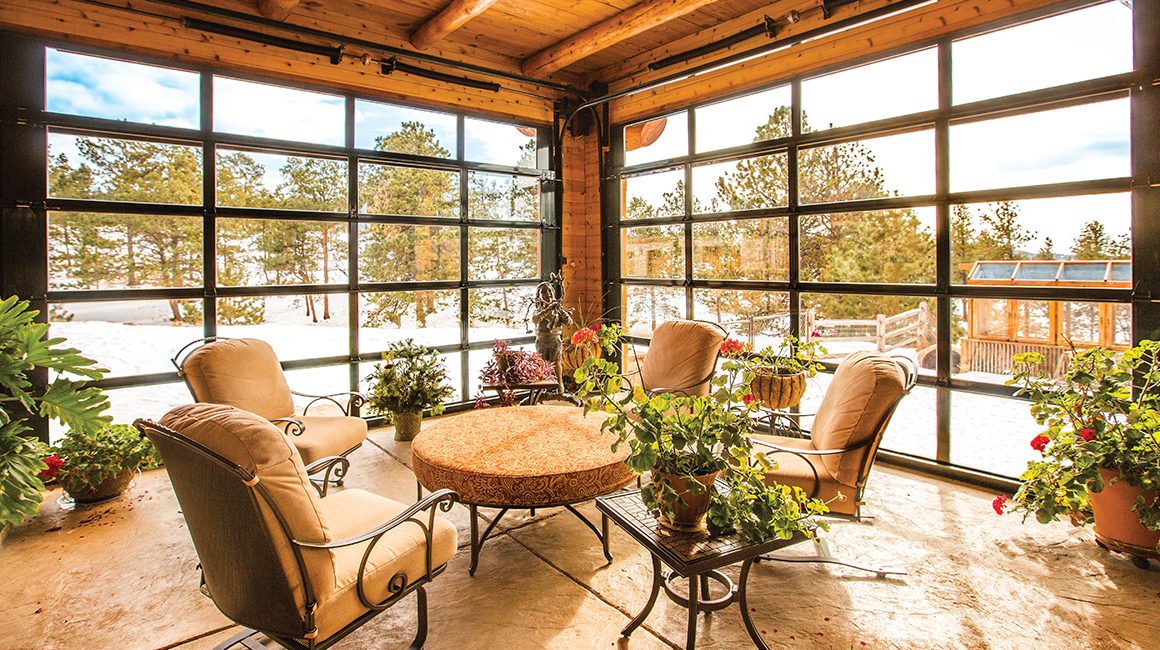

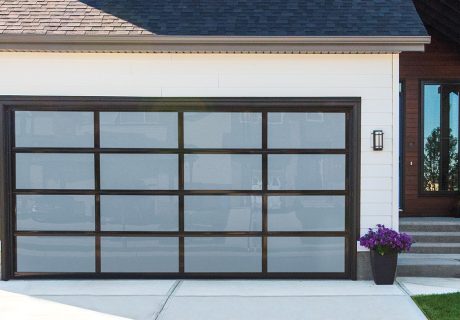

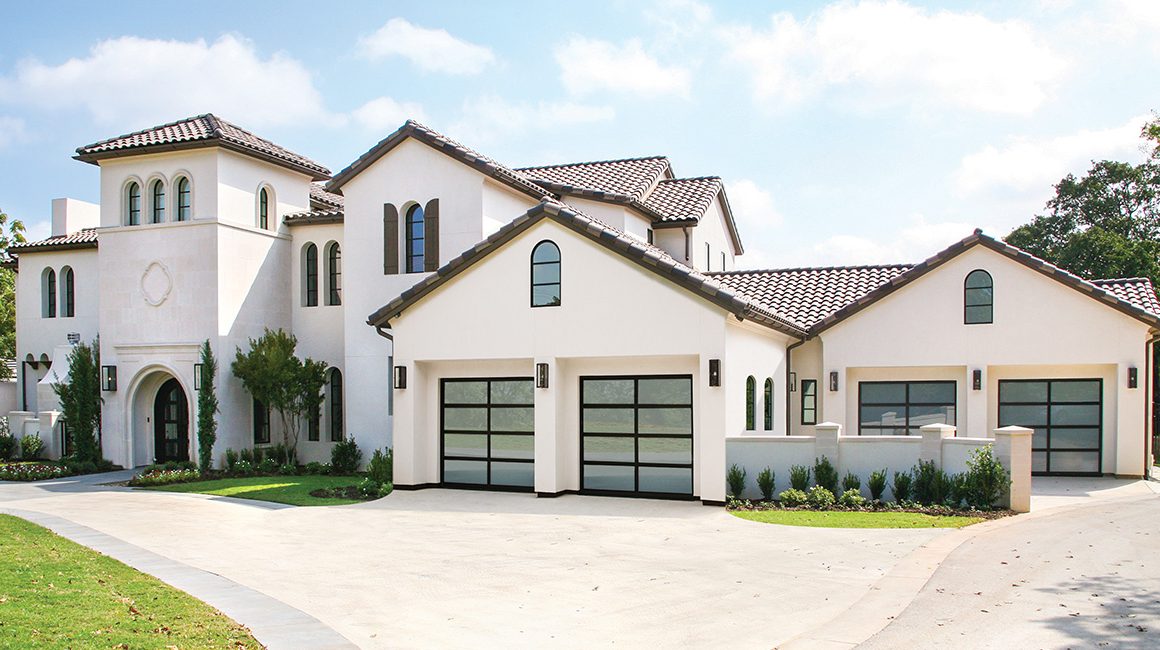

Nestled amid a smooth expanse of creamy stucco, a dark anodized frame fitted with white-laminated glass transforms an ordinary garage space into a focal point. Paired with fieldstone and brick, an ebony frame and satin-edged glass door are the very definition of urban chic. And a modern glass garage doors melds the indoors and outdoors to beautiful effect in a honed timber and stacked stone retreat in the Rockies. Just imagine the possibilities for your home!

With every Wayne Dalton modern glass garage door, a simple, yet stunning geometric frame serves as a sleek foil for gleaming glass. A variety of frame finishes and glass options allow you to customize your modern glass garage doors just the way you want it.

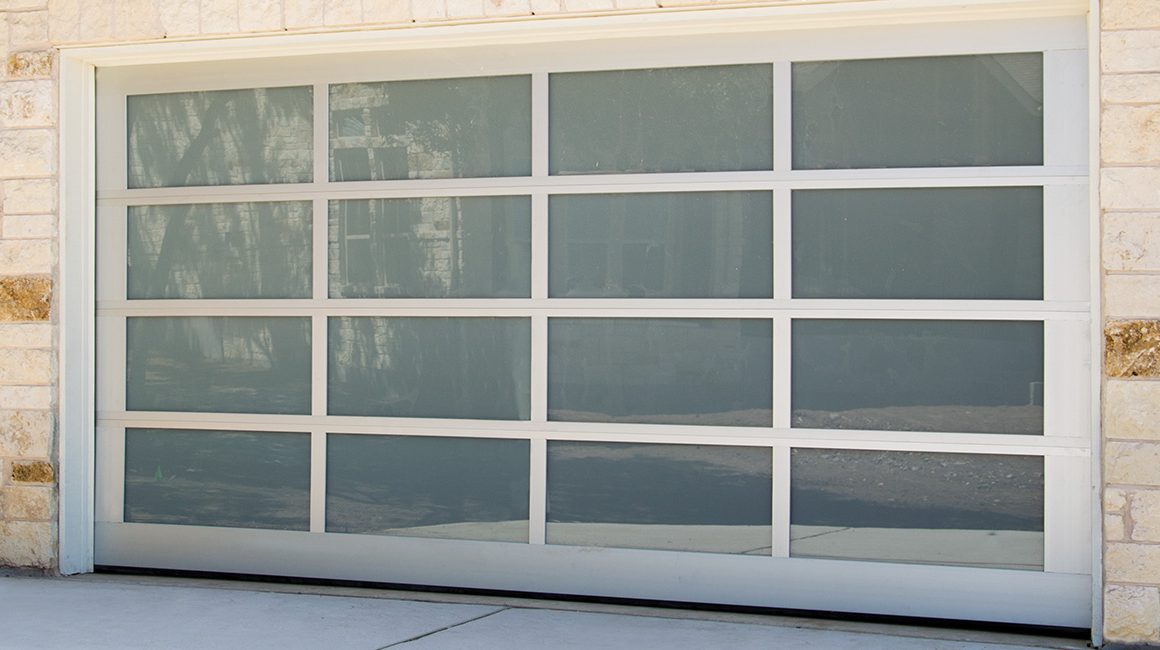

Whether you prefer the fresh, enduring charm of a crisp and classic white frame with clear glass, or a darkly hued frame punctuated with etched or laminated glass, it’s easy to create a modern glass garage door to enhance the style of your home.

Indulge Your Design Vision with a Modern Glass Garage Doors

When it comes to your modern glass garage doors, you can mix and match frame finishes and glass types to suit your personal taste. Whether you prefer a high contrast look or tone-on-tone style, modern glass garage doors adds the perfect finishing touch to your home.

Features

Our aluminum glass garage door is gorgeous, but it’s also built with exceptional care to ensure years of security and easy-care living. High-end features make the Model 8850:

• Beautiful: Aluminum rails and stiles are designed with non-beveled edges and straight lines to give the aluminum glass garage door a true contemporary style.
• Durable: Constructed with anodized or powder coated aluminum structure, our aluminum glass garage door features reinforced fins and heavy-duty track and brackets for years of smooth, trouble-free operation.
• Weather Resistant: Tongue-and-groove joints prevent wind and weather from entering the garage. A flexible vinyl bottom seal ensures the aluminum glass garage door keeps dirt and elements from entering your garage.
• Thermally Efficient: Optional foamed-in-place polyurethane insulation up to 18'2" wide adds a U-factor of .30; with Low E insulated glass at a U-factor of .28.
• Guaranteed: Model 8855 offers a One-Year Limited Warranty on the aluminum and One-Year Limited Warranty on its glass.

Construction

1. Effective Joint Seals – Snug-fitting tongue-and-groove section joints help prevent wind and weather from entering the garage.
2. Reinforcing fins on all top sections, and as needed on intermediate sections, provide years of smooth, trouble-free operation. The fins are the extruded part of the door sections and are not visible through the glass

Optional Insulated Frame

Insulated rails and stiles are available as an option. Foamed-in-place polyurethane insulation fills the rails and stiles providing enhanced thermal efficiency that adds U-factor as low as .28 (R-value* of up to 4.06) on the door.

*Wayne Dalton uses a calculated door section U-factor and R-value for our insulated doors.

Panel Styles

Choose Your Frame

The modern glass garage doors is available in two frame styles: standard and double-wide. Standard frames come in three widths with two, three or four panels across. Double-wide frames feature heavier outer rails. They come in four widths with two, three, four or five panels across.

Standard Frames

8ft (2 panels)	9 ft (3 panels)	16ft (4 panels)

Double Wide Frames

8ft (2 panels)	9 ft (3 panels)	16ft (4 panels)	18ft (5 panels)*

*Due to the weight of this door, it is only offered in the 8" double-wide frame.

Panel spacing drawings are shown for illustration purposes and do not reflect actual rail and stile dimensions.

8" double-wide rails and double-end stiles apply only to larger glass garage doors and are not available as options for smaller single car garage doors. If you are ordering a 16’3” or wider door as well as a single door, check with your dealer to ensure that the door frames match. Contact your Wayne Dalton dealer if you have additional questions.

Colors

Choose Your Finish

The Model 8850 modern glass garage doors is available in three anodized finishes—Clear (standard), Bronze and Black. Two painted finishes come in White and Bronze. Two powder-coated finishes are offered in dark Bronze and Black. In addition, homeowners may upgrade to a custom RAL powder-coated finish by choosing from approximately 200 color options.

Anodized Finishes

Clear	Bronze	Black

Painted Finishes

White	Brown

Powder Coat Finishes

Dark Bronze	Black

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.

Glass

Choose Your Glass

Gleaming glass is at the heart of our stunning modern glass garage doors. Model 8850 is available with five gorgeous options. Choose glass in Clear, Obscure, Satin Etched, White Laminated or Tinted Glass in Green, Gray or Bronze.

Clear (1/8" standard)	Obscure	Satin Etched	White Laminated	Green Tinted	Gray Tinted	Bronze Tinted

Tempered safety glass, acrylic or solid panels are available in a wide variety of colors, tints and styles. Most panel styles are also available in both single pane and insulated configurations.

Documents

• Garage Door Model 8850 Brochure
• Brochure Residential Garage Door Guide
• Residential Product Comparison
• Warranty Models 8450, 8850 & 8855
