Model 9100

Overview

Classic Steel Garage Doors

Model 9100

What’s the Big Deal About Foamed-in-Place Polyurethane Insulation?

Sure, you may choose a classic steel garage door because it’s good looking and won’t warp, crack or rot the way wood garage doors do. But there’s another good reason to choose Wayne Dalton’s Classic Steel Models 9100 and 9605: foamed-in-place polyurethane insulation.

We know, foamed-in-place polyurethane insulation is a mouthful, to be sure. Yet, it’s the hidden gem nestled inside our decidedly attractive classic steel garage doors. This type of insulation can improve your home’s thermal efficiency, block street noise and help the door operate more quietly.

Plus, we encase the polyurethane foamed-in-place insulation in some incredibly versatile material. Our Classic Steel garage doors come in a variety of stylish design options that mean you don’t have to sacrifice beauty for durability—or thermal efficiency.

Foamed-in-Place Polyurethane Insulation and a Whole Lot More

Wayne Dalton makes it easy to customize our Classic Steel garage doors enhanced with foamed-in-place polyurethane insulation. Whether your new doors will adorn a shake New England-style cottage, traditional ranch, two-story Colonial or sleek contemporary home, we offer all the design elements and options to bring your vision to life.

Features

Along with polyurethane foamed-in-place insulation, our Classic Steel garage doors are engineered for gorgeous, easy-care living. High-end features make them:

• Resilient: Three-layer construction means our doors are built to last. Model 9100 utilizes a ToughGard® backer. Integral struts add rigidity and strength for long-lasting, smooth operation. Wind load options with structural reinforcements are available for coastal areas and high-wind areas.
• Thermally Efficient: With polyurethane foamed-in-place insulation that boasts a U-factor* of .26 for Models 9100 and 9605 (R –value** of 10 for Model 9605 and 9 for Model 9100), our classic steel garage doors can improve your home’s thermal efficiency and block street noise. A bottom weather seal blocks draft and debris from the garage. (R-value of 9 for 7' tall doors; R-value of 10 for 8' tall doors.)
• Safe: With the TorqueMaster® Plus Counter Balance System, springs are nestled safely inside a steel tube to prevent the accidental release of tension and prevent injury. Our Classic Steel garage doors also feature anti-drop technology for added safety.
• Durable: An upgrade to the optional 25,000-cycle spring delivers more than twice the life of a standard torsion spring.
• Guaranteed: Our classic steel garage doors come with a Limited Lifetime Warranty.

Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.

*Proper door selection is the responsibility of the homeowner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.

*U-factor is independently tested and verified per ANSI/DASMA 105 using solid doors and specific product sizes.

**Wayne Dalton uses a calculated door section R-value for our insulated doors.

*** R-value of 9 for 7' tall doors; R-value of 10 for 8' tall doors.

Panel Styles

Choose Your Design

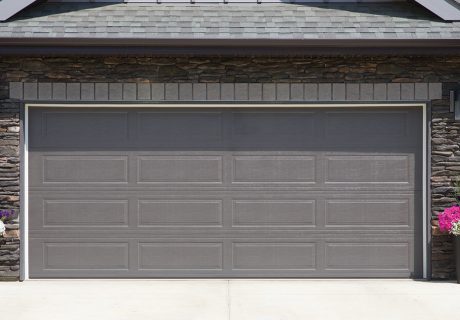

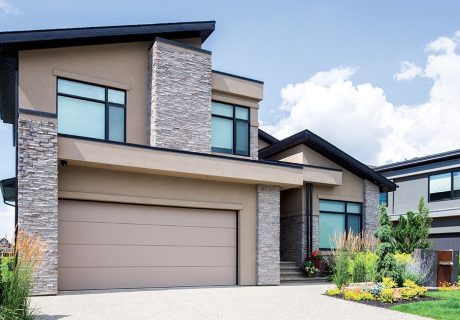

Classic Steel garage door Model 9100 is available in five stylish designs—Short Panel, Long Panel, Flush Panel, Vertical Short Panel or Vertical Long Panel. Doors outfitted with polyurethane foamed-in-place insulation come in four-panel 8’x7’ and five-panel 8’x8’ sizes. Ask your Wayne Dalton representative about additional sizes.

Short Panel	Long Panel	Flush Panel	Vertical Short Panel	Vertical Long Panel

Colors

Choose Your Finish

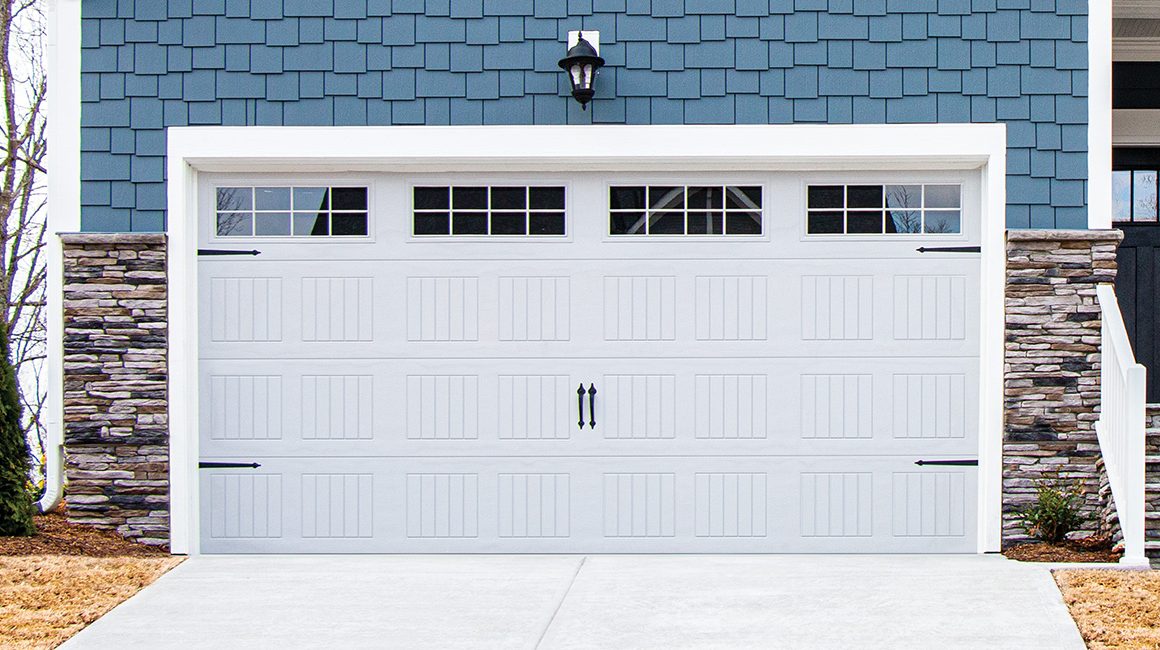

Your Classic Steel garage door can be finished in one of six signature colors—including Black†, Sandstone, Gray, White, Almond, and Brown.

Paint Finishes

Black	Standstone	Gray	White	Almond	Brown

†Cool Chemistry®

Built to withstand the elements, you can enjoy the bold beauty of black without sacrificing performance. Cool Chemistry® technology keeps your door looking great for years to come, while protecting it from the degradation caused by heat and sun exposure.

Windows

Choose Your Windows

Wayne Dalton offers an incredible selection of window panels. Choose from 31 window options for Short and Flush Panels options, 29 choices for Vertical Short Panel, and 22 options for our Long and Vertical Long Panels. Whether you envision your Classic Steel garage doors with arched toppers, a tidy row of panes up high, we’re here to help you bring your vision to life—and light!

Arched Stockton Long	Ashton Long	Cascade Long	Cascade Short
Cathedral Long	Cathedral Short	Clear Long	Clear Short
Prairie Long	Prairie Short	Ruston Long	Sherwood Long
Sherwood Short	Stockbridge Long (3-Lite)	Stockbridge Long (4-Lite)	Stockford Long
Stockton Long (4-Lite)	Stockton Long (6-Lite)	Stockton Long (8-Lite)	Stockton Long (8-Lite Arched)
Stockton Long (12-Lite)	Stockton Short	Waterton Long	Waterton Short
Williamsburg Long	Williamsburg Short	Wyndbridge Long	Arched Stockton Long 4 pc
Williamsburg Long 4 pc

Choice of single or double arch is available for arched top double car windows

*Available in single and double arch.

Optional Window Placement

Horizontal Windows	Vertical Windows

Clear windows may be arranged vertically or horizontally on Short, Long and Flush panel designs. Up to 50% of the door can include windows. Windows placed in the bottom section of a door must use DSB 1/8”, or tempered, or 1/2” insulated glass. Vertical windows will be placed as a special order.

Flush panel, White finish with Clear Long windows.

Not all window options are available with every panel style. Window options are not interchangeable between panel options. Window patterns are shown for a typical single-car door. Spacing of windows may change depending on door size. Not all windows are available in all sizes or all areas.

Glass

Glass is available in Clear, Tinted, Satin Etched or Obscure. Optional insulated glass is also available for improved thermal performance to work in tandem with your door’s polyurethane foamed-in-place insulation.

Clear*	Gray Tinted	Satin Etched Privacy*	Obscure*

*Also available in tempered

Hardware

Choose Your Hardware

Inspired by the artisanry of traditional blacksmiths, our decorative hardware collections lend a distinctive, yet subtle touch of individuality to your garage doors. Hinge straps, pull handles and other accent pieces inspired by the Old World and early Americana add a touch of rustic elegance to your Classic Steel garage door.

Knockers, corner brackets and clavos are a respectful nod to the decorative nails and studs craftsmen have used to accent entry doors for centuries. Every piece is forged from black powder-coated steel finished with a hand-hammered look.

Decorative Hardware Kits

Arrow	Aspen	Barcelona	Bean
Conifer	Fleur-de-Lis	Spear

Hammered Knockers

Arrow	Aspen	Barcelona
Conifer	Fleur-de-Lis	Spear

Lift Handles

Arrow	Aspen	Barcelona
Conifer	Fleur-de-Lis	Spear

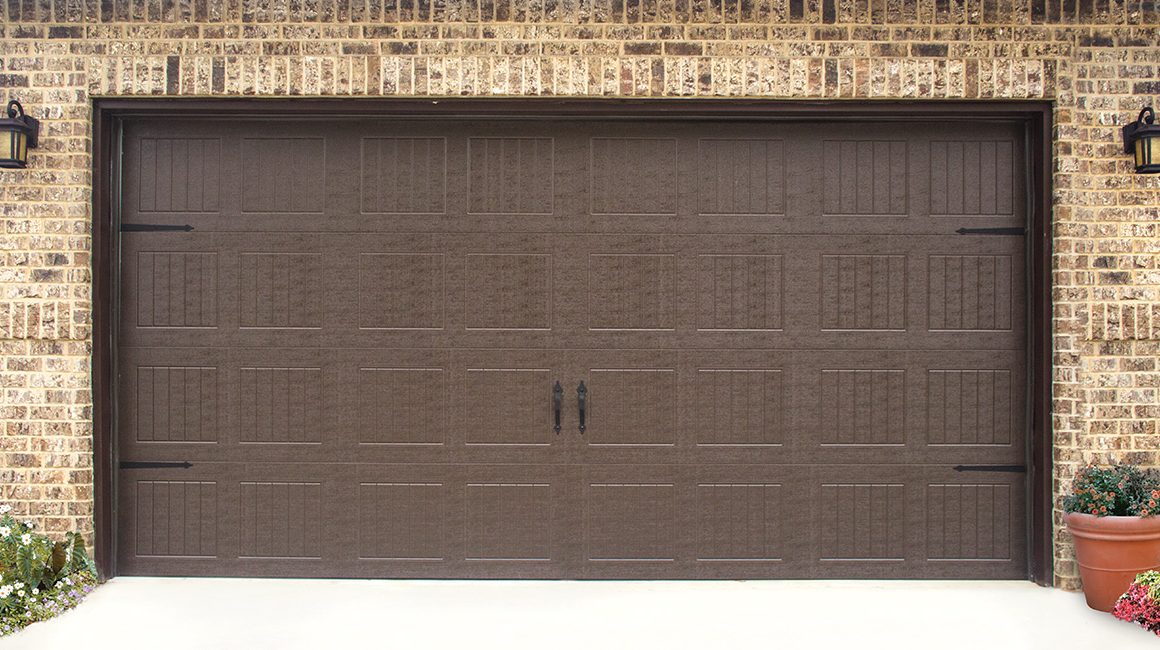

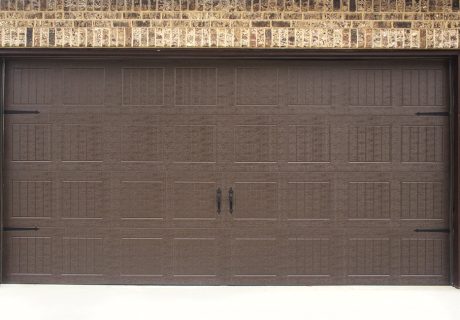

Decorative hardware kits come with four hinges and two pull handles. Double car doors come with two sets of decorative hardware kits. Additional accent pieces are available to match or complement each collection. Pull handle fit in center stile is dependent upon design and size of door.
