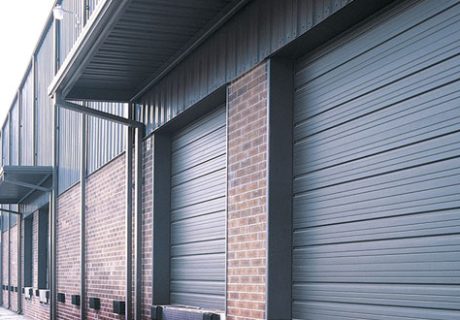

The Amarr 2402/2412/2422 is the workhorse of the industry. The deep ribbed 24-ga. steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon or steel backer to fit the needed application.
| Product Specifications | Amarr 2402 | Amarr 2412 | Amarr 2422 |
| Steel Thickness | 24 Gauge | 24 Gauge | 24 Gauge |
| Panel | Deep Ribbed | Deep Ribbed | Deep Ribbed |
| Exterior Texture | Smooth | Smooth | Smooth |
| Door Thickness | 2" (5.1cm) | 2" (5.1cm) | 2" (5.1cm) |
| Construction Layers | Single | Double | Triple |
| Insulation | -- | Vinyl-Coated Polystyrene | Polystyrene |
| U-Factor | N/A | 0.341 | 0.36 |
| R-Value | N/A | 7.0 | 7.0 |
| Max. Std. Width | 30'2" | 30'2" | 30'2" |
| Max. Std. Height | 26'1" | 26'1" | 26'1" |
| Limited Warranty | 10 Years | 10 Years | 10 Years |
 Energy Efficient |
 Rapid Install - Vertical Lift |
 LEED |
 Made in the USA |
 Wind Load |
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP), and comply with environmental laws and regulations.
 Deep Ribbed |
 1-Layer |
 2-Layor |
 3-Layor |
 24" x 6" |
 24" x 12" Insulated |
 Full-View Section |
 Perforated Aluminum Full-View Section |
 Louvered Aluminum Section |
 Amarr Commercial White |
 Amarr Commercial Gray |
 Amarr Commercial Brown |
 Amarr Commercial Black |
More than 800 factory-applied colors available. See the Amarr Color Zone page for more information.
