FireCoil™

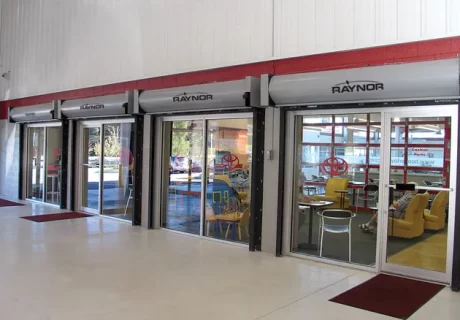

Fire-rated Rolling Doors Where safety and fire protection are crucial, choose FireCoil. Raynor FireCoil fire-rated rolling doors are the standard for facilities that require a listed fire door in a rated firewall. Provided with fusible links that automatically release to close the door at 165°F, the door’s descent can also be triggered by smoke and heat detectors, a building’s alarm system, or SS90 fail-safe devices. FireCoil fire-rated rolling doors are UL, C-UL, FM, and CSFM-labeled.

more FireCoil™ details

Features/Options

FireCoil Features and Options

Every Raynor FireCoil fire-rated rolling door is built for superior performance and includes the features and options listed below:

  • Safety: Doors of all sizes meet NFPA 80 requirements. Closing speed is consistently controlled between 6-12” per second, resulting in a more smooth, quiet, and safer descent.
  • Savings: The state-of-the-art design incorporates automatic resetting of the auto-closing system. All doors can be easily reset with a single-side release which results in dramatic savings in testing and resetting costs while minimizing downtime.
  • Fusible Link: Automatic door closure is initiated by one of three fusible links that melt at 165° Fahrenheit.
  • Pre-Assembled Rolling Steel Door: Our Raynor pre-assembled rolling steel door option allows for faster and easier installation by having the curtain, barrel, and head plates shipped pre-assembled and in one crate. Ask your Raynor Authorized Dealer how to take advantage of our pre-assembled option.
  • Bottom Bar: Curtain bottoms are reinforced with a minimum of two steel angles for maximum durability. A bottom astragal is included on all motor-operated doors.
  • Curtain: All FireCoil door curtains are constructed with heavy-duty steel slats: Flat Slats (UF), Insulated Flat Slats (UI), Large Contour Slats (LL), and Small Contour Slats (US). See the Slat Style Options tab below.
  • Counterbalance System: A torsion-spring-operated system, enclosed in a structural steel barrel, effectively counterbalances the FireCoil fire-rated door for a minimum of 10,000 cycles.
  • Guides and End Locks: Steel angle guides provide added support for curtain slats. Zinc-plated, malleable cast-iron end locks prevent lateral movement of the curtain slats.
  • Locks: In applications where control and access are important, choose from a variety of locking options to help keep your building secure. Locks come in either cylinder or slide-bolt (shown) variations. Slide-bolt locks are standard on push-up operation.
  • Curtain Hood*: For maximum structural rigidity, curtain hoods feature rolled edges and are formed from 24 gauge, hot-dipped galvanized steel. *FireCoil hood includes a flame baffle that is activated by a fusible link. Standard on Factory Mutual-approved doors. Optional on UL-approved doors.
  • Smoke Control: A guide with a brush seal (shown) and header seal reduce smoke damage.

Colors/Finishes

Slat Finishes

Color / Finish Options


White
Gray
Tan


>>Colors displayed on monitors, mobile devices, and printed materials will vary from the actual steel color. Contact your local Raynor Authorized Dealer for color samples.

ArmorBrite™ Powder Coat System

Choose your color! Nearly every Raynor fire door component (curtain slats, bottom bars, guides, hoods, and head plates) can be powder coated in any of 188 ArmorBrite colors for an attractive appearance and exceptional durability.

Model Details

Model Details

Model Slat Profile Slat Material(Thickness) Fire Ratings Approvals Max.Width Operation Colour/Finishes
Flat Slat(UF) Flat Steel 22, 20, 18 gauge 4 Hour, 3 Hour, 1(1/2) Hour, 3/4 Hour UL, C-UL, CSFM ISO-3008, BS-476, FM, MEA 30' Manual, Chain, Crank, Motor White, Gray, Tan or ArmorBrite™ Painted, Galvanized Finish
Stainless Steel 22, 20 gauge 19'6" #4 Finish
Steel 24 gauge 1(1/2) Hour, 3/4 Hour UL, C-UL, CSFM, MEA 10' White, Gray or ArmorBrite Painted
Insulated Flat Slat (UI) Flat Steel 24, 22, 20, 18 gauge 4 hour, 3 Hour, 1(1/2) Hour, 3/4 Hour UL, C-UL, CSFM, MEA 30' Chain, Crank, Motor White, Gray, Tan or ArmorBrite™ Painted, Galvanized Finish
Small-C Slat (US) Curve Steel 22, 20 gauge 4 hour, 3 Hour, 1(1/2) Hour, 3/4 Hour UL, C-UL, CSFM, ISO-3008, BS-476, FM, MEA 14' Manual, Chain, Crank, Motor Gray
Large-C Slat (LL) Curve Steel 22, 20, 18 gauge 4 hour, 3 Hour, 1(1/2) Hour, 3/4 Hour UL, C-UL, CSFM, ISO-3008, BS-476, FM, MEA 30' Manual, Chain, Crank, Motor Gray

Specs/Drawings

Specifications and Drawings

Select a link below to download Raynor FireCoil fire-rated rolling door specifications and drawings.

  Word PDF Drawings
FireCoil Product Specs DOCX PDF
Rolling Doors Full Product Line Specs DOCX PDF
BIM Objects DOCX PDF DWG | RFA

Slat Style Options

Slat Style Options

Flat Slats (UF)

Large Contour Slats (LL)

Small Contour Slats (US)

Insulated Flat Slats (UI)

The most architecturally pleasing slat profile, flat slats are ideal when weatherseal is used. Flat slats offer full visual access, multiple glazing options and wind load resistance in a rolling steel door designed to fit in a variety of opening sizes. Available in virtually unlimited widths, large contour slats are typically specified for larger-sized openings. An excellent choice for smaller openings widths, small contour slats are the best value for opening sizes up to 14’x24′. Designed for any application demanding greater thermal efficiency.

Literature

Product Literature

Warranty

FireCoil Warranty

Door Curtain:

Raynor warrants the door and its component parts for one (1) year against defects in material and workmanship.

Hardware & Spring:

Raynor warrants all hardware and spring components against defects in material and workmanship for one (1) year.

Warranty Limitations and Exclusions:

Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an qualified installer. This warranty applies only to door systems that are professionally installed by an authorized Raynor Dealer.

This limited warranty extends only to the original purchaser, provided the door is installed in the original purchaser’s place of business. This limited warranty is not transferable.

This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor EnergyCore series, ThermaSeal Series, Commercial Country Manor and Commercial Aspen series doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.

This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. It also does not apply to damage or deterioration caused by saltwater coastal areas, hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.

This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.

Raynor shall not be liable for any consequential or incidental damages.

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
