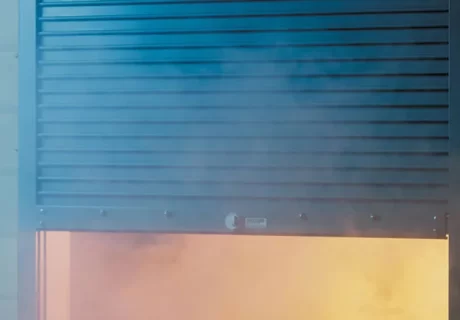

Fire-Rated Rolling Counter Shutters Raynor FireCurtain fire-rated rolling counter shutters are the standard for facilities that require a listed fire counter shutter in a rated firewall. Provided with fusible links that automatically release to close the door at 165°F, the shutter can also be triggered by smoke and heat detectors, a building’s alarm system, or LM21 fail-safe release devices. All FireCurtain counter shutters comply with UL, C-UL, FM, and CSFM requirements for 3-hour, 1-1/2-hour, or ¾-hour fire ratings. When safety and fire protection are crucial, choose FireCurtain.
Every FireCurtain fire-rated rolling counter shutter is built for superior performance and includes the features listed below.
FireCurtain UCP and UPI Doors are available in gray. Counter shutter frames and curtains can be powder coated in any of 188 ArmorBrite colors. FireCurtain USC and USI doors are available with stainless steel finish.
White |
Gray |
Tan |
Stainless Steel |
>>Colors displayed on monitors, mobile devices, and printed materials will vary from the actual steel color. Contact your local Raynor Authorized Dealer for color samples.
Choose your color! Nearly every Raynor fire door component (curtain slats, bottom bars, guides, hoods, and head plates) can be powder coated in any of 188 ArmorBrite colors for an attractive appearance and exceptional durability.
Model | Slat Material(Thickness) | Slat Profile | Fire Ratings | Approvals | Guides | Maximum Sizes | Colour/Finishes |
---|---|---|---|---|---|---|---|
UCP | Steel (22 Ga.) | Flat | 3-Hour 1(1/2)-Hour (3/4)-Hour | UL, C-UL, CSFM, FM | Steel | 12' Width 8'0" Height (Over 12' wide contact factory) | Gray, 188 ArmorBrite Colors |
UCS | Stainless Steel (22 Ga.) | Stainless Steel | Stainless Steel | ||||
UPI (Integral Frame) | Steel (22 Ga.) | Flat | 3-Hour 1(1/2)-Hour (3/4)-Hour | UL, C-UL, CSFM, FM | Steel | 11'6" Width, 5'6" Height, 4(1/2)"-12" Wall Thickness | Gray, 188 ArmorBrite Colors |
USI (Integral Frame) | Stainless Steel (22 Ga.) | Stainless Steel | 11'6" Width, 6'6" Height, 4(1/2)"-12" Wall Thickness | Stainless Steel |
Select a link below to download Raynor FireCurtain fire-rated rolling counter shutters specifications and drawings.
For Slat Types: Flat Slat (UCP/UCS)
Interior Face Mount (N) | |||
---|---|---|---|
Manual Operation | DWG Drawing | ||
Crank Operation | DWG Drawing | ||
Motor Operation | DWG Drawing | ||
Between Jamb Mount/Under Lintel (J) | |||
Manual Operation | DWG Drawing | ||
Crank Operation | DWG Drawing | ||
Motor Operation | DWG Drawing | ||
Face-Mounted/Under Lintel (J1) | |||
Manual Operation | DWG Drawing | ||
Crank Operation | DWG Drawing | ||
Motor Operation | DWG Drawing | ||
Between Jamb Only (J2) | |||
Manual Operation | DWG Drawing | ||
Crank Operation | DWG Drawing | ||
Motor Operation | DWG Drawing |
Electric, Thermal, or Manual Release |
LM21 Release Device |
FireShield Release |
AR-C (Auto Reset – Conversion) |
This economical, reusable device reacts to heat or the local smoke detector, alarm system, or manual activation. | Provides fail-safe release of the door during a power loss. LM21 Models are available with adjustable alarm and power loss delays. |
The FireShield release device ensures that a door equipped with the FireEclipse™ Tube Motor will close in the event of a power failure. | The AR-C converts the FGH operator from a mechanically resetting system with fusible links to a fully automatic system that resets itself when power is restarted and the alarm is cleared. |
Raynor warrants the door and its component parts for one (1) year against defects in material and workmanship.
Raynor warrants all hardware and spring components against defects in material and workmanship for one (1) year.
Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an qualified installer. This warranty applies only to door systems that are professionally installed by an authorized Raynor Dealer.
This limited warranty extends only to the original purchaser, provided the door is installed in the original purchaser’s place of business. This limited warranty is not transferable.
This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor EnergyCore series, ThermaSeal Series, Commercial Country Manor and Commercial Aspen series doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.
This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. It also does not apply to damage or deterioration caused by saltwater coastal areas, hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.
This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.
This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.
Raynor shall not be liable for any consequential or incidental damages.
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.
Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.
Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.
This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
