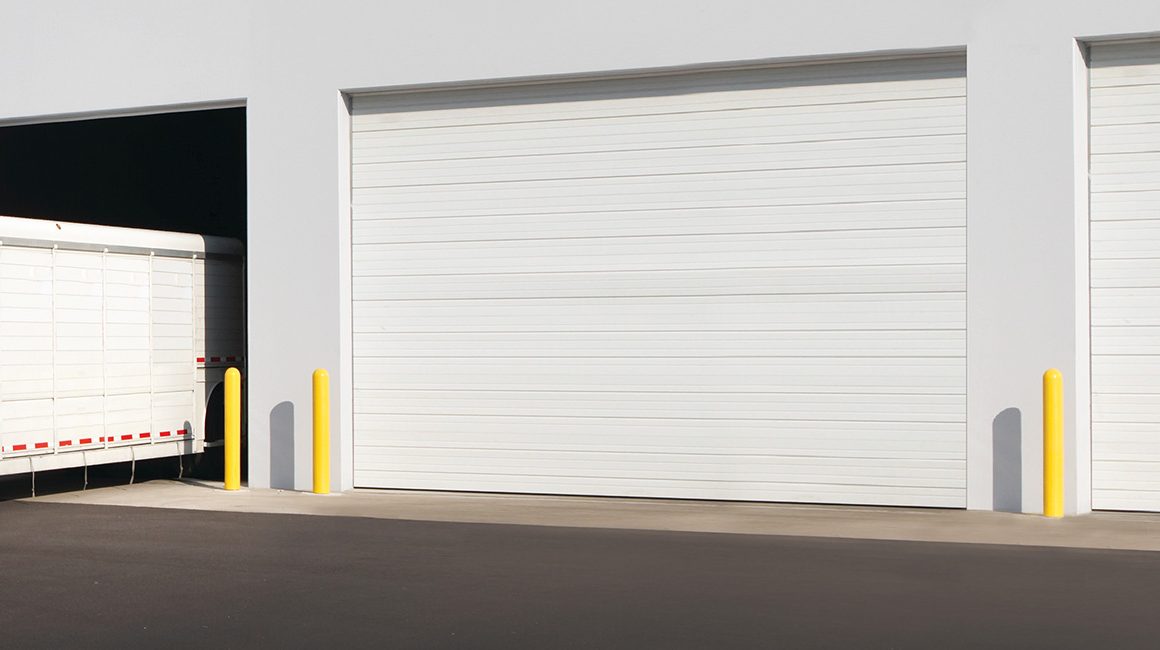

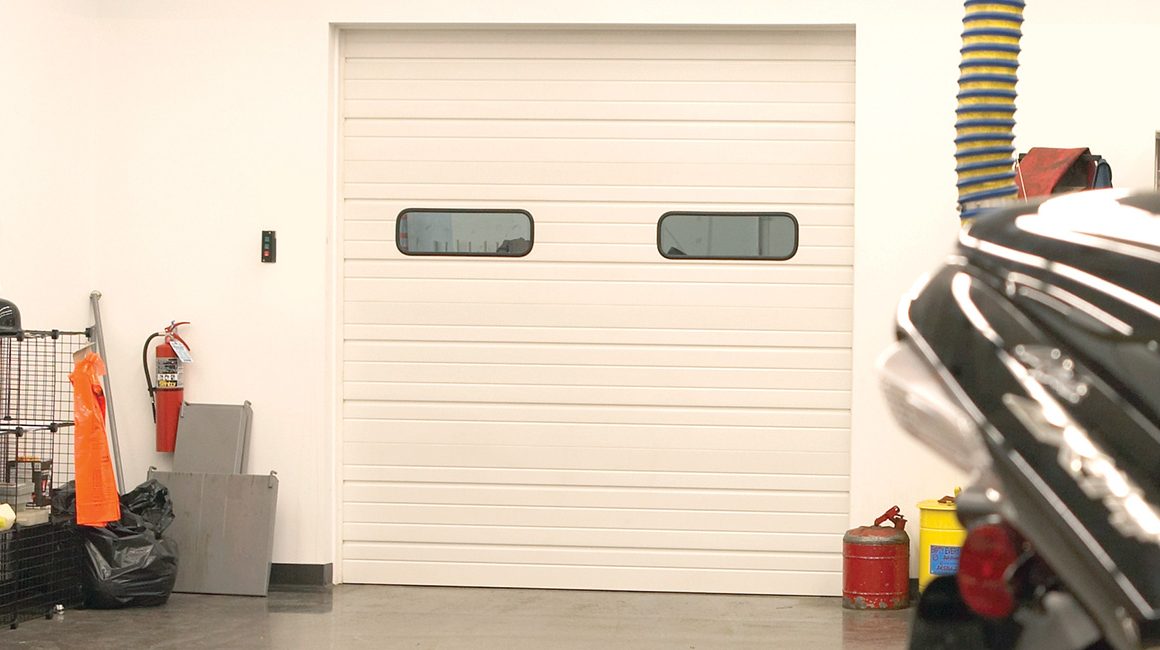

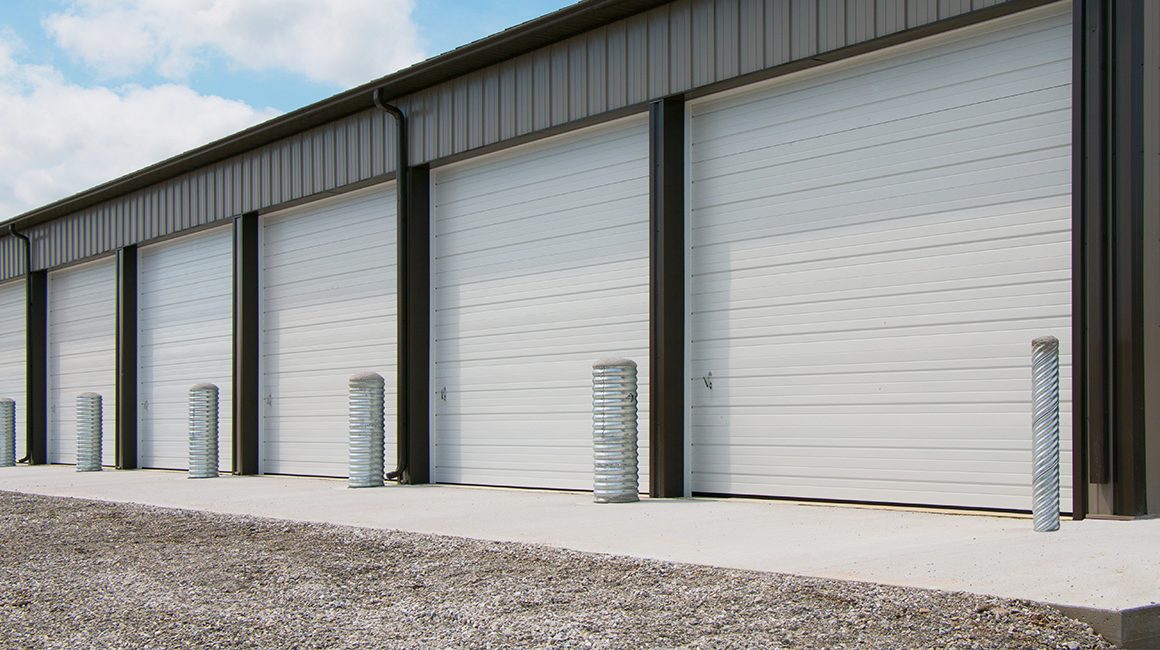

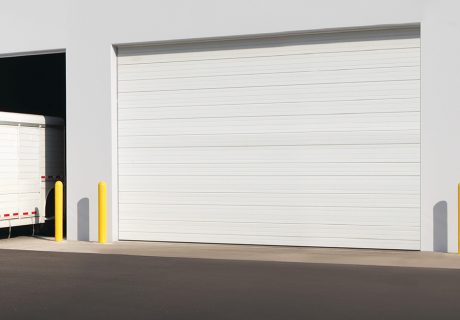

Model 2411

An attractive and durable commercial sectional door, our Model 2411 provide reliable service for a variety of moderate to heavy-duty applications. These doors are designed and built with quality and appearance that feature nominal 24-gauge ribbed steel sections in a smooth or stucco-embossed finish. The C-shaped stiles, have pre-located, extruded holes for quick, secure mounting of hinges. It also features end stiles that wrap around the exterior of each section to protect the section face from wear caused by the door jambs.

Model 2411

These doors can come in a wide variety of sizes and configurations to fit most door openings and can also be customized with our time-saving simple install system or increase section thickness with the impact panel option. Engineered to provide commercial strength, the commercial sectional doors are ideal for high-traffic applications at a competitive value.

more Model 2411 details

Overview

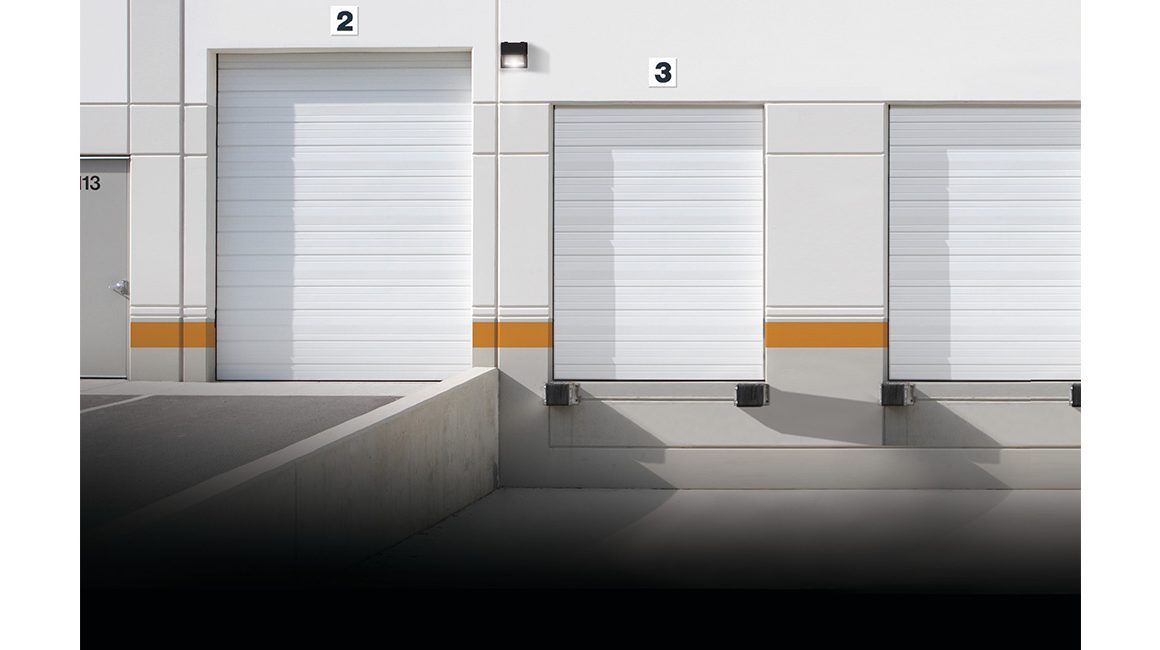

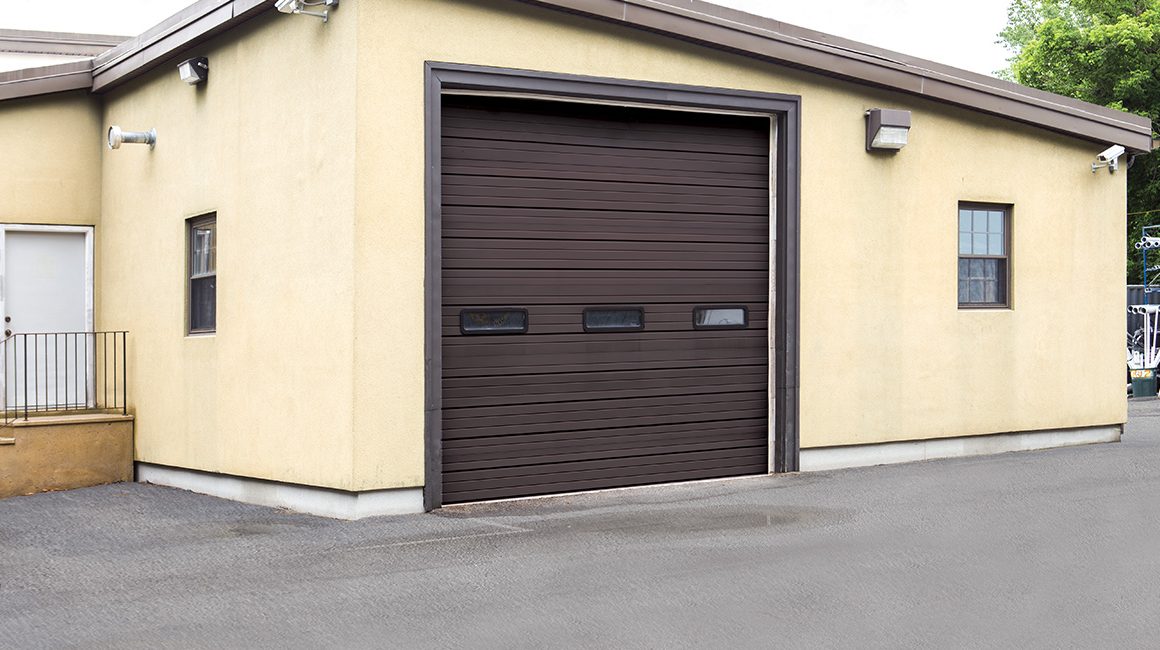

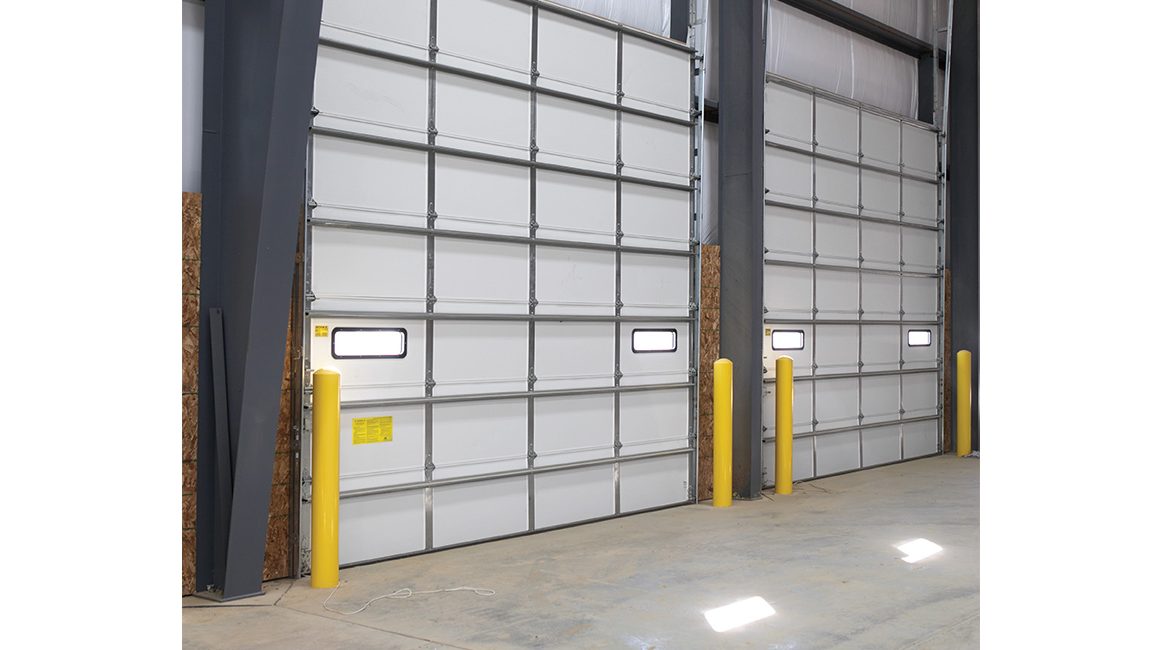

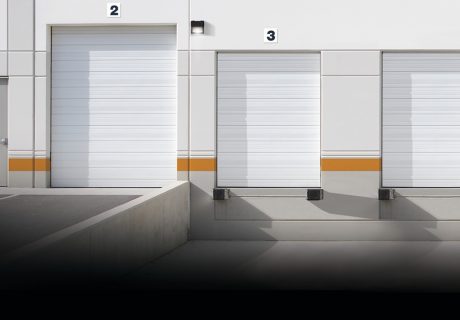

Standard Construction Model 2411 Model 2415
Max. Width 20'2" 32'2"
Max. Height 16'1" 22'1"
Steel Gauge Nominal 24, ribbed 24
Joint Profile Shiplap Shiplap
Spring Cycles 10,000 10,000
Exterior Surfaces Stucco Embossed/Ribbed Smooth/Ribbed
R-Value* 7.64 7.64
Wind Load - Optional No No

*Wayne Dalton uses a calculated door section R-value for insulated doors.



Benefits

Durable Design
  • Heavy-duty C-shaped vertical stiles provide added strength and allow a quick, secure hinge attachment
  • End stiles wrap around the exterior of each section to protect the section face from wear caused by the door jambs
  • Comes in a wide variety of sizes and configurations that provide durability and value
  • The exterior skin helps increase strength while enhancing the building’s visual appearance



Ideal Applications

  • Distribution Centers
  • Manufacturing Plants
  • Production Facilities
  • Storage Facilities
  • Agricultural Facilities
  • Municipal Buildings
  • Truck Bays



Warranty

  • 1-Year against defects in materials and workmanship

Design Options

Lite Options
Vision Full View

Additional Options
  • 3” Track
  • Solid shafts
  • Special track designs
  • Mullions
  • Perimeter weather seal
  • Simple Install System Option
    • Wayne Dalton’s track and hardware system provides for easy, one-person installation. Components include a one-piece vertical lift track and simplified hardware.
  • Impact Panel Option
    • Wayne Dalton's Impact Section is the perfect solution for doors exposed to damage from forklifts and other warehouse traffic. Impact-resistant composite skins surround an expanded polystyrene core. The Impact Section is adjustable to multiple door thicknesses.



Colors

WhiteWhite BrownBrown White StuccoWhite Stucco Brown StuccoBrown Stucco



Finishes
Finish Options Model 2411 Model 2415
White -- ✔︎
Brown -- ✔︎
White Stucco ✔︎ --
Brown Stucco ✔︎ --



*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).

Actual physical representation may vary slightly in color.

Enhancements

Operation

  • Chain hoist operation
  • Motor operation

Safety Focused

  • Sensing edges
  • Photo eyes

High-Performance Design

High Cycle Spring Options
  • 25,000
  • 50,000
  • 100,000
