Model 515

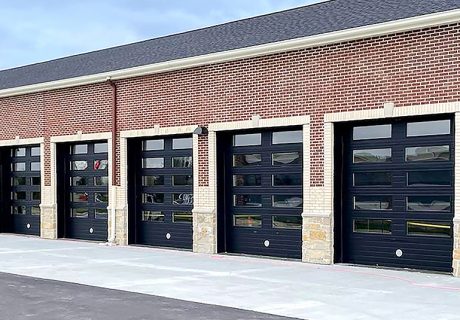

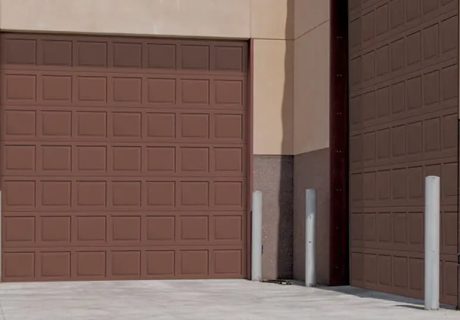

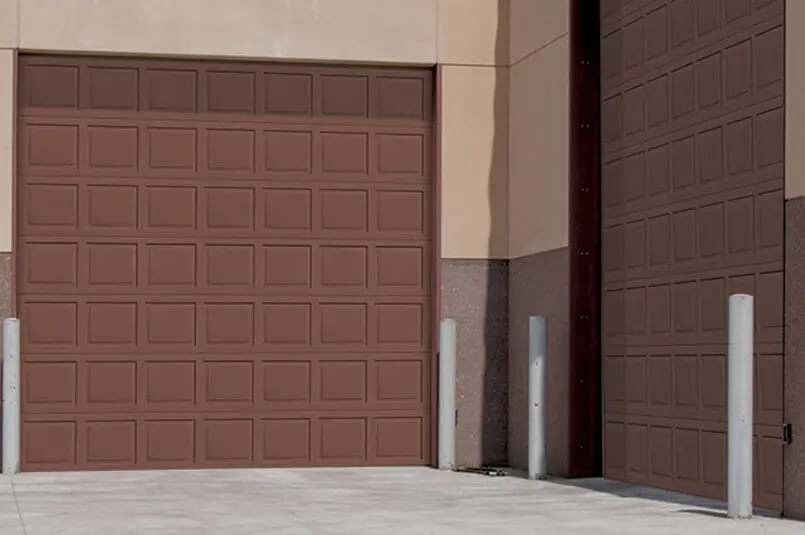

WindStorm™ Commercial Sectional Door Model 515 is engineered to withstand higher design pressures and is designed to meet local building codes for wind speed. constructed of steel and polyurethane insulation, this insulated wind load sectional door boasts an U-factor of .15 (R-value of 12.12).

contact us about this product

more Model 515 details

Overview

Construction

Product Specifications
Standard Max Width 20'2"
Standard Max Height 20'1"
U-factor* .15
R-value** 12.12
Thermal break Yes
Air infiltration 0.23 cfm/ft2 at 15mph
Exterior Steel 0.015" (0.35mm)
Exterior Surface Embossed wood grain finish or microgroove textured
Standard Springs 10,000 cycles
Sound Transmission Class 20
Wind Load Minimum standard

*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.

Warranty

  • 10 years against cracking, splitting or deterioration due to rust-through. 10 years delamination.

Options

Color

  • white color swatch

    White

  • almond color swatch

    Almond

  • brown color swatch

    Brown

  • black color swatch

    Black

  • sandstone color swatch

    Sandstone

Artisan Wood Grain™ Finishes

Wood Grain Embossment (Not available on Flush panel)
  • bi-directional carbon oak color swatch

    Carbon Oak

  • bi-directional medium oak color swatch

    Medium Oak

  • bi-directional western cedar color swatch

    Western Cedar

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.

*Overhead Door Corporation does not warrant this product with black finish against warping, rubbing, or other issues associated with thermal bowing. Black finish is not recommended for areas that experience high heat and/or high UV conditions.

Glass/Windows

Short and Flush panel

Clear Short

Clear Short*

Cathedral 1

Cathedral Short

Cascade 1

Cascade Short

Sherwood 1

Sherwood Short

Stockton 1

Stockton Short*

Waterton 1

Waterton Short

Williamsburg 1 4-Piece

Williamsburg Short

Vertical Short panels

Stockton 2 8-Lite

Stockton Long (8-Lite)*

Clear Short

Clear Short*

Waterton 2

Waterton Long

Clear Long

Clear Long*

Cathedral 1

Cathedral Short

Cascade 1

Cascade Short

garage door window style

Cascade Long

Stockton 1

Stockton Short*

Stockbridge

Stockbridge Long (4-Lite)*

Waterton 1

Waterton Short

Long panel

Clear Long

Clear Long

garage door window style

Cascade Long

Cathedral 2

Cathedral Long

Stockbridge 2 4-Lite

Stockbridge Long (4-Lite)*

Sherwood 2

Sherwood Long

Stockton 2 8-Lite

Stockton Long (8-Lite)*

eight window garage door windows

Arched Stockton

Waterton 2

Waterton Long

Williamsburg 2

Williamsburg Long

Microgroove panel

Clear Short

Clear Short

garage door window option

Williamsburg Short

garage door window option

Thermolite

Clear Long

Clear Long

Cathedral 1

Cathedral Short

Cascade 1

Cascade Short

garage door window style

Cascade Long

garage door sixteen window option

Stockton Short

Stockton

Stockton Long

Waterton 1

Waterton Short

Waterton 2

Waterton Long

*Artisan Wood Grain™ Finishes available with these windows only.

Enhancements

  • Jamb Seal
  • 3" Track
  • High Cycle Springs - 25k, 50k, 100k
  • Factory Glazed Windows
