Production Description

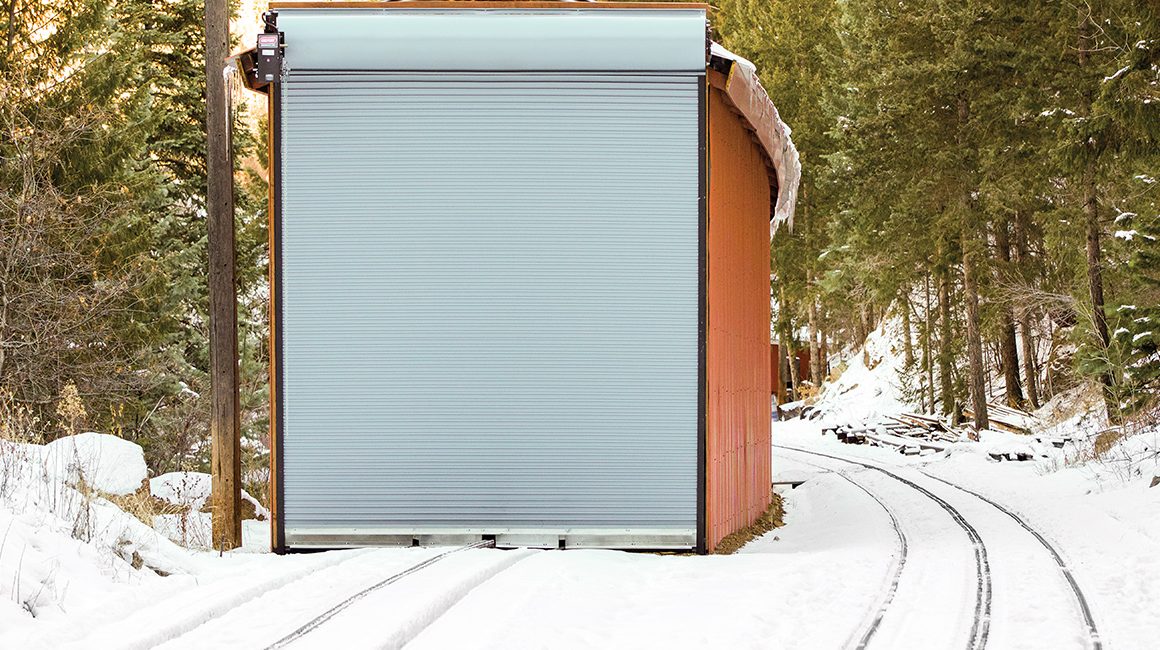

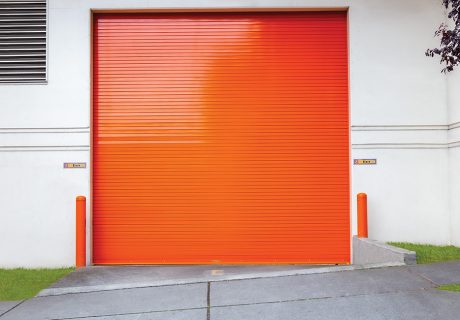

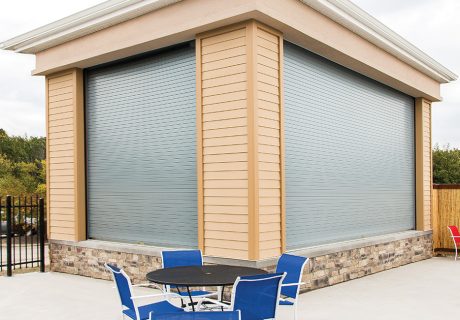

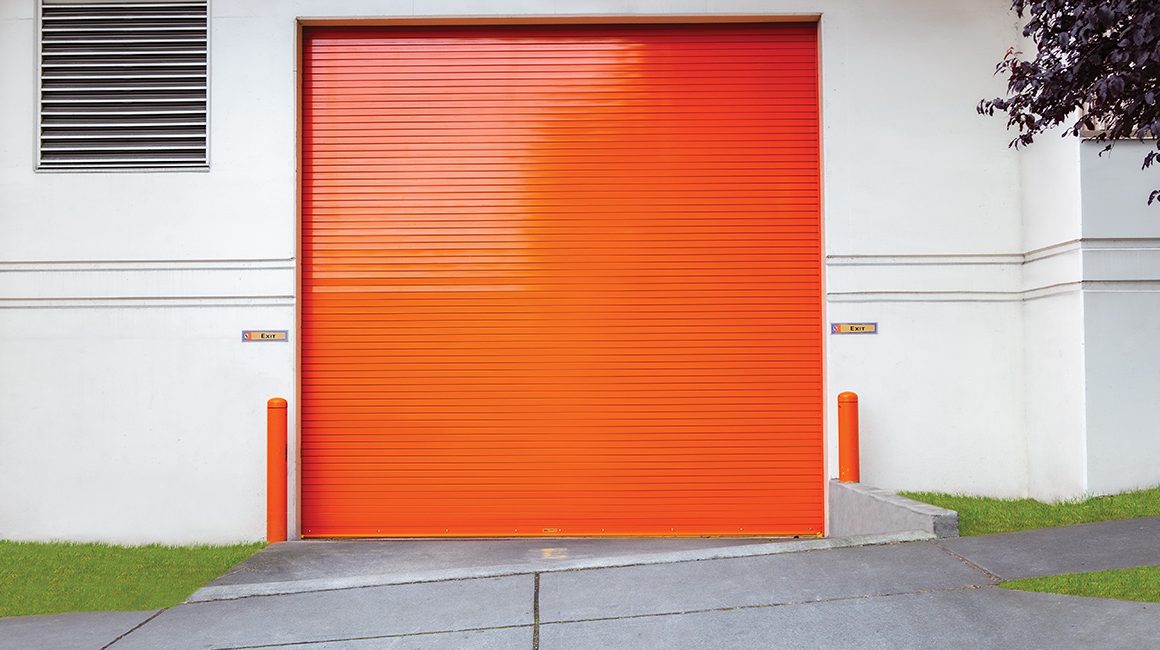

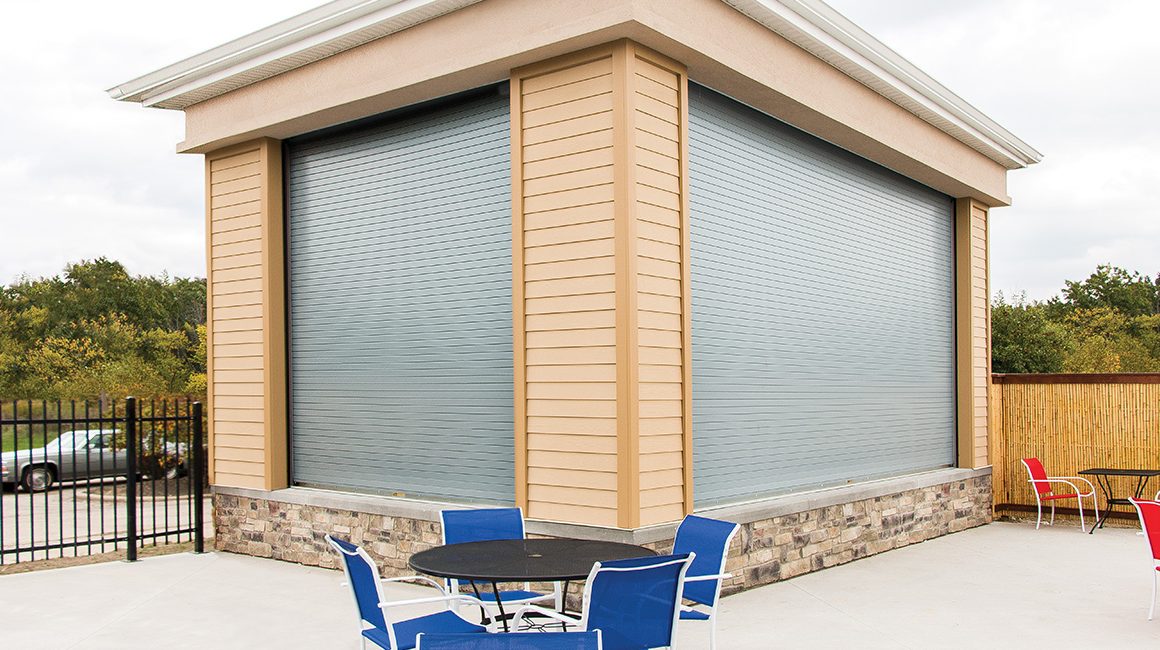

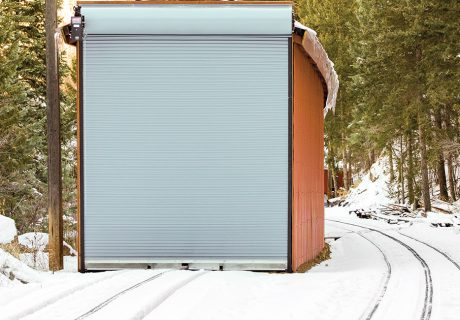

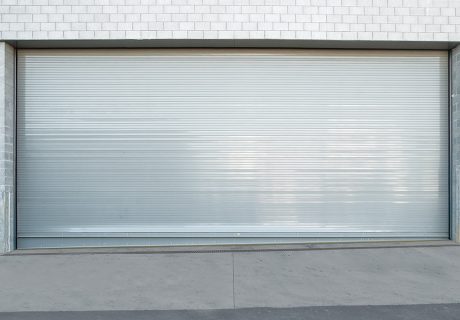

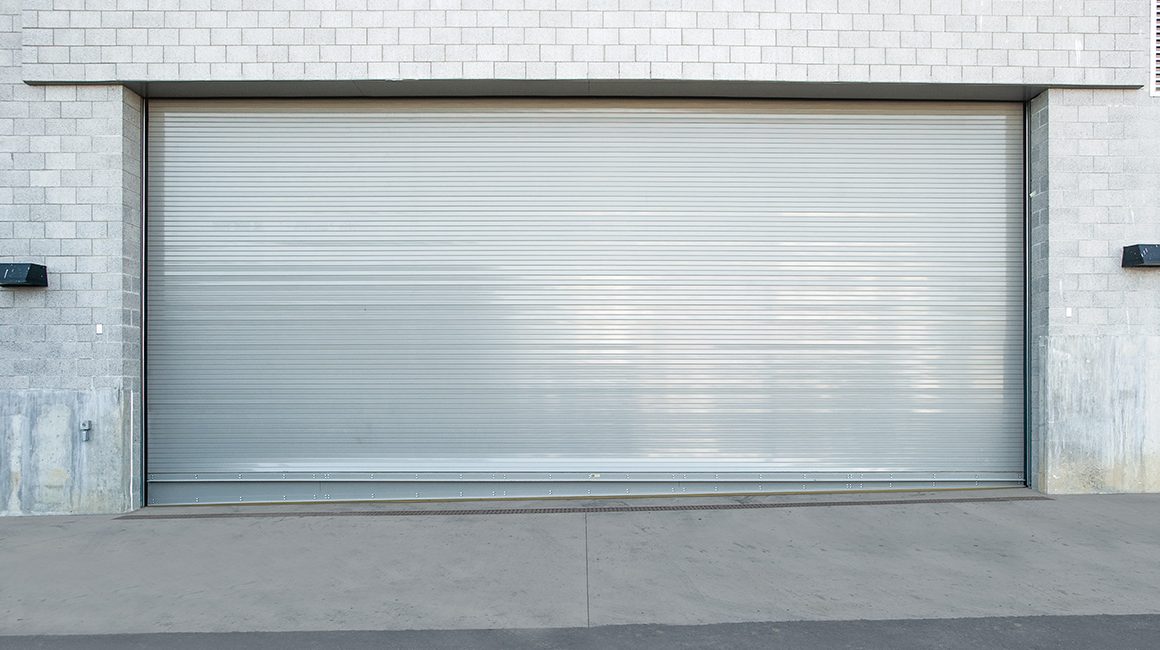

Wayne Dalton Model 800 Rolling Service Door
Our Model 800 rolling service door is composed of curved or flat-faced slats that provide a natural water-shed, helping to reduce corrosion. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.
Rolling Service Door Model 800 features a strong double-angle bottom bar designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.
Counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033" per lineal foot of span.)
Wayne Dalton’s ThermoTite® 800C Rolling Service Door
Wayne Dalton’s ThermoTite® 800C Rolling Service Door is designed to meet the tough requirements of virtually any commercial or industrial application, with the added advantage of energy efficiency. The ThermoTite® 800C offers flexibility in substrate materials with choices of galvanized or primed steel, stainless steel or aluminum. This door is designed to withstand wind loads of up to ±20 psf standard, with optional wind load ratings of up to ±55 psf.
These insulated rolling service doors are composed of flat slats that provide a natural watershed, helping to reduce corrosion. Foamed-in-place polyurethane insulation with an R-value* of 7.7 fills the slat to enhance a building’s thermal efficiency. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.
Model 800C features a strong double-angle bottom bar designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation.
Enhancements
Options & Accessories
- Curtain: steel, stainless steel, aluminum, G-90 galvanized
- Locking: slide bolts, cylinder, best lock, thumb turns
- Bottom bar: stainless steel double angle, structural steel angle construction (galvanized steel only), extruded aluminum, sloped
- Bottom edge: astragal, pneumatic or electric sensing edge
- Spring: up to 200k cycle, options available dependent on door size and weight
- Perimeter seals: angled guide brush seal, clip-on vinyl guide seal, exterior lintel weather seal, interior weather baffle
- End covers
- Fascia
- Drop stop device
- Pass door
- Vision slat
Operation Options
- Manual push up
- Crank (awning, wall)
- Chain hoist
- Motor
- Through wall
Wind Load Options
- Wind locks alternating or continuous with windbar
- Articulating Windlocks for Operational wind load
- Options available to meet up to Dade County – Florida Building Commission High Velocity Hurricane Zone (FBC HVHZ)
Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.
*Proper wind load option selection is the responsibility of the business owner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.
