SteelForm™ S-24C

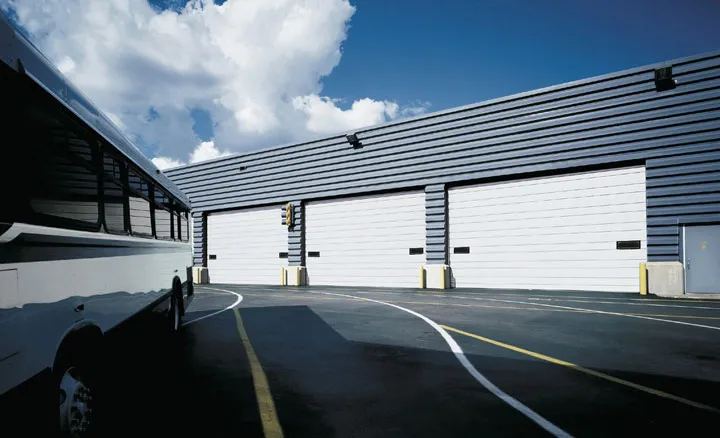

A simple solution for typical commercial and industrial door applications, the SteelForm S-24C commercial sectional ribbed door provides Raynor quality and durability in a limited selection of sizes, features, and options.

more SteelForm™ S-24C details

S-24C Features and Options

Raynor SteelForm S-24C sectional ribbed commercial doors are available with numerous features and options, including those listed below.

QuickDock™ Solution

Raynor’s patent pending QuickDock is engineered to decreases downtime and increases safety during repairs and maintenance. It comes complete with preassembled, palletized sections and the counterbalance assembly is mounted only 16” above the header. QuickDock is available on orders of 36 doors or more.

Rugged Hardware and Springs

The SteelForm S-24C door comes packaged with the right combination of hardware, track, and springs to precisely match your door’s size and application and provides years of reliable service.

Header Seal

Flexible, EPDM rubber flap header seal on S-20, S-24, and S-24C reduces air infiltration and energy costs by sealing the top of the door against the header.

Section Joint Seal

SteelForm S-24C doors are available with a neoprene foam rubber section joint seal to help prevent airflow between sections.

Secure Locks

In applications where control and access are important, choose from a variety of locking options to help keep your building secure. Locks come in both inside and outside variations.

Choice of Windows

Select either 24″ x 8″ or fullview window sections. Choose from a variety of glass, insulated glass, acrylic and polycarbonate styles to suit any application.

Customized Track and Hardware

Track systems are supplied to fit special clearances, inclines or contour applications. Hardware and track systems can be designed to fit any need. Additional trussing is available for special wind loading applications. A QuikClip™ pre-assembled track option is also available.

High-cycle Counterbalance System

For reliable operation in high traffic areas, choose high-cycle torsion springs with 25,000, 50,000, or 100,000 cycle life. For reduced maintenance and ultra-smooth operation in heavy-use applications, choose a weight counterbalance system.

Durable Construction

Constructed with stainless steel rivets and roll-formed tongue-in-groove meeting rails for maximum structural integrity, SteelForm S-20, S-24, and S-24C doors are built to withstand heavy use.

Decreased Energy Costs

The SteelForm S-24C doors help you reduce energy costs with a U-shaped, vinyl bottom weatherseal secured by a sturdy aluminum retainer.

Jamb Seal

Jamb seal also helps to reduce air infiltration and decrease energy costs by sealing the side of the door when closed. Available in EPDM rubber or flexible vinyl flap.

Insulation

SteelForm S-24C doors are available with energy-saving insulation. Choose from white impact-resistant (shown) or steel (26, 24 or 20-Gauge) back covers.

EnduraCote™

The Raynor EnduraCote hardware system comes with springs, track, and hardware that are powder coated to provide a clean, finished look and maximum protection against rust.

Removable Center Posts

Carry-away, swing-up options available for extra-wide openings. Ideal for agricultural or airplane hangar applications.

Carbon Monoxide Vent

Allows you to channel fumes to the outside when door is closed. Available in a variety of sizes.

Riveted Sections

Rivets add strength to the door by making a firm connection between the outer steel and the mutts/end stiles.

Colors

White



Optional Post Paint Process*

Raynor’s ColorWave™ features Sherwin-Williams® next-generation post paint system for your garage door. With 1,500 colors to choose from, home and business owners can couple this elite paint system with state-of-the-art Raynor manufacturing to craft the perfect look for their home or project.

* Not all colors are available in solar reflective paint, colors that are not available as solar reflective cannot be used on polyurethane doors.

Product Details

Door

Type Commercial Sectional Garage Doors
Model SteelForm S-24C
Size 20′ x 16′ Max
Operation Manual, Motor or Hand Chain
IECC Thermal Performance N/A

Sections

Construction 1 or 2-Layer Pan
Material Steel
Surface Texture Smooth Ribbed
Section Joint Tongue-in-Groove
Section Thickness 2″
Gauge Steel; Exterior: 24-Gauge Nominal
Stiles End Stiles: 16-Gauge; Center Stiles: 16-Gauge
Insulation Optional Expanded Polystyrene with Impact-Resistant Covers (7.7 R-value)
Seals Bottom Seal (3″, 4″ EPDM, or 3″ Yellow); Optional Header Seal
Trussing Wind Load: 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard); Material: U-bar (18-Gauge or 20-Gauge)
Panel Configuration NA
Color White. Raynor’s ColorWave™ with 1,500 Sherwin-Williams® colors.
Windows 24″ x 8″ or fullview section; glass: choose from a variety of standard or insulated glass, acrylic, and polycarbonate styles to suit any application

Track

Type Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour, and QuikClip™ Pre-Assembled Track Options
Finish Galvanized
Size 2″ or 3″
Gauge 13, 16-Gauge

Counterbalance System

Type Torsion Spring
Springs Spring Inner Diameter: 2-1/4″, 3-1/2″ or 5-1/2″;
Shafts Tube or Solid (D-Shaft, 1″ Keyed)

Hardware/Accessories

Hinges 11, 13, 14-Gauge or Hybrid
Rollers Standard (2″) or Heavy Duty (2″)
Finish Galvanized
Lock Interior Slide Lock or Exterior Lock Bars
Seal(s) Jamb Seal
Hanger Angle 11, 13-Gauge Galvanized
Pedestrian Door NA
Optional Wind Loading Certified Wind Load Available
Posts N/A

Specs/Drawings

Select a link below to download Raynor SteelForm S-24C specifications and drawings.

  Word PDF Drawings
S-24 Product Specs DOCX PDF
Full Sectional Product Line Specs DOCX PDF
BIM Objects     DWG|RFA

Standard Drawings

2-inch Track/Bracket-Mounted

Normal Headroom DWG Drawing PDF
Lift Clearance DWG Drawing PDF
Vertical Lift DWG Drawing PDF
Low Headroom Front-Mount DWG Drawing PDF
Low Headroom Rear-Mount DWG Drawing PDF

2-inch Track/Angle-Mounted

Normal Headroom DWG Drawing PDF
Lift Clearance DWG Drawing PDF
Vertical Lift DWG Drawing PDF
Low Headroom Front-Mount DWG Drawing PDF
Low Headroom Rear-Mount DWG Drawing PDF

3-inch Track/Angle-Mounted

Normal Headroom DWG Drawing PDF
Lift Clearance DWG Drawing PDF
Vertical Lift DWG Drawing PDF
Low Headroom Front-Mount DWG Drawing PDF
Low Headroom Rear-Mount DWG Drawing PDF

Tech Info

Section and Panel Schedules

Door Width Number of Raised Panels
Up to 9′ 2″ 2
9′ 3″ – 12′ 2″ 3
12′ 3″ – 16′ 2″ 4
Door Height Number of Sections
Up to 8′ 2″ 4
8′ 3″ – 10′ 2″ 5
10′ 3″ – 12′ 2″ 6
12′ 3″ – 14′ 2″ 7
14′ 3″ – 16′ 1″ 8

Literature

Product Literature

Warranty

SteelForm “S” Series Warranty

Door Sections:

Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust-through for ten (10) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

Hardware:

Raynor® warrants all hardware against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

Springs:

Raynor® warrants springs against defects in material and workmanship for one (1) year from date of delivery. The limited warranty for special high-cycle springs is prorated by percentage of cycle use, and must be determined by the use of a non-resettable cycle counter.

ColorWave™ Paint System:

Raynor provides a five-year warranty for the ColorWave Paint System (exterior only) against chipping, cracking, and peeling (loss of adhesion) from the date of delivery to the original purchaser. This warranty covers defects in materials and workmanship under normal use and proper maintenance. Please note that fading, as well as chipping, cracking, or peeling caused by dents or scratches, are not included in this coverage. Additionally, for doors made with polyurethane insulation, a solar reflective paint formulation is required to maintain the warranty. Ordering a color that does not meet this requirement will void the warranty for the ColorWave Paint System. Field applied paint is not covered by this warranty. This warranty applies only to the original purchaser and may be subject to inspection before approval of any claim.

Warranty Limitations and Exclusions:

Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an qualified installer. This warranty applies only to door systems that are professionally installed by an authorized Raynor Dealer.

This limited warranty extends only to the original purchaser, provided the door is installed in the original purchaser’s place of business. This limited warranty is not transferable.

This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor EnergyCore series, ThermaSeal Series, Commercial Country Manor and Commercial Aspen series doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.

This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. It also does not apply to damage or deterioration caused by saltwater coastal areas, hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.

This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.

Raynor shall not be liable for any consequential or incidental damages.

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
